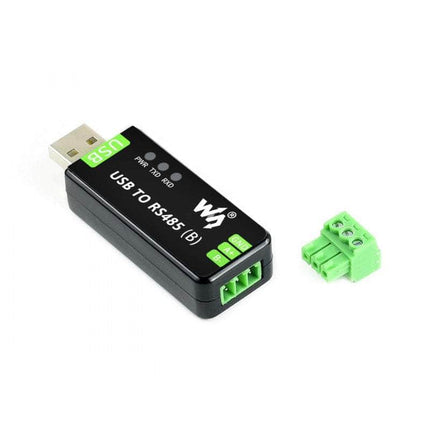

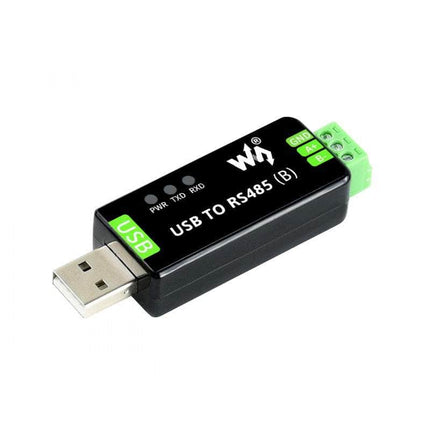

Industrial USB TO RS485 Bidirectional Converter

Description

Description


Industrial USB TO RS485 Bidirectional Converter

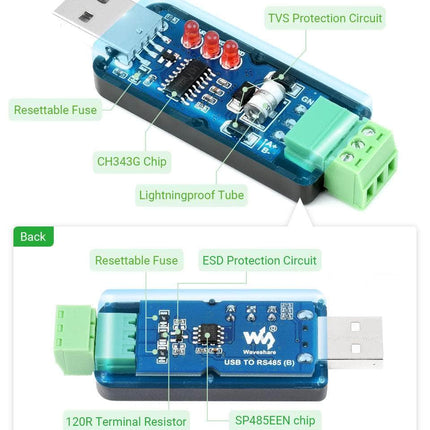

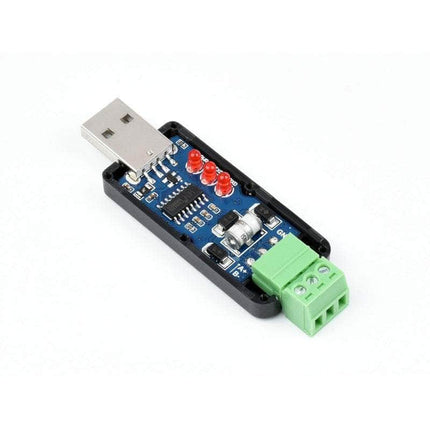

Industrial USB TO RS485 Bidirectional Converter, Onboard Original CH343G, Multi-Protection Circuits

Features:

  • Support USB to RS485 bidirectional conversion
  • Fast communication, stable and reliable, better compatibility
  • Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning proof & anti-electrostatic
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock resistance
  • 3 LEDs for indicating the power and transceiver status
Specifications
PRODUCT TYPE Industrial Grade USB to RS485 converter
HOST PORT USB
DEVICE PORT RS485
BAUDRATE 300bps ~ 3Mbps
USB Operating voltage 5V
Connector USB-A
Protection 200mA self-recovery fuse, ESD protection
Transmission distance About 5m
RS485 Connector Screw terminal
Pins A+, B-, GND
Direction control Hardware automatic control
Protection 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance About 1.2km(low rate)

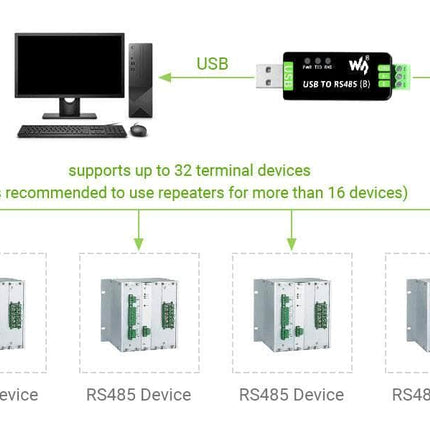

Transmission mode Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

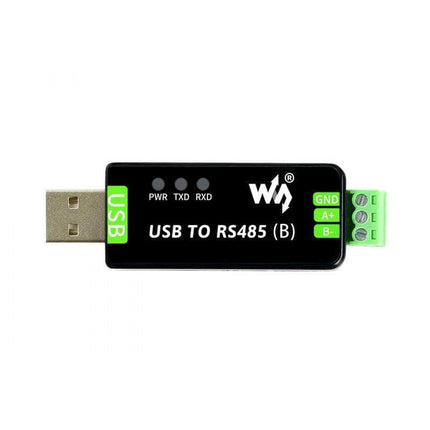

LED INDICATORS PWR Red power indicator, light up when there is USB connection and voltage is detected
TXD Red TX indicator, light up when the USB port sends data
RXD Red RX indicator, light up when the device ports send data back
OPERATING ENVIRONMENT Temperature -15℃ ~ 70℃
Humidity 5%RH ~ 95%RH
OPERATING SYSTEM Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP



Link to Wiki


Industrial USB TO RS485 Bidirectional Converter

Product form

SKU: USB TO RS485 (B)

$35.00 $25.00 Excl. GST

$25.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
