Arducam AutoFocus USB UVC Camera Digital PTZ B0561

Description

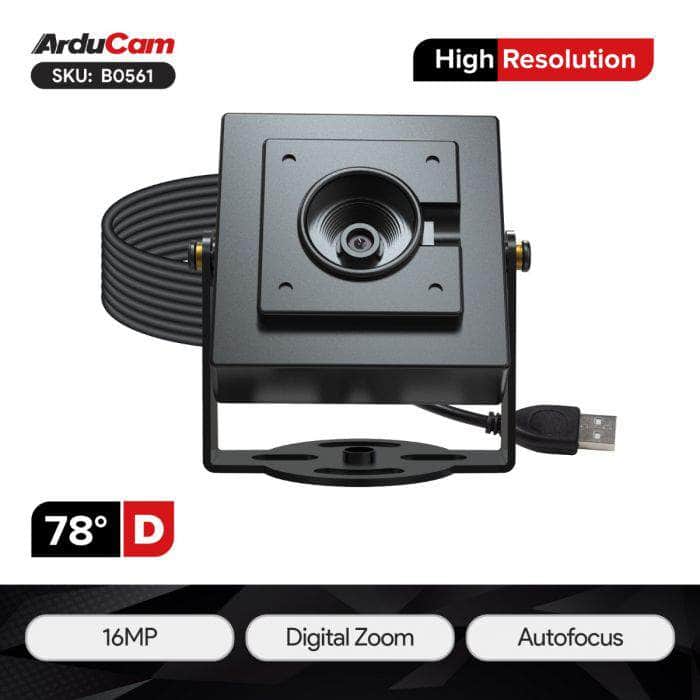

16MP AutoFocus USB2.0 UVC Camera, Full Sensor Coverage, Digital PTZ, Arducam ezBOX-Klarity

Overview

ezBOX-Klarity offers precision in every pixel with its SONY 16MP Color Sensor, featuring a 1.12um x 1.12um pixel size. It maximises the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. This camera is perfect for applications requiring exceptional clarity and precision, with resolutions up to 16MP. Additionally, it provides enhanced flexibility at lower resolutions (480p, 720p, 1080p), allowing for digital Pan-Tilt-Zoom (PTZ) adjustments to optimise composition

Applications

  • Robotics
  • Precision Agriculture
  • Medical and Scientific Research
  • Document Scanning and Archiving
  • Broadcast and Media Production
  • We Welcome You to Test: Explore the ezBOX-Swift in your own applications and share your results with us—or contact us for custom orders tailored to your specific needs!

Features

  • ezBOX-Klarity: Precision in Every Pixel for Exceptional Clarity
  • SONY 16MP Color Sensor for Ultra-High Definition: The ezBOX-Klarity features a SONY 16MP color sensor with 1.12µm x 1.12µm pixel size, delivering ultra-high-definition imaging. Its ability to capture intricate details makes it ideal for medical imaging, scientific research, and applications requiring exceptional clarity.
  • Digital PTZ Adjustments for Flexible Composition: The Klarity offers digital PTZ (Pan-Tilt-Zoom) adjustments at lower resolutions (480p, 720p, 1080p), allowing users to optimize composition without physically moving the camera. This feature enhances flexibility in framing and focusing, particularly in constrained environments.
  • Maximised Active Sensor Area for Optimal Quality: Like the ezBOX-HDR, the ezBOX-Klarity maximises its sensor’s active area, ensuring no pixel is wasted. This results in sharper, more detailed images, making it a powerful tool for applications where precision and image quality are critical.

Specifications

Image Sensor
Sensor SONY 16MP Color Sensor
Still Resolution 16 Megapixels
Color Filter Type Color
Shutter Type Rolling
Optical Size 1/2.8″
Output Format MJPG
Pixel Size 1.12 µm x 1.12 µm
Sensor Active Area 4656(H) x 3496(V)
IR Sensitivity Integral 650nm IR Filter, visible light only
Frame Rate 4656x3496@10fps, 4000x3000@15fps, 3840x2160@25fps, 3264x2448@25fps, 2592x1944@25fps, 1920x1080@25fps
Lens

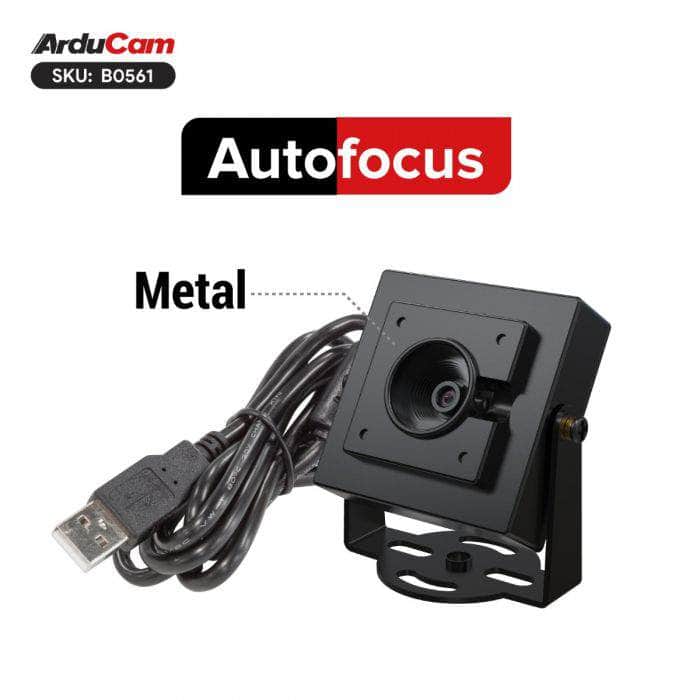

Focus Type Autofocus

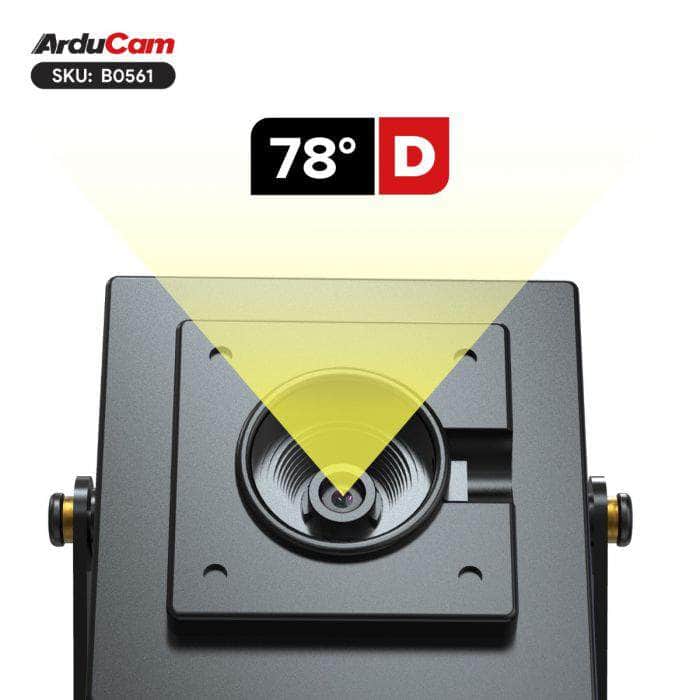

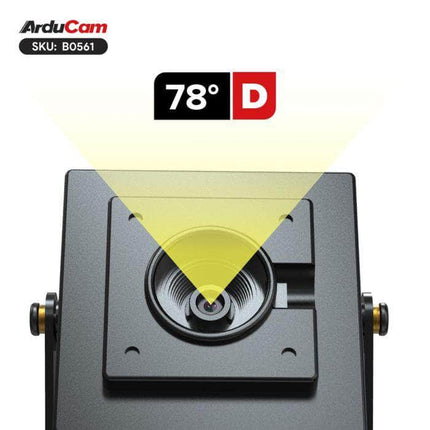

FOV 78°(D)×65°(H)×52°(V)
Lens Mount Stock Lens
F.NO F1.8
E.F.L 3.95mm
Default Focus Range 10cm-∞
USB Interface
Interface USB 2.0 Device
Connector B4B-ZR JST
UVC Compliant No additional drivers required
Electrical and Mechanical
Operating Voltage 5V
Operating Temp. 32°F-158°F (0°C to 70°C)
Power Consumption 1.75W

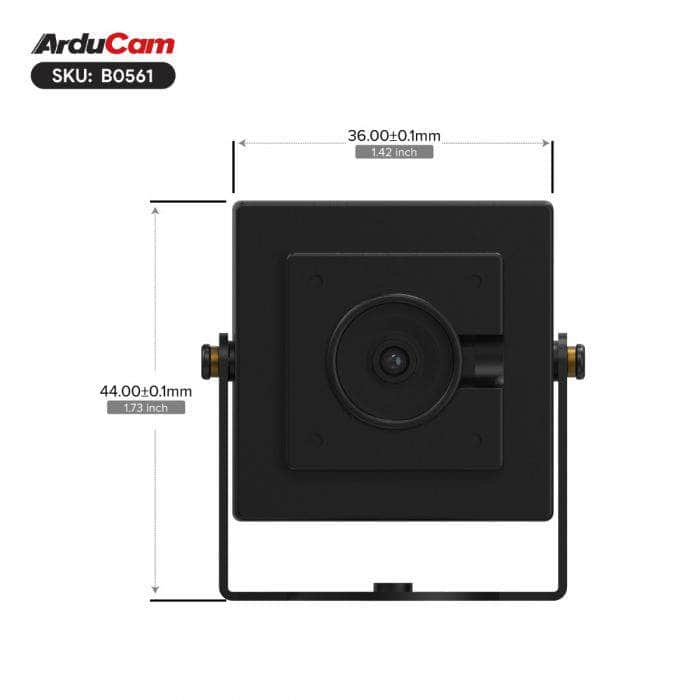

Camera Board Size 32mmX32mmX1.6mm
Functionality and Compatibility
Supported OS Windows, Linux
Recommend Sample Application Amcap for Windows, qv4l2 for Linux
UVC Controls Brightness, Contrast, Saturation, PTZ (Pan/Tilt/Zoom), White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

Package Including

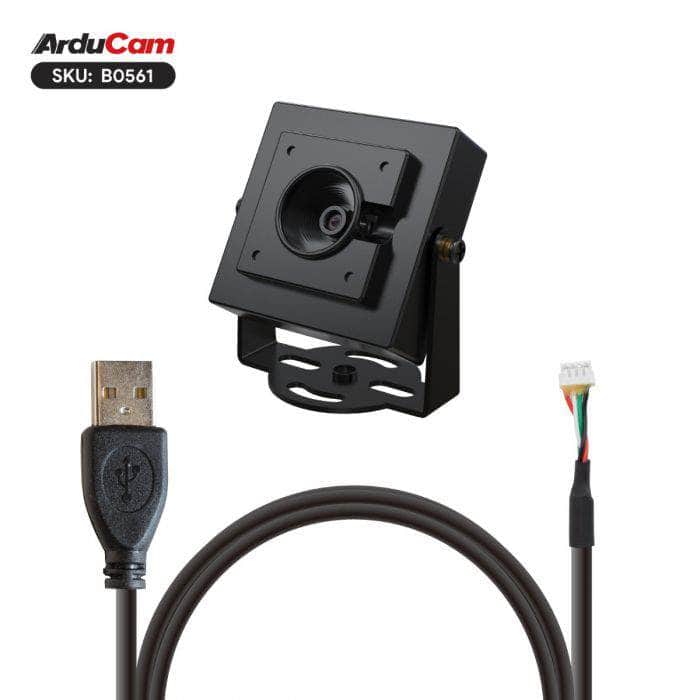

  • 1 x 16MP High Resolution Color USB2 UVC Camera

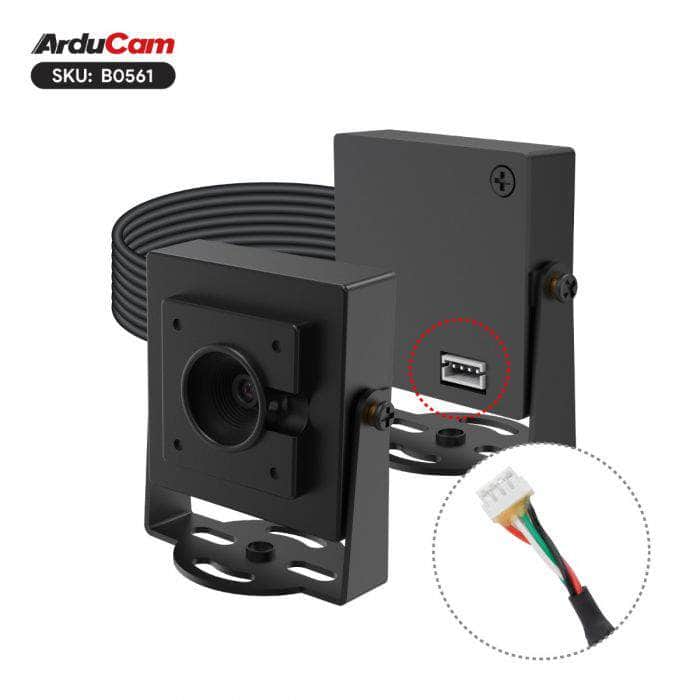

  • 1 x 1m USB2 to B4B-ZR JST Cable

ColourDocumentation

Read more

Arducam AutoFocus USB UVC Camera Digital PTZ B0561

Product form
Free pickup in our shop(s)

SKU: B0561

$139.00 $119.00 Excl. GST

$139.00 $119.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    16MP AutoFocus USB2.0 UVC Camera, Full Sensor Coverage, Digital PTZ, Arducam ezBOX-Klarity

    Overview

    ezBOX-Klarity offers precision in every pixel with its SONY 16MP Color Sensor, featuring a 1.12um x 1.12um pixel size. It maximises the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. This camera is perfect for applications requiring exceptional clarity and precision, with resolutions up to 16MP. Additionally, it provides enhanced flexibility at lower resolutions (480p, 720p, 1080p), allowing for digital Pan-Tilt-Zoom (PTZ) adjustments to optimise composition

    Applications

    • Robotics
    • Precision Agriculture
    • Medical and Scientific Research
    • Document Scanning and Archiving
    • Broadcast and Media Production
    • We Welcome You to Test: Explore the ezBOX-Swift in your own applications and share your results with us—or contact us for custom orders tailored to your specific needs!

    Features

    • ezBOX-Klarity: Precision in Every Pixel for Exceptional Clarity
    • SONY 16MP Color Sensor for Ultra-High Definition: The ezBOX-Klarity features a SONY 16MP color sensor with 1.12µm x 1.12µm pixel size, delivering ultra-high-definition imaging. Its ability to capture intricate details makes it ideal for medical imaging, scientific research, and applications requiring exceptional clarity.
    • Digital PTZ Adjustments for Flexible Composition: The Klarity offers digital PTZ (Pan-Tilt-Zoom) adjustments at lower resolutions (480p, 720p, 1080p), allowing users to optimize composition without physically moving the camera. This feature enhances flexibility in framing and focusing, particularly in constrained environments.
    • Maximised Active Sensor Area for Optimal Quality: Like the ezBOX-HDR, the ezBOX-Klarity maximises its sensor’s active area, ensuring no pixel is wasted. This results in sharper, more detailed images, making it a powerful tool for applications where precision and image quality are critical.

    Specifications

    Image Sensor
    Sensor SONY 16MP Color Sensor
    Still Resolution 16 Megapixels
    Color Filter Type Color
    Shutter Type Rolling
    Optical Size 1/2.8″
    Output Format MJPG
    Pixel Size 1.12 µm x 1.12 µm
    Sensor Active Area 4656(H) x 3496(V)
    IR Sensitivity Integral 650nm IR Filter, visible light only
    Frame Rate 4656x3496@10fps, 4000x3000@15fps, 3840x2160@25fps, 3264x2448@25fps, 2592x1944@25fps, 1920x1080@25fps
    Lens
    Focus Type Autofocus
    FOV 78°(D)×65°(H)×52°(V)
    Lens Mount Stock Lens
    F.NO F1.8
    E.F.L 3.95mm
    Default Focus Range 10cm-∞
    USB Interface
    Interface USB 2.0 Device
    Connector B4B-ZR JST
    UVC Compliant No additional drivers required
    Electrical and Mechanical
    Operating Voltage 5V
    Operating Temp. 32°F-158°F (0°C to 70°C)
    Power Consumption 1.75W
    Camera Board Size 32mmX32mmX1.6mm
    Functionality and Compatibility
    Supported OS Windows, Linux
    Recommend Sample Application Amcap for Windows, qv4l2 for Linux
    UVC Controls Brightness, Contrast, Saturation, PTZ (Pan/Tilt/Zoom), White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

    Package Including

    • 1 x 16MP High Resolution Color USB2 UVC Camera
    • 1 x 1m USB2 to B4B-ZR JST Cable

    ColourDocumentation

    Read more
