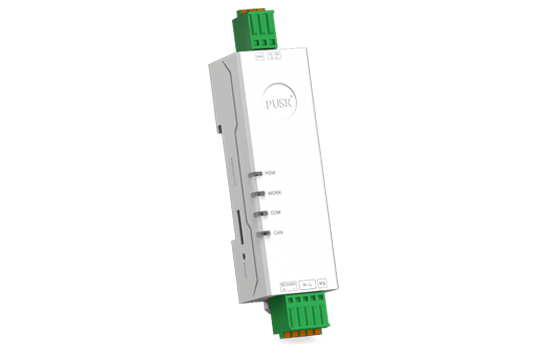

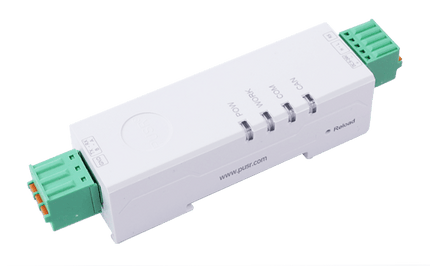

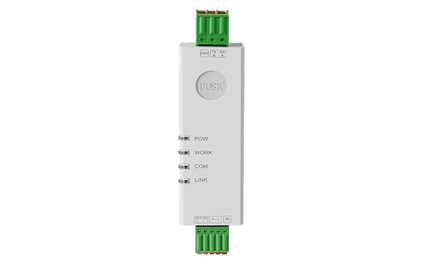

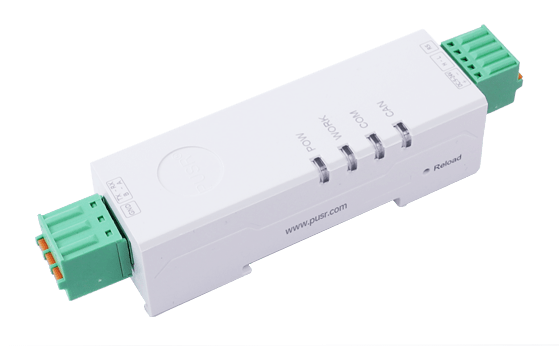

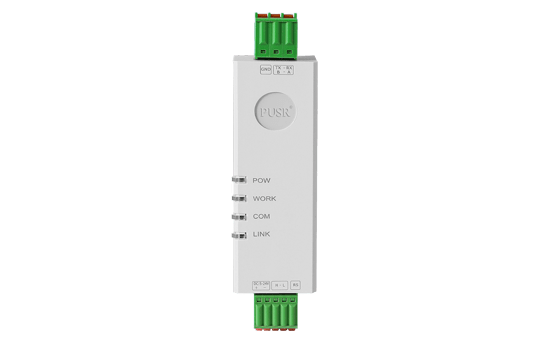

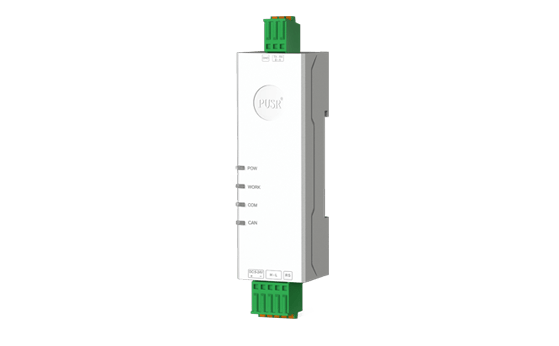

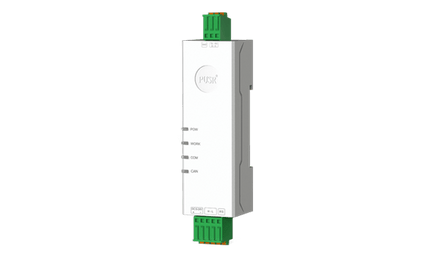

Classify
|
Parameter
|
NumericalValue
|
|
Basic
Parameters
|
WorkingVoltage
|
DC5~24V,recommended 12V 1A
|
|
Size
|
74*24*22mm (L *W *H)
|
|
InstallationMethod
|
RailMounting
|
|
ReloadKey
|
Press and hold to restore factory settings
|
|
IndicatorLight
|
POWER、WORK、COM、CAN
|
|
Interface
parameter
|
CAN portSpecification
|
1*CAN port, support standard CAN2.0A/B, press terminal wiring
|
|
CAN portBaudRate
|
5kbps ~ 1000kbps, support custom
|
|
TerminalResistance
|
Built-in CAN bus 120Ω termination resistor
|
|
Serial port specification
|
USR-CAN114:1*RS485, press terminal wiring
USR-CAN112:1*RS232, press terminal wiring
|
|
Serial port
BaudRate
|
600-230.4K（bps）
|
|
Data bits
|
7、8
|
|
Stop bit
|
1、2
|
|
Parity bit
|
When the data bit is 7 bits, it supports Odd, Even, Mark and Space;
When the data bit is 8 bits, None, Odd and Even are supported.
|
|
work-environment
|
OperatingTemperature
|
-40~85℃
|
|
StorageTemperature
|
-40~105℃
|
|
OperatingHumidity
|
5%~95% RH(no condensation)
|
|
StorageHumidity
|
5%~95% RH(no condensation)
|
|
SoftwareFunction
|
Conversion
OfMode
|
Transparent conversion, Transparent band ID conversion,
Standard conversion, Modbus conversion,
Customize frame header and frame tail
|
|
CAN ID
|
Support standard frame, remote frame
|
|
Frame IDFiltering
|
Support standard frames only, remote frames only, custom input frame IDs (up to 14 groups)
|
|
SerialPacketLength
|
Support custom packet length
|
|
SwitchDirection
|
Support bidirectional conversion, serial to CAN only, CAN to serial only
|
|
FirmwareUpgrade
|
Support firmware upgrade on PC
|
|
ParameterConfiguration
|
AT command, PC software configuration
|
|
Protection parameter
|
ElectrostaticProtection
|
Air discharge 8kV
|
|
Electrical Fast Transient
|
Power supply circuit 2kV; Serial CAN port circuit 1kV
|
|
SurgeInterferenceTest
|
Power supply circuit 1kV; CAN port circuit 2kV
|
