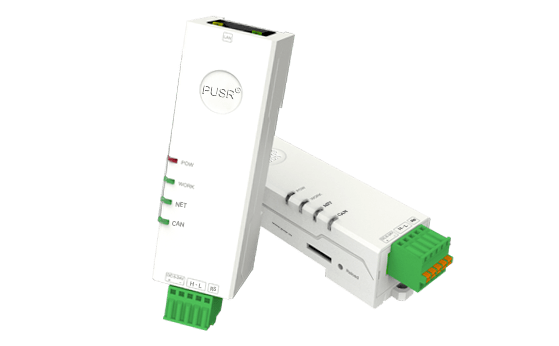

Classify
|
Parameter
|
NumericalValue
|
|
Basic
Parameter
|
WorkingVoltage
|
DC5~24V,recommended 12V 1A
|
|
Size
|
74*24*22mm (length * width * height, excluding terminals)
|
|
InstallationMethod
|
Rail mounting
|
|
ReloadKey
|
Press and hold to restore factory settings
|
|
Indicator light
|
POWER、WORK、NET、CAN
|
|
Interface
Parameter
|
CAN port specification
|
1-way CAN port, support standard CAN2.0A/B, press terminal wiring
|
|
CAN port
Baud rate
|
5k bps ~ 1000k bps, support custom
|
|
TerminalResistance
|
Built-in CAN bus 120Ω termination resistor
|
|
Ethernet Port
Specification
|
RJ45, 10/100Mbps, Cross-Direct Adaptive
|
|
Indicator light
|
POWER、WORK、NET、CAN
|
|
work-environment
|
OperatingTemperature
|
-40~85℃
|
|
StorageTemperature
|
-40~105℃
|
|
OperatingHumidity
|
5%~95% RH(no condensation)
|
|
StorageHumidity
|
5%~95% RH(no condensation)
|
|
SoftwareFunction
|
NetworkingProtocol
|
TCP server、TCP client、UDP server、UDP client
|
|
Conversion
of mode
|
Transparent conversion, Transparent band ID conversion, Standard conversion
|
|
CAN ID
|
Support standard frame, extended frame
|
|
Frame ID filtering
|
Support standard frames only, remote frames only, custom input frame IDs (up to 14 groups)
|
|
Packet Frame Time
|
Support custom packaging frame number and custom packaging time
|
|
SwitchDirection
|
Support bi-directional conversion, only network port to CAN, only CAN to network port
|
|
WorkPattern
|
Normal, Loop, Hear Only
|
|
Firmware Upgrade
|
Support firmware upgrade on PC
|
|
ParameterConfiguration
|
AT command, PC software configuration
|
|
Other functions
|
Heartbeat package, registration package
|
|
ProtectionParameter
|
ElectrostaticProtection
|
Air discharge 8kV, contact discharge 6kV
|
|
ElectricalFastPulseTrain
|
Power supply circuit 2kV;Ethernet/ CAN port circuit 1kV
|
|
SurgeInterferenceTest
|
Differential mode 1kV, common mode 2kV in power supply circuit;
common mode 2kV in CAN port circuit; 1kV in network port circuit
|
