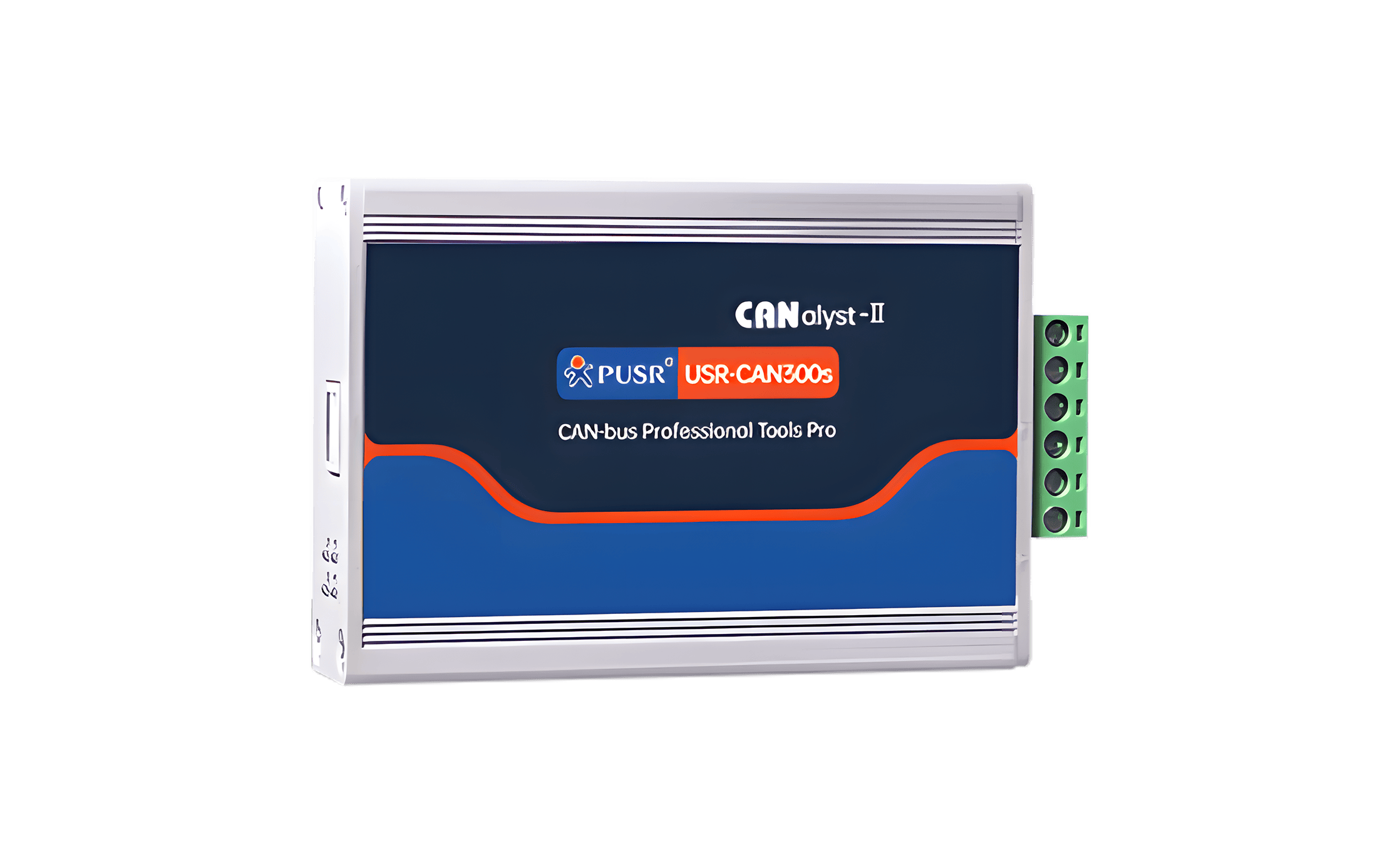

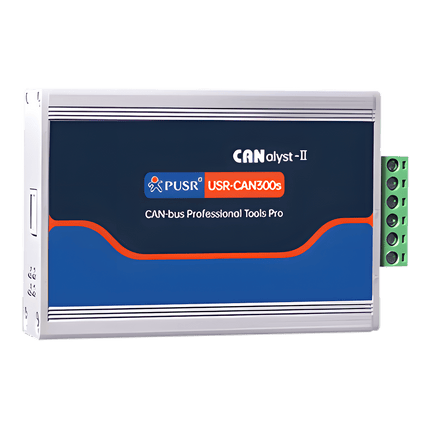

Project
|

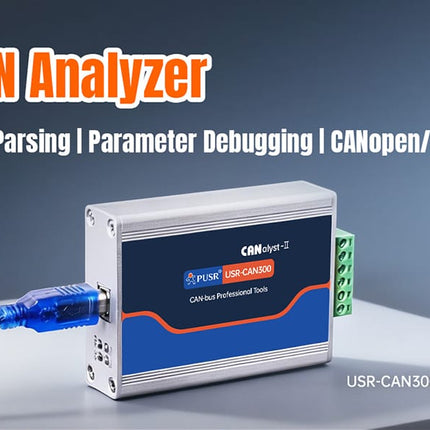

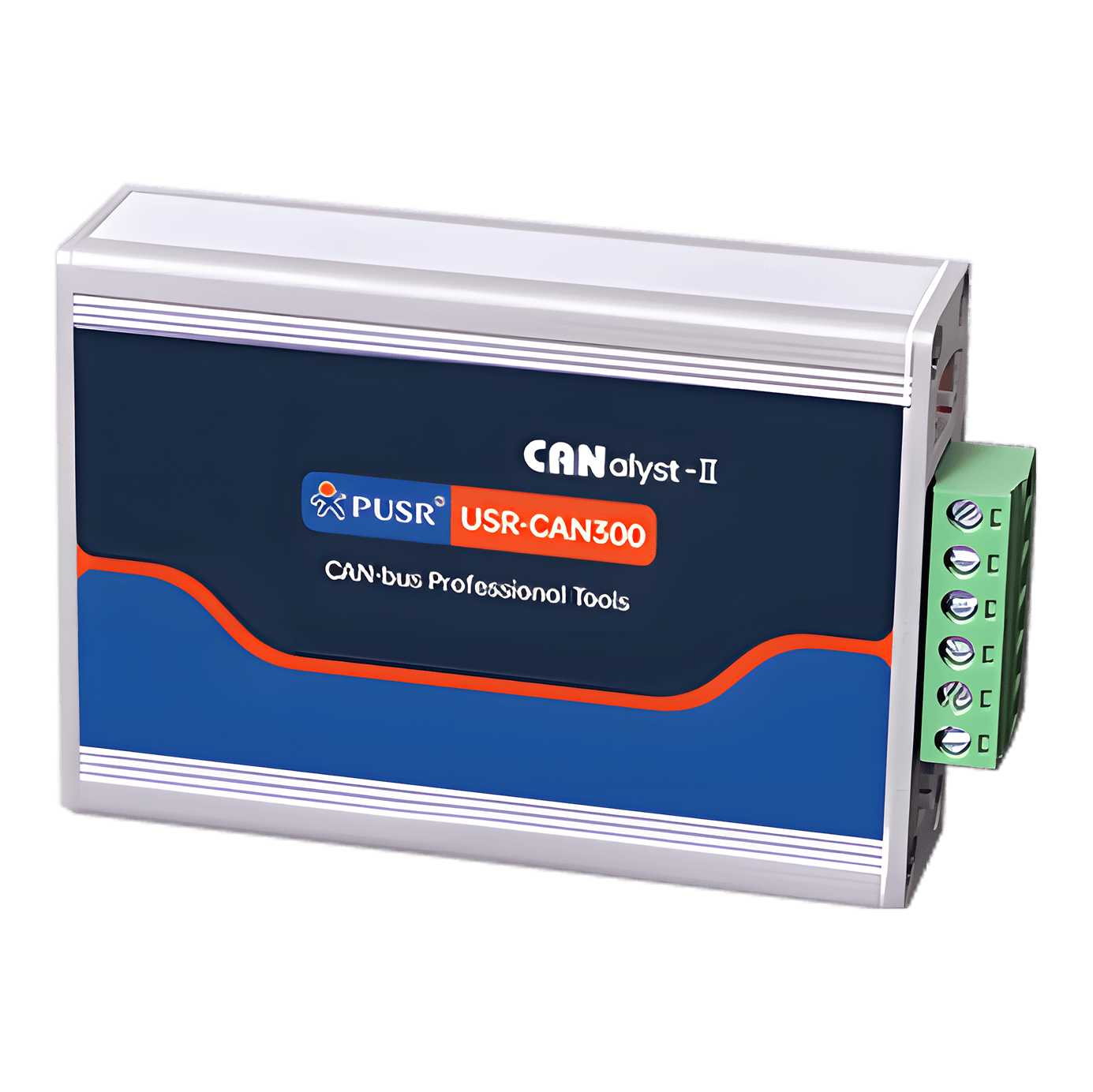

Description
|
|
essential parameter
|
working voltage
|
The USB bus operates directly without requiring an external power supply。Voltage: 4.5V-5.5V, Current: 100mA-200mA
|
|

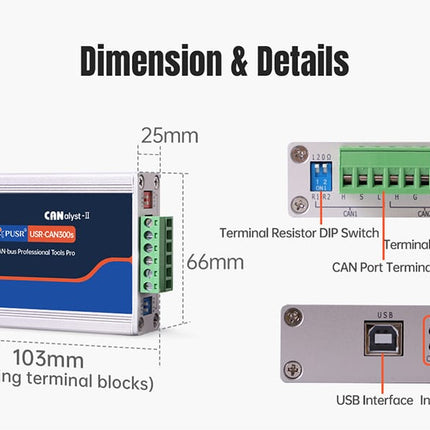

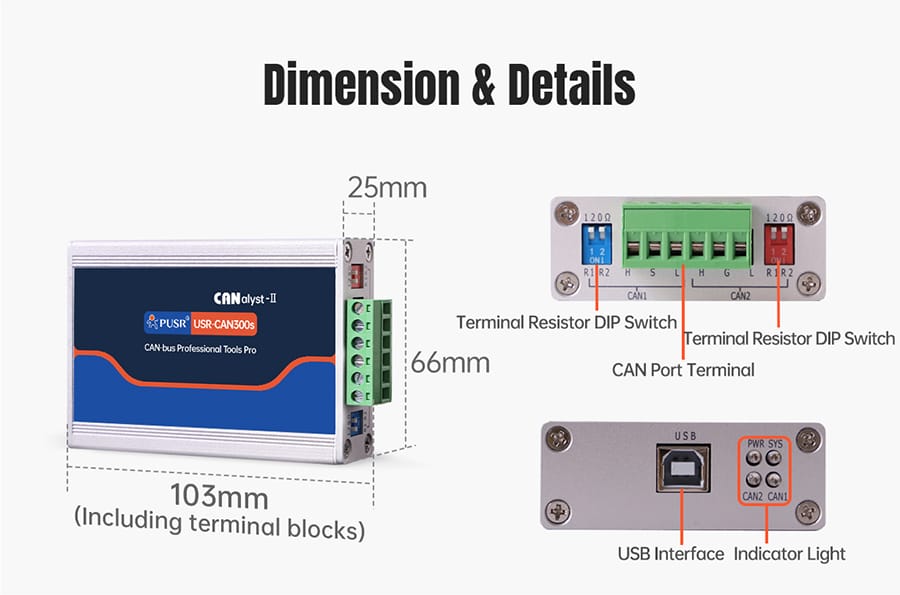

size
|
103*66*25mm
|
|
pilot lamp
|
PWR、SYS、CAN1、CAN2
|
|
interface parameters
|

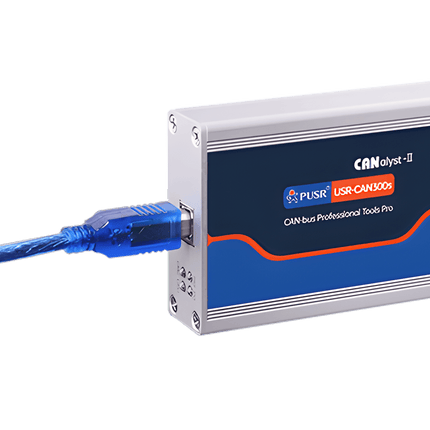

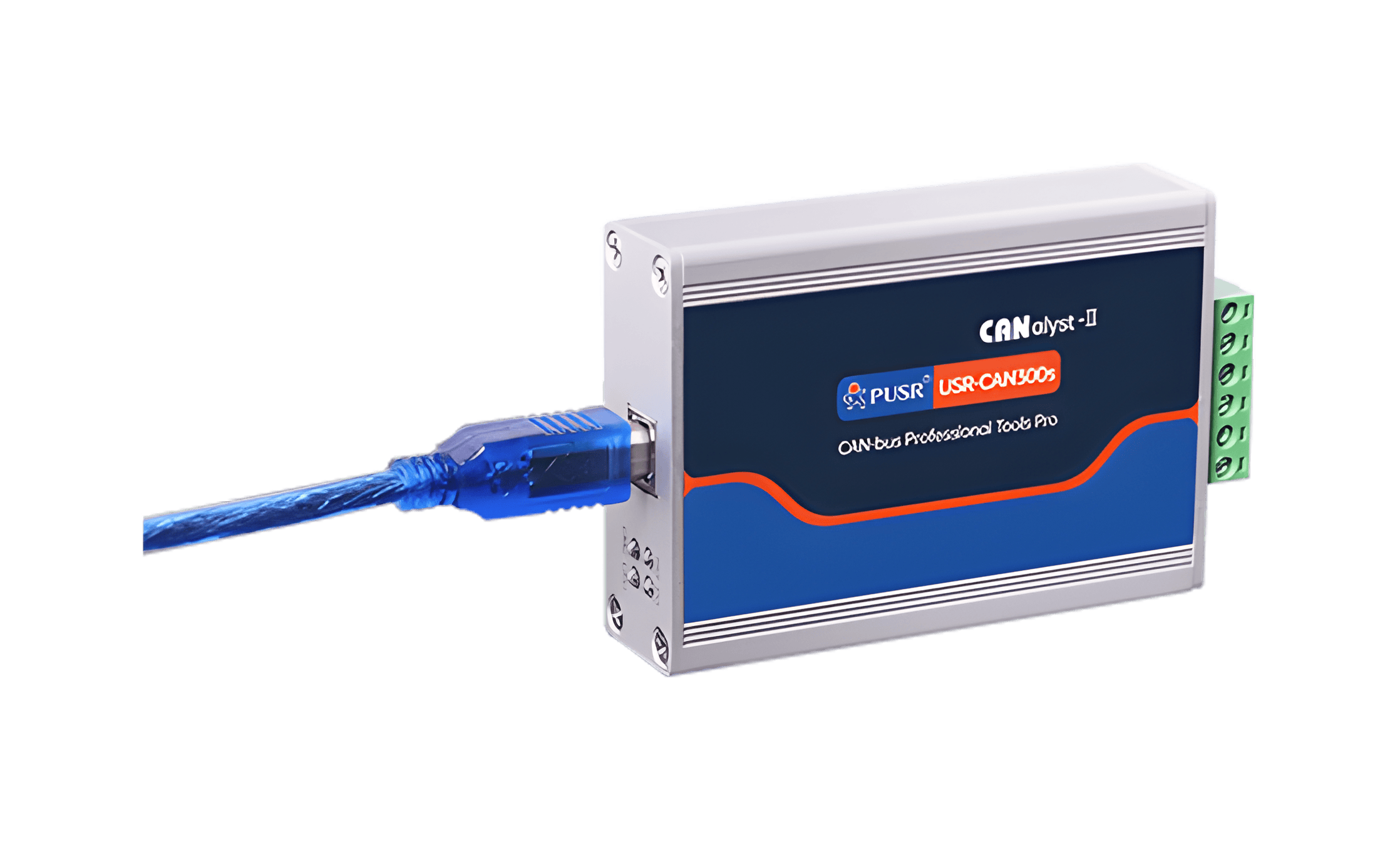

USB port specifications
|
The USB interface supports USB 3.0 and USB 2.0, and is compatible with USB 1.1 and OTG standards.
|
|
CAN port specifications
|
Two CAN ports supporting CAN2.0A and CAN2.0B protocols, with compatibility for both standard and extended frames.
|
|
CAN port baud rate
|
The speed range is 10Kbps to 1Mbps, configurable via software.
|
|

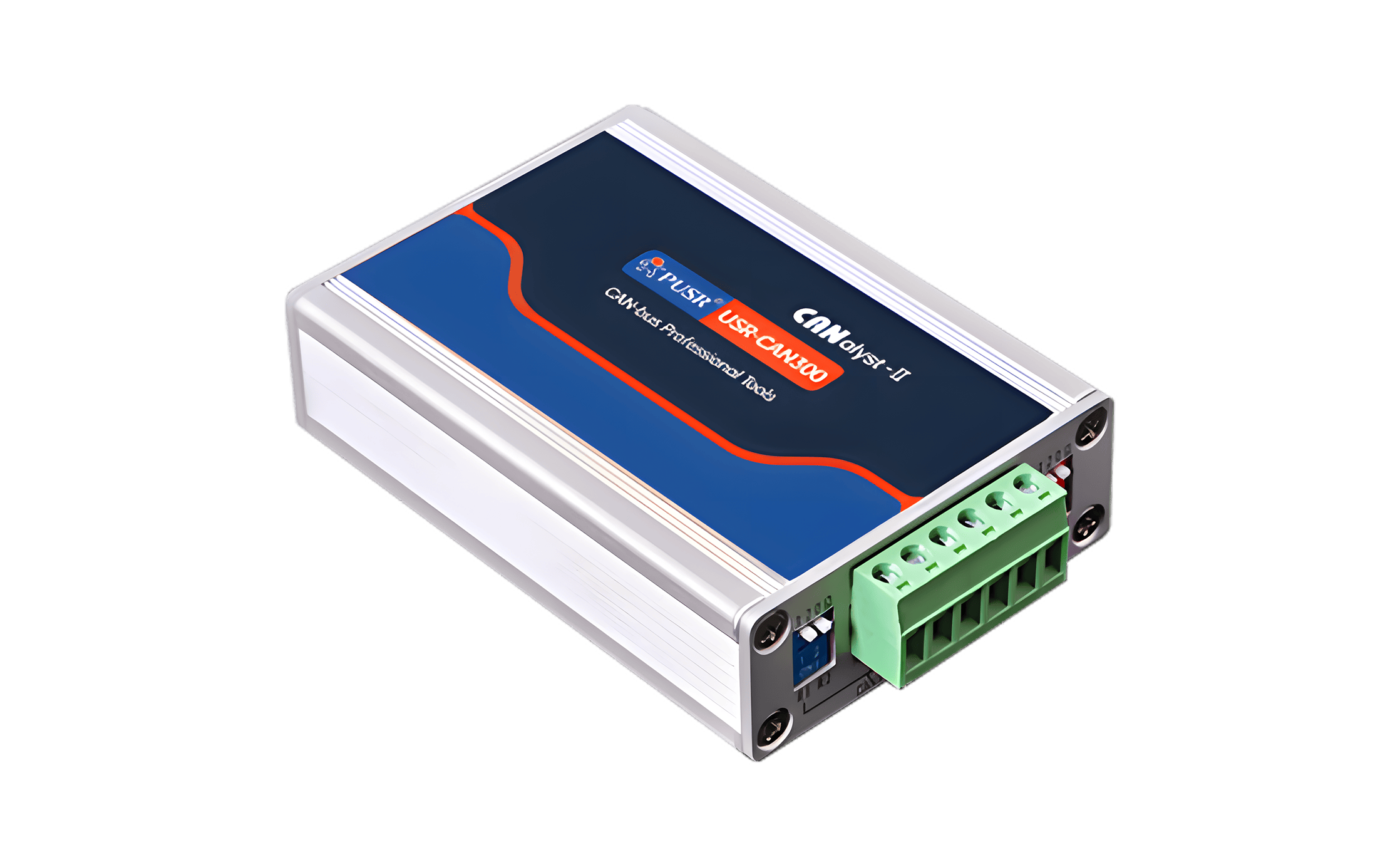

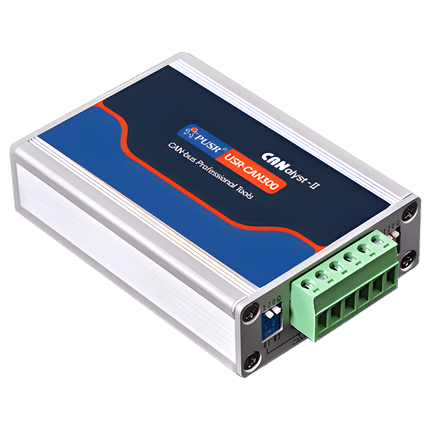

terminal resistance
|
Each CAN port is equipped with two CAN bus 120Ω terminal resistors.
Connect the resistor via dial code control by setting any digit to ON, then connect a 120Ω resistor in parallel.
Set both dial switches to ON and connect two 120-ohm resistors in parallel.
|
|
work environment
|
working temperature
|
-20~85℃
|
|
Working humidity
|
5%～95% RH (no condensation)
|
|
Isolation protection
|
Isolation performance
|
The CAN bus interface employs high-speed signal isolation and isolated DC-DC power supply; USB, CAN1, and CAN2 ports are completely isolated from each other.
|
|
Isolation voltage
|
Insulation voltage of isolation module: 2500VDC
|
|
product function
|
basic function
|

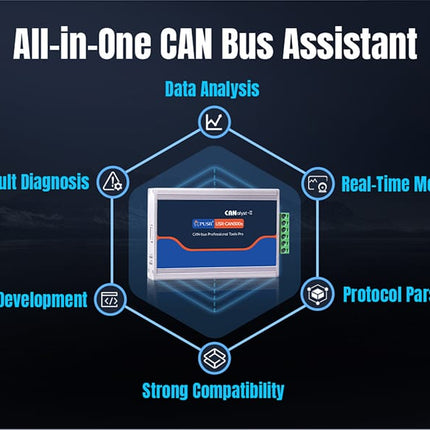

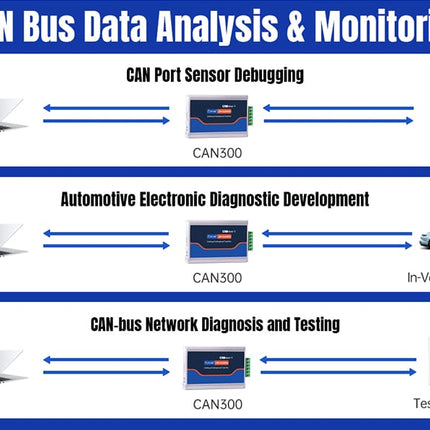

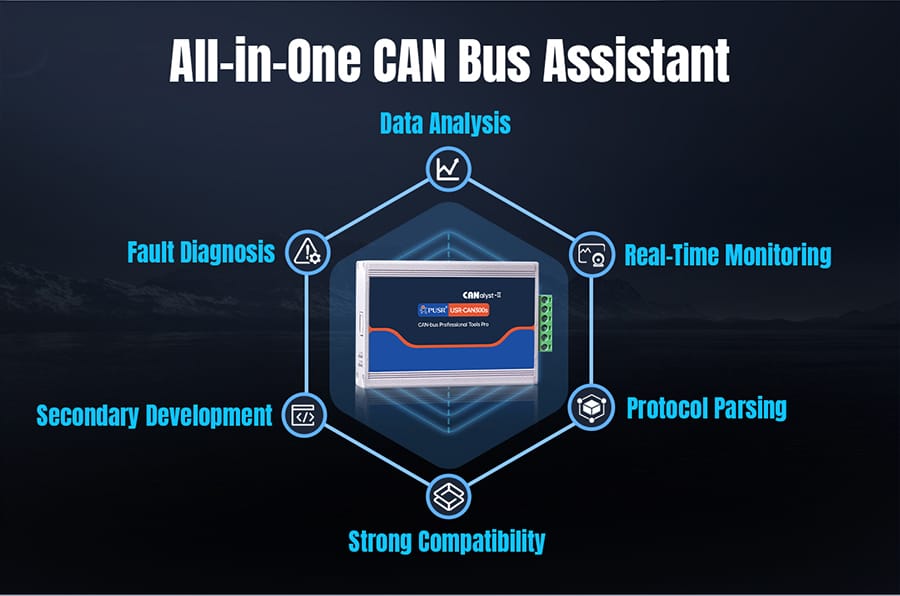

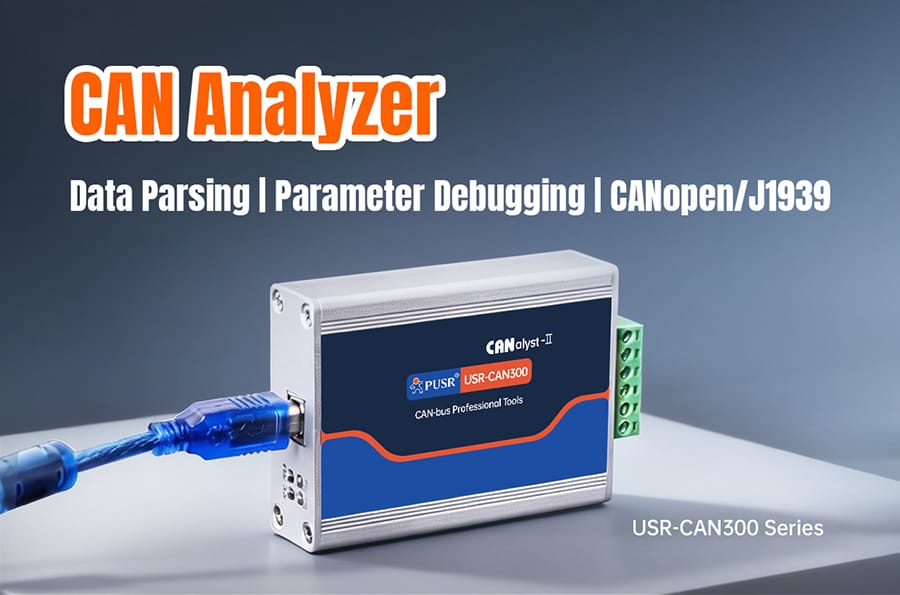

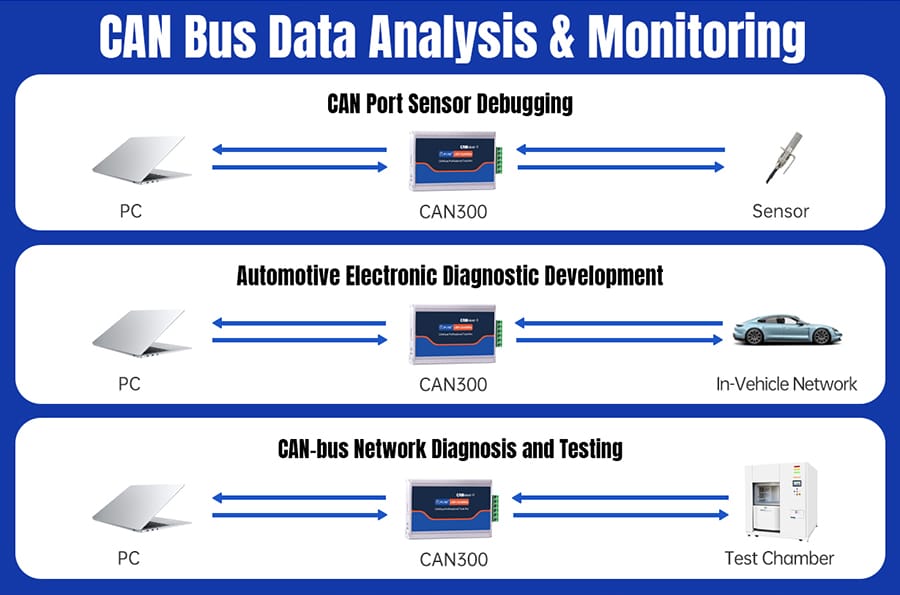

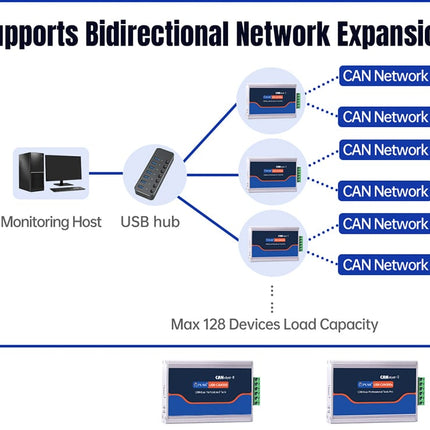

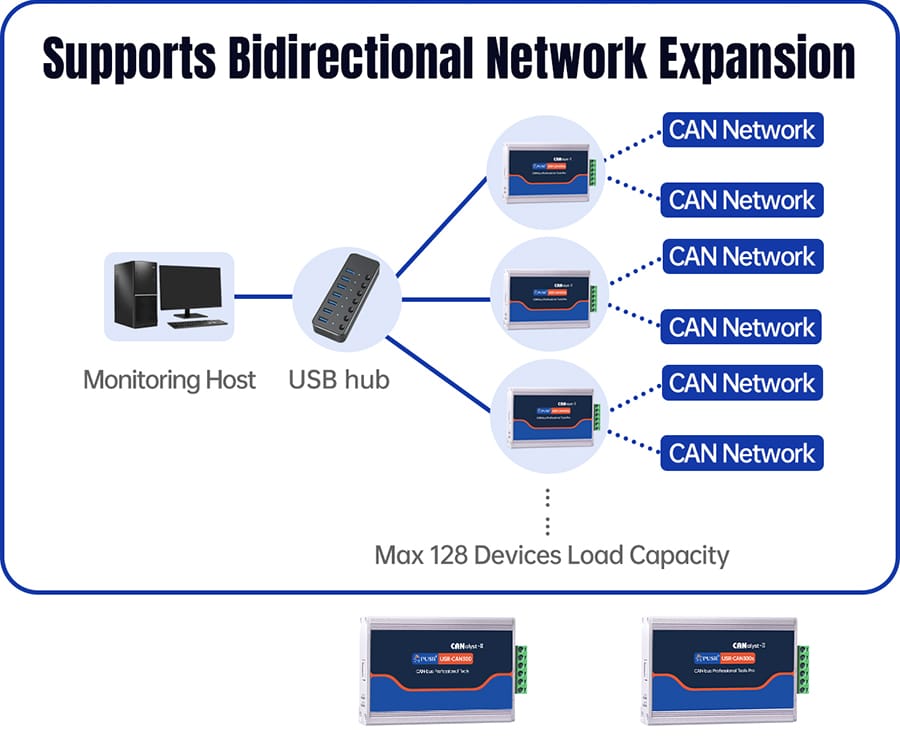

Supports protocol conversion between USB and CAN bus, enabling CAN bus data analysis, network data acquisition, error diagnosis, and real-time monitoring.
|
|

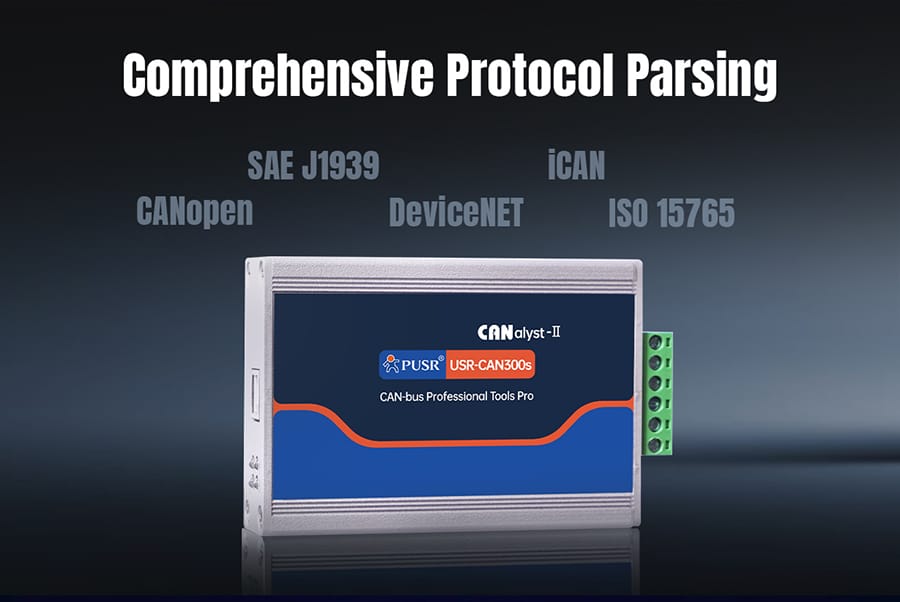

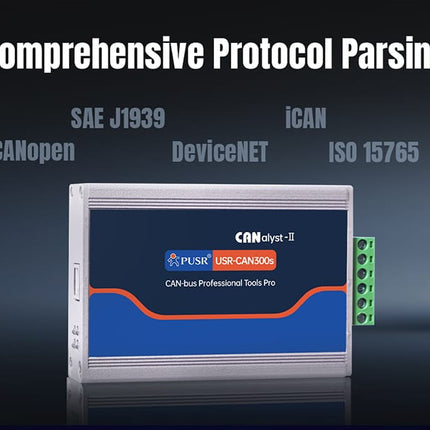

Protocol parsing
|
Supports high-level protocols including CANopen, J1939, DeviceNET, and ISO 15765.
|
|

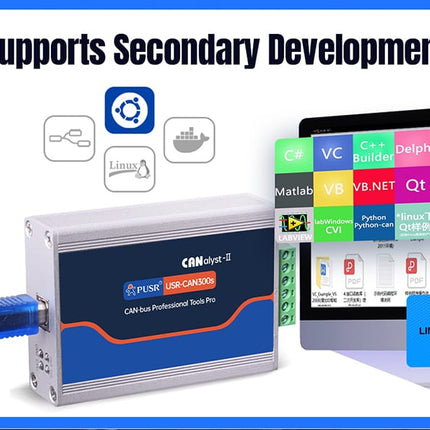

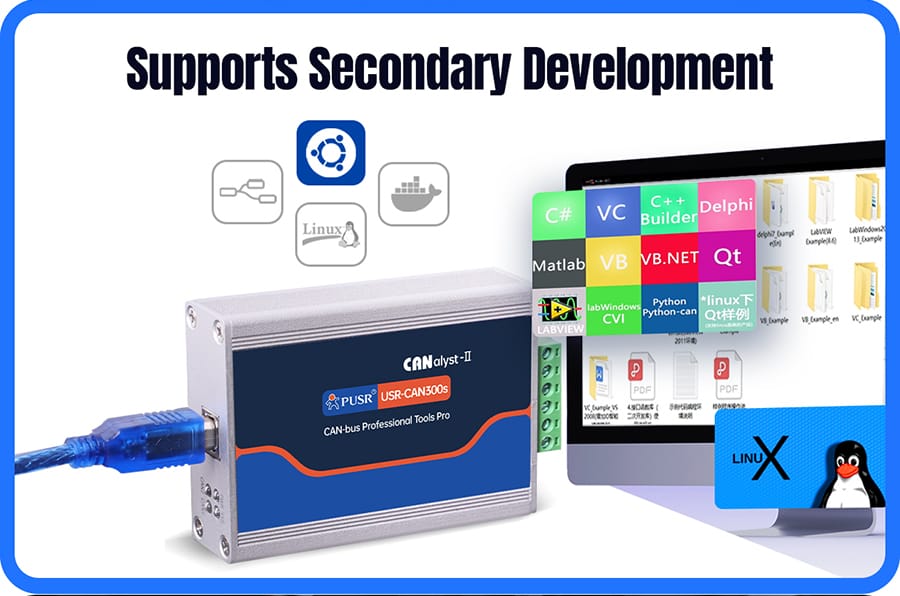

Secondary development
|
Supports C++Builder, C#, Visual C++, VB, VB.NET, Delphi, LABVIEW, LabWindows/CVI, and Matlab for developing custom applications.
|
|

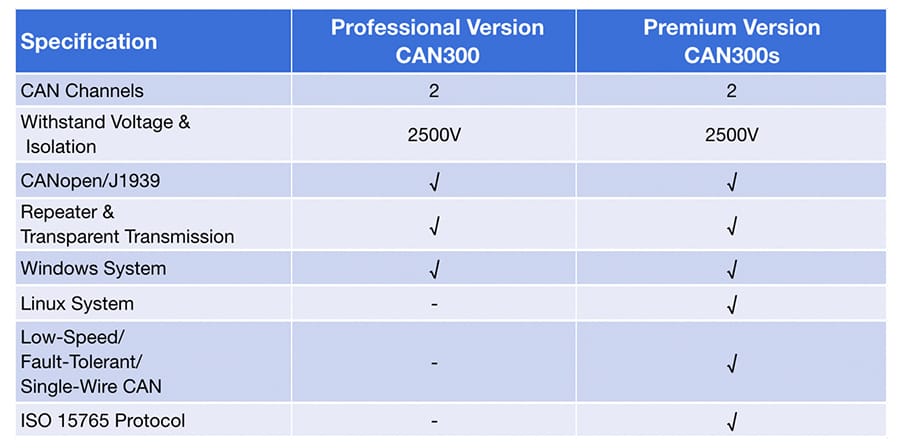

support system
|
Professional Edition CAN300: Compatible with Windows systems;
Top-tier CAN300s model: Supports both Windows and Linux operating systems
|
|
Other features
|

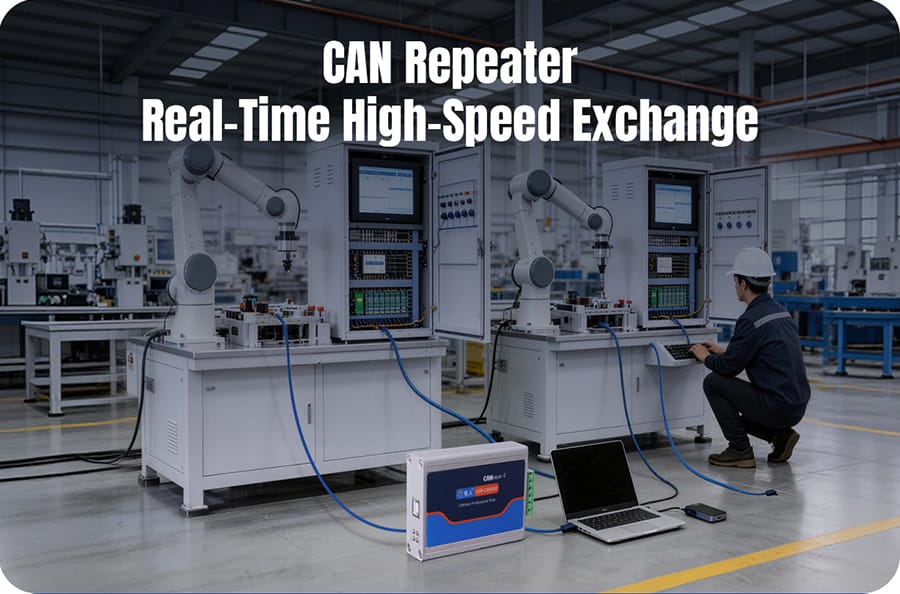

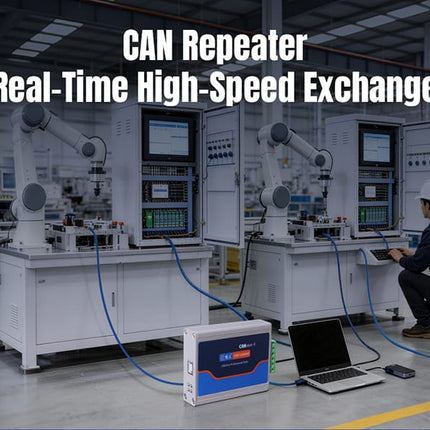

CAN relay and transparent transmission; the top-tier version supports fault tolerance and single-wire CAN communication.
|
