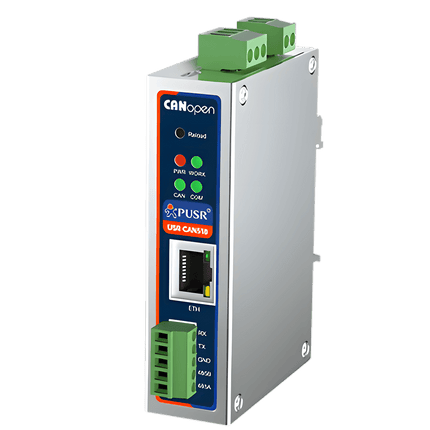

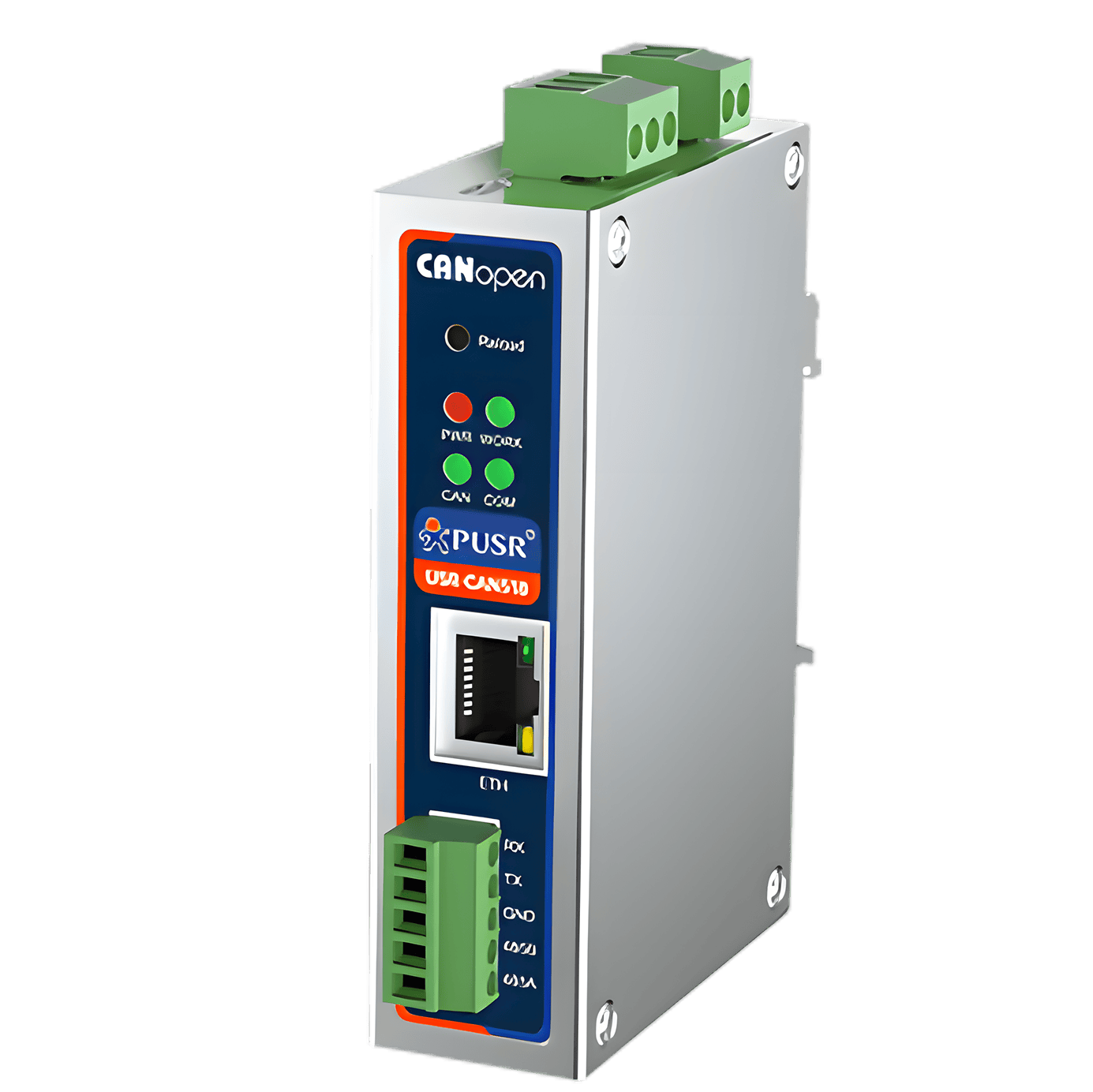

USR-CAN518 CAN-Open to Modbus Converter
Open to Modbus Converter

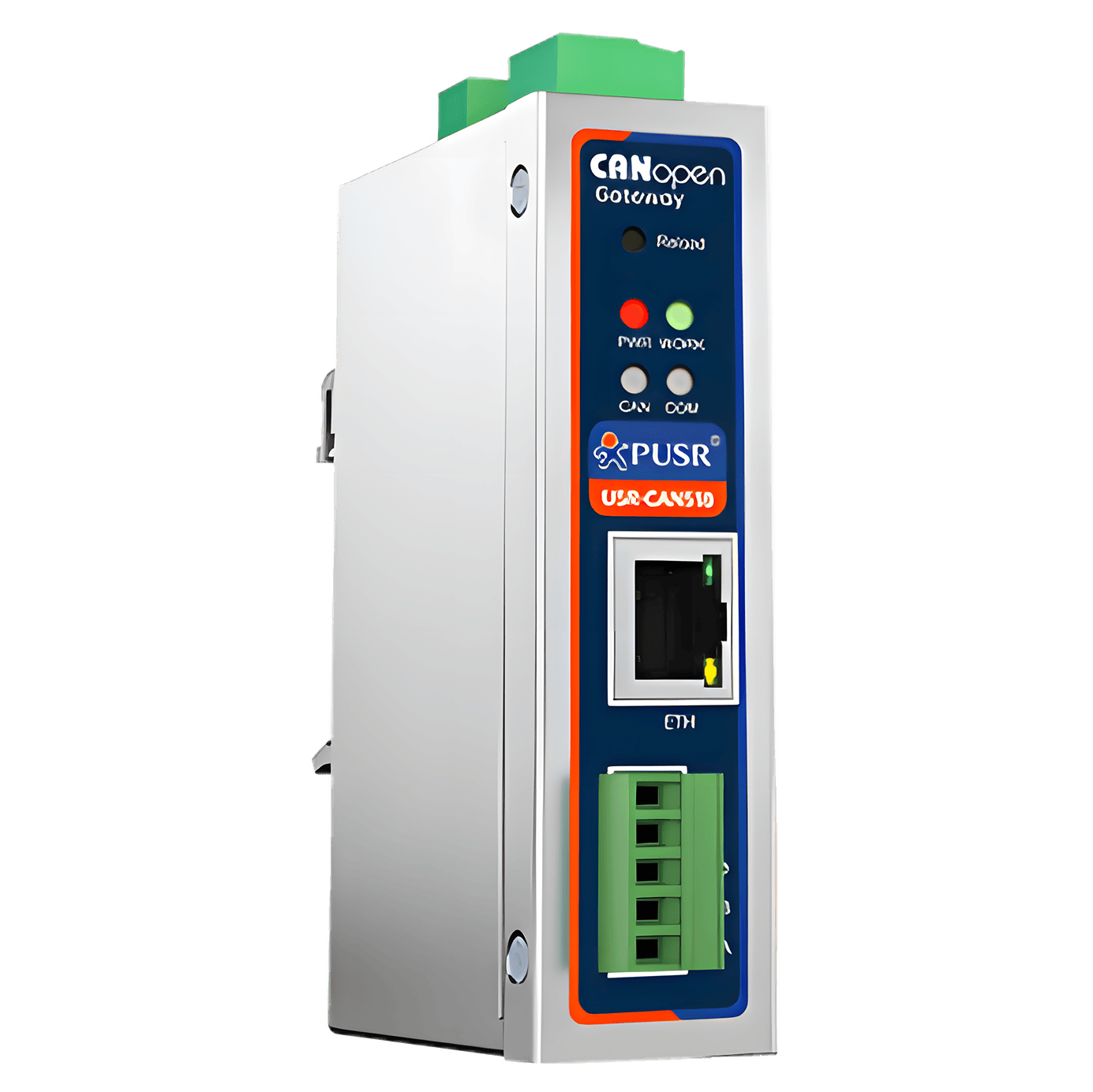

USR-CAN518 is a CANopen slave gateway independently developed by PUSR. It features 1 CAN interface, 1 RS485 interface, and 1 standard 10/100M Ethernet interface. The device supports CANopen to Modbus conversion, making it easy to connect Modbus slave devices.
CANopen Slave to Modbus Master Converter
CANopen Slave | Modbus TCP/RTU Master | Full Isolation | Industrial DesignedUSR-CAN518 is a CANopen slave gateway independently developed by PUSR. It features 1 CAN interface, 1 RS485 interface, and 1 standard 10/100M Ethernet interface. The device supports CANopen to Modbus conversion, making it easy to connect Modbus slave devices on industrial sites to CANopen master devices such as PLCs.
Key Features
- Protocol Conversion: CANopen slave to Modbus TCP master | CANopen slave to Modbus RTU master;
- Industrial Design: EMC Protection Level 3 | -40 ~ +85℃
- Full Isolation: Isolation for both serial ports, Ethernet port, power circuit
- Wide Power Input: 9-36V DC
- Rich Hardware Interface: 1*CAN, 1*RS232/RS485, 1*Ethernet port
- Easy to Use: User friendly utility for parameters configuration

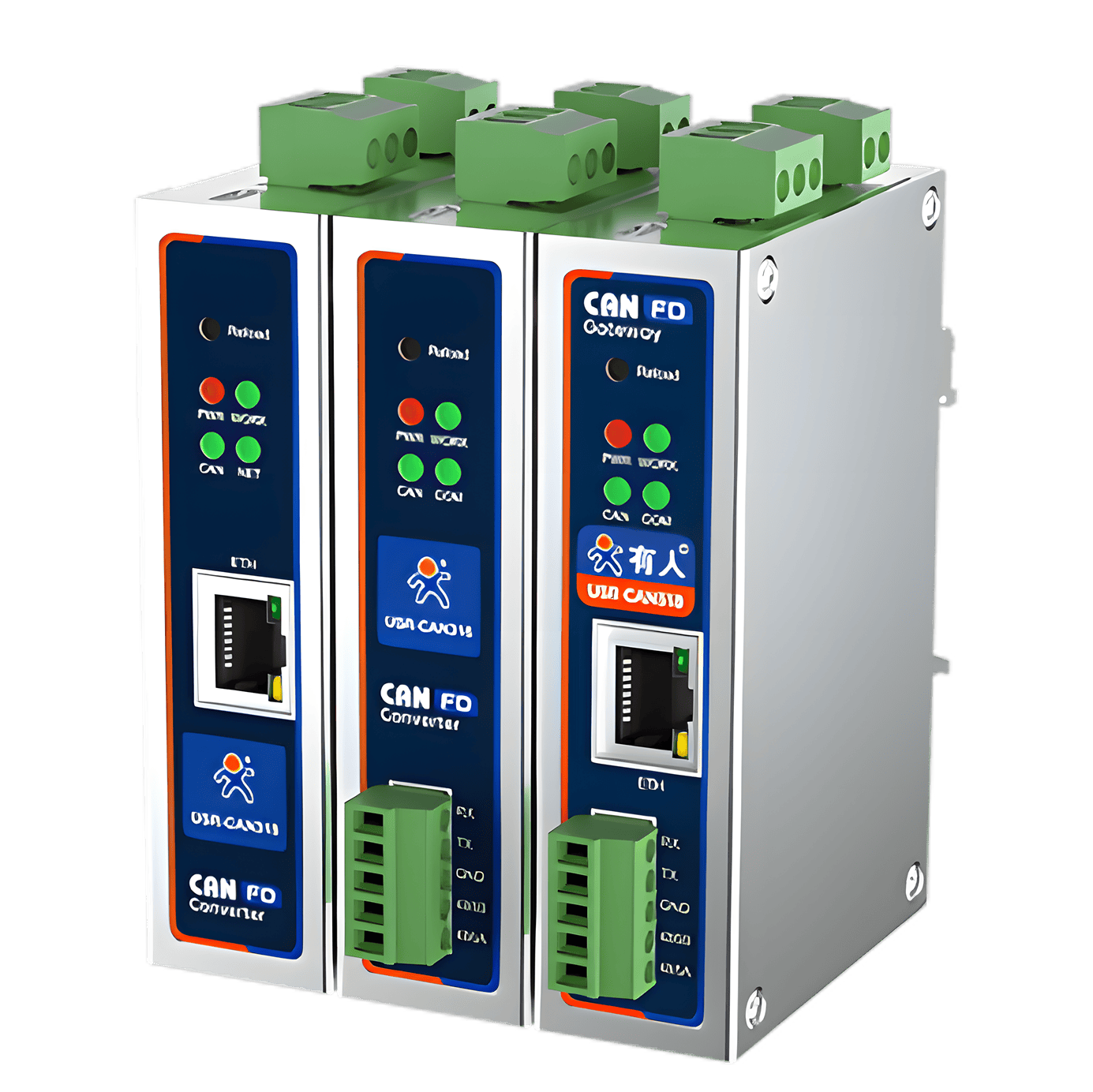

CAN Series Products PUSR
offers a series of CAN devices, which feature high speed, low latency, stable performance, simple operation, and good cost-effectiveness. They support CAN 2.0A/B to RS232/485/Ethernet, CAN FD to RS232/485/Ethernet, CAN FD to Modbus gateway, CAN FD to WiFi, CANopen slave to Modbus master, CANopen master to Modbus slave, CANopen to PROFINET, and CAN analyzers, etc. Users can choose the appropriate product according to their needs.

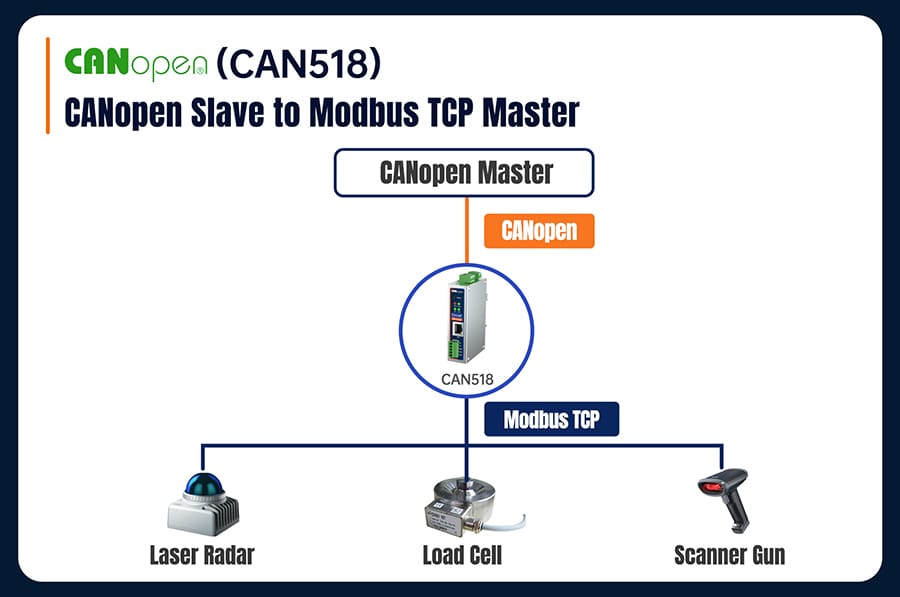

CANopen Slave to Modbus TCP Master
The gateway acts as CANopen slave to connect upper-layer CANopen master device, meanwhile works as Modbus TCP master to access laser radar, load cell, scanner and other Modbus TCP field devices. Realizes seamless data interconnection of heterogeneous devices.

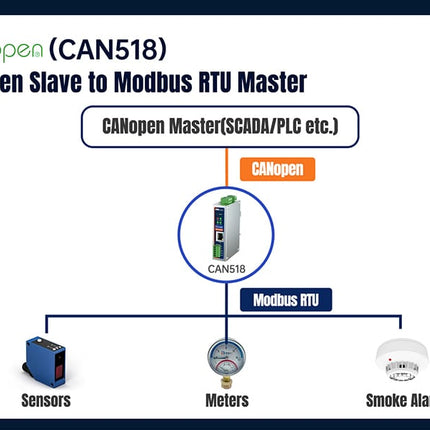

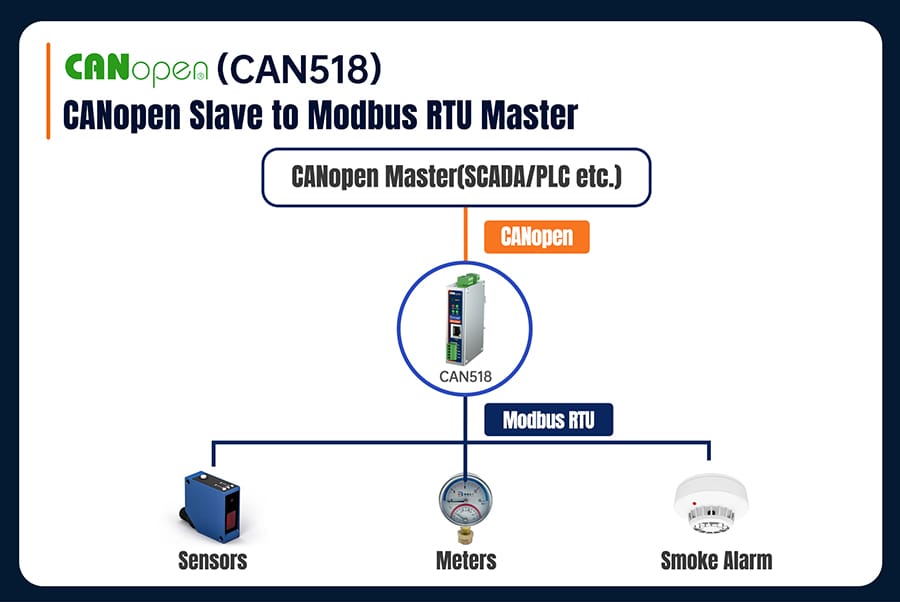

CANopen Slave to Modbus RTU Master
Compatible with traditional RS485 industrial field devices. Gateway connects upper CANopen master (PLC/SCADA system), and accesses sensors, instruments, smoke alarms via Modbus RTU bus, expands traditional serial device access for CANopen network.

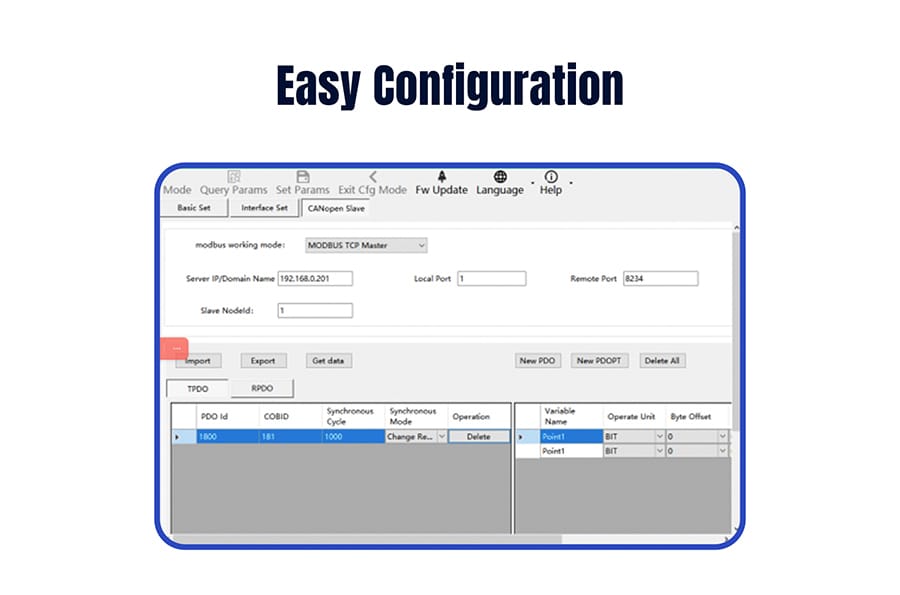

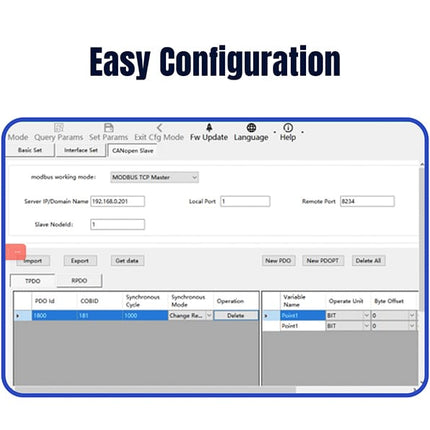

Easy Configuration
The USR-CAN518 has a user-friendly setup tool that lets you quickly set up protocol conversion routines for most applications.
Designed for Demanding Industrial Environments
- EMC protection: level 3
- Wide operating temperature: -40℃~+85℃
- Dual watchdog: hardware & software watchdog, ensure stable operating
- Wide power input: DC 9-36V, supports power input anti-reverse
- Full lsolation: 3000VDC isolation for power, serial ports, Ethernet port
Application
- Industrial Automation
- Intelligent Logistics AGV
- Water/Wind/Solar Engineering
- Smart Machine Toll
- Smart Building

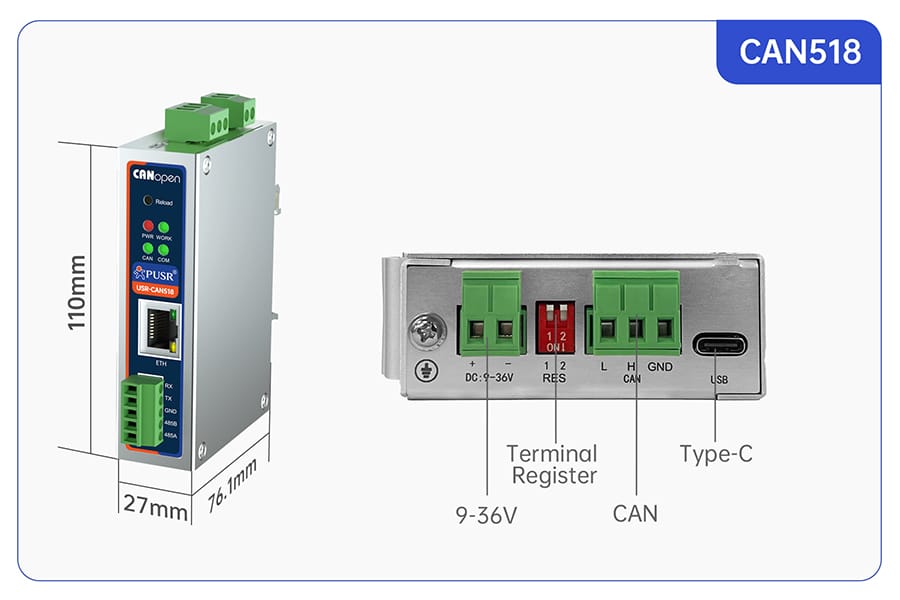

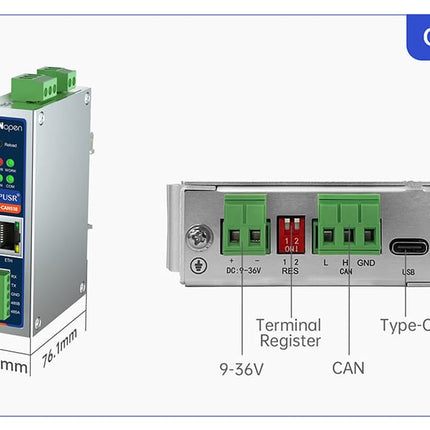

Dimension & Interface
- Dimension: 110 * 27 * 76.1mm
- Type-C: For debugging and firmware upgrading
