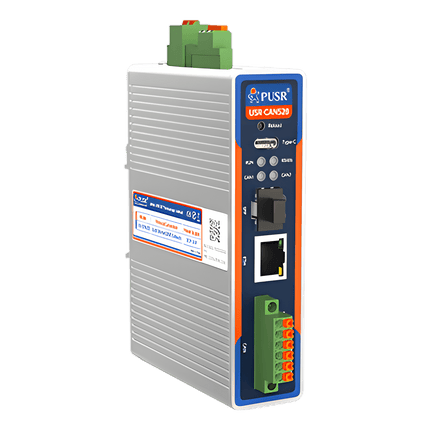

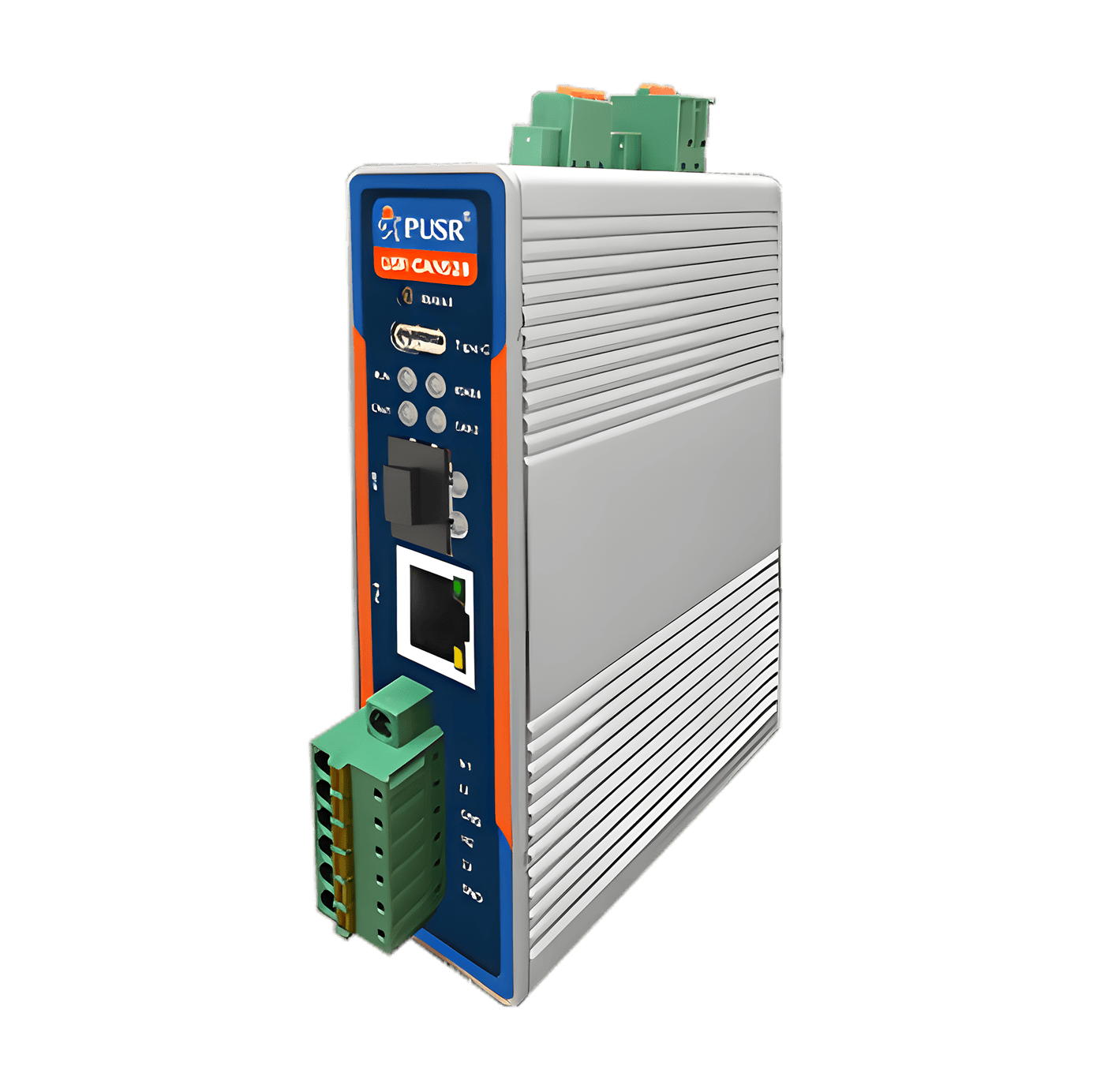

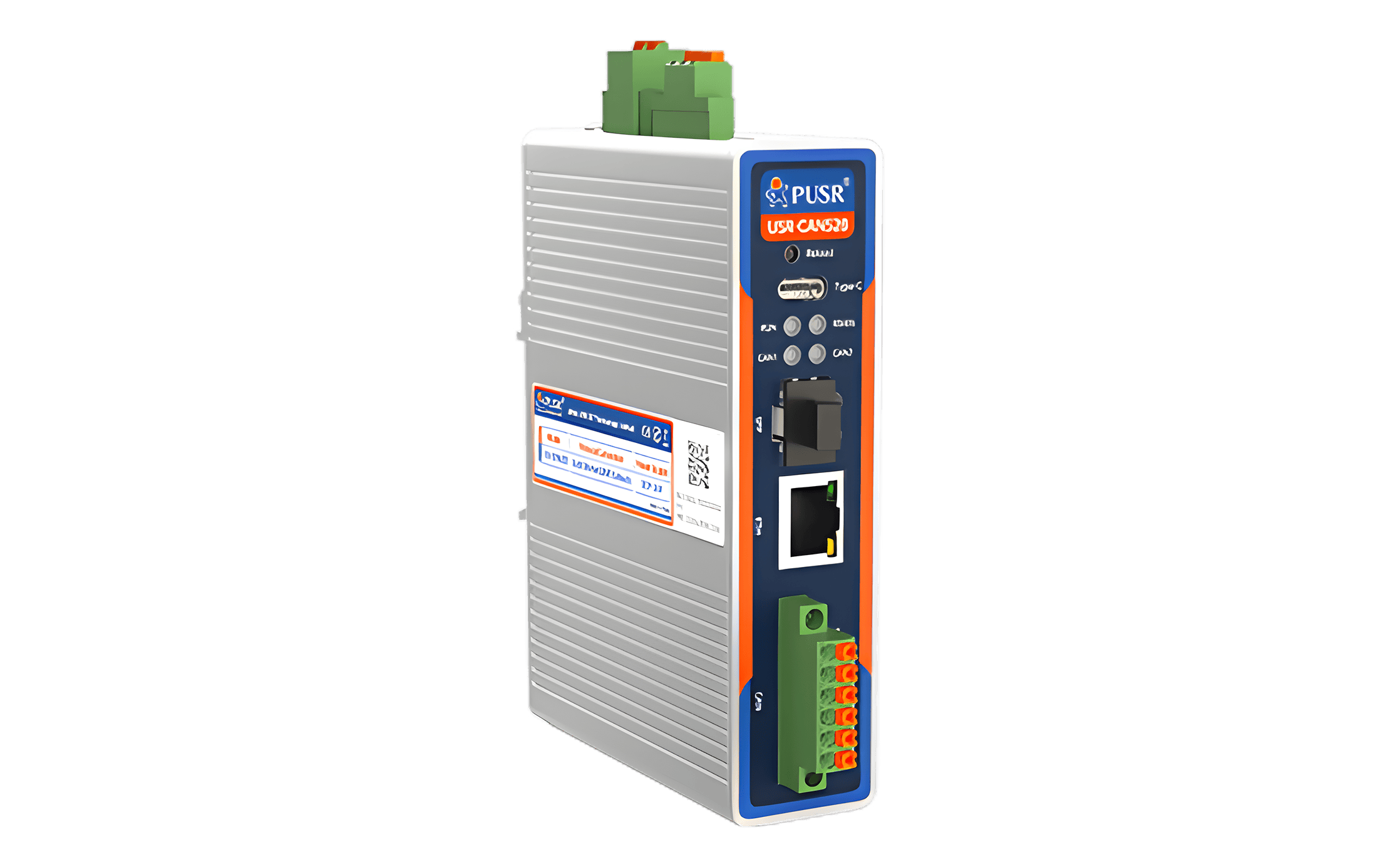

USR-CAN528 CAN/Serial CAN(FD) to Ethernet/Fiber Optic Converter
CAN/Serial to Ethernet/Fiber Optic Converter
USR-CAN528 high-performance CAN(FD) to Ethernet/fiber optic gateway integrates two CAN(FD) interfaces, one Ethernet interface, one SFP slot and one serial port. In software, it integrates TCP / IP protocol stack. Users can easily realize the interconnection and interworking between CAN bus network and Ethernet network, and further expand the scope of CAN FD network.

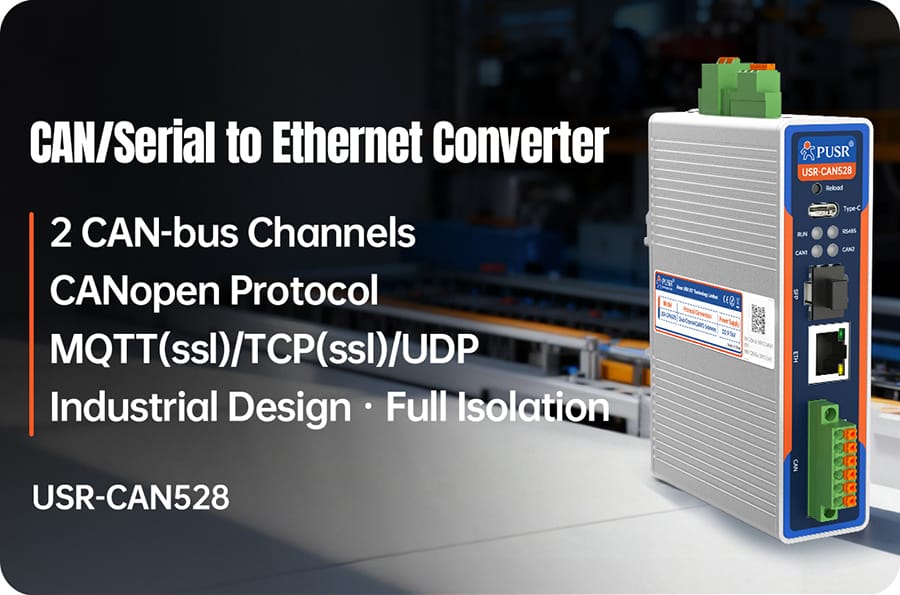

CAN/Serial to Ethernet Converter
2 CAN-bus Channels | CANopen Protocol | MQTT+SSL
The USR-CAN528 high-performance CAN(FD) and Ethernet gateway integrates two CAN(FD) interfaces, one Ethernet interface, one SFP slot and one serial port. In terms of software, it integrates the TCP/IP protocol stack and supports TCP/UDP/MQTT protocols. Moreover, it supports CAN(FD) to Modbus and CANopen to Modbus protocol conversions. Users can easily achieve interconnection and interoperability between the CAN bus network and the Ethernet network, and further expand the application scope of the CAN FD network.
Key Features

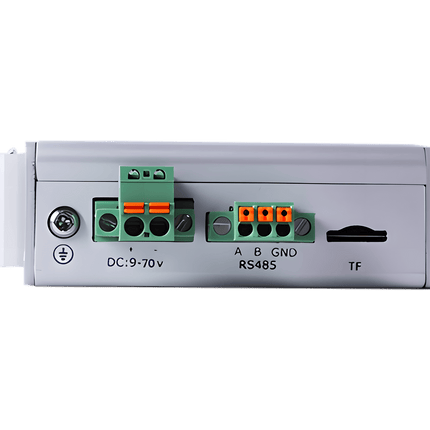

- Rich Interfaces: 2*CAN, 1*Gigabit Ethernet, 1*SFP Slot, 1*RS485

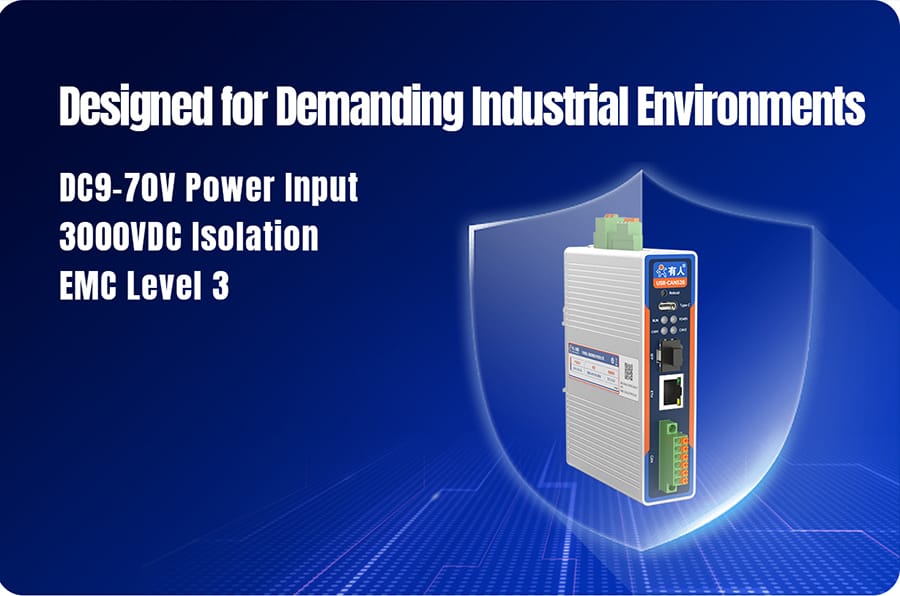

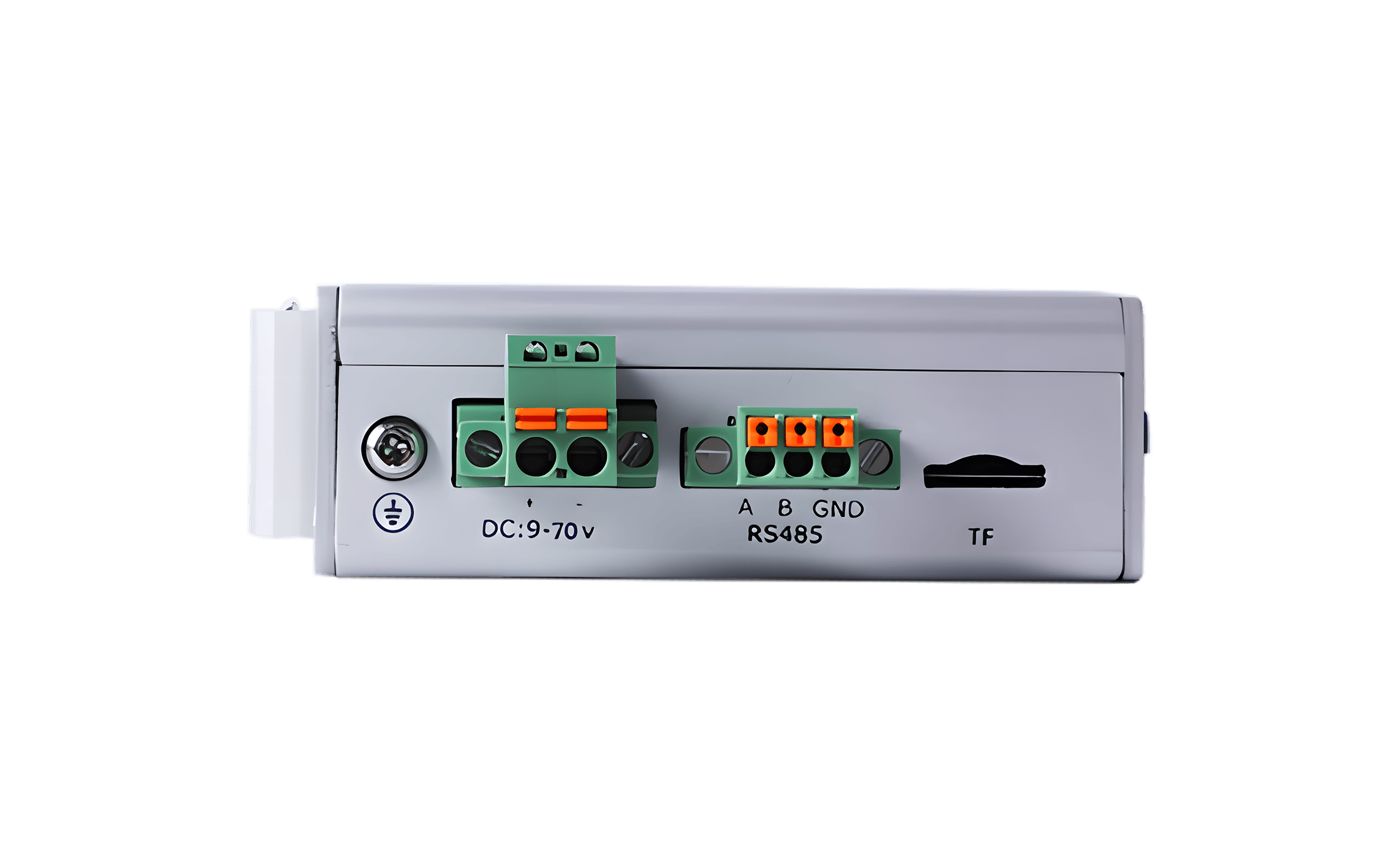

- Industrial Designed: Isolation for all interfaces, DC 9-70V power input, -40 ~ 85℃ wide temperature
- CANopen Protocols: CANopen to Modbus, CAN/CANFD to Modbus

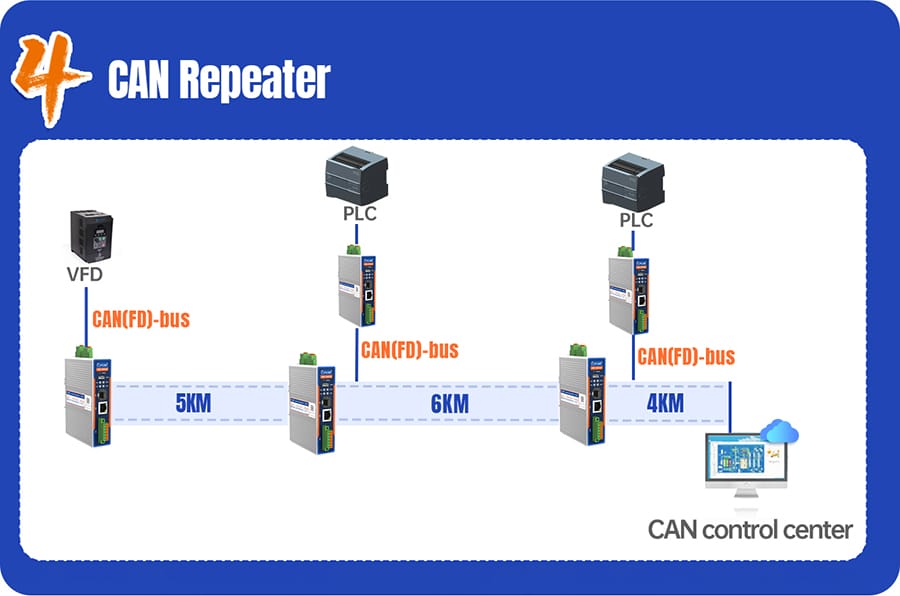

- CAN Features: CAN(FD) to Ethernet/RS485/Fiber Optic, CAN repeater

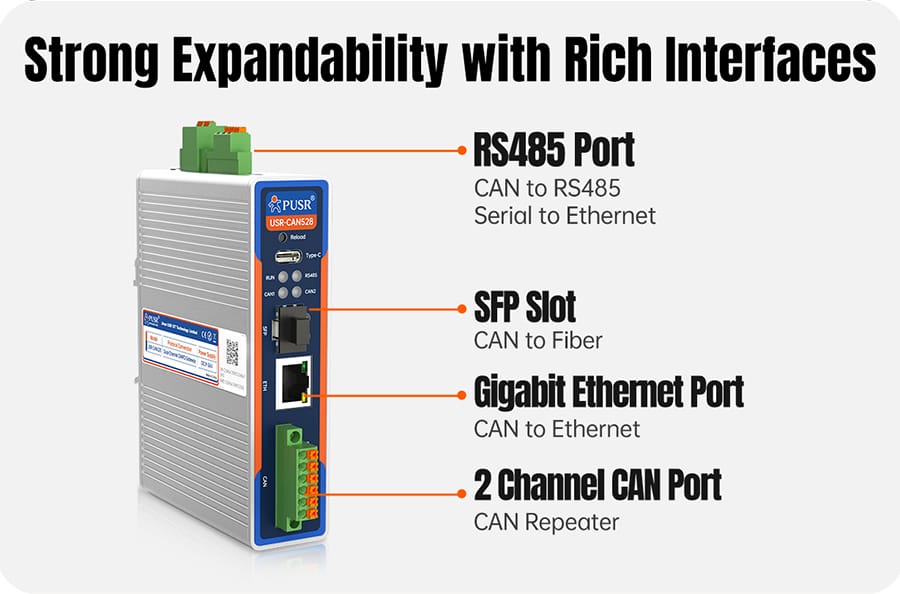

Strong Expandability with Rich Interfaces
Scalability ensures that the system can maintain stable performance or even improve it when faced with increased load (such as an increase in the number of users, data volume, or request frequency). This is achieved by either adding resources or optimizing the architecture.

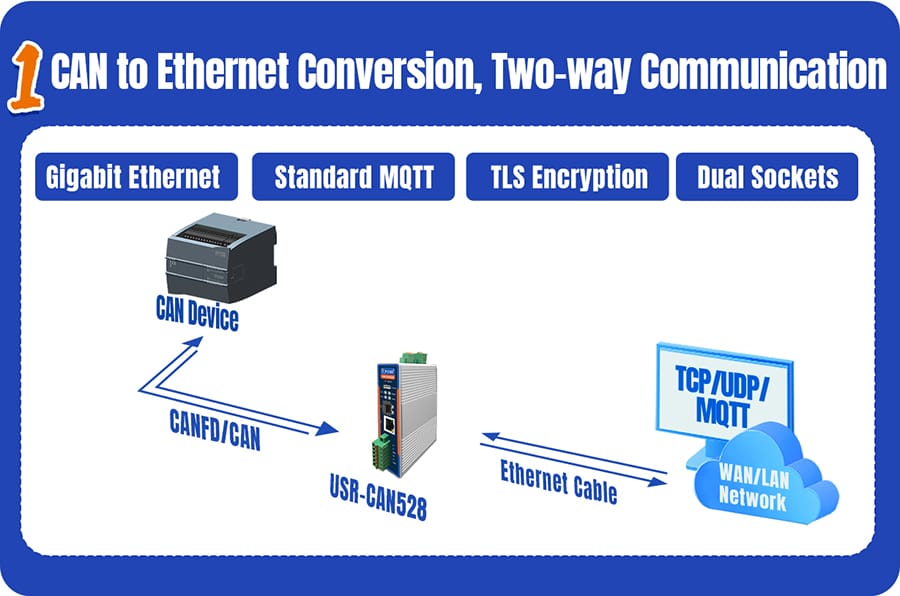

CAN to Ethernet Conversion, Two-way Communication
- · TCP client, TCP server, UDP client, UDP server, MQTT client are supported
- ·In TCP client/MQTT client mode, it supports TLS encryption
- ·Supports 2 sockets so it can communicate with 2 different servers

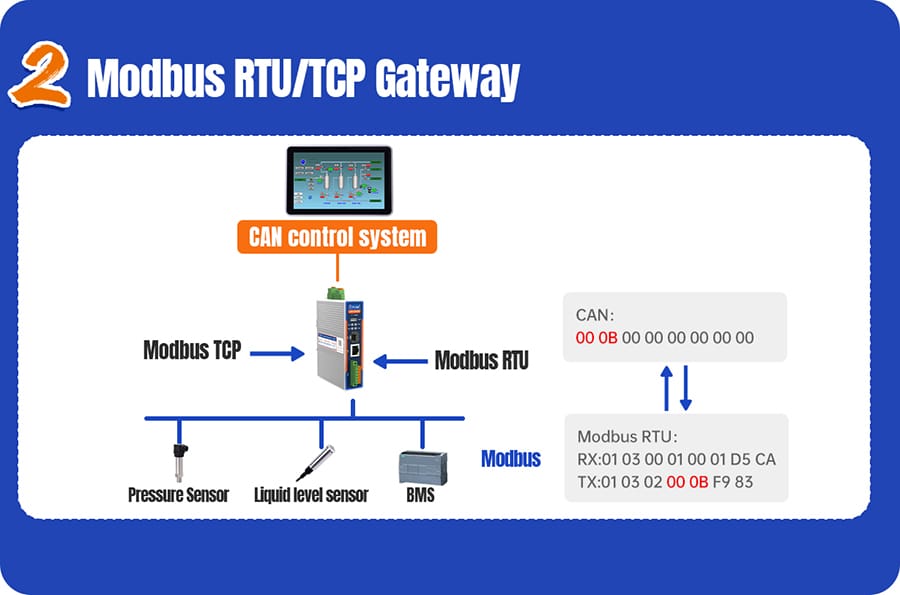

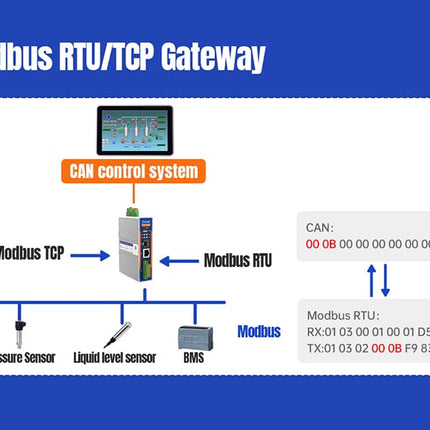

Modbus RTU/TCP Gateway

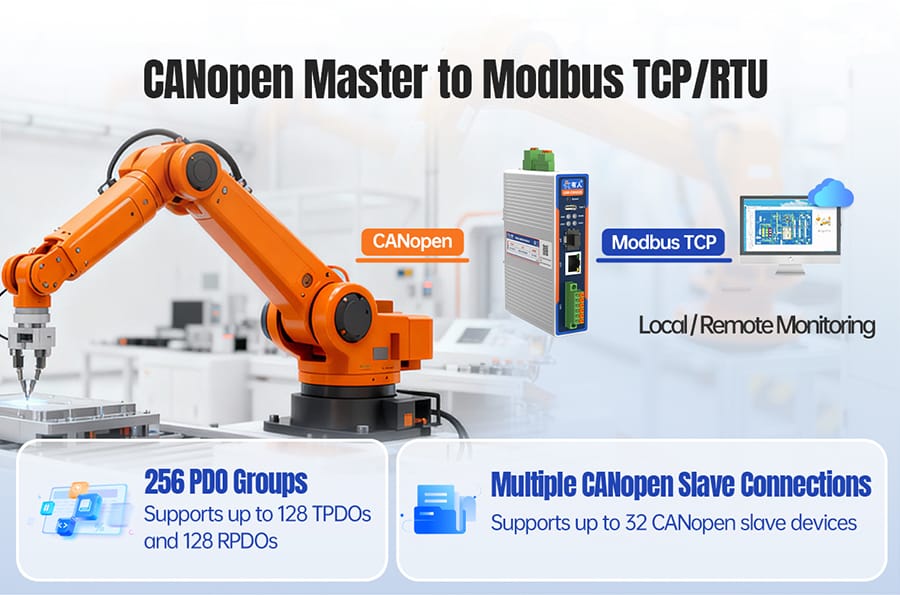

USR-CAN528 supports CAN to Modbus TCP/RTU conversion, and it can work as both modbus slave or master mode. With this function, users can active data acquisition or read/write control of Modbus devices via the CAN bus.

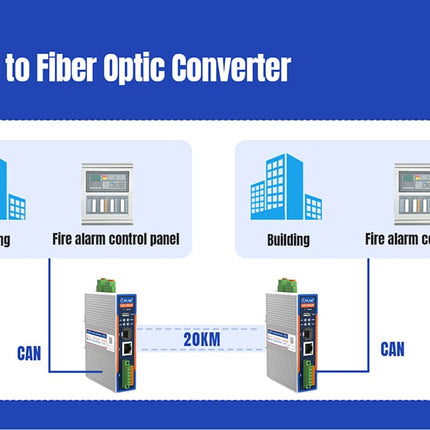

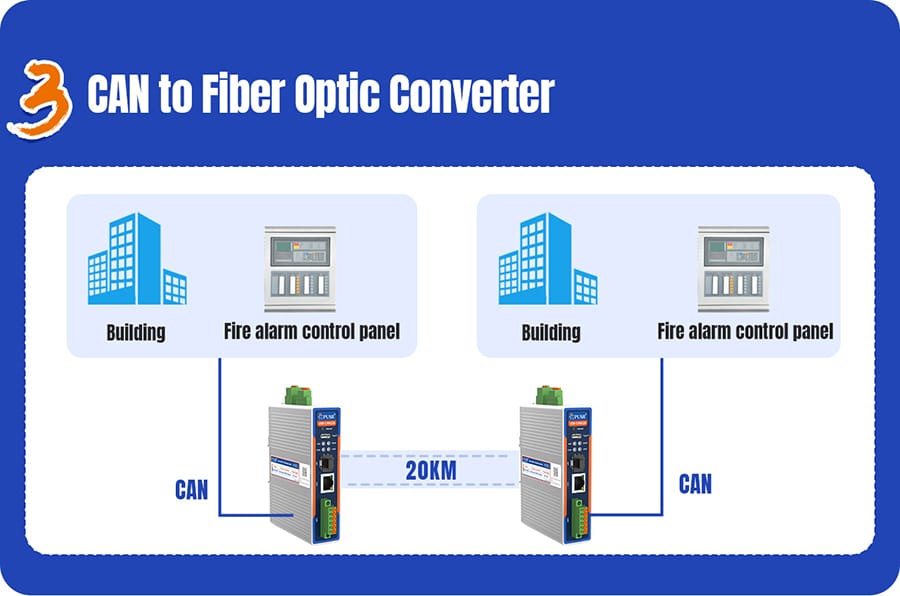

CAN to Fiber Optic Converter
USR-CAN528 has one standard SFP Gigabit fiber optic port which enables fast transmission over long distances.
