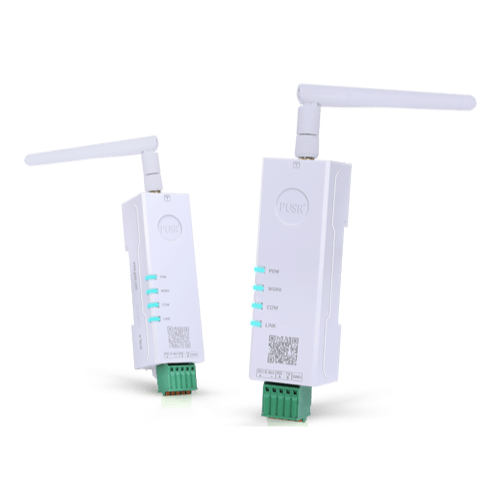

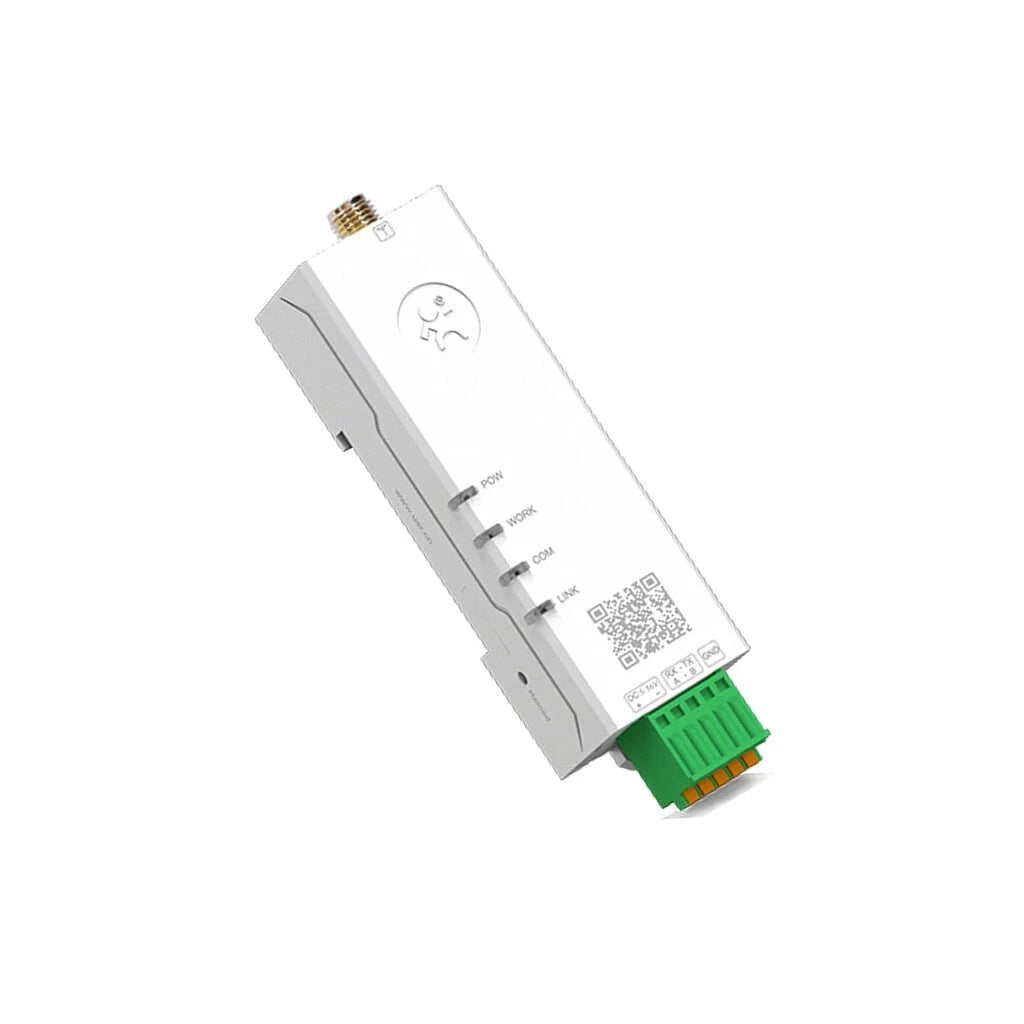

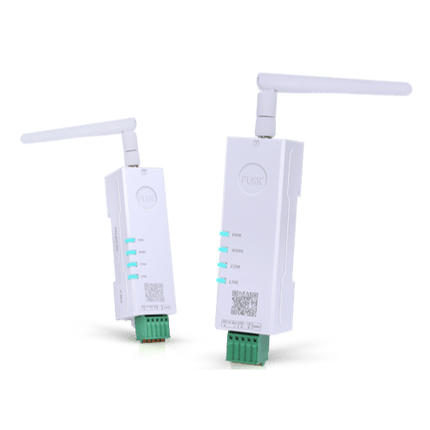

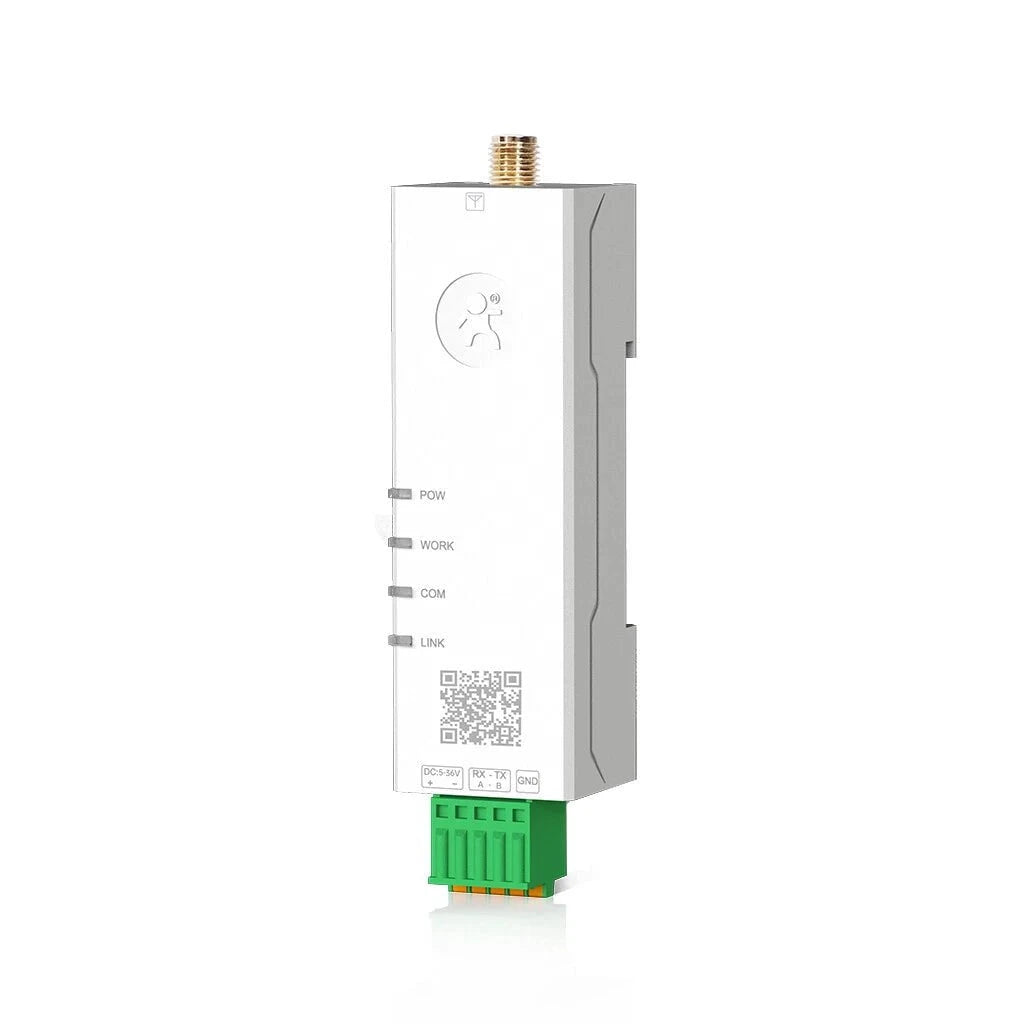

USR-DR164/DR162 Serial to Dual Band WiFi Converter

Description

USR-DR164/DR162 Serial to Dual Band WiFi Converter

USR-DR164/162 is an ultra-small size dual band WiFi serial server device with one serial port. It can realise transparent transmission between RS485/RS232 and WiFi device. It supports 2.4G & 5.8G WiFi, compatible with IEEE 802.11 a/b/g/n standard. With 2.4 G WiFi, it has a longer-range signal, while with 5.8G WiFi, it has a faster speed and better resistance to signal interference. Wide operating temperature, DIN-Rail mounting, rich protocol like MQTT/TCP/UDP/HTTP, Modbus TCP/RTU conversion and other features make it widely used in smart factories, intelligent storage, intelligent medical, smart transportation, industrial automation and other scenarios.


Key Features

  • Dual Band WiFi: 2.4G + 5.8G
  • “Lipstick” Size: Save your space
  • DIN Rail mounting: Easy installation
  • Modbus Gateway: Modbus TCP/RTU conversion
  • Rich Protocol: TCP/UDP/HTTP/MQTT/IGMP
  • Easy Configuration: Smart APlink APP

Serial to WiFi, Bidirectional Data Transmission

With a serial to WiFi converter, traditional serial devices can be connected to local networks and the Internet, then users can transform traditional serial devices into loT devices to achieve remote monitoring/controlling.

Dual Band WiFi, Anti-interference, Wide Coverage

  • For 2.4G: The transmission diatance can up to 200 meters in open environment;
  • For 5.8G: It has anti-interface and high transmission speed, can work well in complex environment.

One More Thing, Modbus Gateway

Connect to PLC, SCADA system or user’s private server to achieve local or remote motoring.
  • Modbus RTU to Modbus TCP
  • Multi-Host Modbus Polling

Multi WiFi Networking Method

  • AP Mode: Allow network devices to access USR-DR164/162 via Wi-Fi.
  • STA Mode: USR-DR164/162 accesses to other networks via Wi-Fi as a network device
  • AP+STA Mode: Work in AP and STA mode simultaneously

Multi-Configuration Methods

  • AT Command: Serial AT commands and network AT commands are supported.
  • Built-in webpage: user-friendly interface, clear parameters.
  • APP: To achieve fast access to the network.

Ultra-small Size

  • 3 Practical Designs, Making Your Installation Easy.
  • Ultra-small size like a lipstick, can be applied to various scenarios, especially a small box.
  • Appearance patent number: 202130367085.8.

High Reliability, Design

  • Watchdog Protection: Hardware & software dual watchdog to ensure stable operation.
  • Flame retardant rating: V0, burning stops within 10 seconds on a vertical part, allowing for drops of plastic that are not inflames.
  • Wide Operating Temp: -40℃ ~ 85℃, industrial grade design, stable operation in harsh environments.
  • Wide Power Input: DC 5- 36V.

Packing List

  • USR-DR162/164*1
  • Antenna*1

Smart Factory Solutions

 In a factory scenario, operating status, fault information, production information, etc. of the equipment can be transmitted to the remote server via USR-DR164/162 to achieve remote management and control of the on-site equipment. With the remote management platform, users can effectively improve the controllability of the production process, timely and accurately collect equipment data, and reduce production and maintenance costs.

More Application

  • Smart Factory
  • Smart Building
  • Warehouse Logistics
  • Energy Monitoring
  • Smart Office

Specifications:

Items Description
Power Supply DC: 5-36V, 2-pin push-type connector
Working Current 170-350mA@5V
Serial port
No.
USR-DR164:1 x RS485,
USR-DR162:1 x RS232,
3-pin push-type connector.
Baud rates 1200-460800 bps
Data bits 5, 6, 7, 8
Stop bits 1, 2
Parity NONE, ODD, EVEN, Mark, Space
Packaging Interval Range: 10 ~ 1000ms, default: 20ms
Packaging Length Range: 32 ~ 1400 bytes, default: 1400 bytes
Pull-up Resistor 2.2 KΩ(Only USR-DR164)
Protection ESD, EFT, over-voltage protection
Wi-Fi
Standards & Frequency
IEEE 802.11a/b/g/n
2.4G: 2.412GHz-2.484GHz
5.8G: 5.17GHz-5.25GHz, 5.725GHz-5.835GHz
Working Mode AP/STA/AP+STA
Tx power
2.4G:
802.11b: +17±1.5dBm(@11Mbps)
802.11g: +14±1.5dBm(@54Mbps)
802.11n: +14±1.5dBm(@HT20， MCS7)
5.8G:
15±1.5dBm (OFDM 6Mbps)
13±1.5dBm (OFDM 54Mbps)
12±1.5dBm (HT20 MCS7)
12±1.5dBm (HT40 MCS7)
Receive sensitivity
2.4G:
802.11b:-95 dBm (@1Mbps ,CCK)
802.11b:-85 dBm (@11Mbps ,CCK)
802.11g:-72 dBm (@54Mbps, OFDM)
802.11n:-70dBm (@HT20, MCS7)
802.11n:-67dBm (@HT40, MCS7)
5.8G:
-90dBm (@6Mbps ,OFDM)
-73dBm (@54Mbps ,OFDM)
-70 dBm (HT20,MCS7)
-67 dBm (HT40,MCS7)
Antenna SMA female connector
Physical Property
Casing material ABS, V0 rating
Dimensions 92 * 24 *22mm(including terminal block connector)
Installation DIN rail mounting
Operating temperature -40℃～+85℃
Storage temperature -40℃～+125℃
Operating humidity 5% ~ 95% RH, non-condensing
Storage humidity 1% ~ 95% RH, non-condensing
Software Function
Work mode TCP Client, TCP server, UDP client, UDP server, HTTP client, MQTT client, IGMP
Modbus Gateway Modbus RTU/TCP protocol conversion
IP DHCP/StaticIP
Registration packet √
Heartbeat packet √
WiFi Encryption WEP/WPA-PSK/WPA2-PSK
Encryption Methods WEP64/WEP128/TKIP/AES
IOT PLATFORMS PUSR cloud
User Configuring Web console (HTTP), AT command, SmartAPLink
Others
Reset
Reset button
1>Press and hold for 4~15 to reset to factory settings
2>Quickly double-tapz to enter SmartAPLink for networking
Indicators Power, Work, COM, LINK
APPROVALS
Regulatory CE/RED*, RoHS*, WEEE*, FCC*



Documents

USR-DR164-User-Manual-EN V1.0.0
USR-DR164-spec-V1.0.0

Read more
