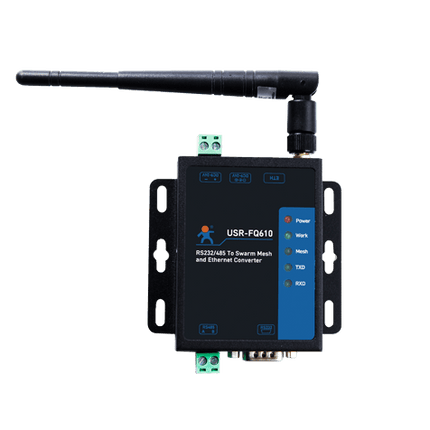

Items
|
Description
|
|
Power Supply
|
DC: 9~24V,
2-pin terminal block connector, 5.08mm-2P, reverse polarity protection,
5.5*2.1 DC jack connector
|
|
Working Current
|
Average: 300mA@12V, max: 600mA @12V
|
|

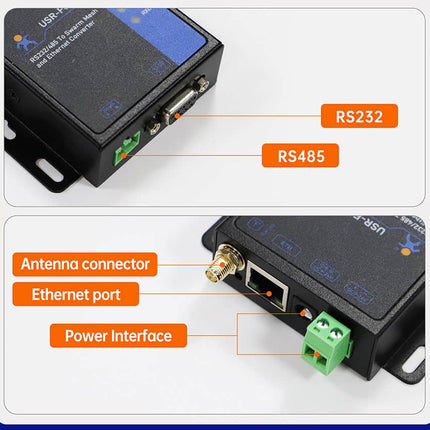

Serial port
|
|
No.
|
1 x RS485, 2-pin terminal block connector, 3.81mm-2P
1 x RS232，DB9 female
|
|
Baud rates
|
RS232: 600/1200/2400/4800/9600/14400/19200/28800/38400/43000/57600/76800/115200/128000/230400
RS485: 600/1200/2400/4800/9600/14400/19200/28800/38400/43000/57600/76800/115200/128000/230400
|
|
Data bits
|
7, 8
|
|
Stop bits
|
1, 2
|
|
Parity
|
NONE, ODD, EVEN, Mark, Space
|
|
Flow Control
|
None
|
|
Ethernet Ports
|
|
No.
|
1 x Ethernet ports
|
|
Interface
|
RJ45, 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX, 1.5KV network isolation transformer protection
|
|

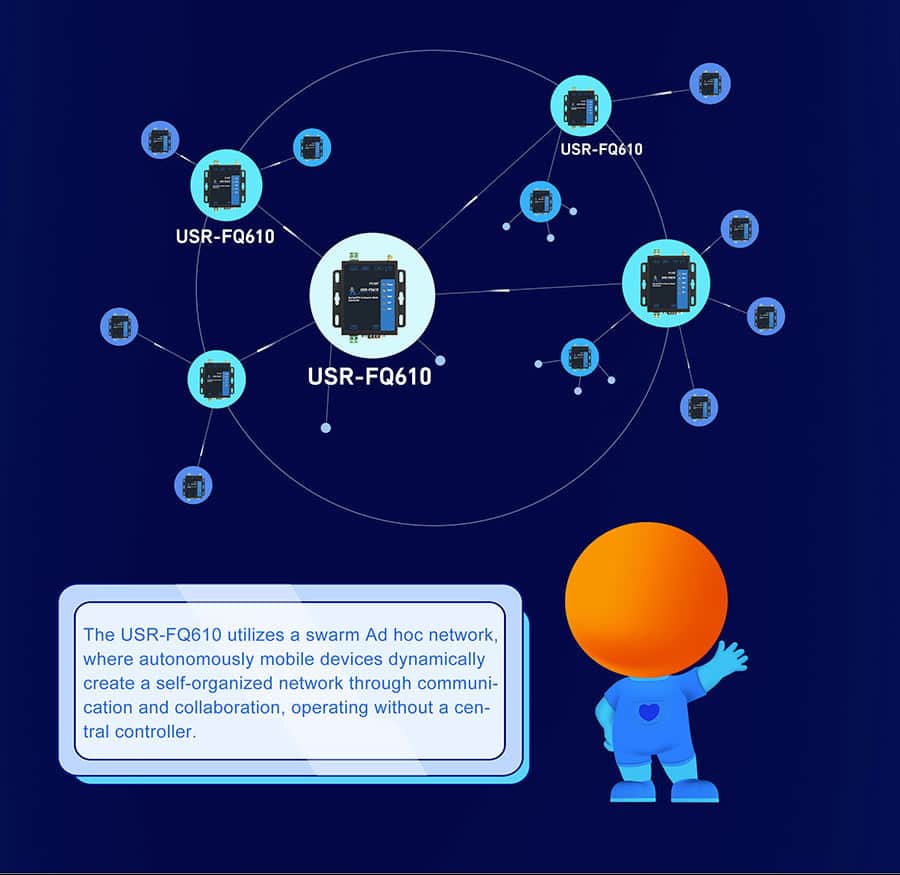

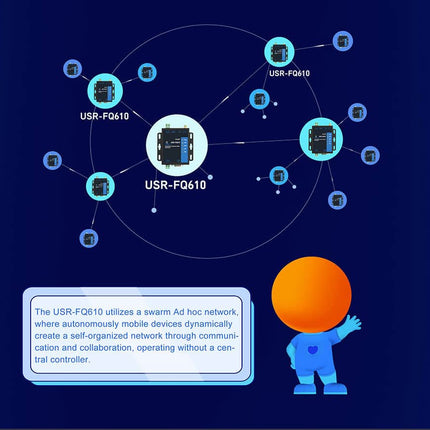

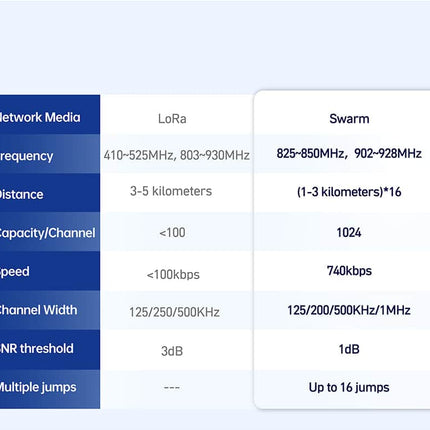

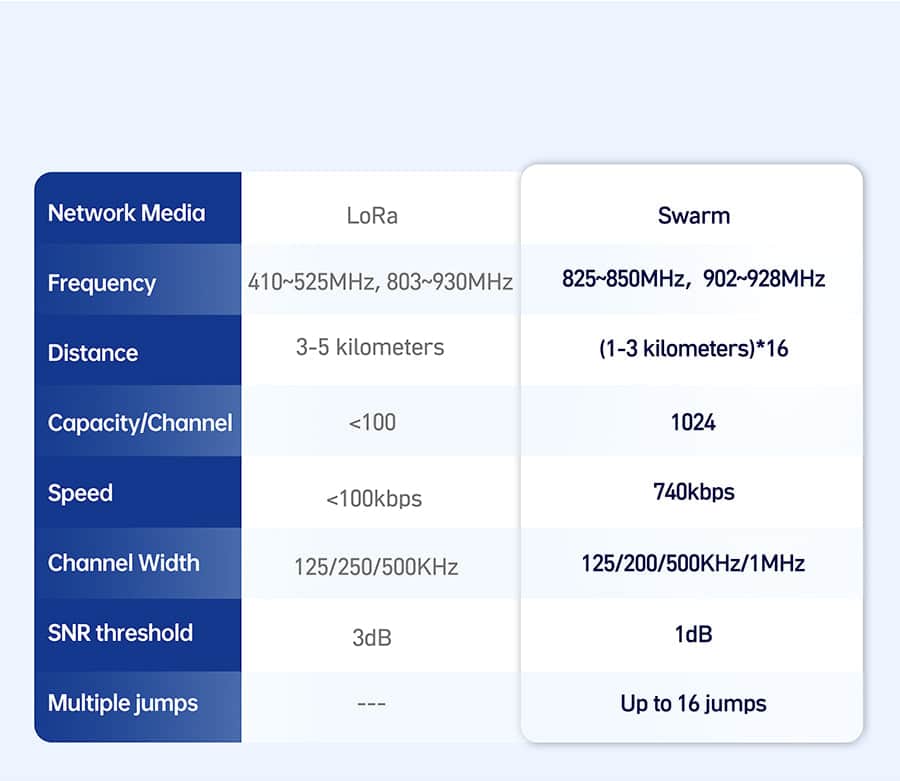

Wireless
|
|
Frequency
|
902~928MHz,
|
|
Bandwidth
|
125/200/500KHz/1MHz
|
|
Data speed
|
Up to 740kbps
|
|
Jump
|
16
|
|
Capacity
|
1024
|
|
|

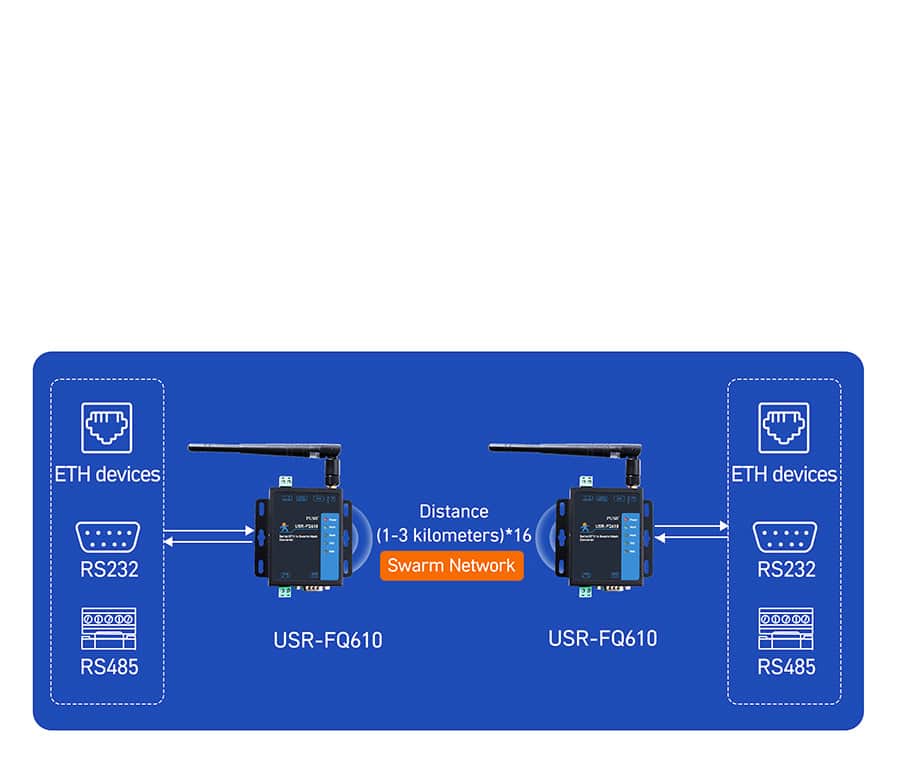

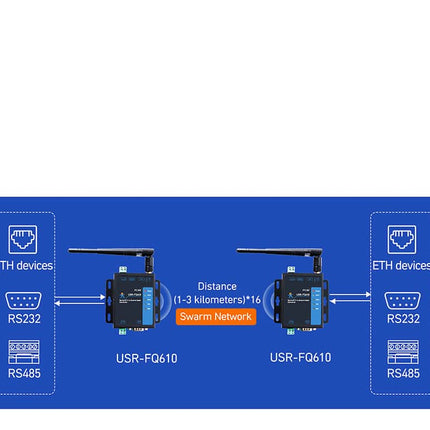

Covering distance
|
1-3 kilometers/jump
For 16 jumps, up to (1-3)*16 kilometers
|
|
Tx power
|
10-27dBm
|
|
Antenna Connector
|
1 x SMA-female
|
|
Time required for networking
|
1s
|
|
Physical Property
|
|
Casing material
|
Metal shell, IP30 protection
|
|
Dimensions
|

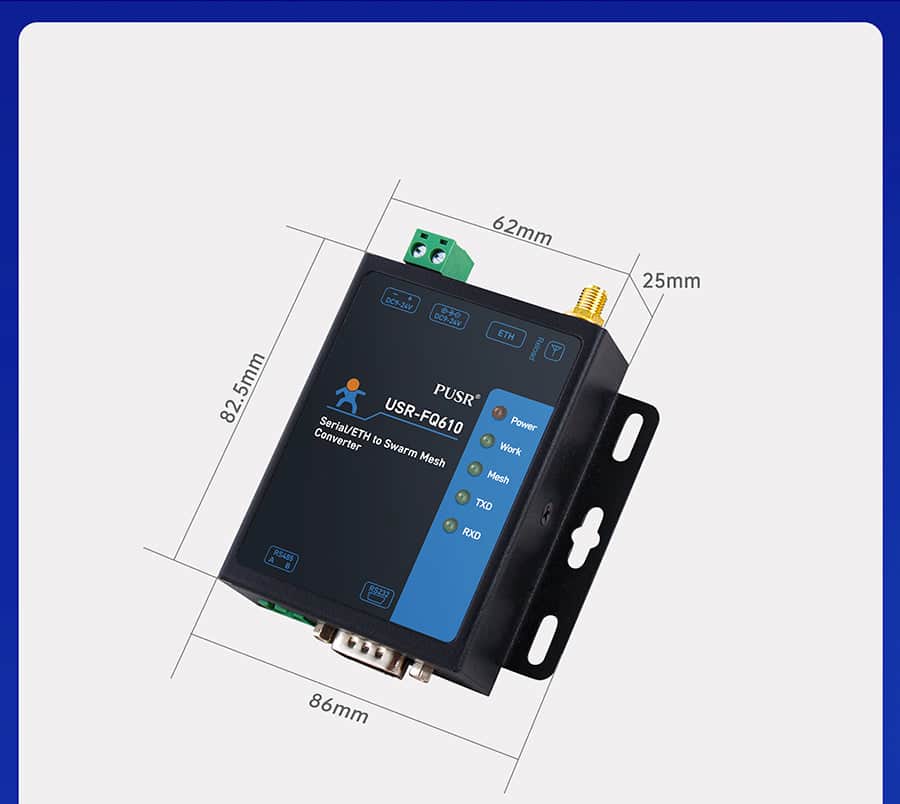

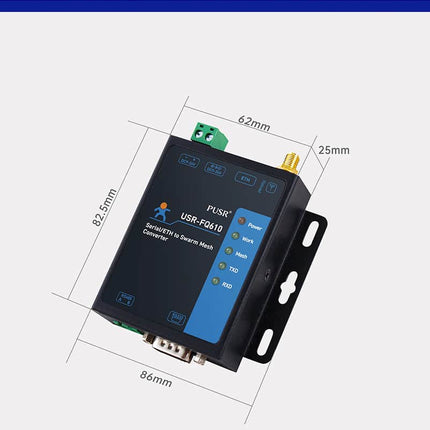

86*82.5*25mm(L*W*H,antenna pedestal,terminal block are not included)
|
|
Installation
|
Wall munting, desktop placement
|
|
EMC
|
Surge protection: level 2, IEC61000
ESD protection: level 2, IEC61000
EFT protection: level 2, IEC61000
|
|
Operating temperature
|
-25℃～+75℃
|
|
Storage temperature
|
-40℃～+125℃
|
|
Operating humidity
|
5% ~ 95% RH, non-condensing
|
|
Storage humidity
|
1% ~ 95% RH, non-condensing
|
|
Software Function
|
|
Network protocols
|
TCP, UDP
|
|
IP
|
DHCP/StaticIP
|
|
Socket mode
|
TCP server, TCP client, UDP server, UDP client
|
|
Work mode
|

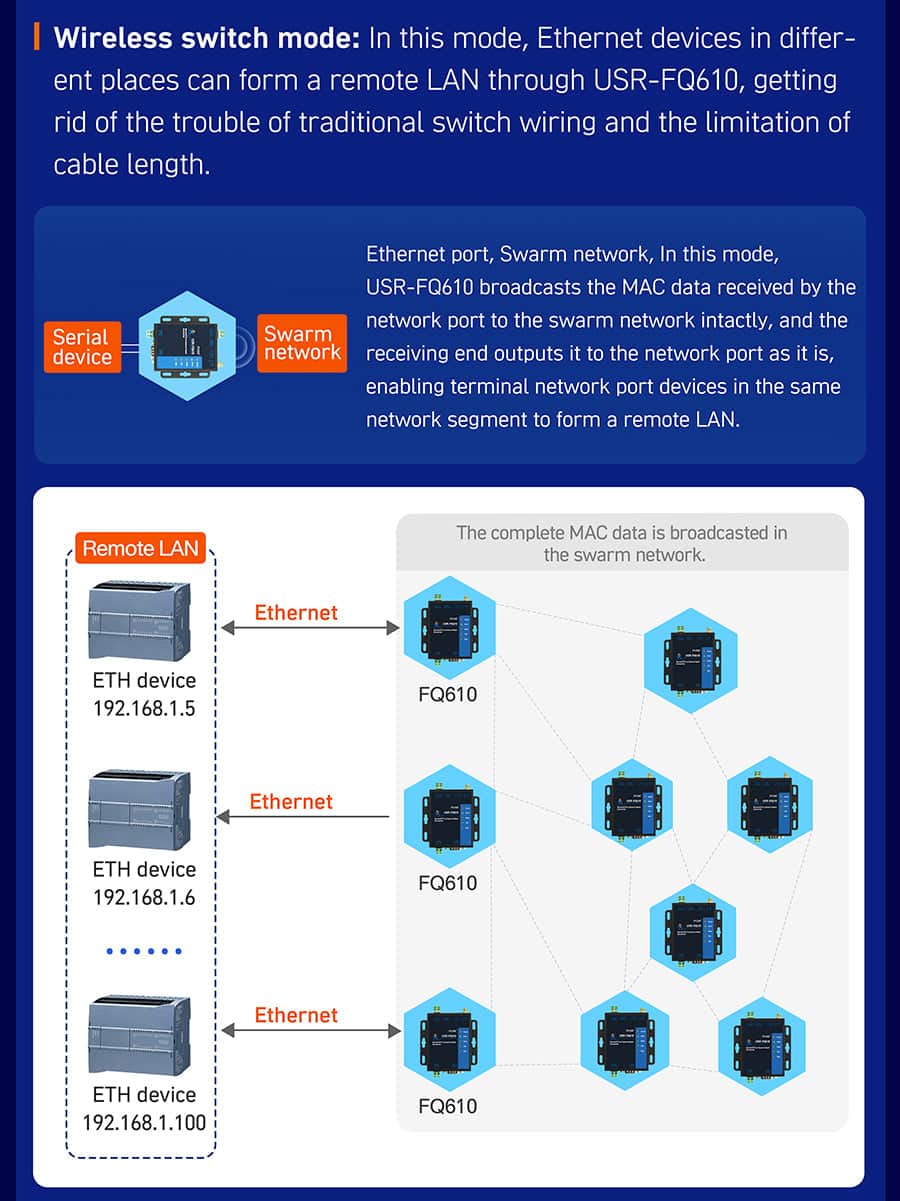

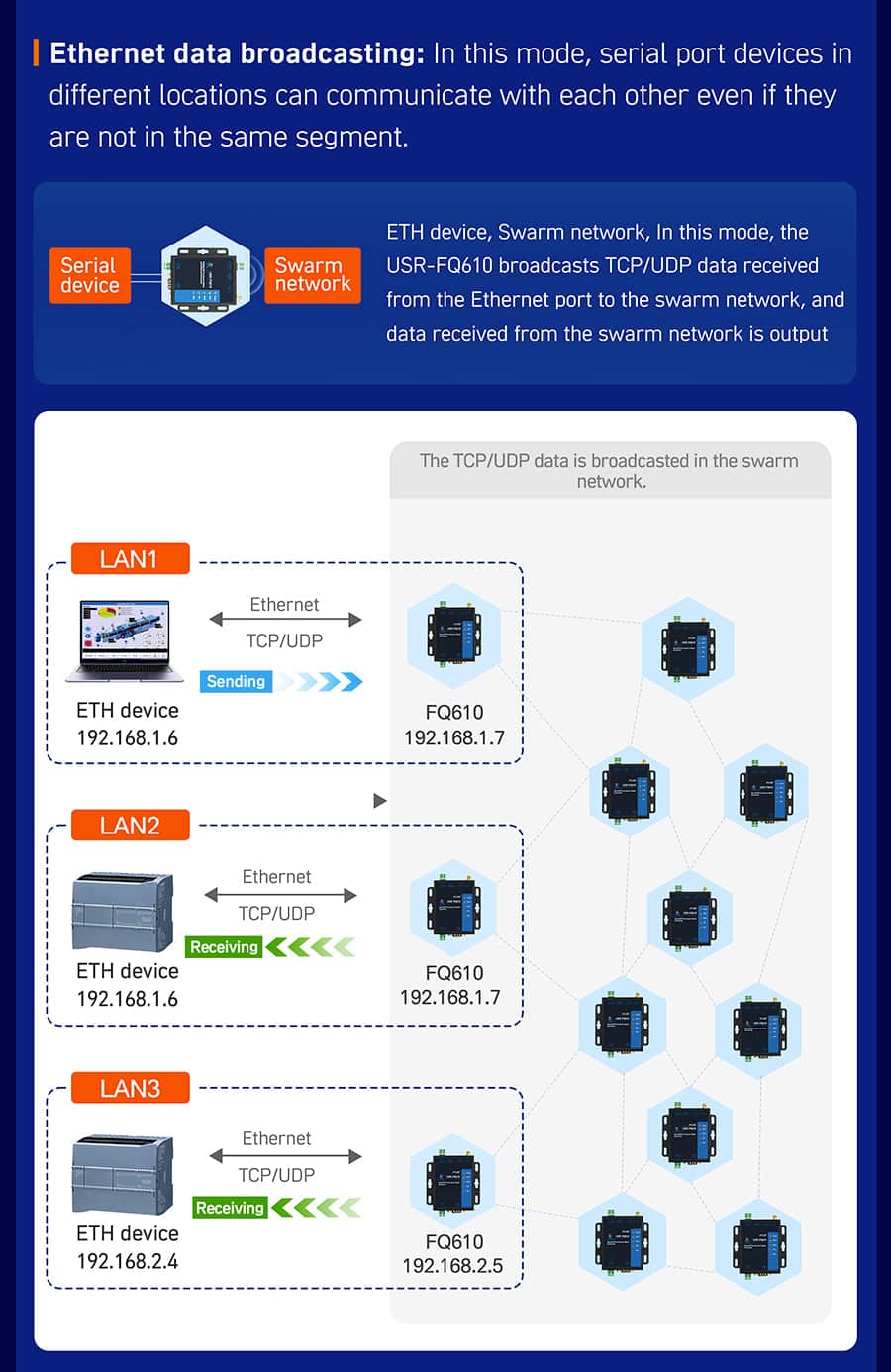

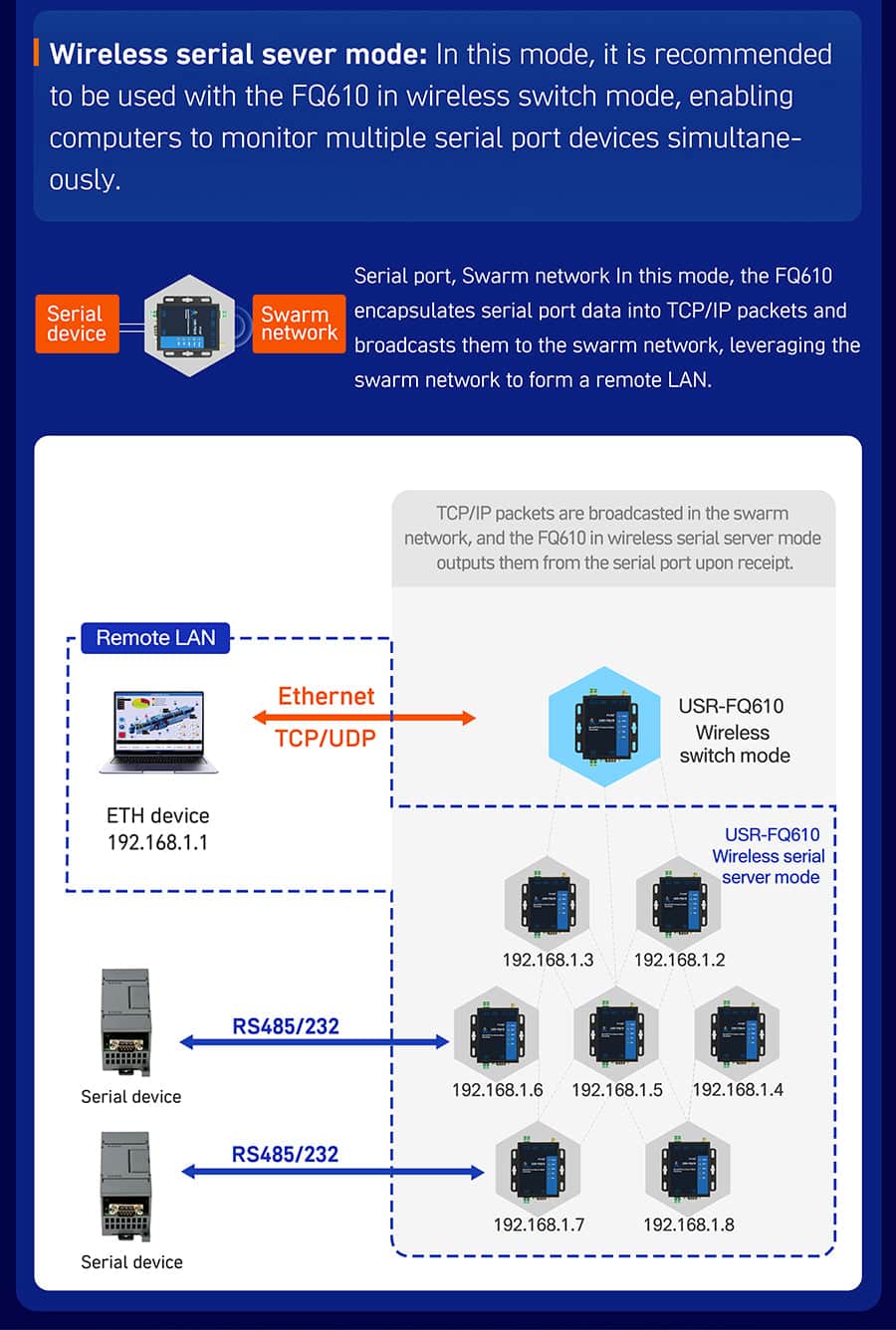

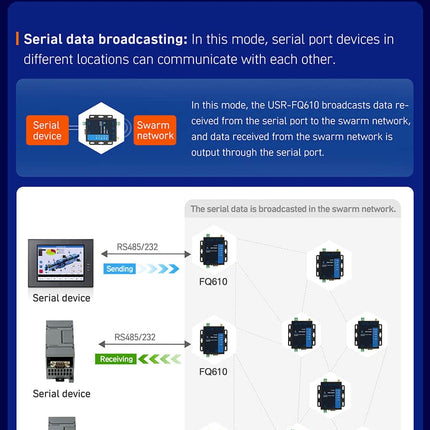

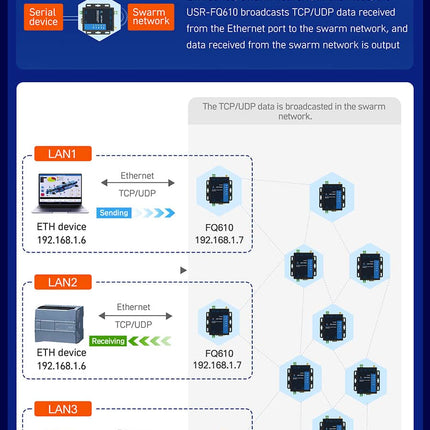

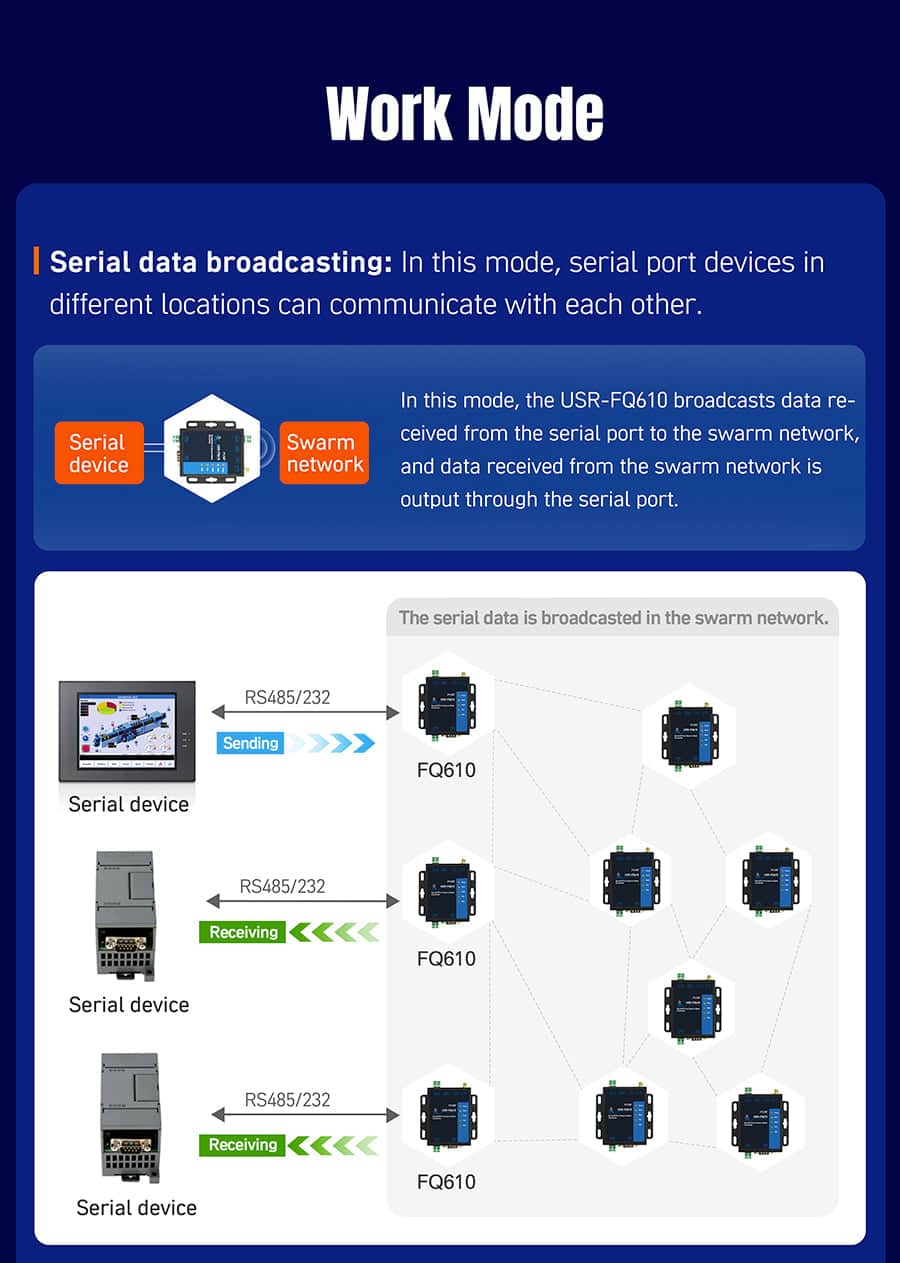

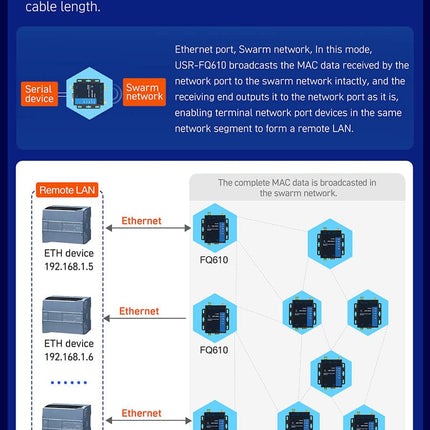

4 work modes: Wireless switch mode, network broadcast mode, serial broadcast mode, wireless serial device server mode
|
|
Relay function
|
√
|
|

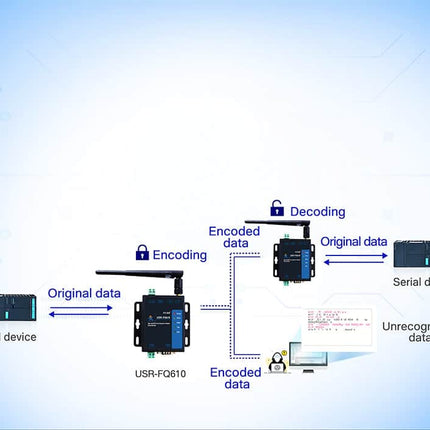

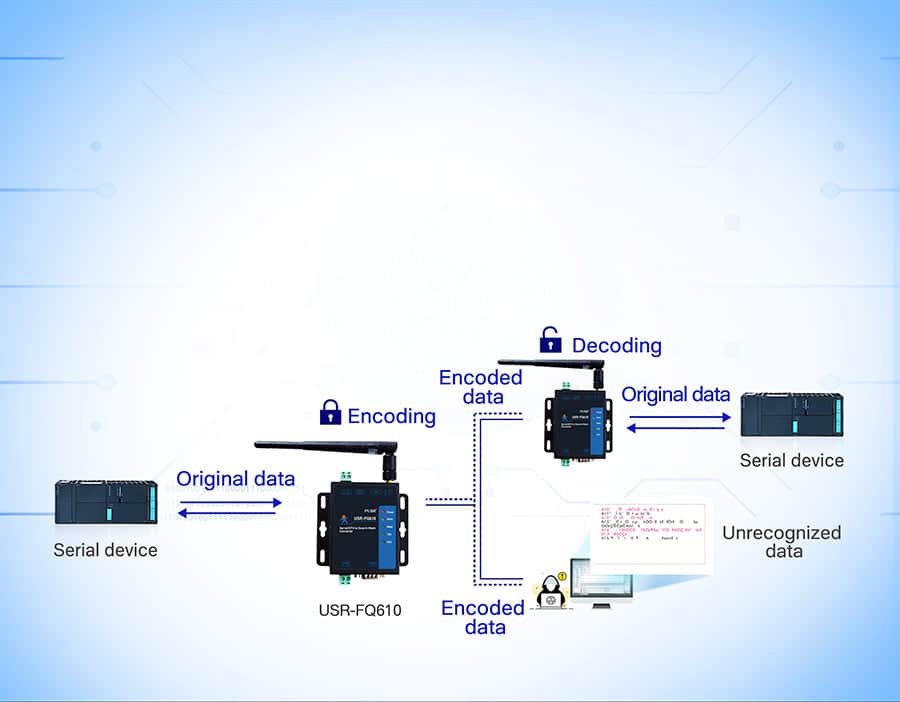

Data encryption
|
√
|
|
User Configuring
|
Configure tool, AT command
|
|
Others
|
|
Reload
|
Pinhole reset button, press and hold for 3~15 to reset to factory settings
|
|

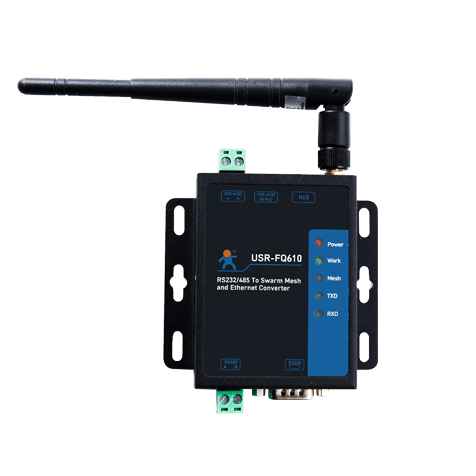

Indicators
|
1 x Power, 1 x Work, 1x Mesh, 1 x TXD, 1 x RXD
|
|
APPROVALS
|
|
Regulatory
|
CE/RED*, RoHS*, WEEE*, FCC*
|
