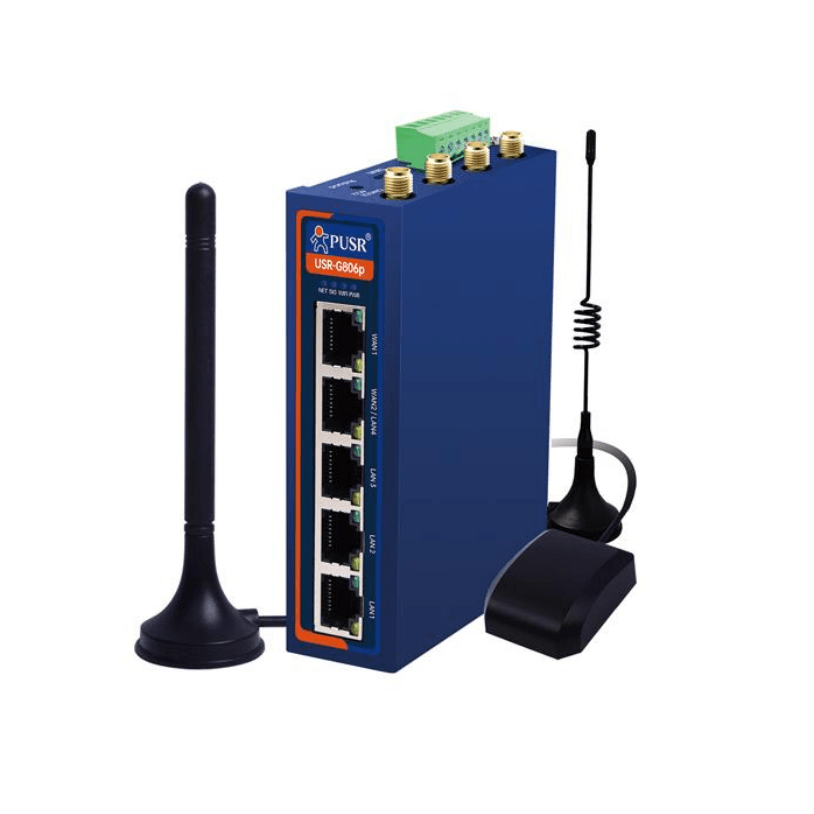

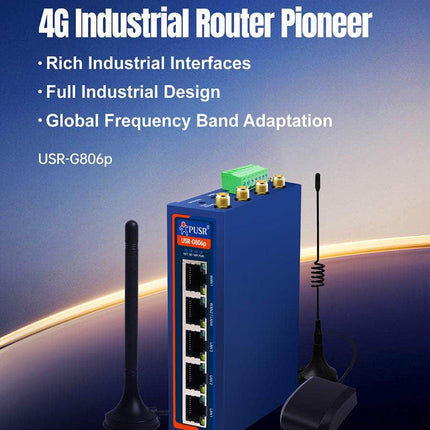

USR-G806p Specification
|
|
Cellular
|
Global Wide Band
|
TDD-LTE: Band 34/38/39/40/41
FDD-LTE: Band 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
WCDMA:B1/2/4/5/6/8/19
GSM: B2/3/5/8
|
|
Theoretical Rate
|
Download：150Mbps/Uplink：50Mbps；
Take the on-site measurement as the standard
|
|
Antenna Interface
|
1* Standard SMA-K antenna interface (outer screw inner hole)
|
|
Sim Card Slot
|

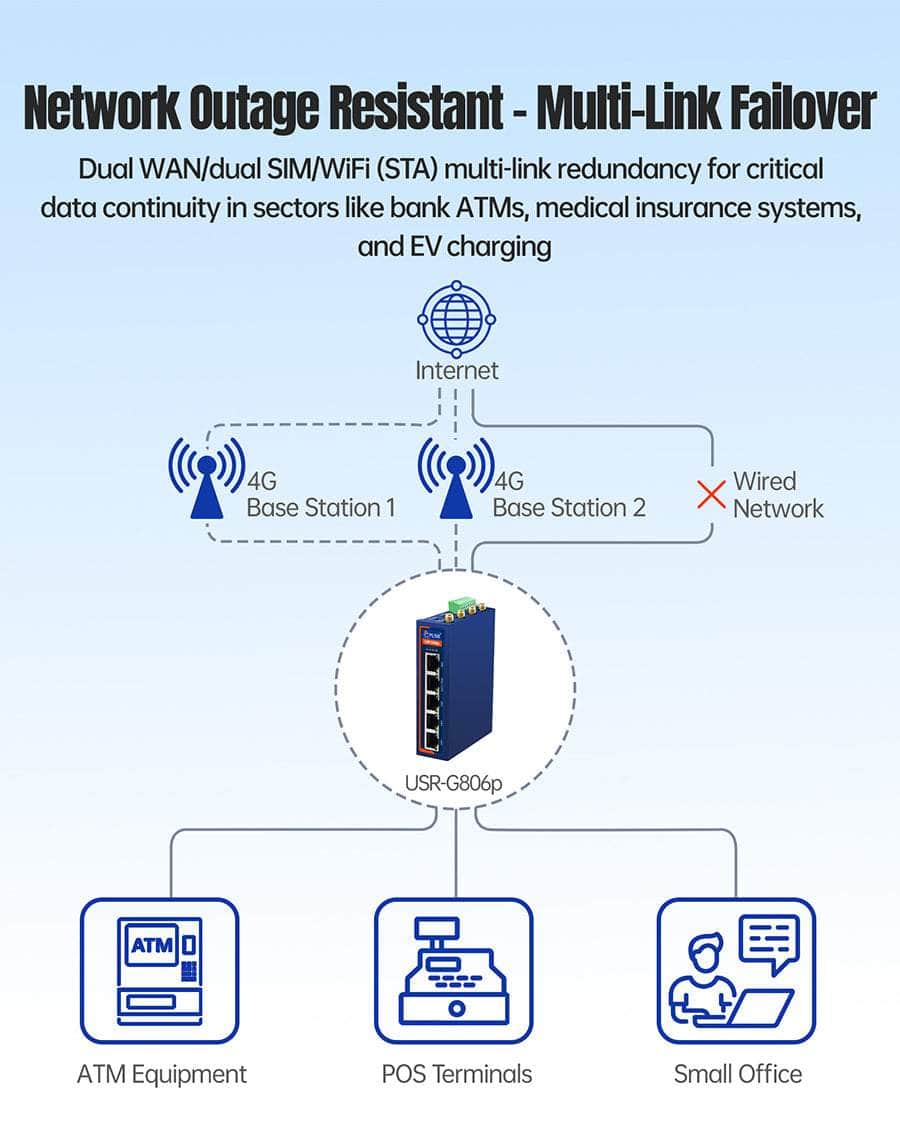

2*Nano-SIM
|
|
Wi-Fi
|
Standard
|
IEEE 802.11b/g/n, 2.4GHz, AP/STA/ bridge
|
|
Theoretical Rate
|
300Mbps，
The actual rate of WIFI is subject to the interference factors of the field environment
|
|
Antenna Interface
|
2* Standard SMA-K antenna interface（external thread and internal hole）
|
|
MIMO
|
2×2
|
|
Transmission Distance
|
The open area is 500m, and the actual transmission distance depends on the field environment
|
|

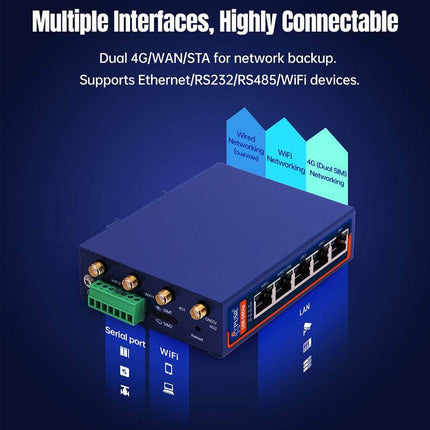

Ethernet
|
Number Of Network Ports
|

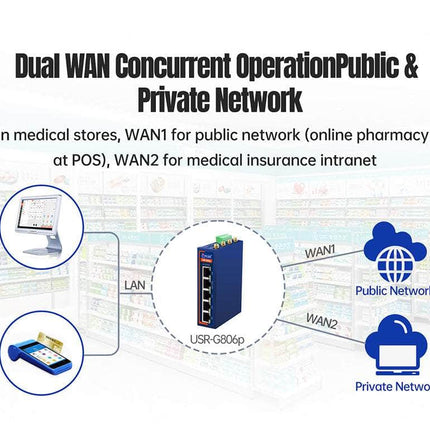

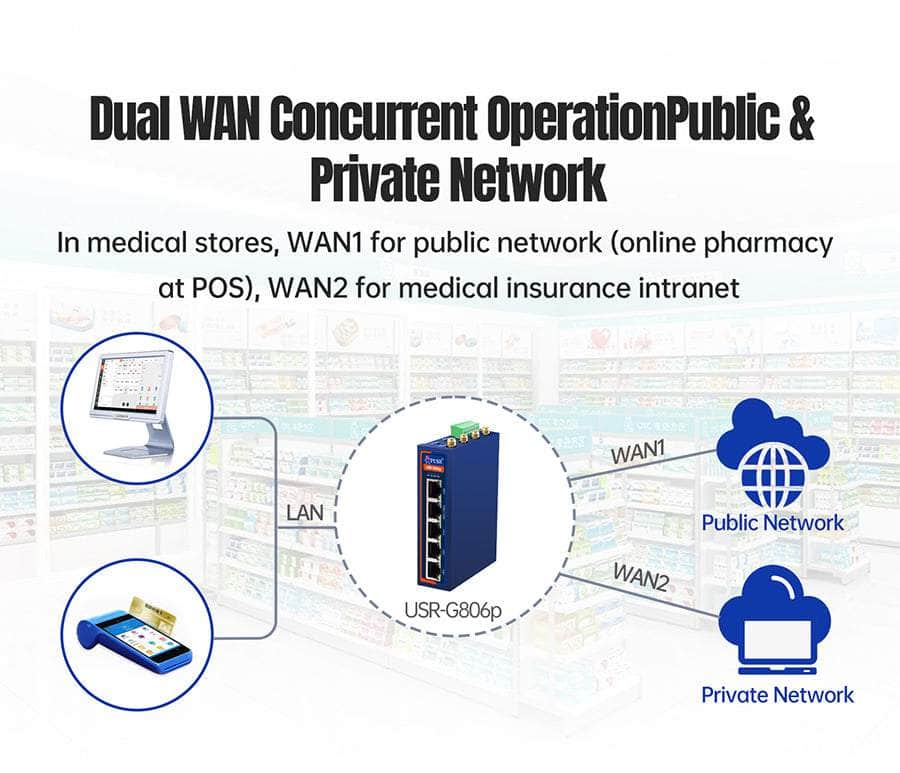

1WAN+1WAN/LAN+3LAN
|
|
Network Port Specifications
|
RJ45 interface: 10/100 Mbps adaptive, in line with IEEE 802.3,
with 1.5KV network isolation transformer protection
|
|
DTU
|
DTU Mode
|

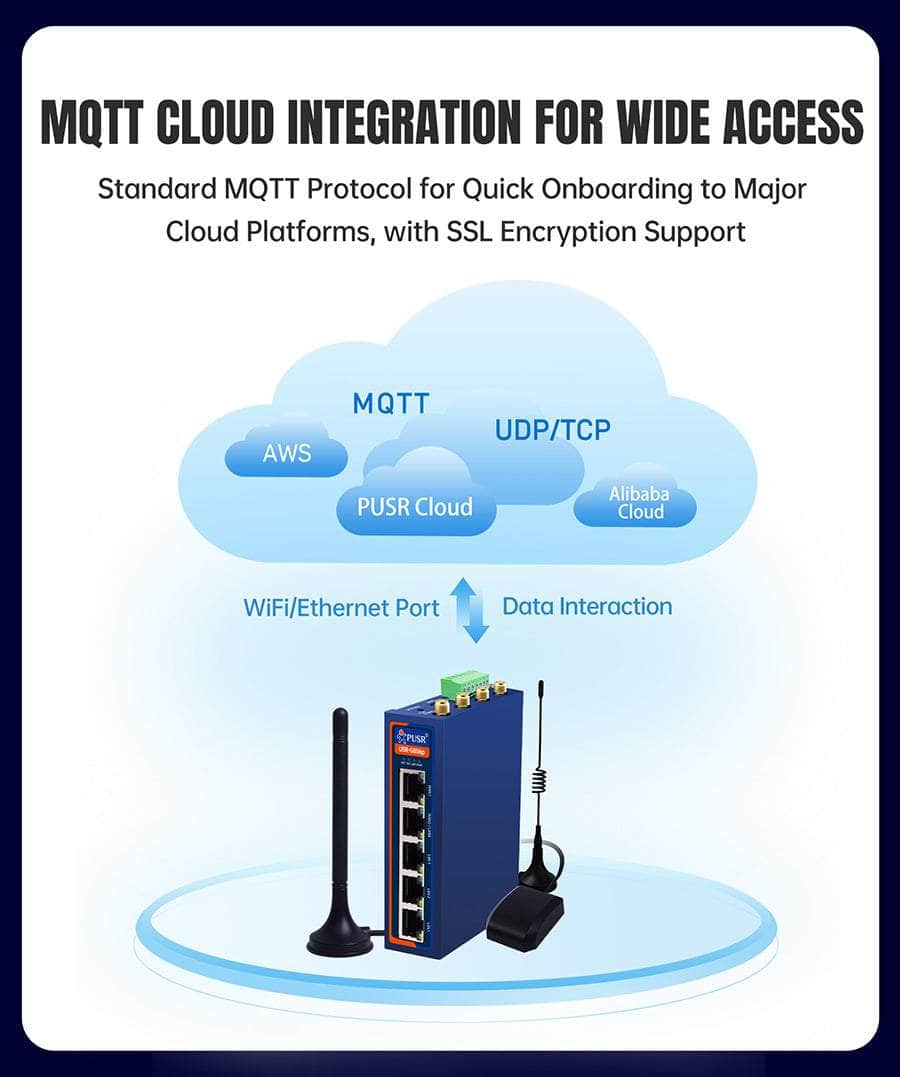

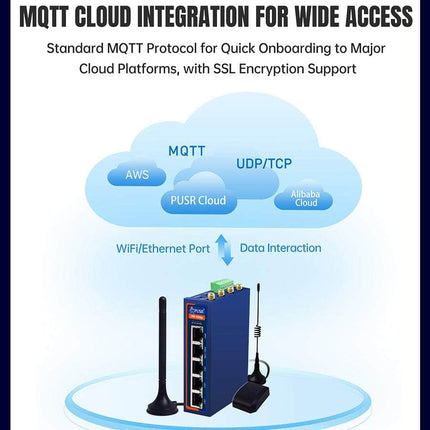

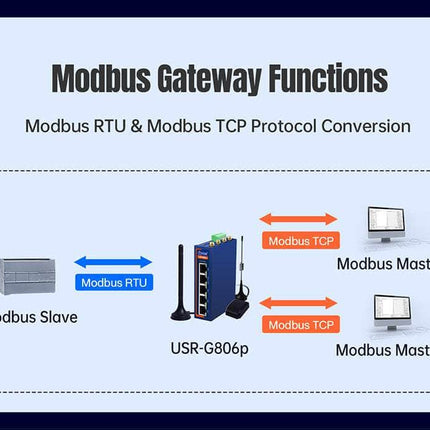

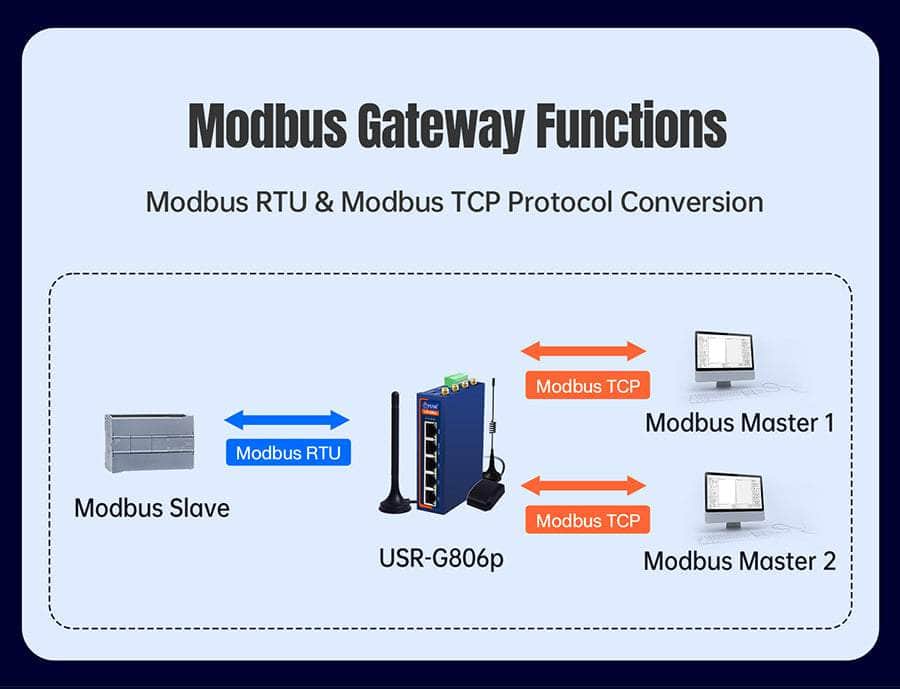

TCP/UDP/Modbus TCP to RTU/MQTT/HTTPD/AWS/ALI
Pass-Through/Modbus RTU
|
|
Heartbeat Packet /
Registration Packet
|
√
|
|
Baud Rate
|
1200，2400，4800，9600，19200，38400，57600，115200，230400
|
|
Data Bit
|
7，8
|
|
Stop Bit
|
1，2
|
|
Check Bi
|
NONE,ODD,EVEN
|
|
Serial Port Type
|
1*RS485+1*RS232
|
|
GNSS
|
Antenna Interface
|
1 * SMA-K（external thread and internal hole）
|
|
Antenna Specifications
|
Square antenna, frequency range 1575.42MHz,
signal strength 3.5 DBI, standard size 3 meters
|
|
Location Mode
|
GPS data can be selected and reported
|
|
Indicator Light
|
PWR
|
The power indicator light is on after power on
|
|
WiFi
|
It lights up when WIFI is on
|
|
NET
|
4G-Green
3G-Orange
2G-Red
|
|
SIG
|
Strong signal-Green
Medium signal-Orange
Weak signal-Red
|
|
Power
|
Adapter
|
DC 12V/1A
|
|
Power Supply Interface
|
2P power terminal with reverse polarity protection
|
|
Power Supply Range
|
DC 9-48V
|
|
Working Current
|
＜500mA@12V
|
|
Physical Characteristics
|
Hull
|
Sheet metal shell, dustproof grade IP30
|
|

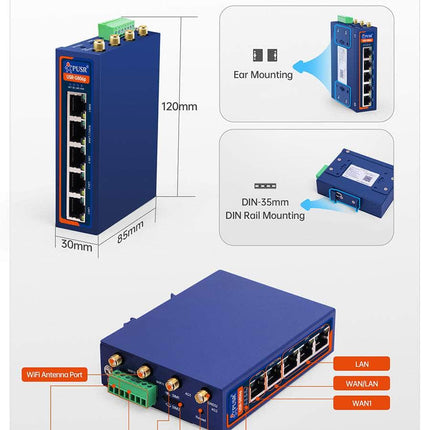

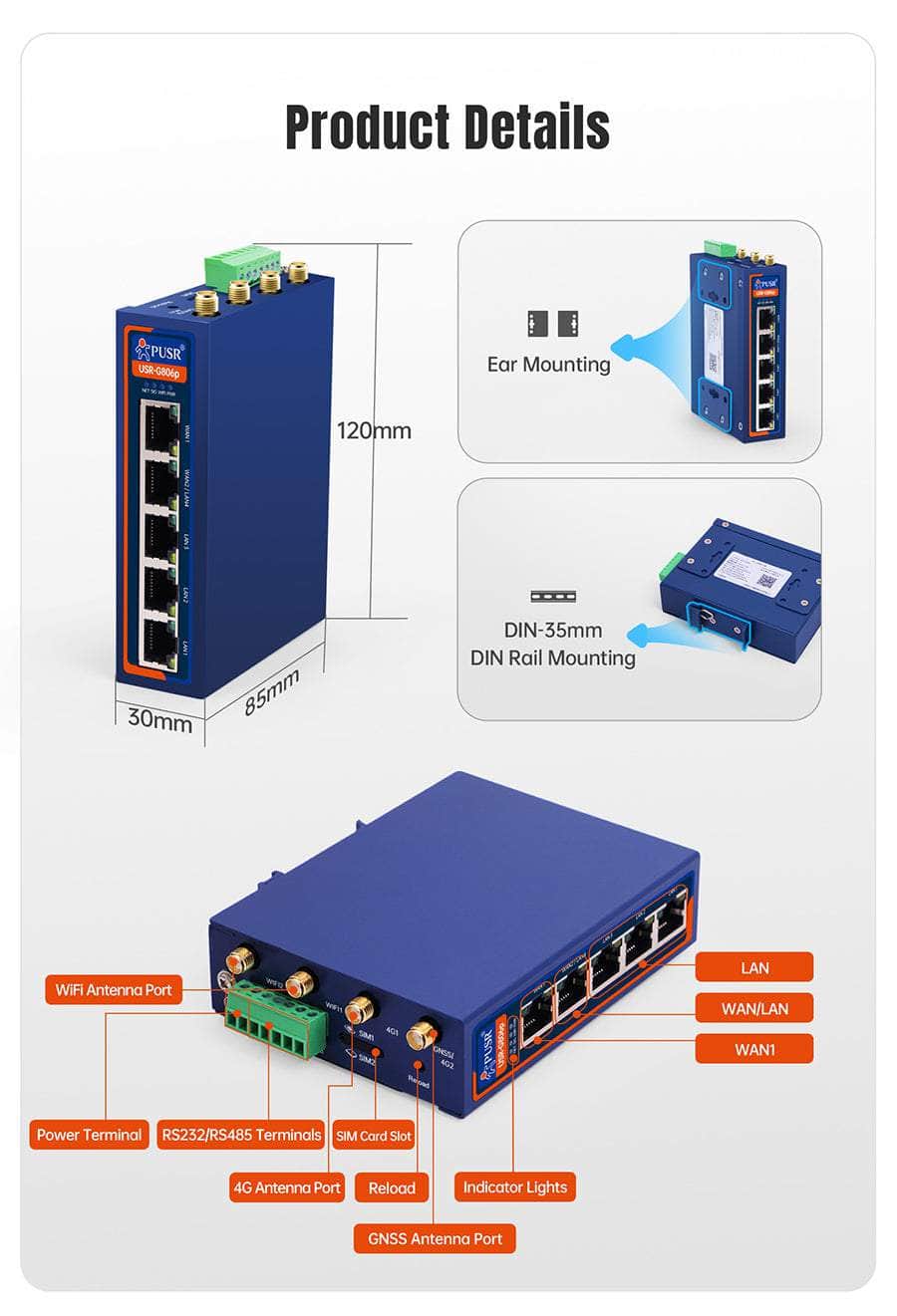

Size
|
110.0*85.0*30.0 (L*W*H）
|
|
Way To Install
|
Guide installation, wall hanging installation, horizontal desk placement
|
|
EMC
|
Level 3
|
|

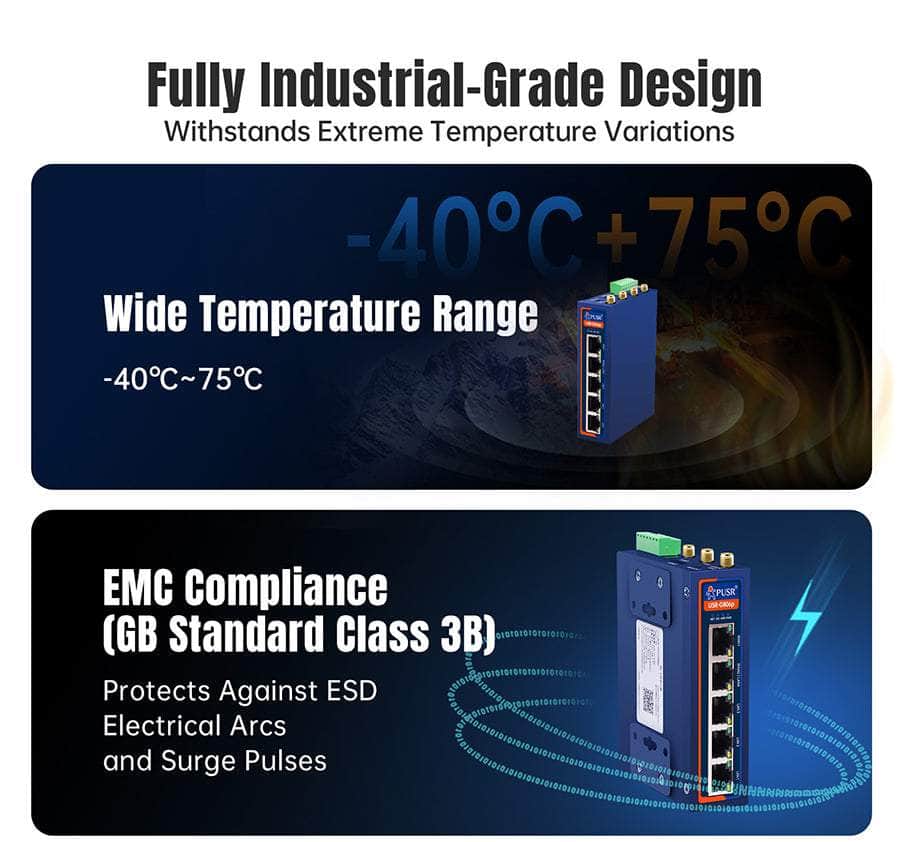

Working Temperature
|
-40℃~+75℃
|
|
Storage Temperature
|
-40℃～+85℃（No condensation）
|
|
Working Humidity
|
5%~95%（No condensation）
|
|
Software
|
VPN
|
PPTP, L2TP, IPSec, OpenVPN, GRE
|
|
Other
|
Reload
|
Support restoring the factory
|
|
TBD
|
Debugging interface
|
|
Ground Protection
|
Grounding screws
|
