USR-HUB-S Industrial RS485 RS232 RS422 TTL Hub

Description

USR-HUB-S Industrial RS485 RS232 RS422 TTL Hub

USR-HUB-SRS485 HUB

The USR-HUB Series RS485 Hub is a range of industrially isolated devices designed to expand a single RS485/232 master port into multiple RS485 slave ports. It facilitates multi-node expansion on the RS485 bus and provides signal repeating and amplification, ensuring stable industrial data transmission.

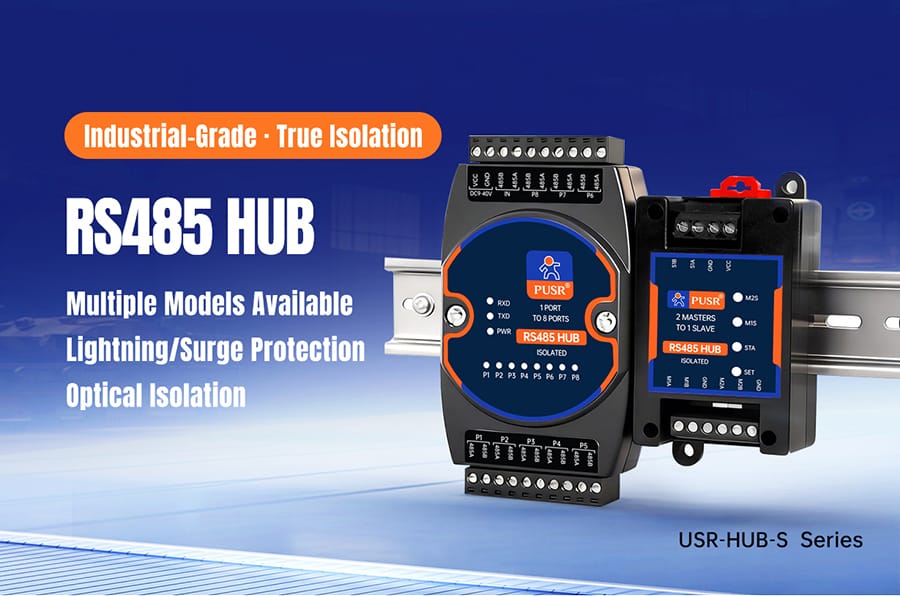

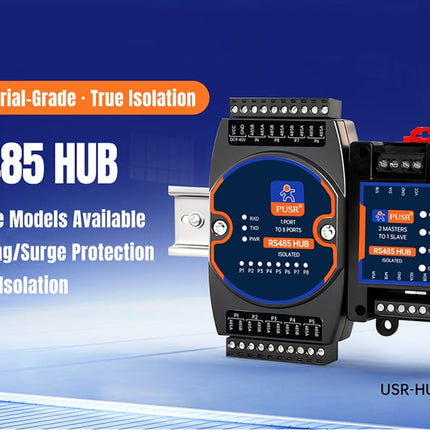

RS485 HUB

Multiple Models Available | Lightning/Surge Protection | Optical Isolation

The USR-HUB Series RS485 Hub is a range of industrially isolated devices designed to expand a single RS485/232 master port into multiple RS485 slave ports. It facilitates multi-node expansion on the RS485 bus and provides signal repeating and amplification, ensuring stable industrial data transmission. Featuring reliability, flexible expansion, strong anti-interference capability, and convenient deployment, this hub allows users to quickly integrate it into existing industrial RS485 networks without complex debugging. It offers an efficient communication connectivity solution for distributed industrial equipment and is widely applicable in industrial scenarios such as smart manufacturing, automated production lines, industrial equipment monitoring, smart warehousing, and smart buildings.



2 Key Features

  • RS485 Network Repeater: Signal Amplification
  • Slave Expansion: Cascading Multi-nodes
  • Auto-sensing: Data Flow
  • Serial Port Buffering
  • Custom Communication Protocols

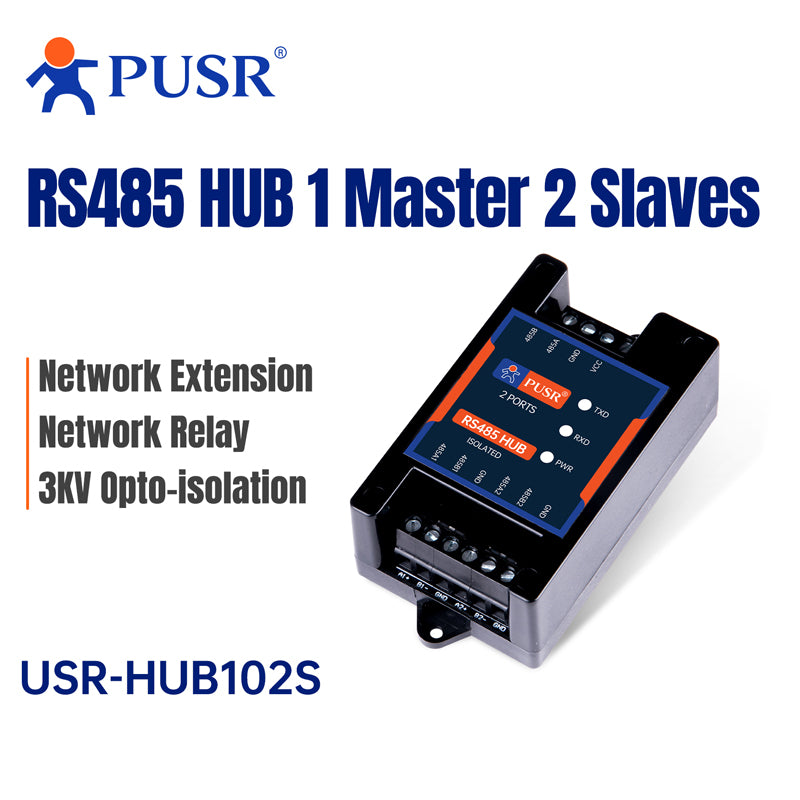

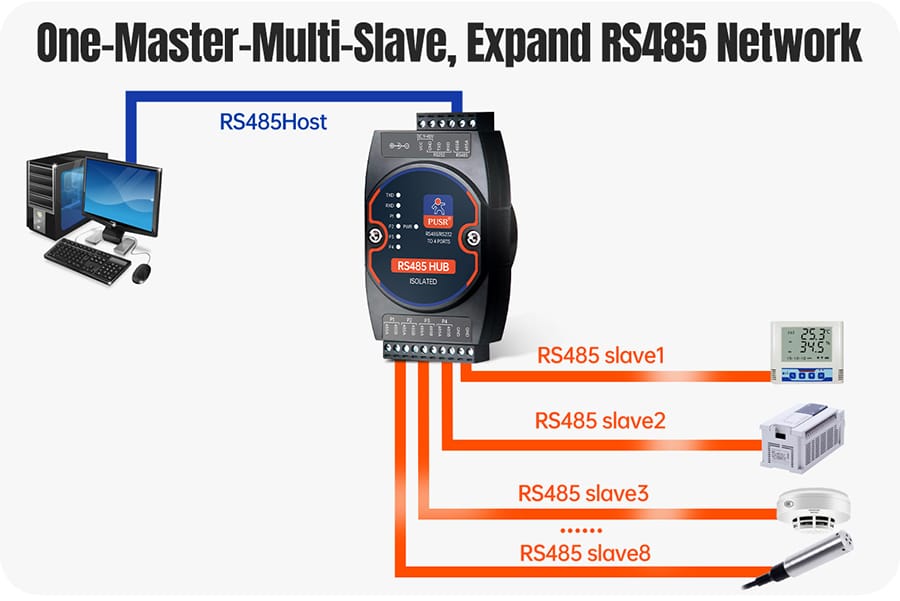

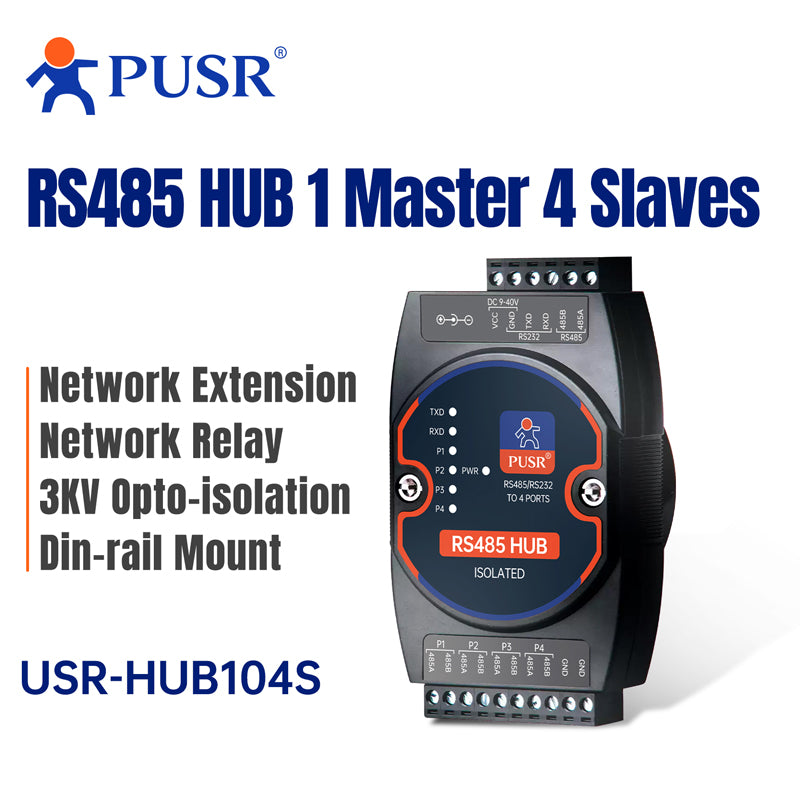

One-Master-Multi-Slave, Expand RS485 Network

  • Implements one-master-to-multi-slave conversion and signal repeating, with isolation and short-circuit protection on both master and slave ports.
  • Each RS485 channel supports up to 128 nodes. No configuration required; plug and play.

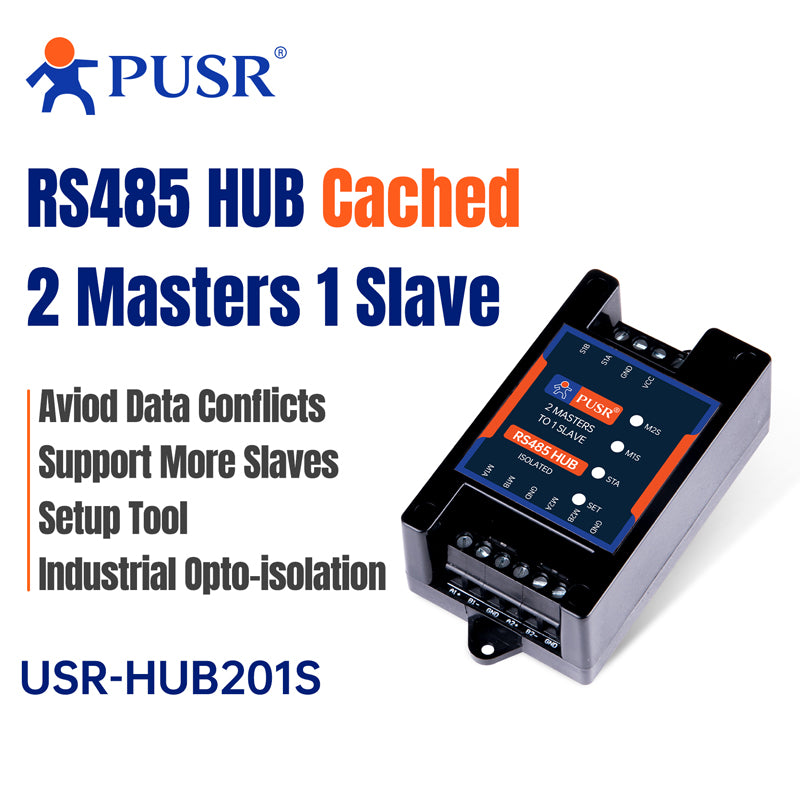

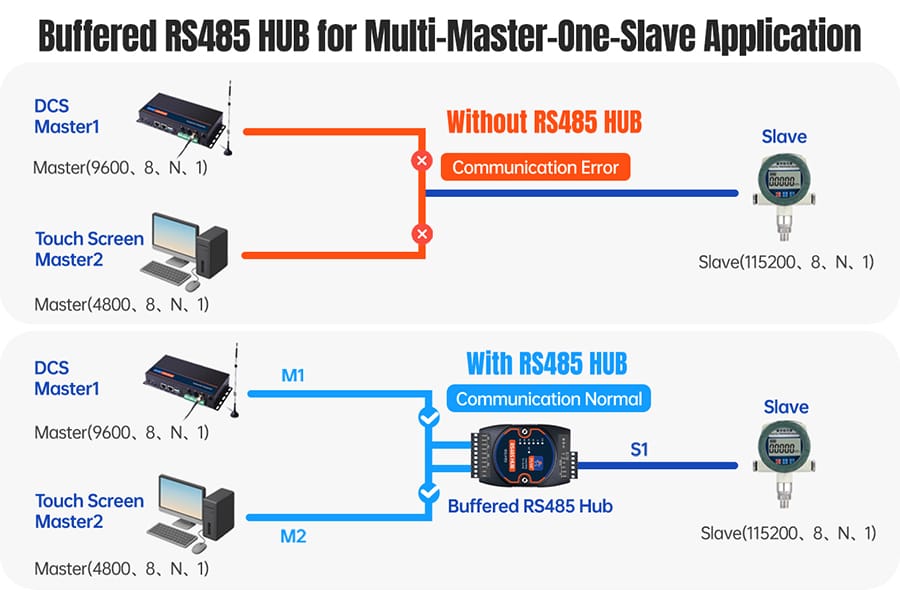

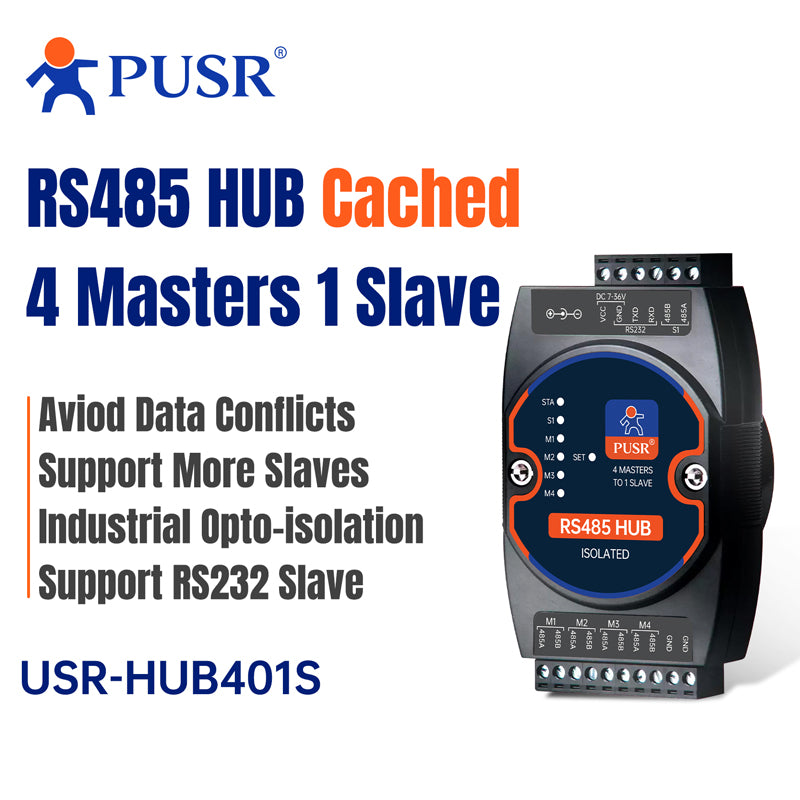

Buffered RS485 HUB for Multi-Master-One-Slave
Application

  • Built-in 2KB large-capacity buffer to avoid data collisions caused by simultaneous polling from multiple masters.
  • Supports Modbus RTU, DLT645/698 protocols, and user-defined protocols.

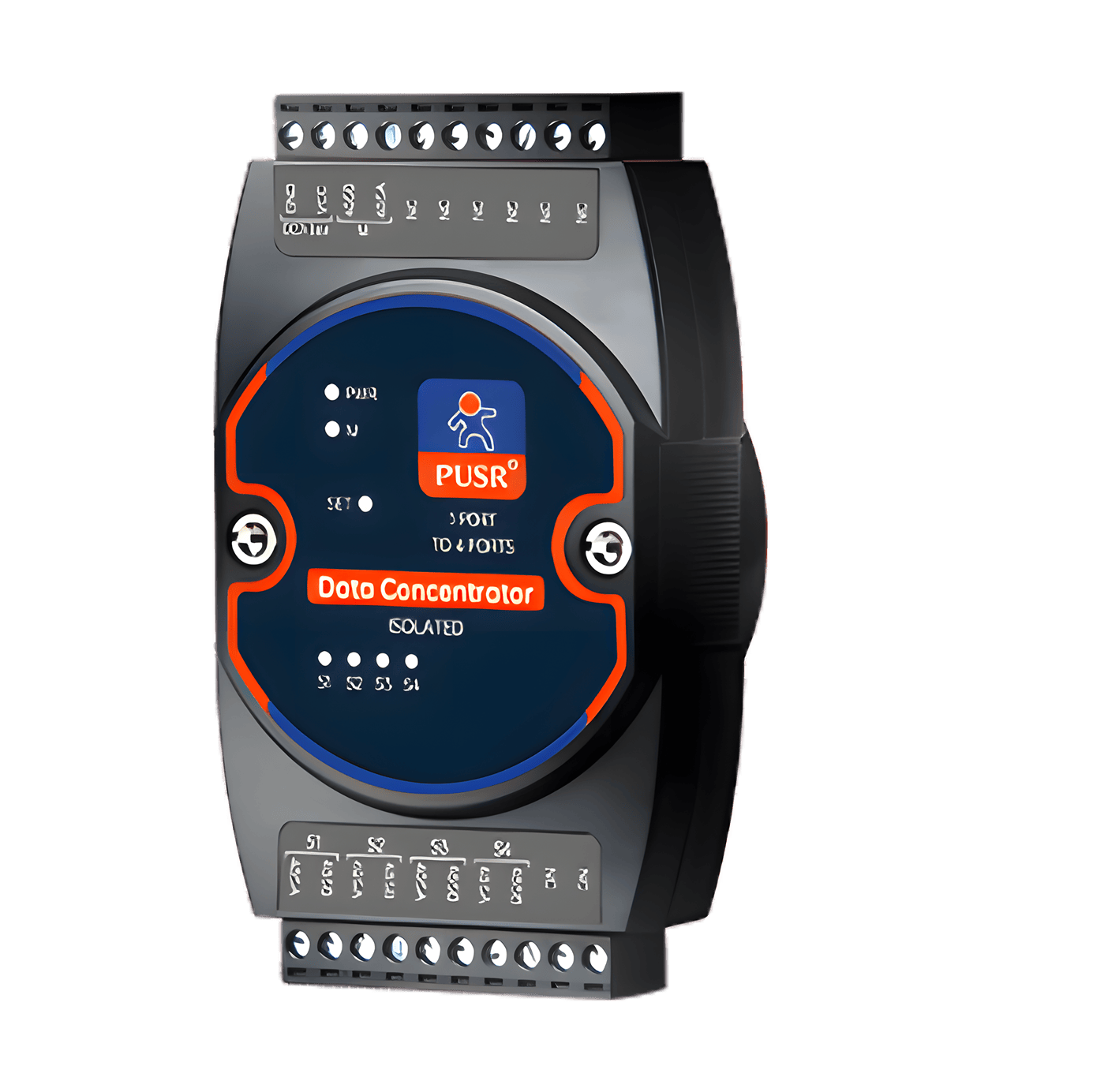

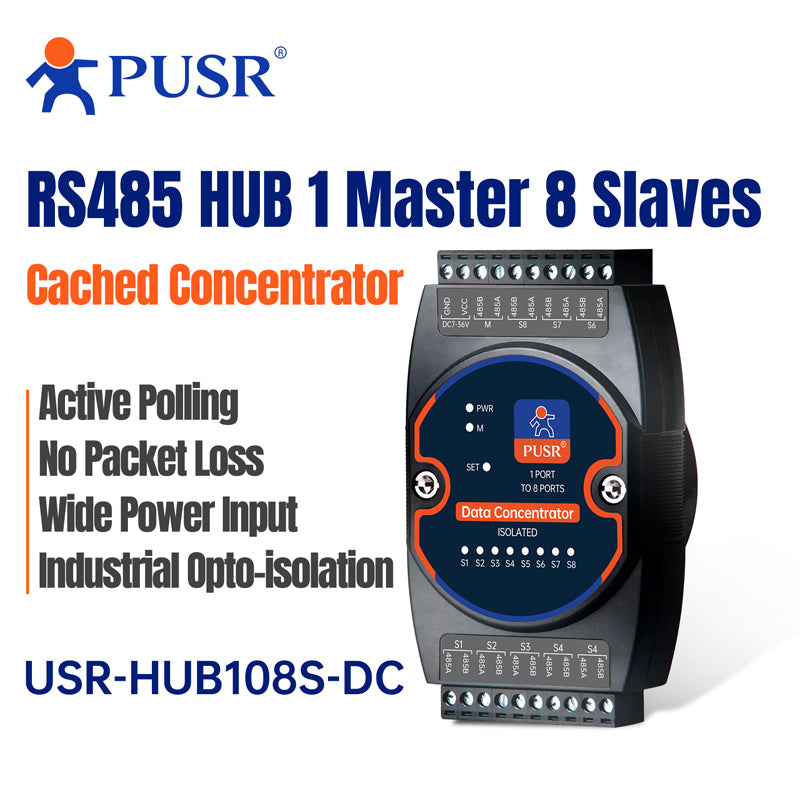

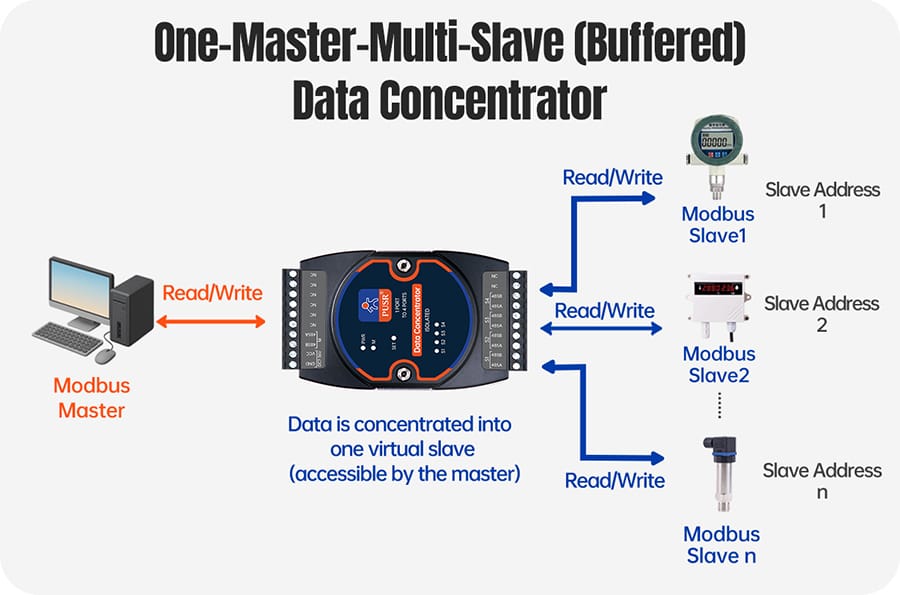

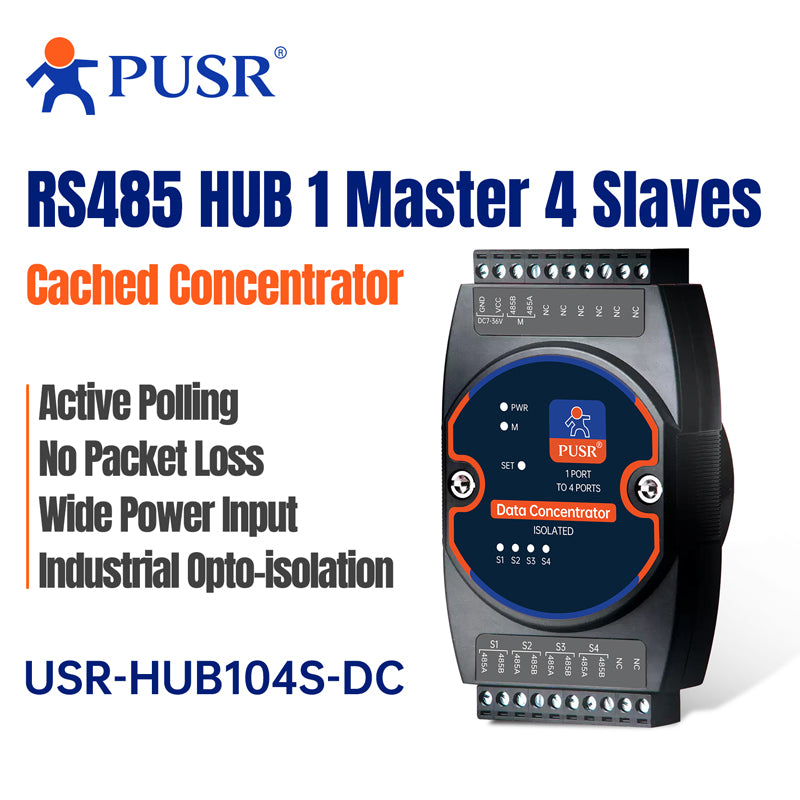

One-Master-Multi-Slave (Buffered) Data Concentrator

  • Built-in polling commands enable automatic polling and data aggregation from multiple slaves, allowing centralized read/write access via the master.
  • New slave addresses and starting register addresses can be remapped to improve communication efficiency.

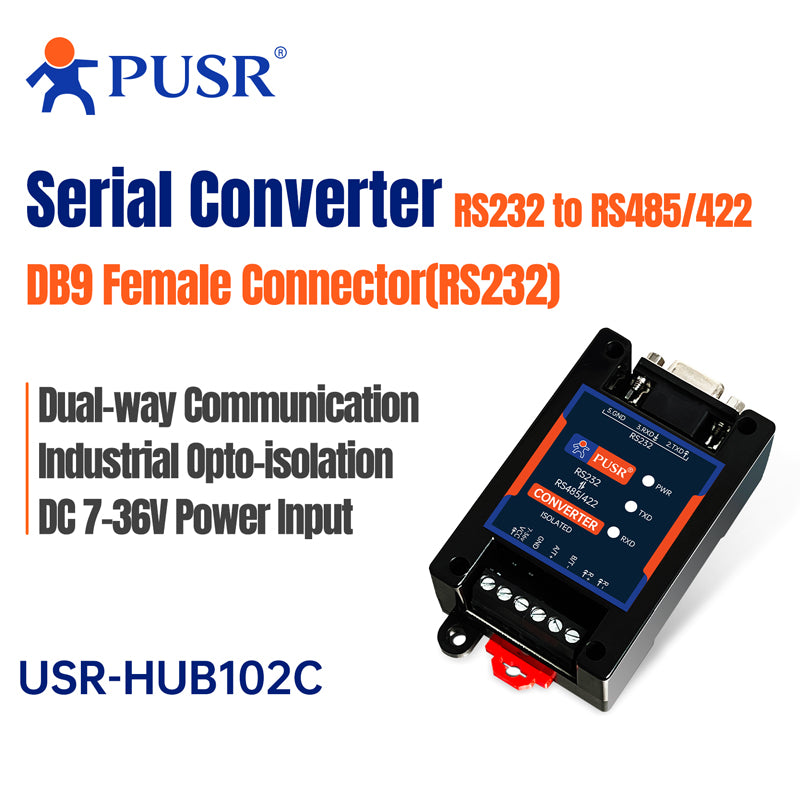

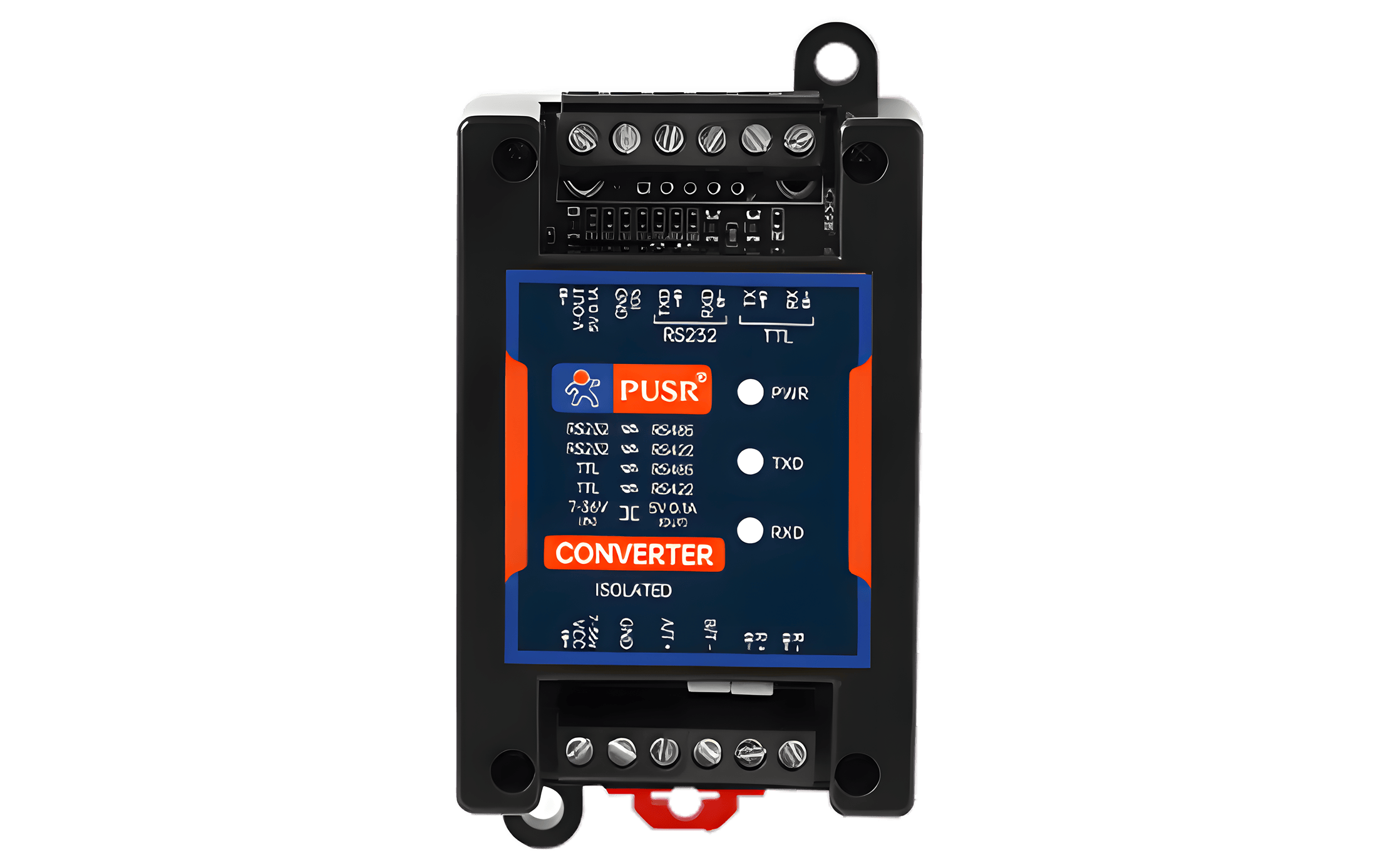

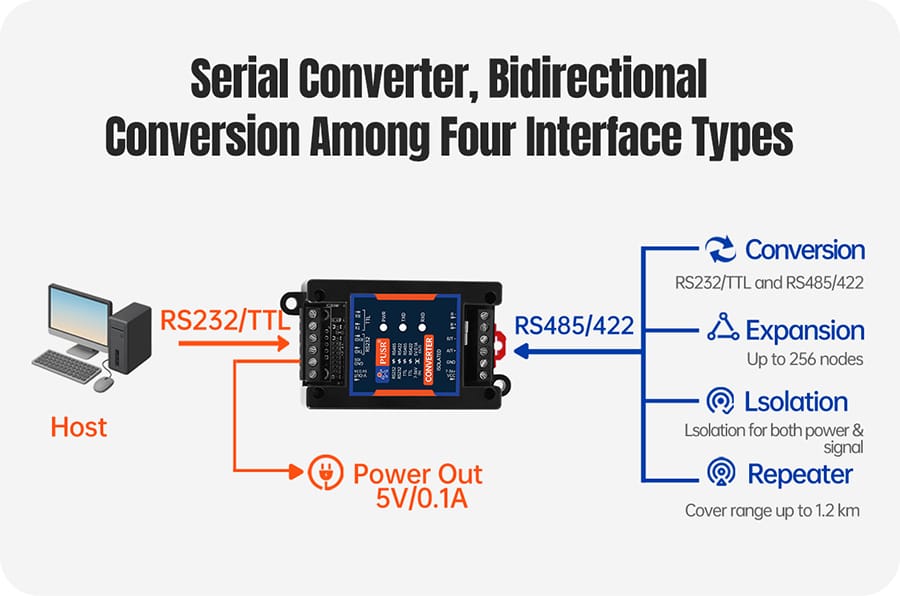

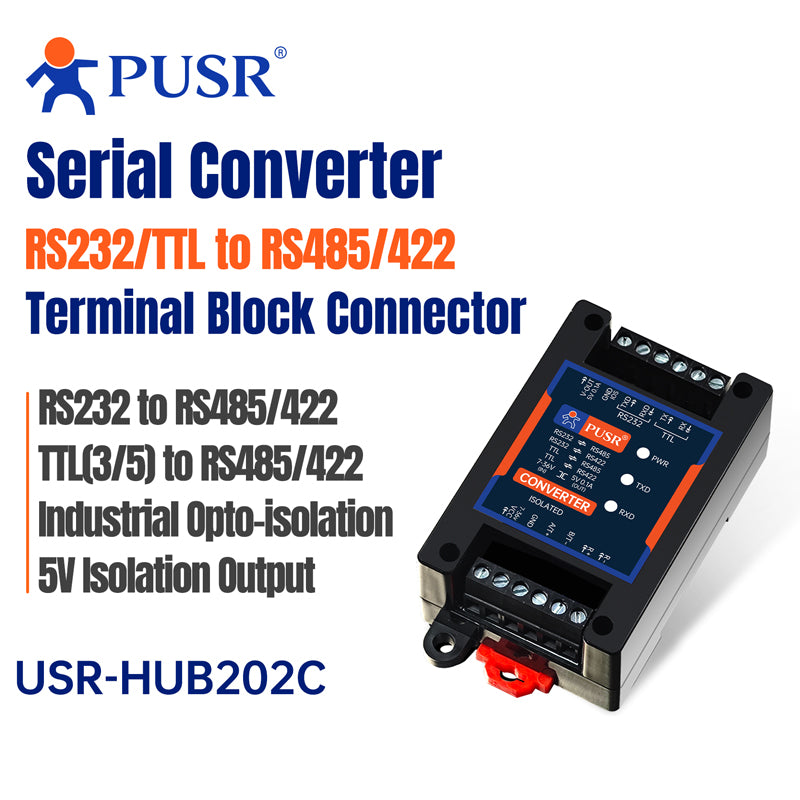

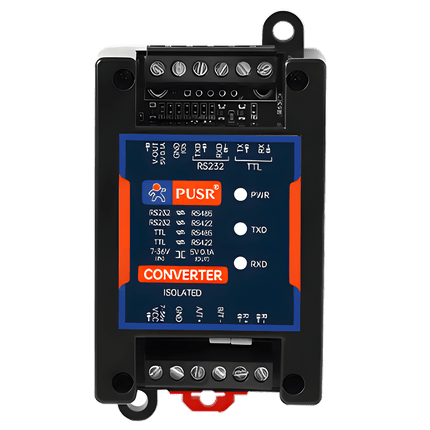

     Four Interface Types

    • Easily achieve transparent bidirectional conversion between RS232/TTL and RS485/RS422.
    • Industrial-grade isolation ensures stable operation, plug-and-play convenience, and strong anti-interference performance.

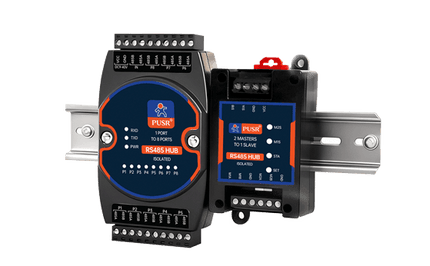

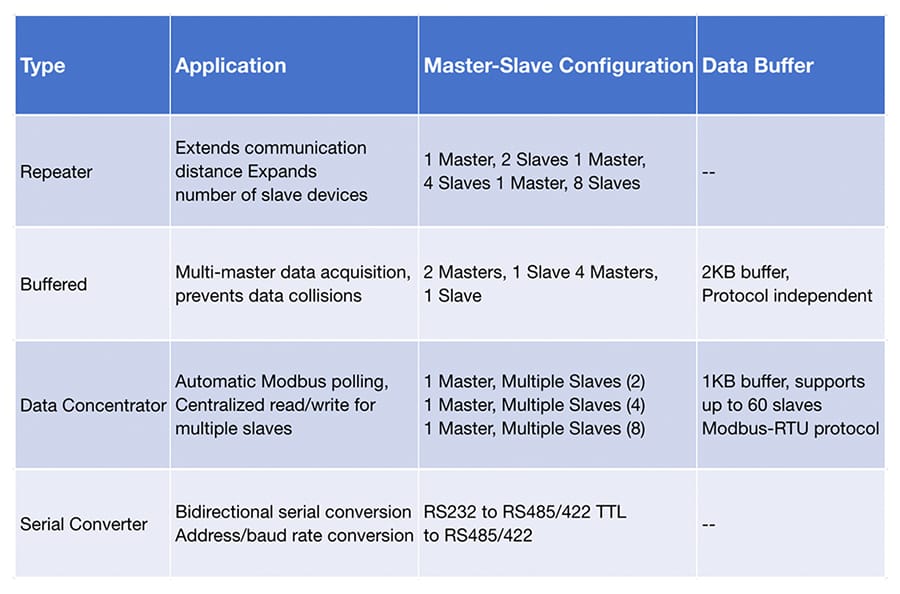

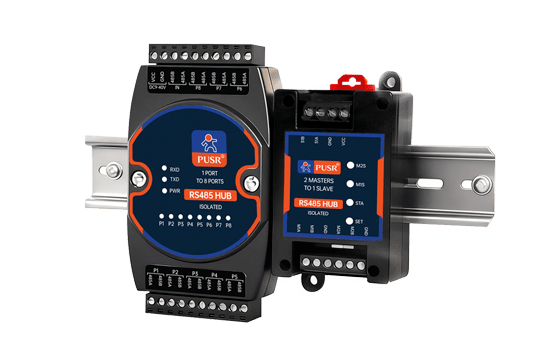

    Wide Range of Models, One-Stop Selection

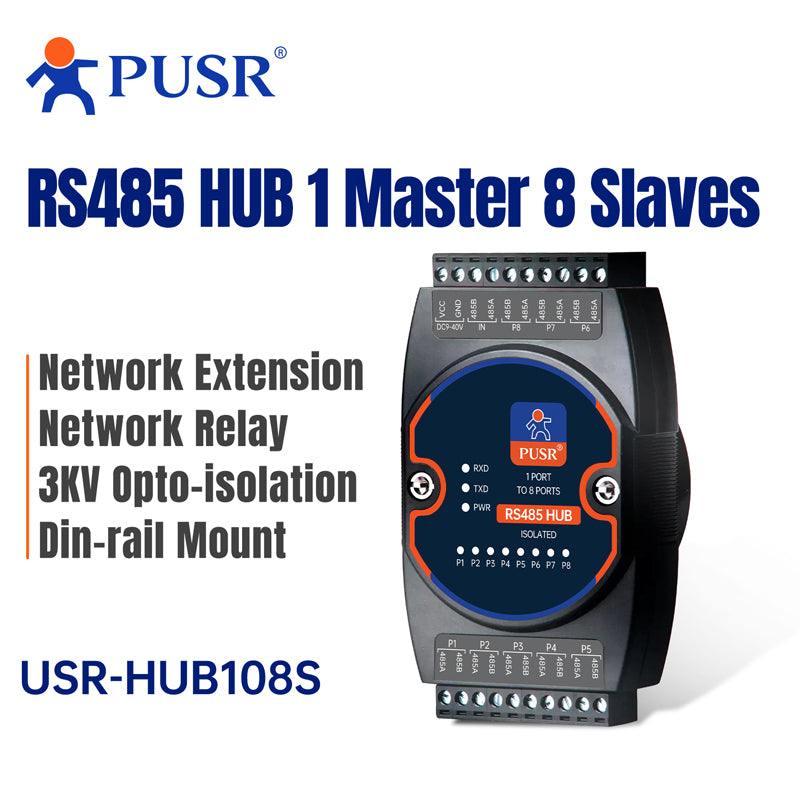

    • 2-port, 4-port, and 8-port interfaces are available to meet your needs.
    • Choose from Repeater, Buffered, or Data Distribution types based on your application.

    Industrial-Grade Quality, Built for Harsh
    Environments

    • Industrial-Grade Quality, Built for Harsh Environments
    • Optical Isolation, Anti-Interference: 2500Vrms high isolation voltage | 500V continuous DC/DC module | stable operation, nosystem crashes.
    • Wide-Voltage Power Supply: DC 9-40V power input, with short-circuit protection
    • Robust Interface Protection: ±15KV ESD protection for RS232 ports, 600W TVS lightning/surge protection per line for RS485 ports, serial ports short-circuit/overcurrent self-recovery

    Superior Quality, Perfected in Every Detail

    • Built-in Indicator Lights for Clear Status Visibility

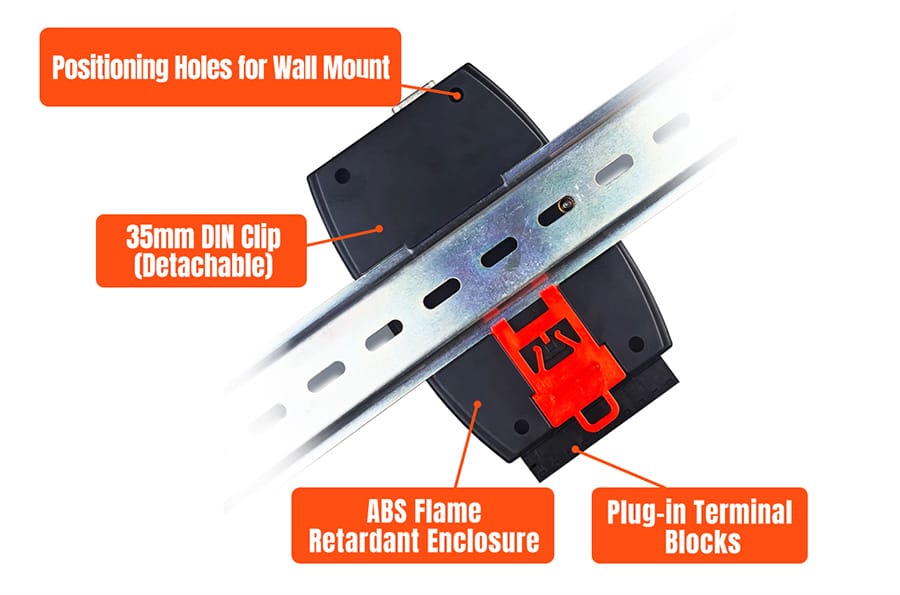

    • High-Quality Enclosure and Connectors for Robust Durability

    Industry Applications

    The USR-HUB series features extensive versatility and can operate stably in various fields such as production management, rail transit, smart buildings, photovoltaic storage and charging new energy, and intelligent power.

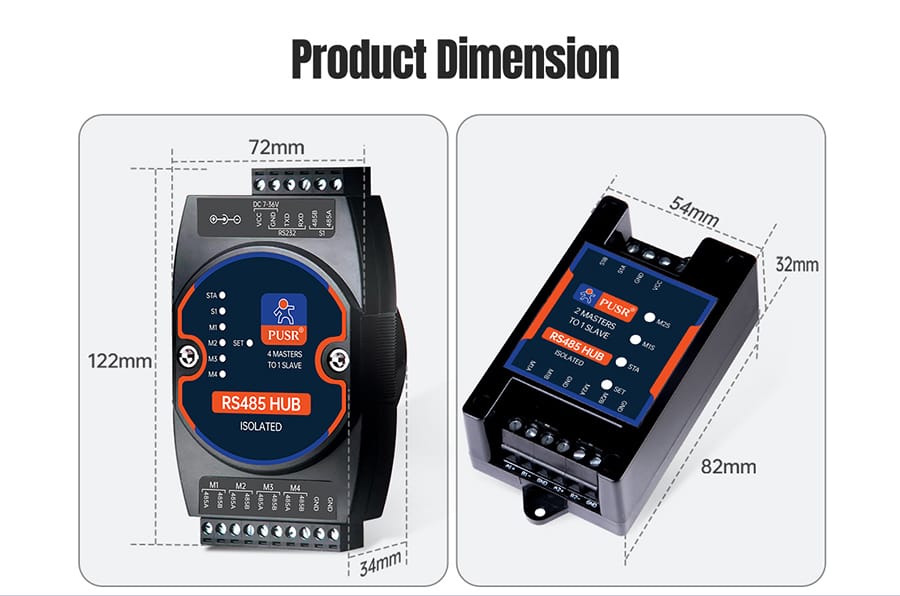

    Product Dimension

    PUSR offers multiple size options, and users can choose the one that suits the actual situation as needed.

    Specification

    Specifications

    Description

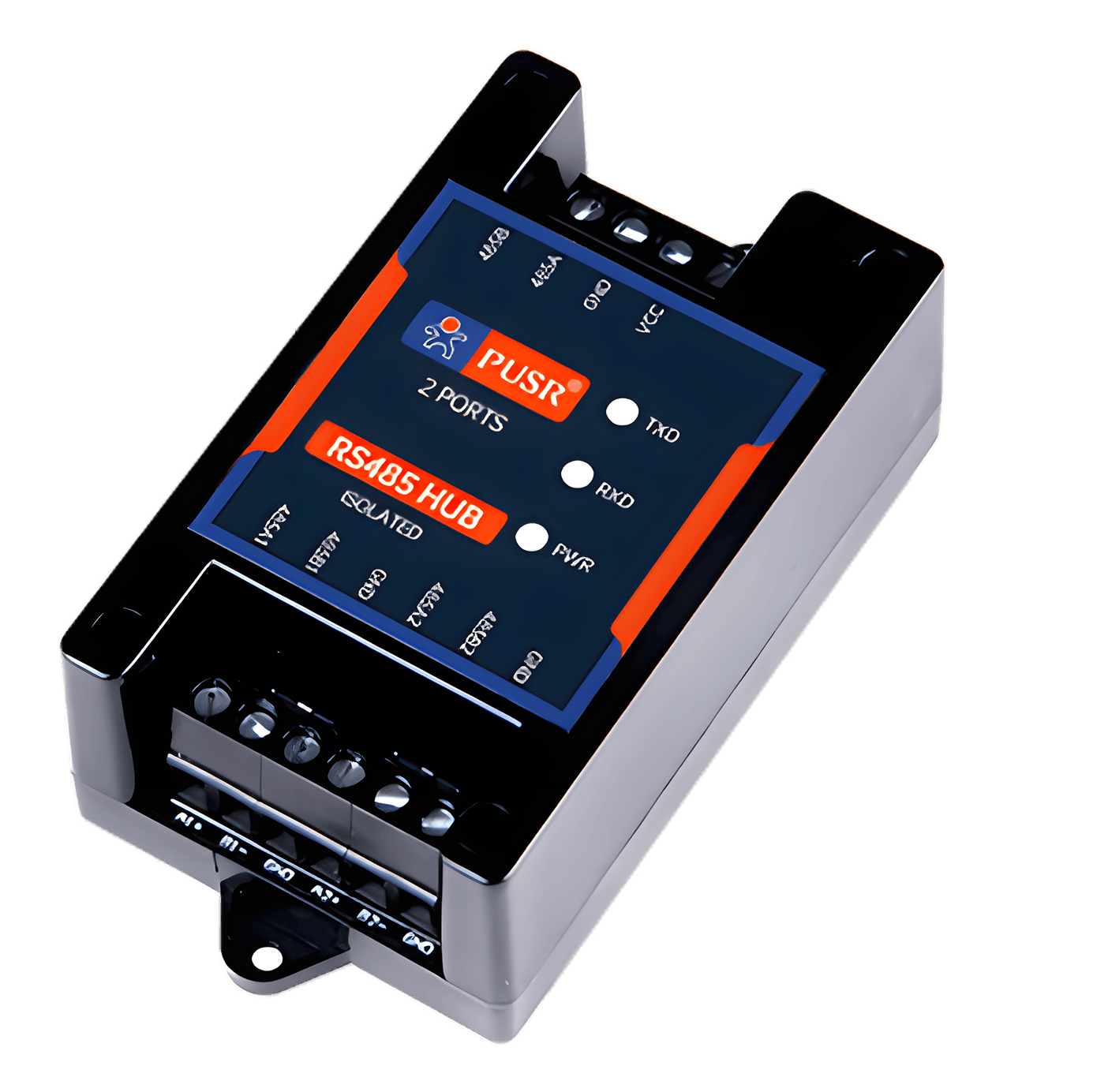

    Product model

    USR-HUB102S

    Interface properties

    Compatible with RS232, RS485, TIA/EIA standards

    Electrical interface

    Industrial terminal block

    Signal input

    RS485 Bus 1

    Signal output

    2-channel RS485

    Installation

    RS485 Star Bus Architecture

    GPRS support node

    Each RS485 channel supports 128 nodes

    Transmission medium

    Twisted pair or shielded cable

    Operate mode

    Asynchronous half-duplex (two-way communication)

    Power supply

    DC9-40V 500mA

    Signal indication

    Three indicator lights: Power (POW), Transmit (TXD), and Receive (RXD).

    Isolation level

    Isolation voltage: 2500Vrms, 500V DC insulation, continuous DC/DC mode

    Protection level

    ±15KV ESD protection and 600W surge protection per line for lightning strikes

    Applicable Communication

    All serial communication software used is plug-and-play.

    Transmission speed

    300bps to 115.2Kbps (adaptive baud rate, protocol-agnostic)

    Transmission distance

    0-3 km (115200bps-300bps)

    Service environment

    -20°C to 75°C, relative humidity 5% to 95%

    External dimensions

    100*54*32mm (with back clamp and positioning holes)



    Read more

    USR-HUB-S Industrial RS485 RS232 RS422 TTL Hub

    Product form
    Free pickup in our shop(s)

    SKU: USR-HUB-102S

    $49.00 $39.00 Excl. GST

    $49.00 $39.00
    Product available in stock, Express post same business day.

      • Local AU Stock, Fast Same-Day Dispatch or Pickup
      • Price Match & Quantity Discounts Available (Request Quote)
      • Purchase Orders & Net 30-Day Terms for Approved Accounts
      • Free Local Technical Support Before & After Purchase
      • Custom Industrial IoT Solutions & Project Assistance
      • Trusted by Australian Industry, Utilities, Agriculture & Government

      Description

      USR-HUB-S Industrial RS485 RS232 RS422 TTL Hub

      USR-HUB-SRS485 HUB

      The USR-HUB Series RS485 Hub is a range of industrially isolated devices designed to expand a single RS485/232 master port into multiple RS485 slave ports. It facilitates multi-node expansion on the RS485 bus and provides signal repeating and amplification, ensuring stable industrial data transmission.

      RS485 HUB

      Multiple Models Available | Lightning/Surge Protection | Optical Isolation

      The USR-HUB Series RS485 Hub is a range of industrially isolated devices designed to expand a single RS485/232 master port into multiple RS485 slave ports. It facilitates multi-node expansion on the RS485 bus and provides signal repeating and amplification, ensuring stable industrial data transmission. Featuring reliability, flexible expansion, strong anti-interference capability, and convenient deployment, this hub allows users to quickly integrate it into existing industrial RS485 networks without complex debugging. It offers an efficient communication connectivity solution for distributed industrial equipment and is widely applicable in industrial scenarios such as smart manufacturing, automated production lines, industrial equipment monitoring, smart warehousing, and smart buildings.



      2 Key Features

      • RS485 Network Repeater: Signal Amplification
      • Slave Expansion: Cascading Multi-nodes
      • Auto-sensing: Data Flow
      • Serial Port Buffering
      • Custom Communication Protocols


      One-Master-Multi-Slave, Expand RS485 Network

      • Implements one-master-to-multi-slave conversion and signal repeating, with isolation and short-circuit protection on both master and slave ports.
      • Each RS485 channel supports up to 128 nodes. No configuration required; plug and play.

      Buffered RS485 HUB for Multi-Master-One-Slave
      Application

      • Built-in 2KB large-capacity buffer to avoid data collisions caused by simultaneous polling from multiple masters.
      • Supports Modbus RTU, DLT645/698 protocols, and user-defined protocols.


      One-Master-Multi-Slave (Buffered) Data Concentrator

      • Built-in polling commands enable automatic polling and data aggregation from multiple slaves, allowing centralized read/write access via the master.
      • New slave addresses and starting register addresses can be remapped to improve communication efficiency.

         Four Interface Types

        • Easily achieve transparent bidirectional conversion between RS232/TTL and RS485/RS422.
        • Industrial-grade isolation ensures stable operation, plug-and-play convenience, and strong anti-interference performance.


        Wide Range of Models, One-Stop Selection

        • 2-port, 4-port, and 8-port interfaces are available to meet your needs.
        • Choose from Repeater, Buffered, or Data Distribution types based on your application.

        Industrial-Grade Quality, Built for Harsh
        Environments

        • Industrial-Grade Quality, Built for Harsh Environments
        • Optical Isolation, Anti-Interference: 2500Vrms high isolation voltage | 500V continuous DC/DC module | stable operation, nosystem crashes.
        • Wide-Voltage Power Supply: DC 9-40V power input, with short-circuit protection
        • Robust Interface Protection: ±15KV ESD protection for RS232 ports, 600W TVS lightning/surge protection per line for RS485 ports, serial ports short-circuit/overcurrent self-recovery

        Superior Quality, Perfected in Every Detail

        • Built-in Indicator Lights for Clear Status Visibility
        • High-Quality Enclosure and Connectors for Robust Durability

        Industry Applications

        The USR-HUB series features extensive versatility and can operate stably in various fields such as production management, rail transit, smart buildings, photovoltaic storage and charging new energy, and intelligent power.

        Product Dimension

        PUSR offers multiple size options, and users can choose the one that suits the actual situation as needed.

        Specification

        Specifications

        Description

        Product model

        USR-HUB102S

        Interface properties

        Compatible with RS232, RS485, TIA/EIA standards

        Electrical interface

        Industrial terminal block

        Signal input

        RS485 Bus 1

        Signal output

        2-channel RS485

        Installation

        RS485 Star Bus Architecture

        GPRS support node

        Each RS485 channel supports 128 nodes

        Transmission medium

        Twisted pair or shielded cable

        Operate mode

        Asynchronous half-duplex (two-way communication)

        Power supply

        DC9-40V 500mA

        Signal indication

        Three indicator lights: Power (POW), Transmit (TXD), and Receive (RXD).

        Isolation level

        Isolation voltage: 2500Vrms, 500V DC insulation, continuous DC/DC mode

        Protection level

        ±15KV ESD protection and 600W surge protection per line for lightning strikes

        Applicable Communication

        All serial communication software used is plug-and-play.

        Transmission speed

        300bps to 115.2Kbps (adaptive baud rate, protocol-agnostic)

        Transmission distance

        0-3 km (115200bps-300bps)

        Service environment

        -20°C to 75°C, relative humidity 5% to 95%

        External dimensions

        100*54*32mm (with back clamp and positioning holes)



        Read more
