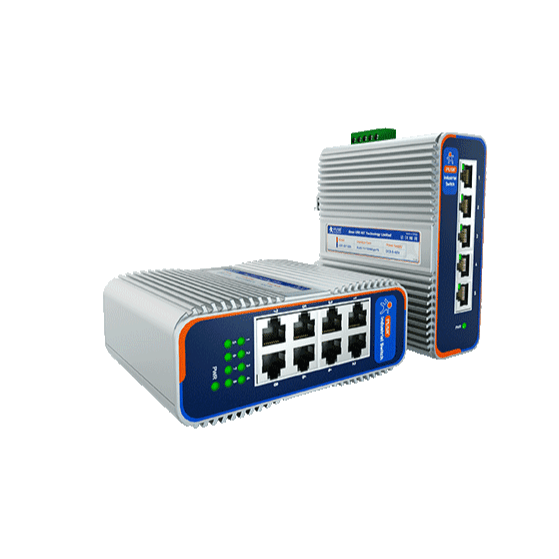

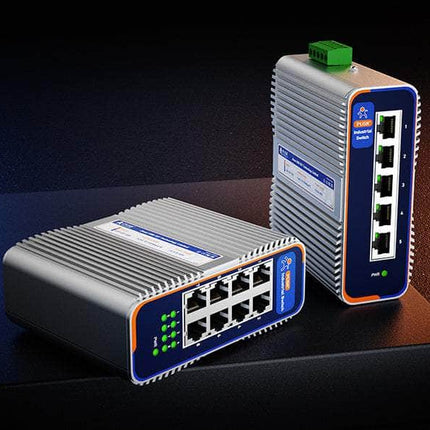

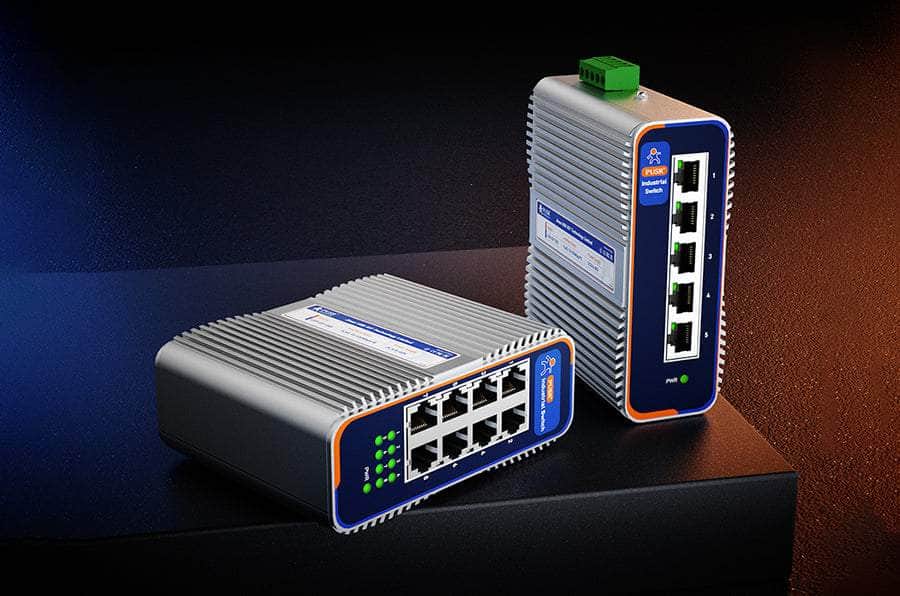

USR-ISG Industrial Premium Ethernet Switch

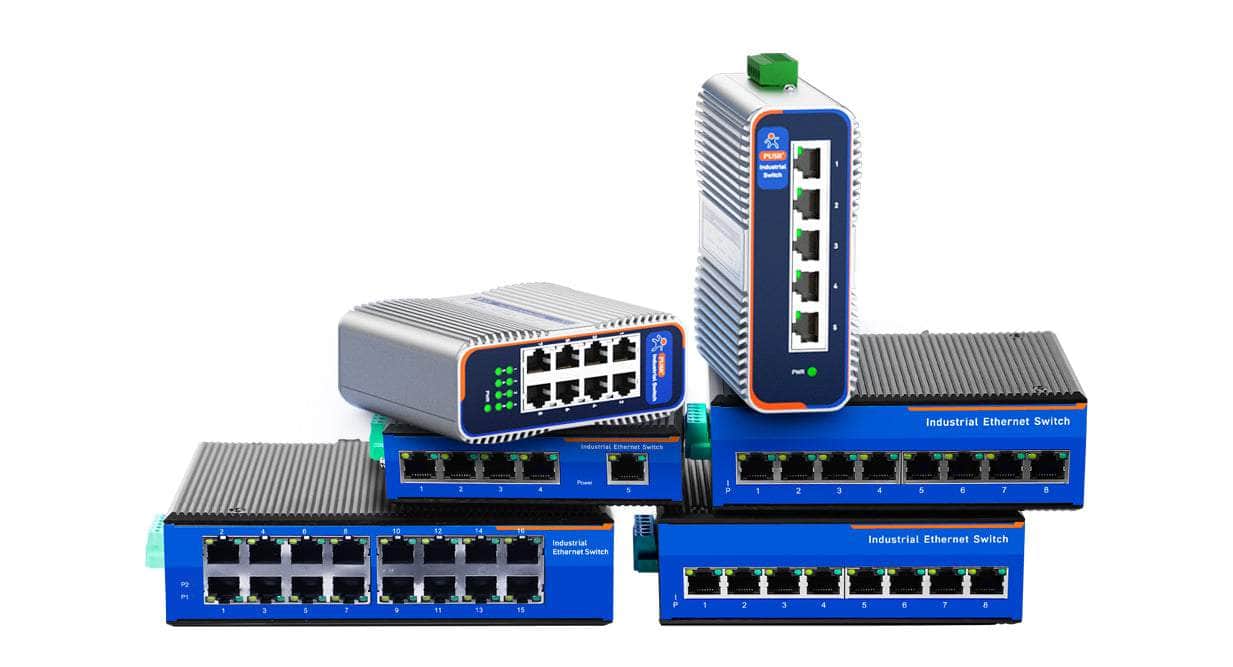

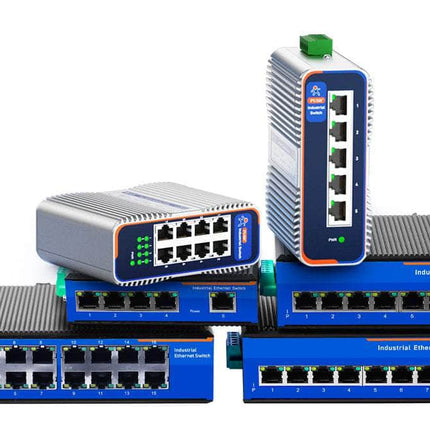

USR-ISG series switches have 5/8/16 ports and optical ports (SFP slots), and PoE combinations. Compatible with 10/100/1000Mbps speed, the product adopts fanless heat dissipation design, with -40°C~85°C operating temperature, small size, metal shell, with IP40 protection grade.
Key Features
- Extreme Temperature, -40℃~+85℃
- Redundant Power Supply, DC 9.6-60V Range
- Industrial Grade Quality, Lighting Protection 6KV
- Aluminium Housing, Effective Cooling
- Dustproof Design, IP40 Protection
- Din-Rail Mounting, Easy to Install
- Compact Size, Save Your Space

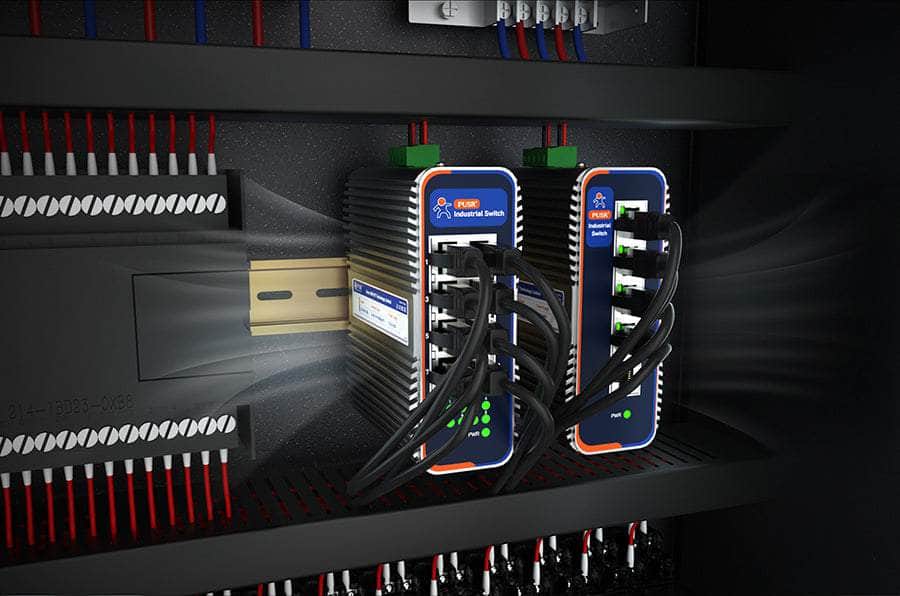

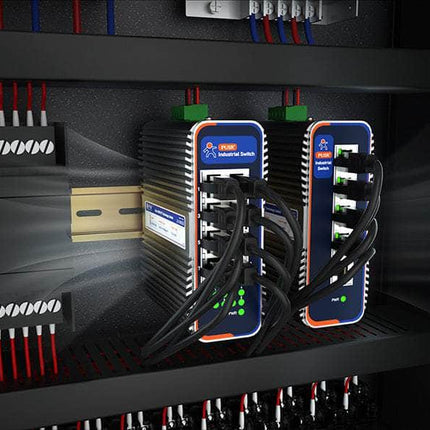

Aluminum Housing, DIN-Rail Mounting
PUSR industrial switches adopts aluminum housing which can realize effective cooling without fan, and operate more quietly. WIth DIN rail mounting design, it can be installed on the DIN-rail, which is simple and convenient.
Extreme Temperature, Designed for Harsh Environment
A wide operating temperature range of -40 ~ +85° C (-40° ~167° F) allows for installations in harsh environments with extreme hot or cold conditions.
Industrial Grade Quality, Lighting Protection 6KV
With industrial lightning protection component for both power supply and network interface, the switches can effectively prevent the device from being damaged by lightning
Redundant Power Supply with Multiple Protection
This series switches features with its dual power which can ensure the uninterrupted running of the device.
Reverse connect protection: Support positive and negalive reverse connection protecton.
Surge protection: Through 6KV common mode surge impact test, improving the port protection performance
Short circuit protection: When a short circuit occurs, the power supply can be quickly cut off to avoid other accidents.
Specifications
|
Model
|
USR-ISF1005
|
USR-ISF1008
|
USR-ISG1005
|
USR-ISG1008
|
|
Switch Property
|
|
Backplane bandwidth
|
1G
|
1.6G
|
10G
|
16G
|
|
Transmission mode
|
Store and forward
|
|
MAC address
|
2K
|
2K
|
2K
|
4K
|
|
Packet Buffer Size
|
768 Kbits
|
768 Kbits
|
1 Mbits
|
1 Mbits
|
|
Ethernet Ports
|
|
No.
|
5 x 10/100Mbps
|
8 x 10/100Mbps
|
5 x 10/100/1000Mbps
|
8 x 10/100/1000Mbps
|
|
Interface
|
RJ45 ports, auto MDI/MDIX, auto negotiation
|
|
Network Media (Cable)
|
UTP Category 5 cable
|
|
Standards
|
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3x for flow control
|
IEEE 802.3 10BaseT
IEEE 802.3u100BaseTX
IEEE 802.3x for flow control
IEEE802.3ab 1000BaseTX
|
|
Power Supply
|
|
Connector
|
1 removable 5-pin terminal blocks
|
|
Input voltage
|
DC 9.6-60V
|
|
Power consumption
|
<5W
|
|
Overload Current Protection
|
Supported
|
|
Anti-reverse connection protection
|
Supported
|
|
Physical Characteristic
|
|
Installation
|
DIN-rail mounting, desktop
|
|
Housing
|
IP40 protection, aluminium
|
|
Dimension
|
118*96*47.5 mm
|
|
Weight
|
430g
|
|
Environmental Limit
|
|
Operating temperature
|
-40~+85℃
|
|
Storage temperature
|
-40~+85℃
|
|
Relative humidity
|
5% to 95% (non-condensing)
|
|
EMC
|
|
ESD
|
IEC 61000-4-2 (ESD), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
|
|
EFT
|
IEC 61000-4-4 (EFT), Level 3
|
|
Surge
|
IEC 61000-4-5 (Surge), Level 3
|
