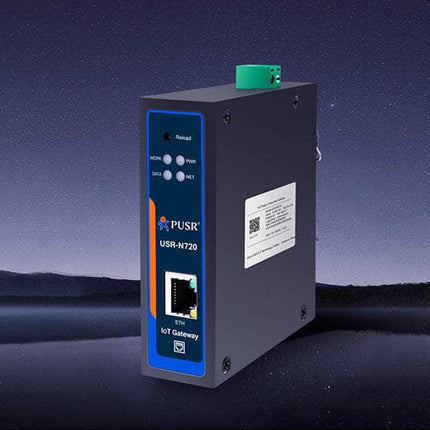

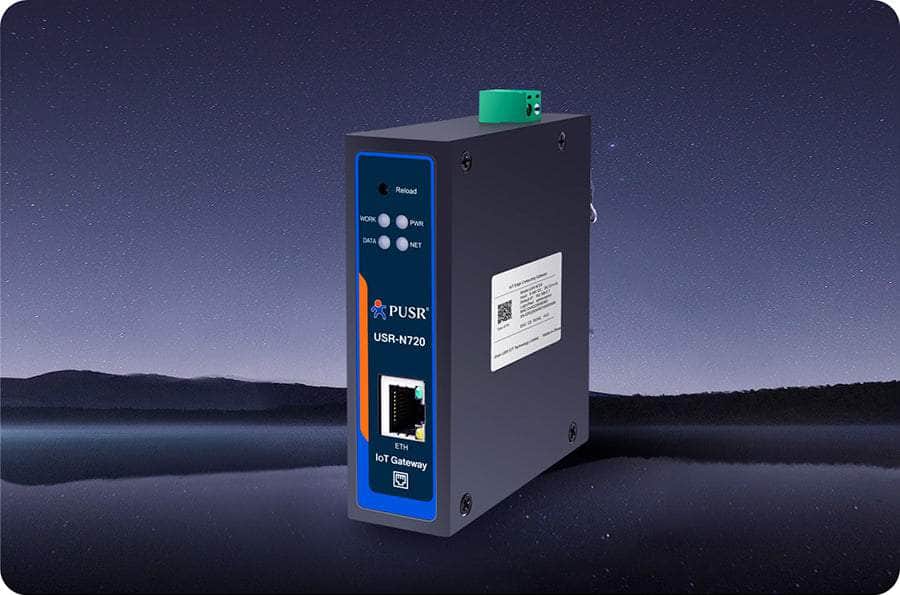

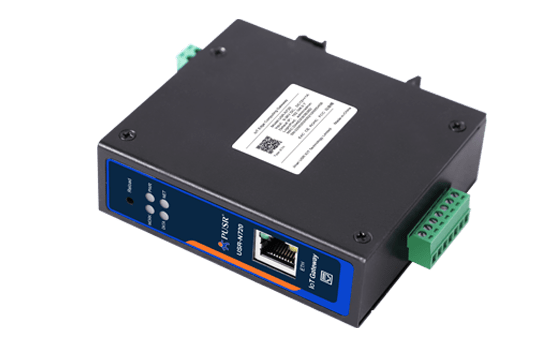

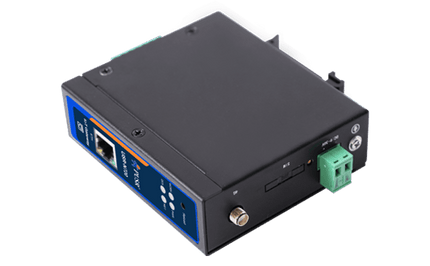

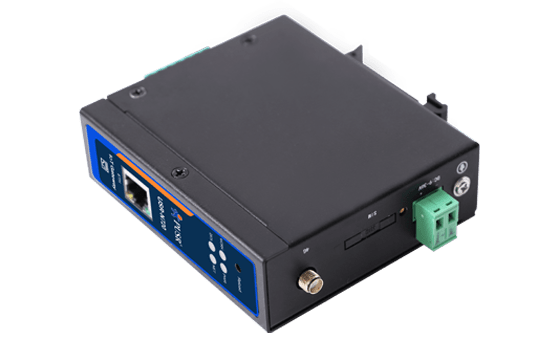

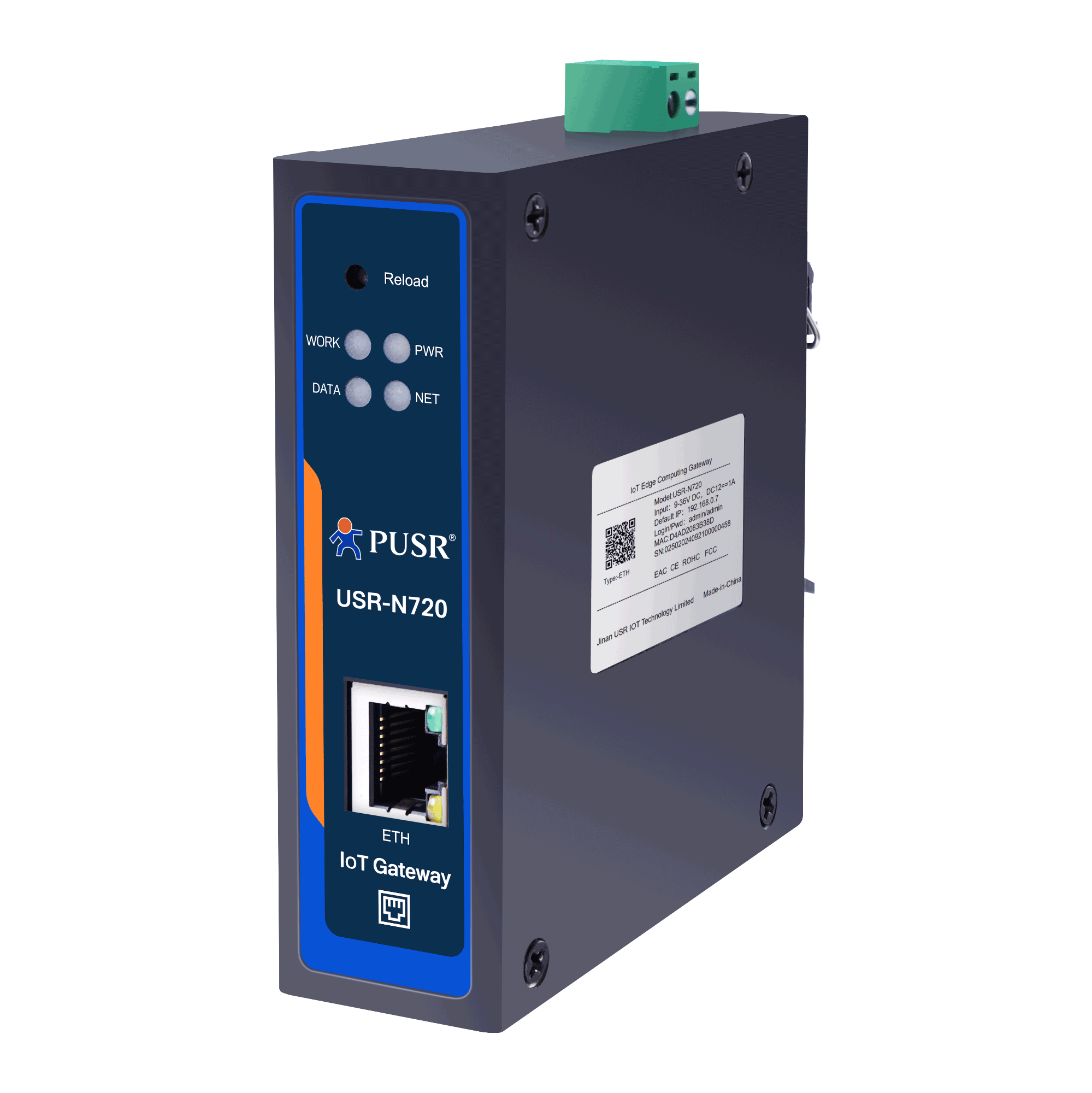

USR-N720-ETH Edge IoT Gateway

Description

USR-N720-ETH Edge IoT Gateway

USR-N720 is a high-performance IoT gateway supporting edge computing, edge data acquisition, protocol conversion and data encryption. This product adopts the processor with data encryption and the main frequency is up to 600MHz, Standard industrial grade design.

USR-N720-ETH | IoT Edge Gateway2*RS485, Protocol Conversion, Edge Computing, SD CardUSR-N720-ETH is the next generation edge IoT gateway which support edge computing, data acquisiton, protocol conversion and data reporting in json format. It comes with 2 RS485 ports and 1 RJ45 ports which can quickly establish the connection between industrial field equipment and the cloud. With these features, it can be widely used in various fields such as smart factories, smart grid, smart water service and so on.


Key Features

  • Multiple Interface: Ethernet+2*RS485
  • Powerful Edge Computing Capabilities: 1000 points+data acquisition+analysis
  • Data Encryption: TCP+SSL, MQTT+SSL
  • Protocol Conversion: Modbus to MQTT+Json, DL645 to MQTT+Json
  • Rich Communication Protocol: MQTT/TCP
  • SD Card for Data Storage:To ensure data integrity

Edge Computing,
Enabling Edge Device Connectivity In The IIOT Era

USR-N720-ETH can collected data in Modbus RTU, Modbus TCP and DL/T645-2007 protocol and reporting data to IoT cloud in JSON format using MQTT or TCP protocol. It supports up to 1000 data points, and can decode and compute the collected data to reduce server’s pressure.

One More Thing, Modbus Gateway

Connect to PLC, SCADA system or user’s private server to achieve local or remote motoring.
  • Modbus RTU to Modbus TCP
  • Multi-Host Modbus Polling

Custom Json

  • JSON message custom conversion
  • Supports protocol of various servers and can be used without complicated changes.

Data Encryption, Dual Independent MQTT/TCP


Connections
It support up to 5 connections with different remote survice, including 2*MQTT, 2*TCP and 1*PUSR connection. For MQTT and TCP connections, users can enable SSL encryption to ensure data security.
Offline Data Recording on SD CardUSR-N720-ETH supports SD card for data caching, the collected data will be cached tothe SD card when the gateway is in Internet disconnection. And the cached data will be sent to server when the gateway get connection recovery.

Remote Management over PUSR Cloud


Users can monitor the running status, upgrade firmware, configure parameters of the N720 remotely, saving users time and cost.

High Reliablity Design

  • Metal Housing: effective cooling.
  • Wide Power Input: DC 9-36V.
  • Wide Operating Temp: -40℃ ~ +85℃, industrial grade design.
  • High EMC Protection: ensuring stable operation in harsh environments.
  • Watchdog Protection: Hardware & software dual watchdog to ensure stable operation.

Product Details

  • Installation: DIN rail mount & wall mount optional
  • Dimension: 86*30*98.5 mm

Packing List

  • 1. USR-N720-ETH*1
  • 2. Power Adapter*1
  • 3. Power Adapter Cable*1
  • 4. Wall Mount Kit*1

Application

  • Smart Manufacturing
  • Smart Building
  • Smart Animal Husbandry
  • Intelligent Agriculture
  • Energy Monitoring

Model

USR-N720-ETH

Processor

RISC-V core

Frequency

Up to 600MHZ

Power

Power Supply

DC 9-36V, 2-pin terminal blocks

Consumption


Avr: 75mA@12V
Max: 85mA@12V


Ethernet

Port Number

1 x RJ45

Rate

10 /100 Mbps, auto MDI/MDX

Protection

2KV electromagnetic isolation

Serial Port

Port Number

2 x RS485, 7-pin terminal blocks

Baud rate

600 bps~230400 bps

Data Bits

7, 8

Stop Bit(s)

1, 2

Parity Bit

None, Even, Odd

Physical Character



Dimensions(mm)


98.5 x 30 x 86 (not including terminal blocks)
118.5 x 30 x 95.1 (Including teiminal blocks)


Installation

DIN rail or wall mounting

Operating Temperature

-40~85℃

Storage Temperature

-40~105℃

Operating Humility

5%~95%(Non-condensing)

Storage Humility

5%~95%(Non-condensing)

Basic Features

Network protocol

IP,TCP,MQTT,SSL/TLS,ICMP,ARP,DNS,NTP,DHCP, IPv4

IP Assignment

Static/DHCP

DNS Service

Built-in Webpage

Config Method

Built-in Webpage, Config Software

Work Mode


TCP Server/TCP client
2 * independent TCP connection supported


Edge acquisition protocol

Modbus RTU, DLT645/2007

Data reporting format

Json, Modbus TCP

Data points

Up to 1000 points

MQTT


Standard MQTT  protocol
Easy access to mainstream paltform: Thingsboard, AWS,Azure,etc.
2 * independent MQTT connection supported


SSL Encryption

Offline data cache

External SD card

Others

Certificate

*CE, *FCC, *RoHS, *WEEE

Warranty

2 year

Documents

USR-N720-ETH Edge IoT Gateway

Product form
Free pickup in our shop(s)

SKU: USR-N720-ETH

$169.00 $139.00 Excl. GST

$139.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
