Items
|
Description
|
|
Power Supply
|
DC: 5~24V,
|
|
Working Current
|
Average: 500mA@5V
|
|
Serial port
|
|
No.
|
1 x RS232，DB9 male
|
|
Baud rates
|
300-3M bps
|
|
Data bits
|
5, 6, 7, 8
|
|
Stop bits
|
1, 2
|
|
Parity
|
NONE, ODD, EVEN
|
|
Packaging Interval
|
Range: 5 ~ 255ms, default: 5ms
|
|
Packaging Length
|
Range: 3 ~ 1024 bytes, default: 1024 bytes
|
|
Wi-Fi
|
|
Standards & Frequency
|
IEEE 802.11b/g/n
|
|
Working Mode
|
AP/STA/AP+STA
|
|
Tx power
|
19.9dBm @ 11b,1Mbps
19.9dBm @ 11b,11Mbps
19.0dBm @ 11g,6Mbps
17.0dBm @ 11g,54Mbps
18.0dBm @ 11n,HT20,MCS0
16.8dBm @ 11n,HT20,MSC7
17.4dBm @ 11n,HT40,MCS0
16.0dBm @ 11n,HT40,MCS7
|
|
Receive sensitivity
|
-97.9dBm @ 11b,1Mbps
-89.2dBm @ 11b,11Mbps
-92.8dBm @ 11g,6Mbps
-76.3dBm @ 11g,54Mbps
-92.8.8dBm @11n,HT20,MCS0
-74.3dBm @11n,HT20,MCS7
-89.8dBm @11n,HT40,MCS0
-71.1dBm @11n,HT40,MCS7
|
|
|
Antenna
|
Built-in antenna, gain: 1.5dBi
|
|
Physical Property
|
|
Casing material
|
IP65 protection
|
|

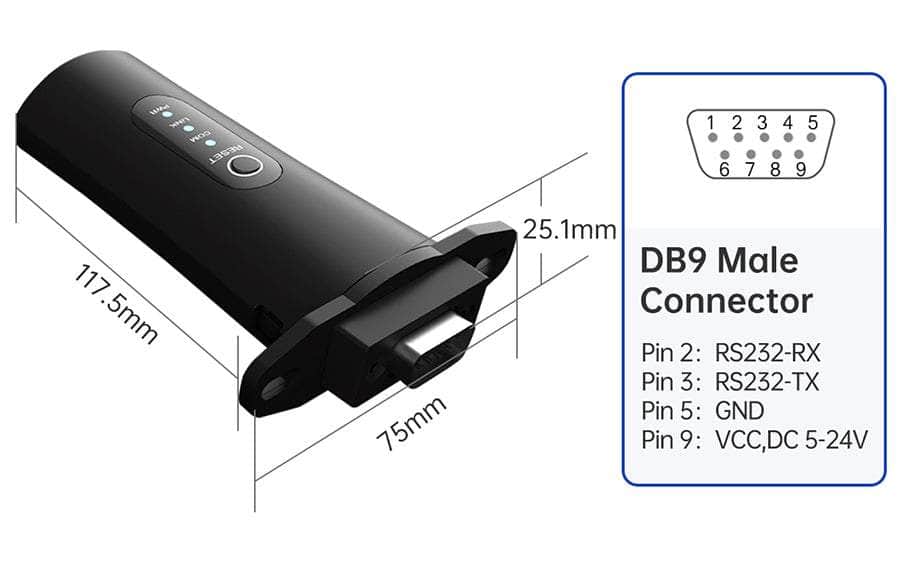

Dimensions
|
117.5 * 75 *25.1mm
|
|
EMC
|
Surge protection: level 2, IEC61000
ESD protection: level 2, IEC61000
EFT protection: level 2, IEC61000
|
|
Operating temperature
|
-30℃～+75℃
|
|
Storage temperature
|
-40℃～+125℃
|
|
Operating humidity
|
5% ~ 95% RH, non-condensing
|
|
Storage humidity
|
1% ~ 95% RH, non-condensing
|
|
Software Function
|
|
Work mode
|
TCP Client, TCP server, UDP client, UDP server, HTTP client
|
|
Modbus Gateway
|
Modbus RTU/TCP protocol conversion
|
|
IP
|
DHCP/StaticIP
|
|
Registration packet
|
√
|
|
Heartbeat packet
|
√
|
|

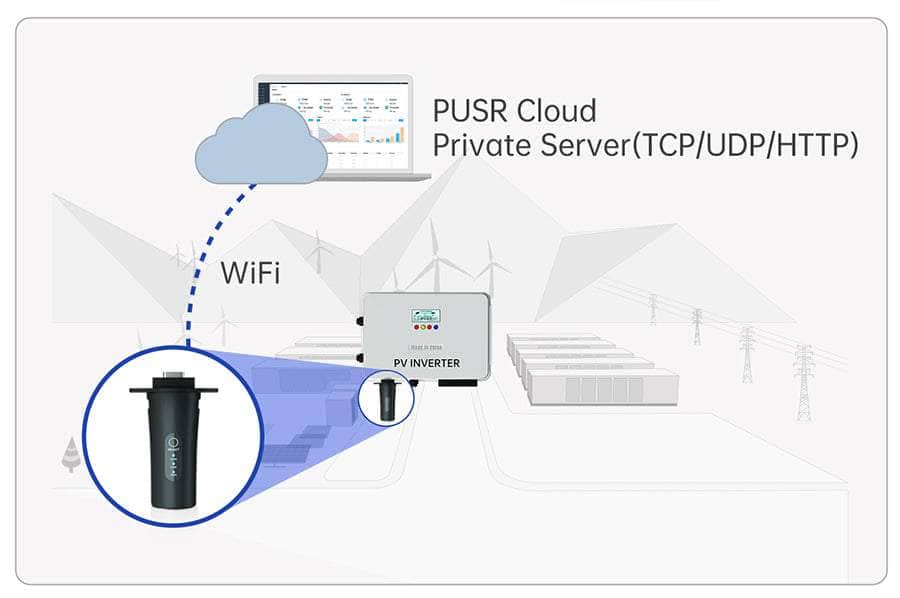

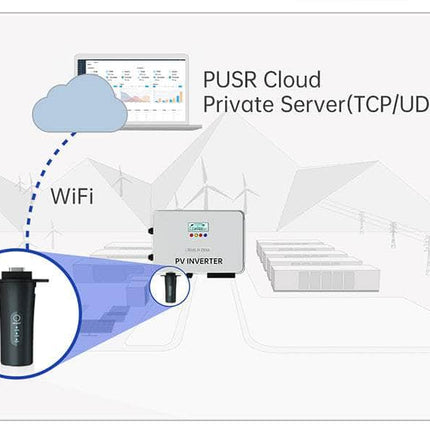

IOT PLATFORMS
|
PUSR cloud
|
|
User Configuring
|
Web console(HTTP), AT command
|
|
Others
|
|
Reset
|
Reset button, press and hold for 3~15 to reset to factory settings
|
|

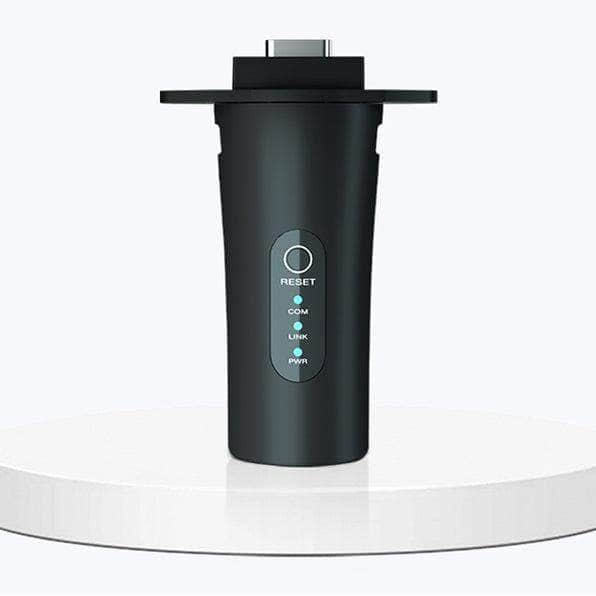

Indicators
|
PWR, LINK, COM
|
