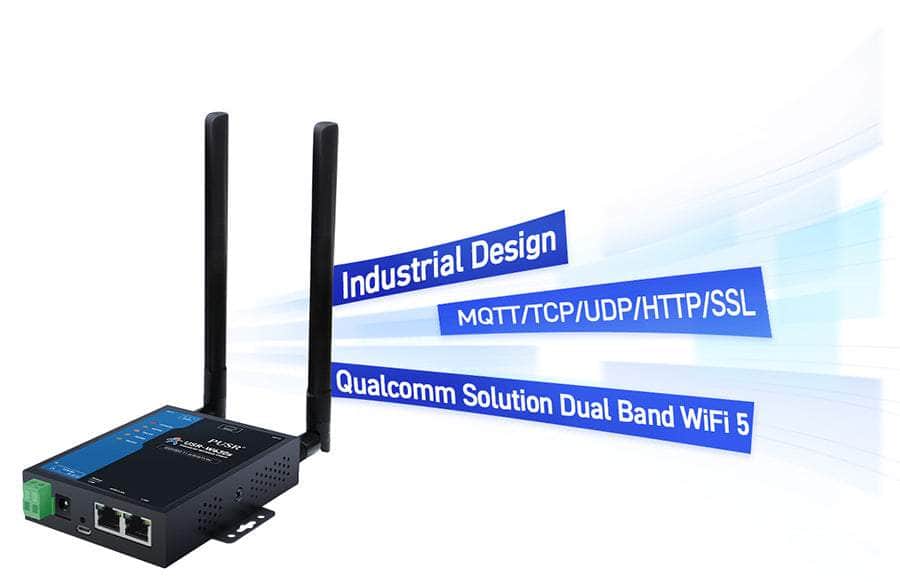

USR-W630s Dual Band WiFi 5 Serial to Wireless Client

Description

USR-W630s Dual Band WiFi 5 Wireless Client

Qualcomm Chip, WPA2/WPA3 Encryption, Modbus Gateway, Rich Protocol

The USR-W630s is the latest dual-band WiFi 5 wireless client device released by PUSR. This device adopts Qualcomm's processor, with a high main frequency of up to 650MHz and integrated 1G DDR storage, capable of quickly and efficiently processing various functions of the product. The product integrates 2.4G & 5.8G WiFi, with a transmission rate of up to 1267Mbps, and also integrates 2*RJ45 ports(1WAN/LAN+1LAN) and 2 serial ports (1 RS232+1 485), enabling data transmission between serial ports, Ethernet ports, and WiFi. It can be well applied in scenarios such as industrial automation, smart parks, warehousing and logistics, energy detection, and smart mining.

Serial/Ethernet to Wi-Fi Converter

With the help of USR-W630s, you can achieve data transmission between serial port devices, network port devices, and WiFi devices, as well as remotely monitor the operational status of field devices.

Ordering Guide

USR-W630s and USR-W660 are two new industrial wireless WiFi clients recently. For the convenience of customers' choice, the picture on the left lists the main differences between the two products for reference.

Qualcomm Chip, Dual Band WiFi

  • Powerful and reliable processor to ensure the stable.
  • 5.8G & 2.4G WiFi, offering the advantages of strong anti-interference capability, high speed, and wide coverage. In an open environment, the coverage range can reach up to 400 meters.

Multiple Working Modes, Meeting Diverse Scenarios

USR-W630s provides a wealth of networking methods: AP, STA, AP+STA, AP+LAN, AP+WAN, STA+LAN, STA+WAN. And this device supports repeater and bridge mode. Through different networking methods, the data communication between the serial port device/LAN device and the remote server/LAN server can be realized, which can meet the complex network application requirements of customers.

Data Transmission Encryption, More Security

  • • Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modes.
  • • Supports two-way certificate authentication.

Rich Product Features

  • • Modbus Gateway: Modbus RTU/TCP protocol conversation, Modbus multi-host polling.
  • • Support transparent MQTT/TCP/UDP/HTTP data communication.
  • • Heartbeat Packet Function: The remote server can detect abnormal disconnection from the client using this feature.
  • • Registration Packet Function: The server can identify different clients by using registration packets.

Industrial-Grade Design, High Reliability

  • • EFT Protection: Level 3. Protect the device against damage caused by instantaneous current interference in the circuit, such as lightning stroke, power switch, etc.
  • • ESD Protection: Level 3. Prevent electrostatic damage to equipment, such as dust electrostatic, electric arc environment etc.
  • • Surge Protection: Level 3. Protect devices from voltage spikes such as lightning stroke, power switch, etc.
  • • Watchdog: Hardware & software dual watchdog to ensure stable operation without downtime.
  • • Wide Operation Temperature: -25℃~ +75℃.
  • • Wide Power Input: 9~36V, reverse polarity protection.
  • • Metal housing: IP30 protection.

Remote Management, Anytime, Anywhere

SNMP Protocol: Users can remotely view device information, modify device parameters, and monitor device information through the SNMP protocol.It does not need to go to the site to monitor and configure devices one by one. The version of SNMP supported by this device is V2C and V3.PUSR Platform: USR-W630s cooperates with PUSR platform, users can realize remote login configuration webpage, data debugging and remote firmware upgrade functions. Users can also monitor the online/offline record of the device. With all the above functions, users can monitor and manage the device conveniently.

Dimension & Interface

  • • Dimension: 105*26*110.5mm(including mounting bracket)
  • • ETH-ports: 1*WAN/LAN, 1*LAN
  • • Power supply: DC 9-36V, 1*terminal block connector, 1*DC jacket
  • • Installation: Wall mounting, desktop placement

What’s in the box?

  • • USR-W630s*1
  • • WiFi stick antenna*2
  • • Power adapter*1
  • • Female to-female serial cable*1

Smart Factory Application

Connect with the serial port/network port equipment in the factory, and upload the equipment operation data to the local monitoring platform or remote platform in real time; the staff can dynamically understand the operation status of the monitored equipment through the monitoring platform.

More Application Scenarios

USR-W630s adopts industrial design, which can be applied to various industrial scenarios, such as industrial automation, warehousing and logistics, energy monitoring and smart mining scenarios, and perfectly meet the needs of remote data transmission and monitoring of various interface equipment.


Specification:

Items

Description

Power Supply

DC: 9~36V,
2-pin terminal block connector, 5.08mm-2P, reverse polarity protection, surge protection
5.5*2.1 DC jack connector

Working Current

Average: 300mA@12V, max: 900mA @12V

Serial port

No.

1 x RS485, 3-pin terminal block connector, 3.81mm-3P
1 x RS232，DB9 male

Baud rates

RS232: 1200/2400/4800/9600/19200/38400/57600/115200/230400
RS485: 1200/2400/4800/9600/19200/38400/57600/115200/230400

Data bits

7, 8

Stop bits

1, 2

Parity

NONE, ODD, EVEN

Flow Control

RS232: Hardware flow control
RS485: 485 conflict prevention

Packaging Interval

Range: 0 ~ 1000ms, default: 0ms

Packaging Length

Range: 5 ~ 1460 bytes, default: 1000 bytes

Ethernet Ports

No.

2 x Ethernet ports: 1 x WAN/LAN(configurable), 1 x LAN

Interface

RJ45, 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX, 1.5KV network isolation transformer protection

Wi-Fi

Standards & Frequency

IEEE 802.11b/g/n/ac,  2.4GHz & 5.8G

Working Mode

AP/STA/AP+STA/Bridge

Data speed

867Mbps(5.8GHz) & 300Mbps(2.4GHz)

MU-MIMO

2 x 2

Modulation system

DSSS(DBPSK.DOPSK,CCK)

OFDM(BPSK,QPSK,16-QAM,64-QAM,125-QAM,256-QAM)

Covering distance

2.4G: Coverage radius up to 400 meters
5.8G: Coverage radius up to 200 meters

Wi-Fi Users

16

Antenna

2 x 5 dBi rod antenna

Antenna Connector

2 x SMA-female

Physical Property

Casing material

Metal shell, IP30 protection

Dimensions

110.5*105*26mm(L*W*H,antenna pedestal,terminal block are not included)

Installation

Wall mounting, desktop placement

EMC

Surge protection: level 3, IEC61000
ESD protection: level 3, IEC61000
EFT protection: level 3, IEC61000

Operating temperature

-25℃～+75℃

Storage temperature

-40℃～+125℃

Operating humidity

5% ~ 95% RH, non-condensing

Storage humidity

1% ~ 95% RH, non-condensing

Software Function

Network protocols

TCP, UDP, HTTP, TLS, MQTT, ARP, DHCP, ICMP, PPPoE, IPv4, DNS, SNMP, NTP,

Modbus Gateway

Modbus RTU/TCP protocol conversion,
Modbus multi-host polling

IP

DHCP/StaticIP

MQTT

Standard MQTT protocol, 16 subscription topics and 16 publish topics

Registration packet

√

Heartbeat packet

√

IOT PLATFORMS

AWS IOT, Alibaba Cloud, PUSR cloud

User Configuring

Web console(HTTP), AT command

Others

Reload

Pinhole reset button, press and hold for 3~15 to reset to factory settings

Indicators

1 x RS485, 1 x RS232, 1x WLAN, 1 x RUN, 1 x PWR

Ground protection

Screw

APPROVALS

Regulatory

CE/RED*, RoHS*, WEEE*, FCC*


Documents

USR-W630s-User-Manual-EN V1.0.0
USR-W630s-spec


Utilities

USR-VCOM_V5.0.4_Setup

Read more

USR-W630s Dual Band WiFi 5 Serial to Wireless Client

Product form
Free pickup in our shop(s)

SKU: USR-W630s

$179.00 $159.00 Excl. GST

$179.00 $159.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
