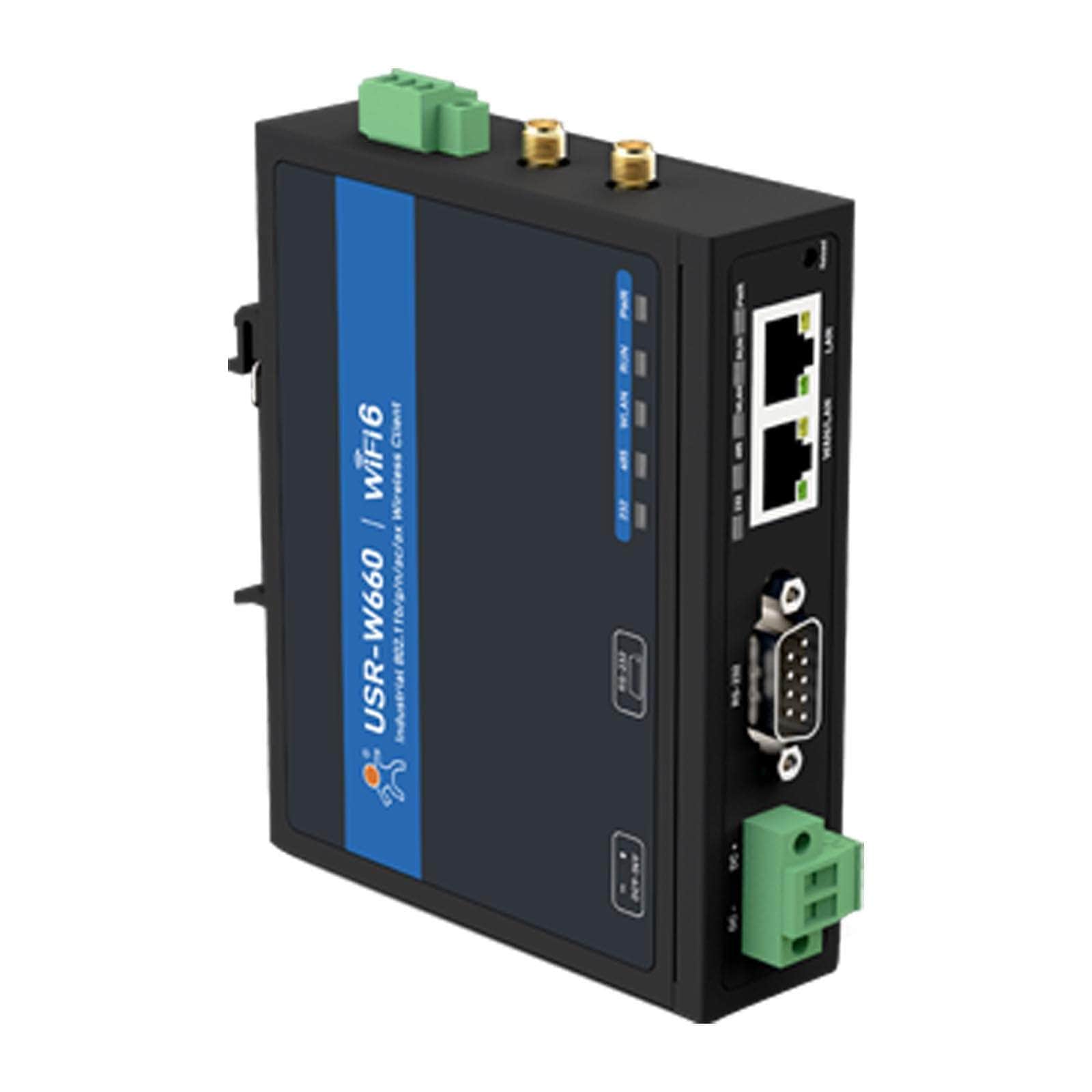

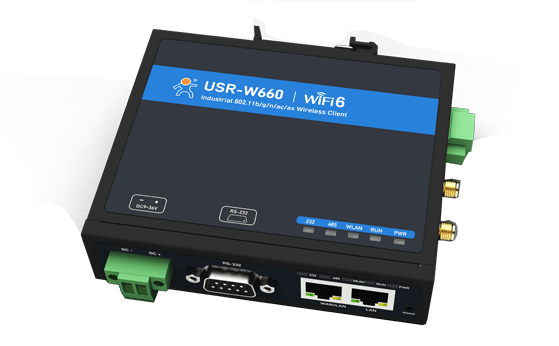

USR-W660 Serial RS232/485 to WiFi 6 Converter

Description



USR-W660 Serial RS232/485 to WiFi 6 Converter

USR-W660 is a powerful dual-band WiFi serial device server, which can realize data communication between serial devices and Ethernet/Wi-Fi devices. It adopts a high-performance Qualcomm quad-core processor, and the main frequency is up to 1.2 GHz. USR-W660 is equipped with 1*RS232, 1*RS485, 2*RJ45 Gigabit Ethernet port, 2.4G and 5.8G dual-band Wi-Fi. It supports Wi-Fi roaming function with fast switching time, especially suitable for mobile scenarios, such as AGV, robot, etc.

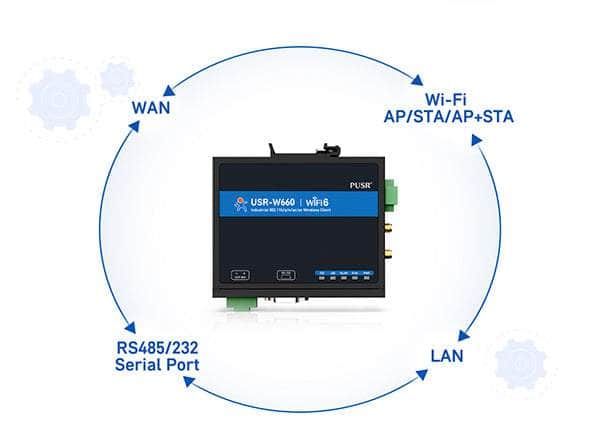

Rich Networking MethodsUSR-W660 provides a wealth of networking methods: AP, STA, AP+STA, AP+LAN, AP+WAN, STA+LAN, STA+WAN. Through different networking methods, the data communication between the serial port device/LAN device and the remote server/LAN server can be realized, which can meet the complex network application requirements of customers.
Fast Wi-Fi Roaming, More Stable CommunicationUSR-W660 can realize fast switching between different APs through the W-Fi roaming function. The switching time is less than 100ms, which can ensure real-time and reliable data transmission. It is very suitable for mobile scenarios such as AGV and robots.

Specifications

Items

Description

Power Supply

DC: 9~36V, 2-pin terminal blocks, reverse polarity protection, surge protection

Working Current

Average: 700mA@12V, max: 2A @12V

Serial port

No.

1 x RS485, 1 x RS232, can work simultaneously.

Baud rates

RS232(bps):1200/2400/4800/9600/19200/38400/57600/115200
RS485(bps): 1200/2400/4800/9600/19200/38400/57600/115200/230400

Data bits

7, 8

Stop bits

1, 2

Parity

NONE, ODD, EVEN

Packaging Interval

Range: 1 ~ 3000ms, default: 50ms

Packaging Length

Range: 5 ~ 1500 bytes, default: 1000 bytes

Ethernet Ports

No.

2 x Ethernet ports: 1 x WAN/LAN(configurable), 1 x LAN

Interface

RJ45, 10/100/1000 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX, 1.5KV network isolation transformer protection

Wi-Fi

Standards & Frequency

IEEE 802.11b/g/n/ac/ax,  2.4GHz & 5.8G

Working Mode

AP/STA/AP+STA/Bridge

Data speed

1201Mbps(5.8GHz) & 573.5Mbps(2.4GHz)

MU-MIMO

2 x 2

OFDMA

DL-OFDMA 8(8 users); UL-OFDMA (4 users)

Covering distance

200 meters by line of sight.Actual transmission distance depends on environment of the site.

Wi-Fi Users

8 +

Antenna

2 x SMA-female

Wi-Fi Roaming

√

Physical Property

Casing material

Metal shell, IP30 protection

Dimensions

115*94*29mm(L x W x H, antenna pedestal, terminal block and DIN Rail are not included)

Installation

Wall mounting, Din rail mounting, desktop placement

EMC

Surge protection: level 3, IEC61000
ESD protection: level 3, IEC61000
EFT protection: level 3, IEC61000

Operating temperature

-25℃～ +70℃

Storage temperature

-40℃～+125℃

Operating humidity

5% ~ 95% RH, non-condensing

Storage humidity

1% ~ 95% RH, non-condensing

Software Function

Network protocols

TCP, UDP, HTTP, TLS, MQTT, ARP, DHCP, ICMP, PPPoE, IPv4, DNS, SNMP, NTP,

Modbus Gateway

Modbus RTU/TCP protocol conversion,
Modbus multi-host polling

IP

DHCP/StaticIP

MQTT

 standard MQTT protocol, 16 subscription topics and 16 publish topics

IOT PLATFORMS

AWS IOT, Alibaba cloud, PUSR cloud

User Configuring

Web console(HTTP)

Others

Reload

Pinhole reset button

Indicators

1 x RS485, 1 x RS232, 1x WLAN, 1 x RUN, 1 x PWR

Ground protection

Ground screw

Serial Connector

RS232: DB9 male

RS485: 3-pin block terminal

Ground Screw

√

APPROVALS

Regulatory

CCC, CE/RED, RoHS, WEEE*, FCC

Dual Band Wi-Fi6, More Powerful Performance
  • 2.4G & 5.8G Wi-Fi, IEEE 802.11 b/g/n/ac/ax.
  • 2*2 MIMO, theoretical speed up to 1800Mbps..
  • 8+ accessible terminals.
  • AP/STA/AP+STA mode supported.
  • Wi-Fi roaming function, less than 100ms latency.
  • Multiple security authentication methods and encryption algorithms supported: mixed-psk/psk/psk2/psk2+ccmp.
  • In an open environment, the coverage distance can reach 200 meters

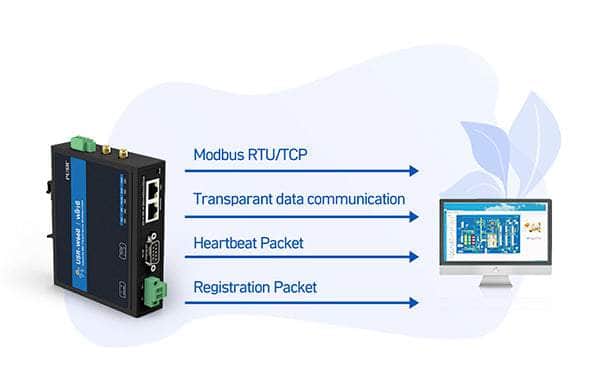

Rich Product Features
  • Modbus Gateway: Modbus RTU/TCP protocol conversation, Modbus multi-host polling.
  • Support Transparant MQTT/TCP/UDP/HTTP data communication.
  • Heartbeat Packet Function: Remote server can detect abnormal disconnection from the client using this feature.
  • Registration Packet Funciton: The server can identify different clients by usingregistration packets.
Data Transmission Encryption, More Security
  • Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modes.
  • Supports two-way certificates authentication.
Remote Management, Anytime, AnywhereSNMP Protocol: Users can remotely view device information, modify device parameters, and monitor device information through the SNMP protocol.It does not need to go to the site to monitor and configure devices one by one. The version of SNMP supported by this device is V2C and V3.PUSR Platform: USR-W660 cooperates with PUSR platform, users can realize remote login configuration webpage, data debugging and remote firmware upgrade functions. Users can also monitor the online/offline record of the device. With all the above functions, users can monitor and manage the device conveniently
Industrial-Grade Design, High Reliability
  • EFT Protection: Level 3. Protect device against damage caused by instantaneous current interference in circuit, such as lightning stroke, power switch, etc.
  • ESD Protection: Level 3. Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc.
  • Surge Protection: Level 3. Protect devices from voltage spikessuch as lightning stroke, power switch, etc.
  • Watchdog: Hardware & software dual watchdog to ensure stable operation without downtime.
  • Wide Operation Temperature: -25℃~ 70℃.
  • Wide Power Input: 9~36V, reverse polarity protection.
  • Metal housing, IP30 protection.

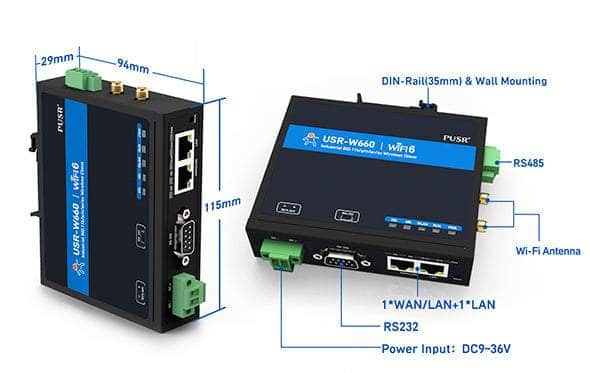

Product Details
  • Dimension: 115*94*29 mm.
  • Serial port: 1*RS232+1*RS485. RS232: 1200~115.2Kbps, DB9-Male.RS485: 1200~230.4Kbps, 3-pin terminal block. The two serial port can work simultaneously.
  • Ethernet port: 1*WAN/LAN, 1*LAN, 10/100/1000M MDI/MDIX, auto switch between cross and direct connection, 1.5KV electromagnetic isolation.
  • Power Supply: 9~36V input, 2-pin terminal block.
  • Installation: Wall mounting & DIN rail mounting.
  • Reload button: In the case of forgetting the parameters, long press to restore the factory settings.
  • Antenna Connector: 2*SMA-Female

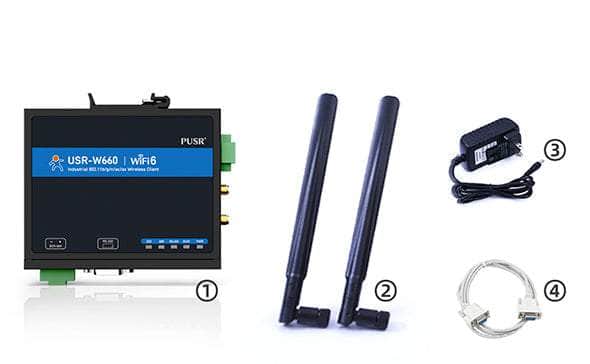

Packaging List
  • 1*USR-W660
  • 1*Power Supply (12V/3A )
  • 1*Female to Female Serial Cable
  • 2*Wi-Fi Antenna
Factory AGV Transportation SolutionAs a new type of intelligent industrial equipment, the AGV car requires low-latency, accurate network data transmission, remote control in harsh environments, etc. W660 provides Wi-Fi6 and Gigabit Ethernet port to ensure high-speed data transmission. USR-W660 also supports fast roaming function, which can ensure real-time, stability control and data reporting for the AGV car.
Smart Factory Data Collection and Transmission Via Wi-FiConnect with the serial port/network port equipment in the factory, and upload the equipment operation data to the local monitoring platform or remote platform in real time; the staff can dynamically understand the operation status of the monitored equipment through the monitoring platform.



Documents:

USR-W660 Datasheet

USR-W660 User Manual
