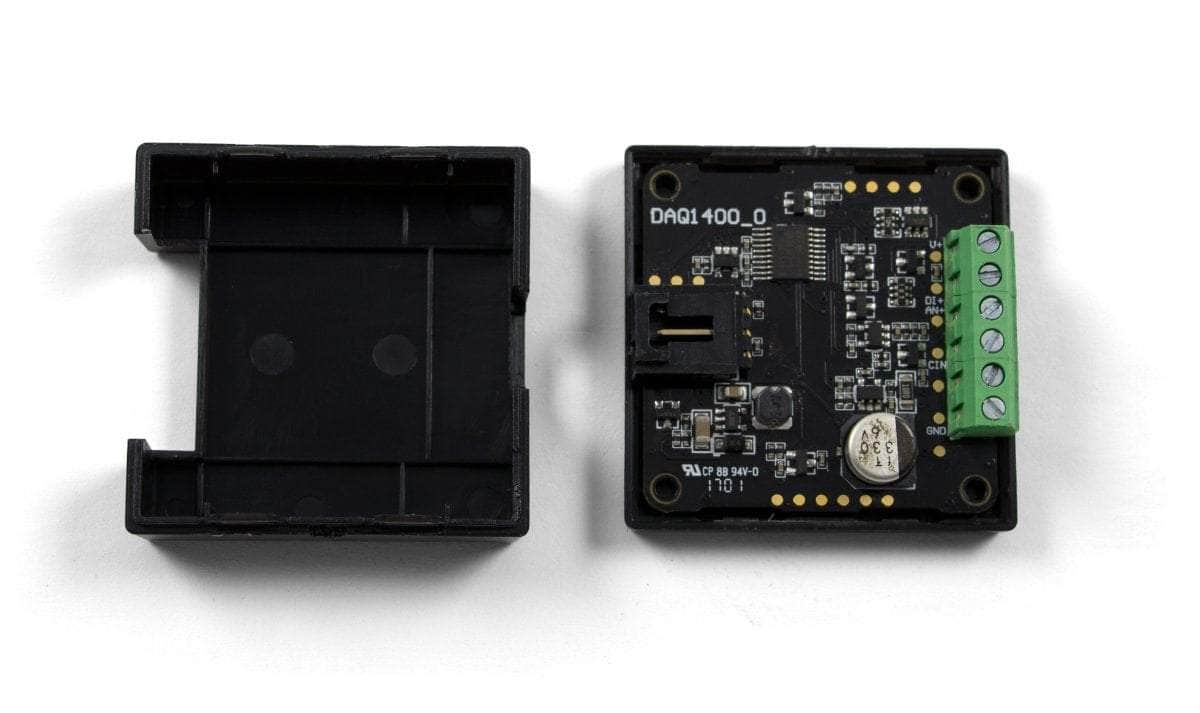

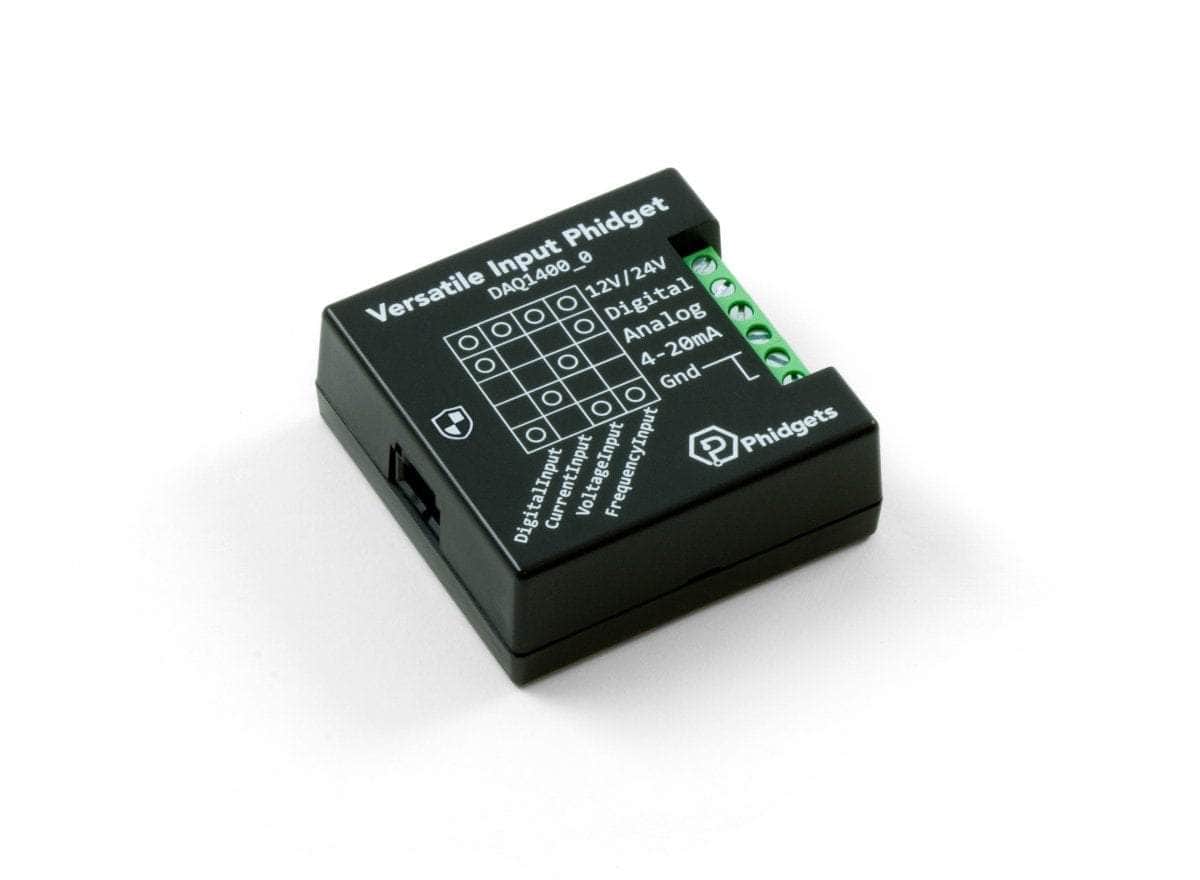

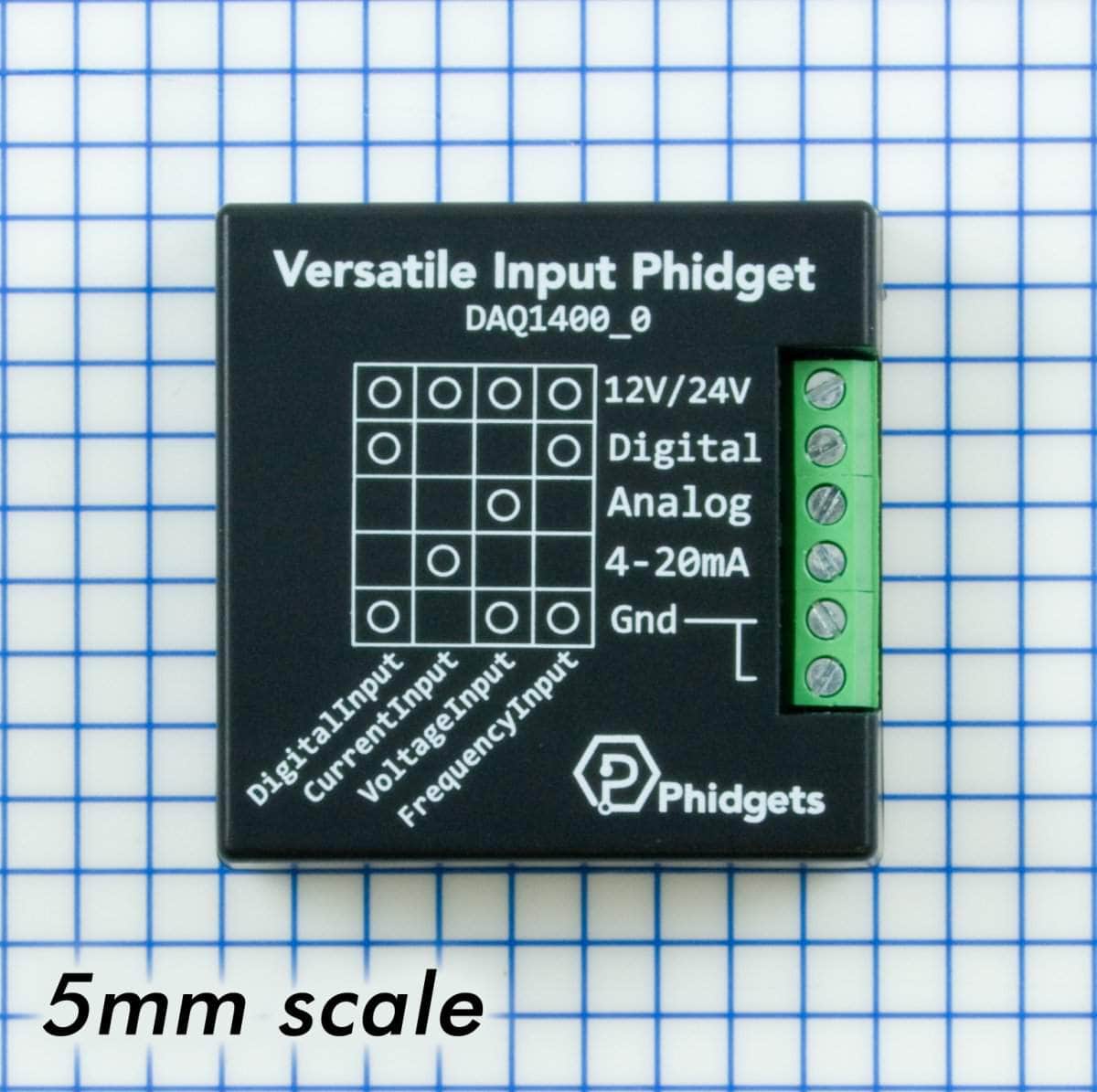

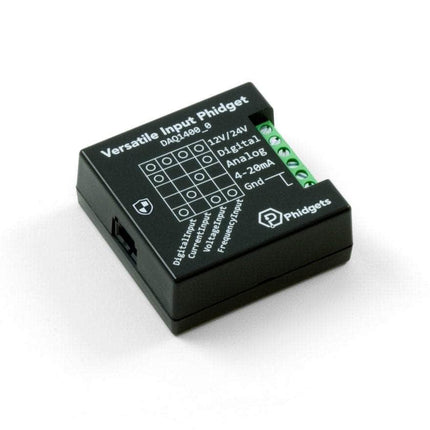

| Board Properties |
| Controlled By |
VINT |
| VINT Communication Speed Max |
100 kbit/s |
| Voltage Sensor |
| Voltage Resolution |
71 μV DC |
| Sensor Input Impedance |
100 kΩ |
| Input Voltage Min (DC) |
0 V DC |
| Input Voltage Max (DC) |
*** 5.3 V DC |
| Sampling Interval Max |
60 s/sample |
| Sampling Interval Min |
20 ms/sample |
| Measurement Error Max |
0.03 % |
| Number of Voltage Inputs |
1 |
| Electrical Properties |
| Available External Voltage |
12 or 24 V DC |
| Current Consumption (Configured) |
* 8 mA |
| Current Consumption (Unconfigured) |
24 μA |
| Current Input |
| Input Current Min |
500 μA |
| Input Current Max |
20 mA |
| Current Measurement Resolution |
10 μA |
| Measurement Error Max |
0.1 % |
| Sampling Interval Max |
60 s/sample |
| Sampling Interval Min |
20 ms/sample |
| Digital Inputs |
| Digital Input Type |
NPN/PNP |
| Number of Digital Inputs |
1 |
| Digital Input Voltage Max |
24 V DC |
| Pull-up Resistance |
10 kΩ |
| Pull-down Resistance |
10 kΩ |

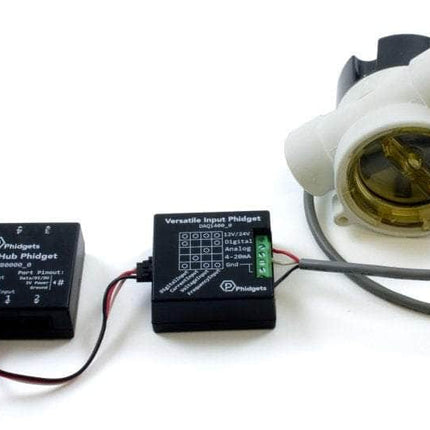

| FrequencyCounter Input |
| Number of Channels |
1 |
| Input Frequency Max |
** 1 MHz |
| Frequency Error Max |
1 % |
| Counting Rate Max |
1E+06 pulses per second |
| Low Voltage Max (False) |
1.5 V DC |
| High Voltage Min (True) |
3.5 V DC |
| Physical Properties |
| Recommended Wire Size |
16 - 26 AWG |
| Operating Temperature Min |
-40 °C |
| Operating Temperature Max |
85 °C |
