VS121 AI Workplace Sensor People/Object Detection POE IP

Description


VS121 AI Workplace Sensor People/Object Detection POE IP

Milesight VS121 AI-powered sensor uses anonymous people counting data to help you see and understand your workspace utilization.

  • Anonymous Detection
  • Large Detection Area
  • 95% Recognition Rate
  • Custom Detection Region

Object detection without facial recognition – no personally identifiable information is used, collected, or uploaded.

High Recognition Rate

The moving object would be simply recognized as human or non-human. The recognition rate is as high as 95%.

Large Detection Area

One unit can cover up to 5 meters radius (or 6 × 8 meters in a rectangle) at 3 meters height.

Custom Detection Region

VS121 allows you to map up to 12 custom regions, and determine the detection side of these regions.

Easy Configuration

milesight workplace sensor wifi iconWi-Fi

Type C iconUSB Type-C

* The Wi-Fi function is only available for device configuration, and it is allowed to be disabled.

Milesight VS121 workplace sensor easy configuration

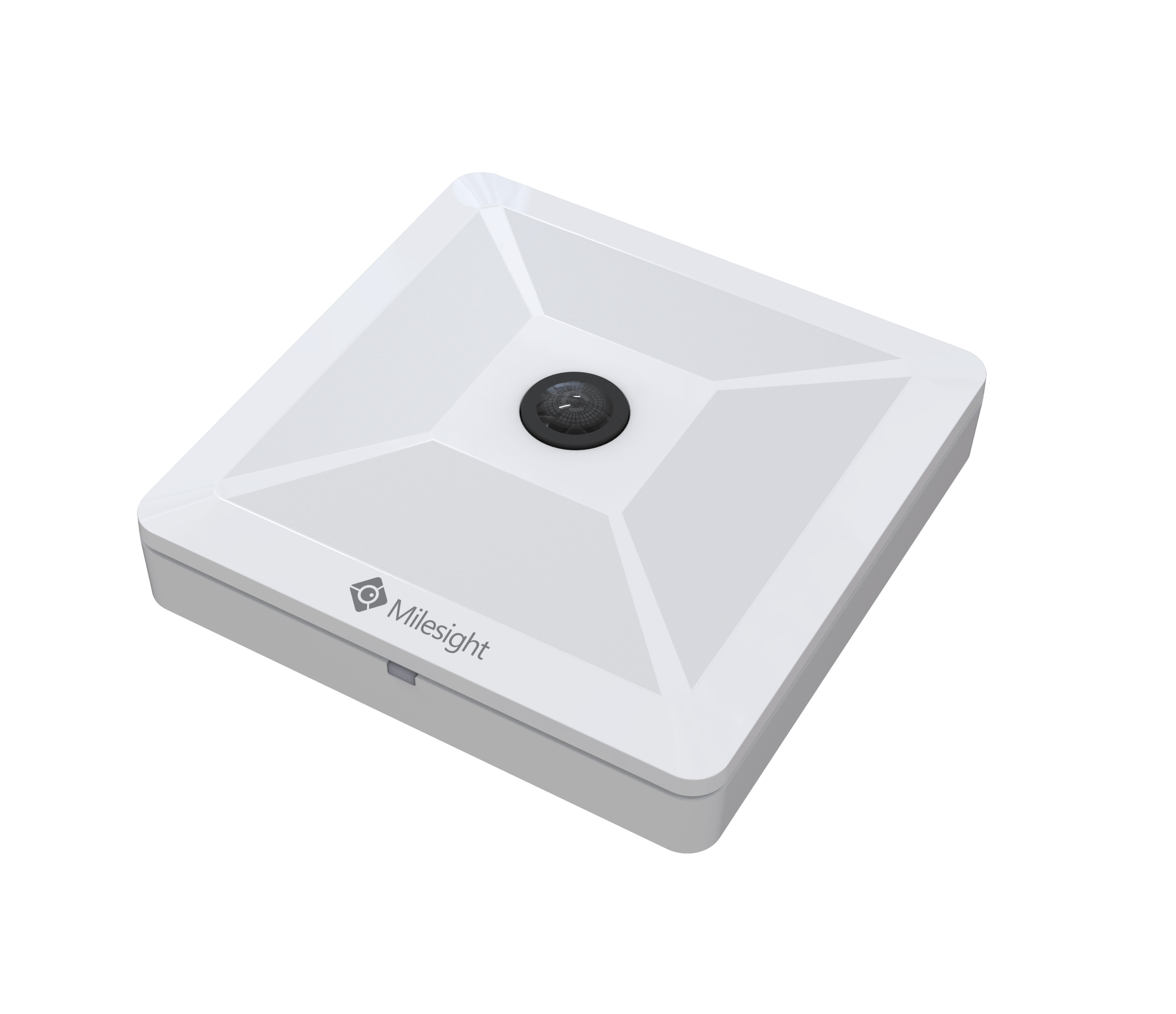

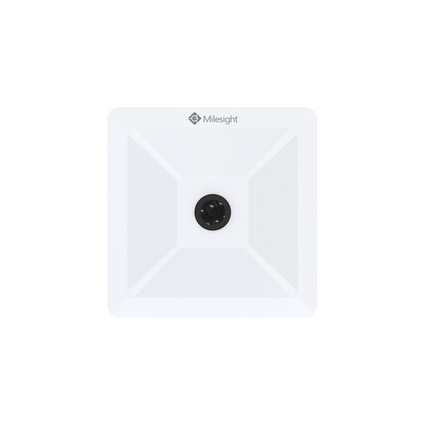

Milesight VS121 workplace sensor product

Specifications:


People Counting
Field of View Standard Version: 190 ° Horizontal, 112 ° Vertical
High Ceiling Mount Version: 129.4 ° Horizontal, 68.4 ° Vertical
Recognition Range Standard Version: a Radius of 5 Meters, At the Height of 3m
High Ceiling Mount Version:18m × 7m, At the Height of 7m
Installation Height Standard Version: 2.5m to 4m
High Ceiling Mount Version: 5m to 7m
Recognition Rate Region Counting: Up to 95%
Line Crossing Counting: Up to 98%
Advanced Feature Mapped Detection Region Customization, Filter U-Turns, Privacy Mask
LoRaWAN® Transmission
Protocol -
Frequency -
Tx Power -
Sensitivity -
Mode -
Ethernet Transmission
Ethernet Port 1 × RJ45 10/100 Mbps (PoE PD)
Network Protocol HTTP, RTSP, NTP, SSH,etc.
Other Interfaces
Wi-Fi -
DI/DO 1/1
Serial Interface 1 × RS485
Button 1 × Reset Button
LED Indicators 1 × Status
Power Input 2-pin 3.5 mm Terminal Block
Physical Characteristics
Power Supply 1. 5VDC / 2A by Terminal Block
2. 802.3af PoE
Power Consumption 1. DC:3.5W
2. POE:4.5W
Operating Temperature -5°C ~ +55°C
Storage Temperature -20°C ~ +60°C
Relative Humidity 0 ~ 95% (Non-condensing)
Color&Weight White, 186g
Dimension 85 × 85 × 30 mm (3.35 × 3.35 × 1.18 in)
Installation Ceiling Mounting


Read more

VS121 AI Workplace Sensor People/Object Detection POE IP

Product form
Free pickup in our shop(s)

SKU: VS121-POE

$479.00 $379.00 Excl. GST

$379.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
