VS121 AI Workplace LoRaWAN Sensor People/Object Detection

Description



VS121 AI Workplace LoRaWAN Sensor People/Object Detection

Milesight VS121 AI-powered sensor uses anonymous people counting data to help you see and understand your workspace utilization.

  • Anonymous Detection
  • Large Detection Area
  • 95% Recognition Rate
  • Custom Detection Region

Object detection without facial recognition – no personally identifiable information is used, collected, or uploaded.

High Recognition Rate

The moving object would be simply recognized as human or non-human. The recognition rate is as high as 95%.



Large Detection Area

One unit can cover up to 5 meters radius (or 6 × 8 meters in a rectangle) at 3 meters height.



Custom Detection Region

VS121 allows you to map up to 12 custom regions, and determine the detection side of these regions.



Easy Configuration

milesight workplace sensor wifi iconWi-Fi

Type C iconUSB Type-C

* The Wi-Fi function is only available for device configuration, and it is allowed to be disabled.

Milesight VS121 workplace sensor easy configuration

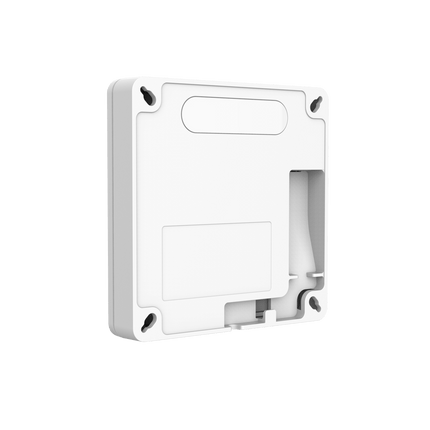

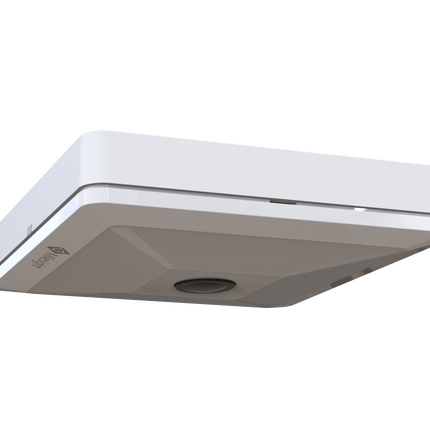

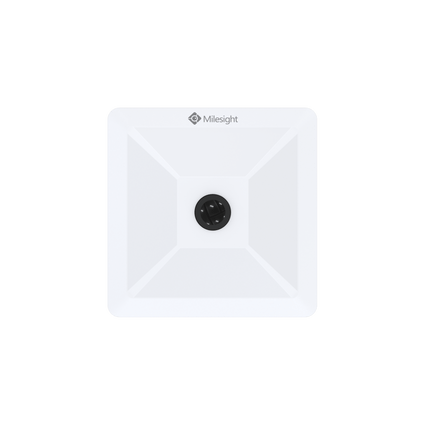

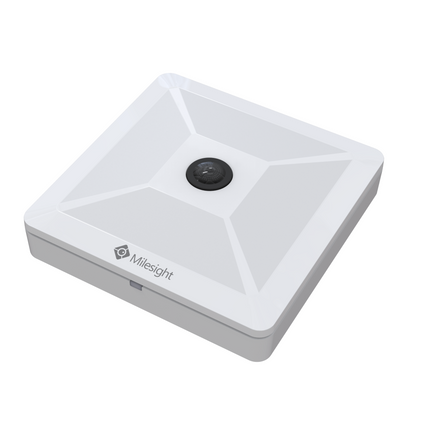

Milesight VS121 workplace sensor product

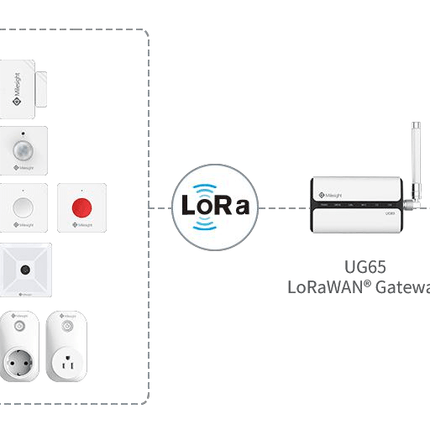

LoRaWAN® Based

All data are transmitted by LoRa technology. Milesight AI Workplace Sensor does not store or upload images.

Milesight AI Workplace Sensor is compatible with industry-standard LoRaWAN® gateways With a range of up to 15 km in rural areas and 2 km in urban areas

Milesight VS121 workplace sensor IoT cloud

Milesight IoT Cloud

  • Report people counting data regularly
  • Interactive collaboration with a variety of Milesight sensors
  • Android & iOS versions allow you to manage devices at your fingertips



Specifications

LoRaWAN® Protocol LoRaWAN® v1.0.2/v1.0.3/v1.1
Frequency AU915
Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137 dBm @300bps
Mode OTAA/ABP Class A
People Counting Field of View 112 ° Horizontal, 190 ° Vertical
Detection Range 6 m × 8 m = 48m² (At the height of 3m)
Detection Accuracy >95%
Advanced Custom Setting Up to 12 mapped regions for detection
Interface Wi-Fi IEEE 802.11 b/g/n, 2.4GHz, only support configuration

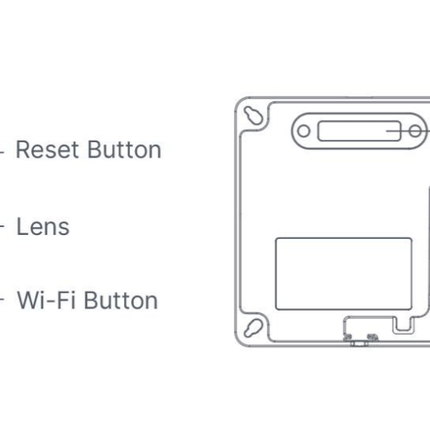

Button 1 × Reset Button, 1 × Wi-Fi Button
LED Indicators 1 × Wi-Fi
Power Input 1 × Type-C
Physical
Characteristics		 Power Supply 5V / 1.5A by Type-C Port
Operating Temperature -5°C ~ +55°C
Storage Temperature -20°C ~ +60°C
Relative Humidity 0 ~ 95% (Non-condensing)
Color Black/White (Optional)
Dimension 85 × 85 × 20 mm (3.35 × 3.35 × 0.79 in)
Installation Ceiling Mounting



Documents

User Guide

Datasheet

Read more

VS121 AI Workplace LoRaWAN Sensor People/Object Detection

Product form
Free pickup in our shop(s)

SKU: VS121-915

$499.00 $399.00 Excl. GST

$399.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    VS121 AI Workplace LoRaWAN Sensor People/Object Detection

    Milesight VS121 AI-powered sensor uses anonymous people counting data to help you see and understand your workspace utilization.

    • Anonymous Detection
    • Large Detection Area
    • 95% Recognition Rate
    • Custom Detection Region

    Object detection without facial recognition – no personally identifiable information is used, collected, or uploaded.

    High Recognition Rate

    The moving object would be simply recognized as human or non-human. The recognition rate is as high as 95%.



    Large Detection Area

    One unit can cover up to 5 meters radius (or 6 × 8 meters in a rectangle) at 3 meters height.



    Custom Detection Region

    VS121 allows you to map up to 12 custom regions, and determine the detection side of these regions.



    Easy Configuration

    milesight workplace sensor wifi iconWi-Fi

    Type C iconUSB Type-C

    * The Wi-Fi function is only available for device configuration, and it is allowed to be disabled.

    Milesight VS121 workplace sensor easy configuration

    Milesight VS121 workplace sensor product

    LoRaWAN® Based

    All data are transmitted by LoRa technology. Milesight AI Workplace Sensor does not store or upload images.

    Milesight AI Workplace Sensor is compatible with industry-standard LoRaWAN® gateways With a range of up to 15 km in rural areas and 2 km in urban areas

    Milesight VS121 workplace sensor IoT cloud

    Milesight IoT Cloud

    • Report people counting data regularly
    • Interactive collaboration with a variety of Milesight sensors
    • Android & iOS versions allow you to manage devices at your fingertips



    Specifications

    LoRaWAN® Protocol LoRaWAN® v1.0.2/v1.0.3/v1.1
    Frequency AU915
    Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
    Sensitivity -137 dBm @300bps
    Mode OTAA/ABP Class A
    People Counting Field of View 112 ° Horizontal, 190 ° Vertical
    Detection Range 6 m × 8 m = 48m² (At the height of 3m)
    Detection Accuracy >95%
    Advanced Custom Setting Up to 12 mapped regions for detection
    Interface Wi-Fi IEEE 802.11 b/g/n, 2.4GHz, only support configuration
    Button 1 × Reset Button, 1 × Wi-Fi Button
    LED Indicators 1 × Wi-Fi
    Power Input 1 × Type-C
    Physical
    Characteristics    		 Power Supply 5V / 1.5A by Type-C Port
    Operating Temperature -5°C ~ +55°C
    Storage Temperature -20°C ~ +60°C
    Relative Humidity 0 ~ 95% (Non-condensing)
    Color Black/White (Optional)
    Dimension 85 × 85 × 20 mm (3.35 × 3.35 × 0.79 in)
    Installation Ceiling Mounting



    Documents

    User Guide

    Datasheet

    Read more
