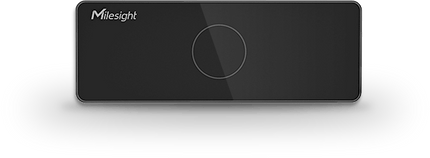

VS132 AI Workplace 3D ToF LoRaWAN People Counting Sensor

Milesight VS132 AI Workplace 3D ToF LoRaWAN People Counting Sensor uses anonymous people counting data to help you see and understand your workspace utilization.

  • 3D ToF Technology
  • 100% Anonymous Detection (Compliant with GDPR)
  • 99.5% Ultra-high Accuracy
  • ToF Light Source for Complete Darkness
  • Bi-Directional People Counting
  • A Million Local Storage Capacity
  • Flexible 3 Installation Modes

Applied the up-to-date 3D ToF technology with LoRaWAN® wireless deployment, the 3D ToF People Counting Sensor VS132 relies on the advantages of ultra-high 99.5% accuracy and 100% anonymous detection, greatly matching bi-directional line crossing people counting applications to get precise and valuable statistics for further decision making.

LoRaWAN® Wireless Deployment

Easy and convenient wireless deployment dispenses with being perplexed by network connection. The highlights of LoRaWAN® guarantee low power consumption, long-distance transmission and anonymous detection.

3D ToF Technology

The ToF (time-of-flight) principle is based on measuring the time it takes for a modulated near-infrared light to travel from a source to an object and back. By calculating phase differences, the sensor forms 3D depth information for accurate and anonymous people counting.

100% Anonymous Detection

The 3D ToF People Counting Sensor VS132 is GDPR-compliant. By applying 3D ToF technology and LoRaWAN® protocol, the sensor only gets 3D depth information and transmits them without involving personally identifiable information 100% guaranteeing privacy protection at the source.

Great Lighting Environments Adaptability

Independent of ambient light, the 3D ToF People Counting Sensor VS132 with active ToF light source realizes accurate detection even in the complete dark environments.

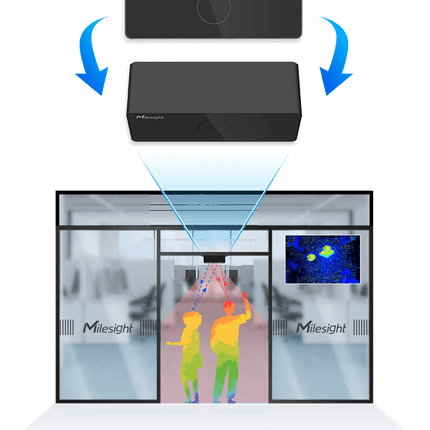

Bi-directional Counting

Two-way detection enriches the applications of the 3D ToF People Counting Sensor VS132. Counting people in and out concurrently is beneficial for more accurate and objective information, reaching efficient management.

Large Detection Area

Specially designed for line crossing people counting, the 3D ToF People Counting Sensor VS132 places emphasis on entrances of diversified applications. Appropriate coverage is essential for accurate people counting to precisely understand spaces.

Specifications

Wireless Transmission Protocol LoRaWAN®
Frequency US915/AU915/KR920/AS923-1&2&3&4
Max Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137 dBm @300bps
Mode OTAA/ABP Class C
People Counting ToF FoV 92.5 ° Horizontal, 67 ° Vertical
Detection Range 0.5 to 3m
Installation Height ≤ 3m
Accuracy >99.5%
Local Storage 1, 000, 000 data records
Advanced Setting Entrance and exit area customization
Interface Wi-Fi IEEE 802.11 b/g/n, 2.4GHz, only support configuration
Ethernet Port 1 × RJ45 10/100 Mbps Ethernet Port (PoE PD), provides CGI for integration
Power Input 2-pin 5.08 mm Terminal Block
Physical Characteristics Power Supply 1. 12 VDC, 2A by Terminal Block 2. 1 × 802.3 at PoE input
Power Consumption Typical 7.5 W, max 28 W
Operating Temperature -10°C ~ +60°C
Storage Temperature -20°C ~ +60°C
Relative Humidity 0 ~ 95% (Non-condensing)
Color & Material Black, Aluminum Alloy
Weight 296 g
Dimension 140 × 50 × 50 mm (5.51 × 1.97 × 1.97 in)
Installation Ceiling Mounting, Wall Mounting, Embedded Mounting



Documents

VS132 Datasheet

VS132 User Guide

Accuracy Testing Report

VS132 AI Workplace 3D ToF LoRaWAN People Counting Sensor

Product form
Wireless remote monitoring and control with IQFLOW cloud platform and software app
Data Platform Dashboard Option:

SKU: VS132

$1,099.00 $949.00 Excl. GST

$949.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
