WiFi Aquaponics Kit Water Quality Monitoring
WiFi Aquaponics Kit Water Quality Monitoring

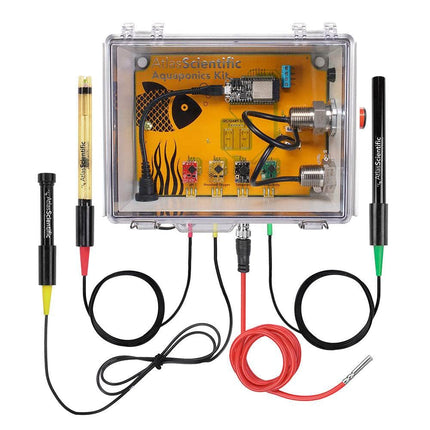

The Wi-Fi Aquaponics Kit reads pH, Dissolved Oxygen, Temperature, Conductivity, CO2, and Humidity. The pH, Dissolved Oxygen, and Conductivity readings are automatically temperature compensated and uploaded to ThingSpeak, which allows for remote readings on a phone, tablet, or PC. The code and instructions are available in the download section of this page.

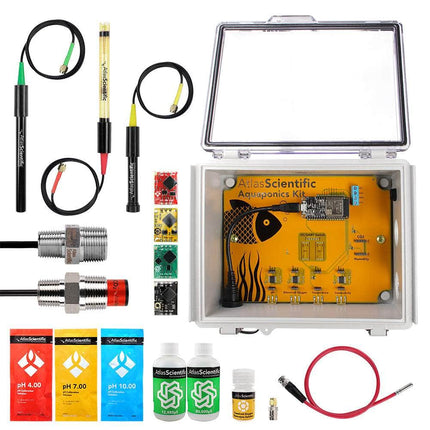

The Wi-Fi Aquaponics Kit comes with:

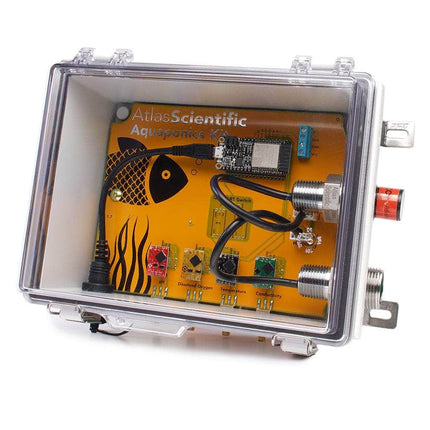

1x Enclosure with hardware assembled within
1x EZO pH circuit
1x Lab grade pH probe
6x 20ml calibration solution pouches (2x pH 4, 2x pH 7 and 2x pH 10)
1x EZO Dissolved Oxygen circuit
1x Lab grade Dissolved Oxygen probe
1x EZO RTD Temperature circuit
1x PT-1000 temperature probe
1x EZO Conductivity circuit
1x Conductivity probe (K 0.1, K 1.0, or K10)
2x Conductivity calibration solutions (K 0.1, K 1.0, or K10)
1x EZO-CO2™ Embedded Carbon Dioxide Sensor
1x EZO-HUM-P™ Embedded Humidity Sensor
Specifications
• No soldering required
• No programming necessary
• Automatically uploads data to ThingSpeak cloud

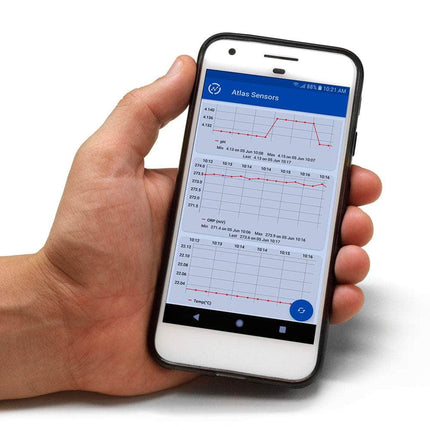

• Access to data on phone, tablet or PC
• Auto temperature compensation for pH, Dissolved Oxygen and Conductivity

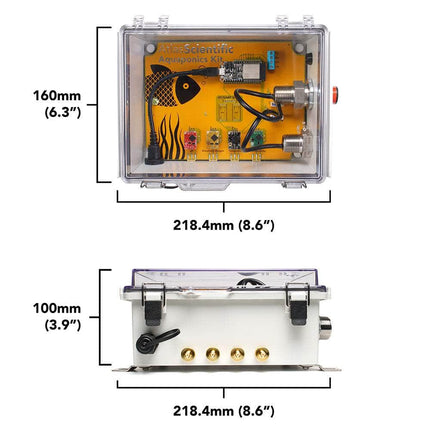

• Pre-drilled / wall mountable case with clear top
• pH range: 0 − 14 / resolution 0.01
• Dissolved Oxygen range: 0 − 100 mg/L
• Conductivity range: 0 − 200K / resolution 1μS
• CO2 range: 0 − 10,000 ppm
• Humidity range: 0 – 100%
• Operating voltage: 5V
• Current consumption: 310mA at 5V
• Three electrically isolated slots (pH, Dissolved Oxygen and Conductivity )
• Calibration solutions included.
• IP64 (dust and water splash proof)
• I2C mode only
