WiFi Hydroponics Kit Water Quality Monitoring
The Wi-Fi Hydroponics Meter Kit reads pH, Conductivity, and temperature. The pH and Conductivity readings are automatically temperature compensated and uploaded to ThingSpeak, which allows for remote readings on a phone, tablet or PC. The code and instructions are available in the download section of this page.

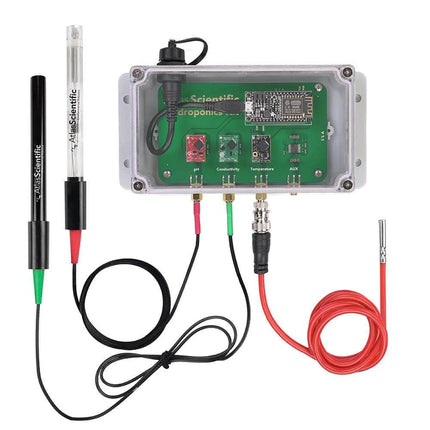

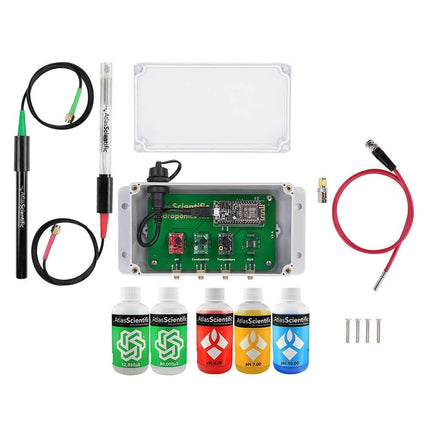

The Wi-Fi Hydroponics Meter Kit is based on ESP8266 and comes with:

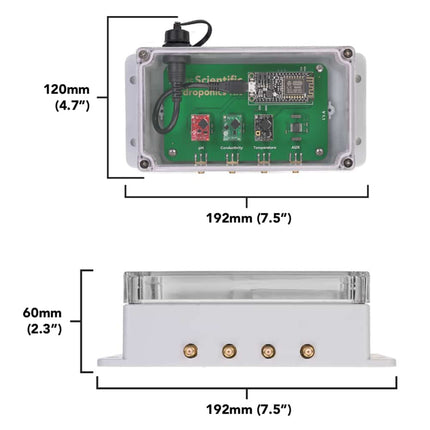

1x Enclosure with hardware assembled within
1x EZO pH circuit
1x EZO Conductivity circuit
1x EZO RTD Temperature circuit
1x Consumer-grade pH probe
1x Conductivity probe k1.0
1x PT-1000 temperature probe
3x pH calibration solutions
2x K 1.0 calibration solution
Specifications:
• No soldering required
• No programming necessary
• Automatically uploads data to ThingSpeak cloud

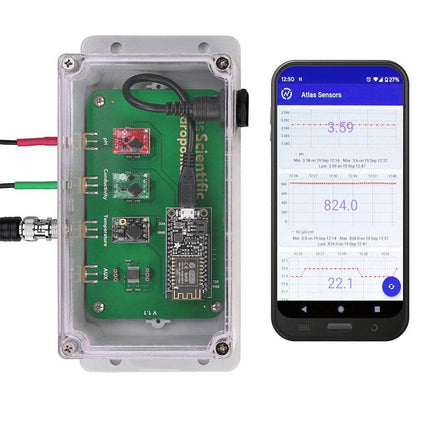

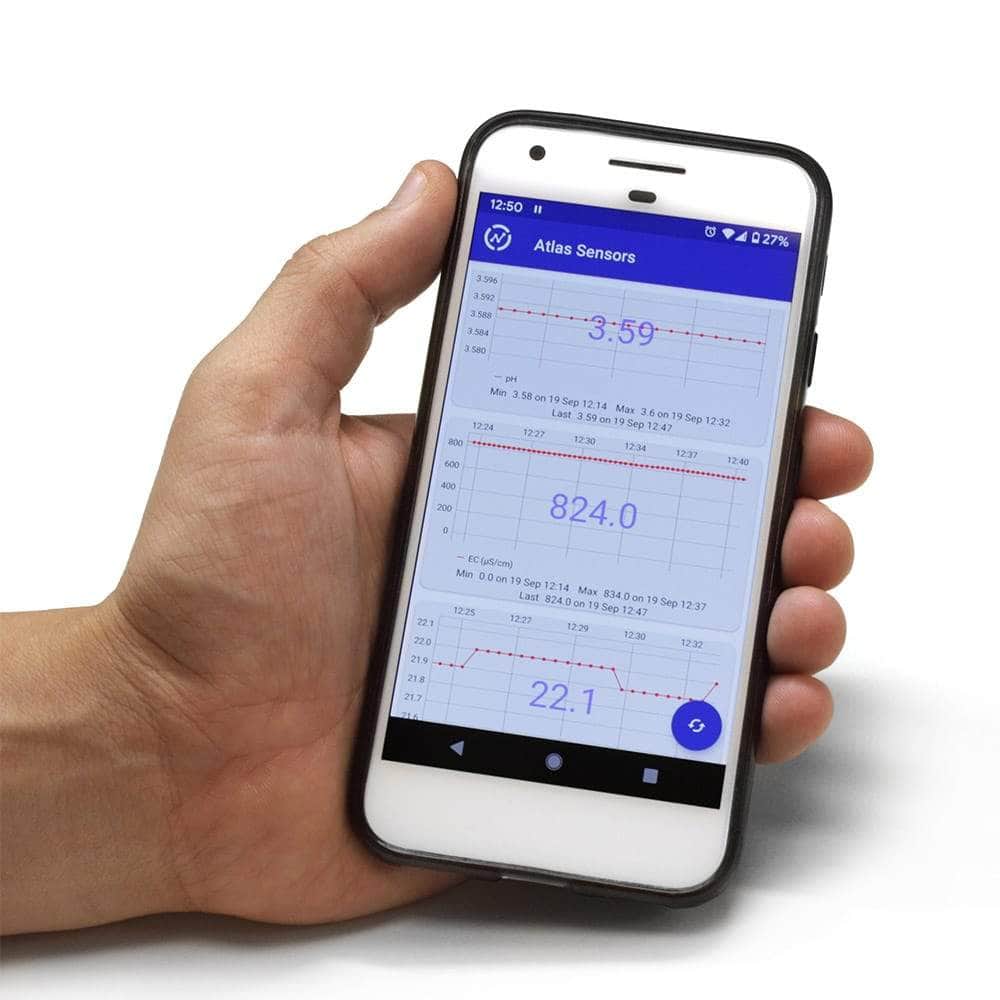

• Access to data on phone, tablet or PC
• Auto temperature compensation for pH and Conductivity
• Pre-drilled / wall mountable case with clear top
• pH range 0 − 14 / resolution 0.01
• Conductivity range 0 − 200K / resolution 1μS
• Operating voltage: 5V
• Current consumption: 310mA at 5V
• Three electrically isolated slots (pH, Conductivity and AUX)
• One auxiliary (AUX) slot for an additional sensor
• I2C mode only
• Calibration solutions included.
