WiFi Pool Kit Water Quality Monitoring

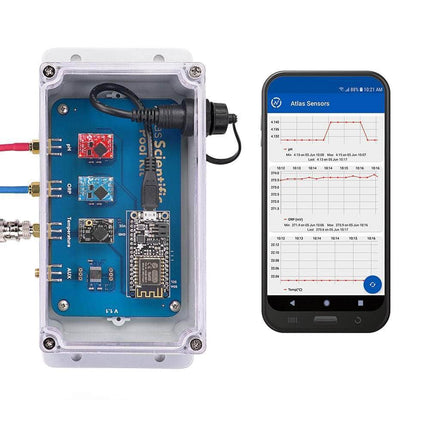

The Wi-Fi Pool Kit reads pH, ORP, and temperature. The pH readings are automatically temperature compensated and uploaded to ThingSpeak, which allows for remote readings on a phone, tablet or PC. The code and instructions are available in the download section of this page.

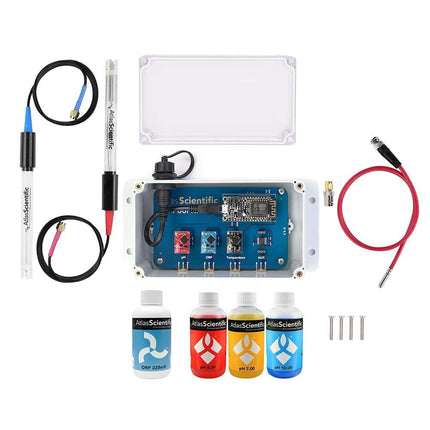

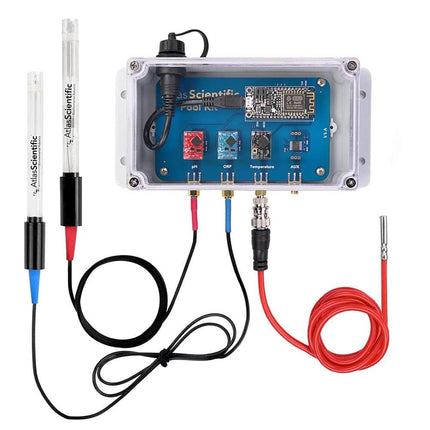

The Wi-Fi Pool Kit is based on ESP8266 and comes with:
1x Enclosure with hardware assembled within
1x EZO pH circuit
1x EZO ORP circuit
1x EZO RTD Temperature circuit
1x Consumer grade pH probe
1x Consumer grade ORP probe
1x PT-1000 temperature probe
3x pH calibration solutions
1x ORP 225mV calibration solution
Specifications:
• No soldering required
• No programming necessary
• Automatically uploads data to ThingSpeak cloud

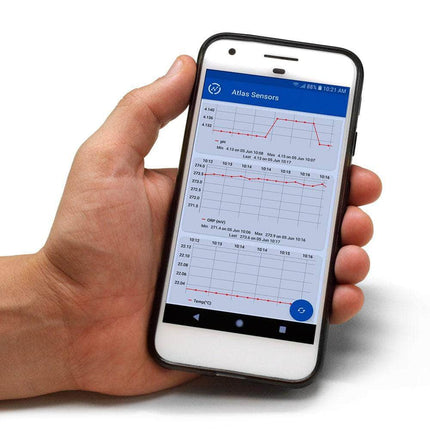

• Access to data on phone, tablet or PC
• Auto temperature compensation for pH

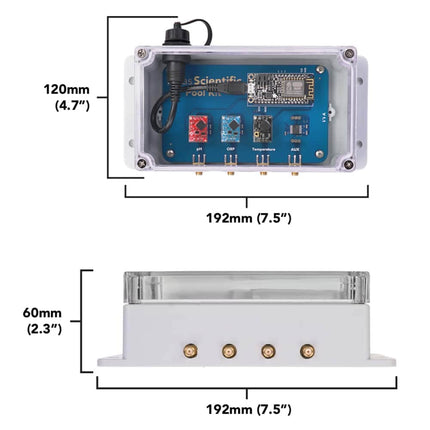

• Pre-drilled / wall mountable case with clear top
• pH range 0 − 14 / resolution 0.01
• ORP range +/-1100mV
• Operating voltage: 5V
• Current consumption: 280mA at 5V
• Three electrically isolated slots (pH, ORP and AUX)
• One auxiliary (AUX) slot for an additional sensor
• I2C mode only
• Calibration solutions included.
Wi-Fi Pool Kit Setup Guide
Wi-Fi Pool Kit - Thingspeak code
Connecting probes into a pipe
