WisBlock RAK12501 Meshtastic GPS Module

Description

WisBlock GNSS Module RAK12501

Compact GNSS Module with UART, Ideal for Low-power Tracking

What Is WisBlock RAK12501 Meshtastic GPS Module?

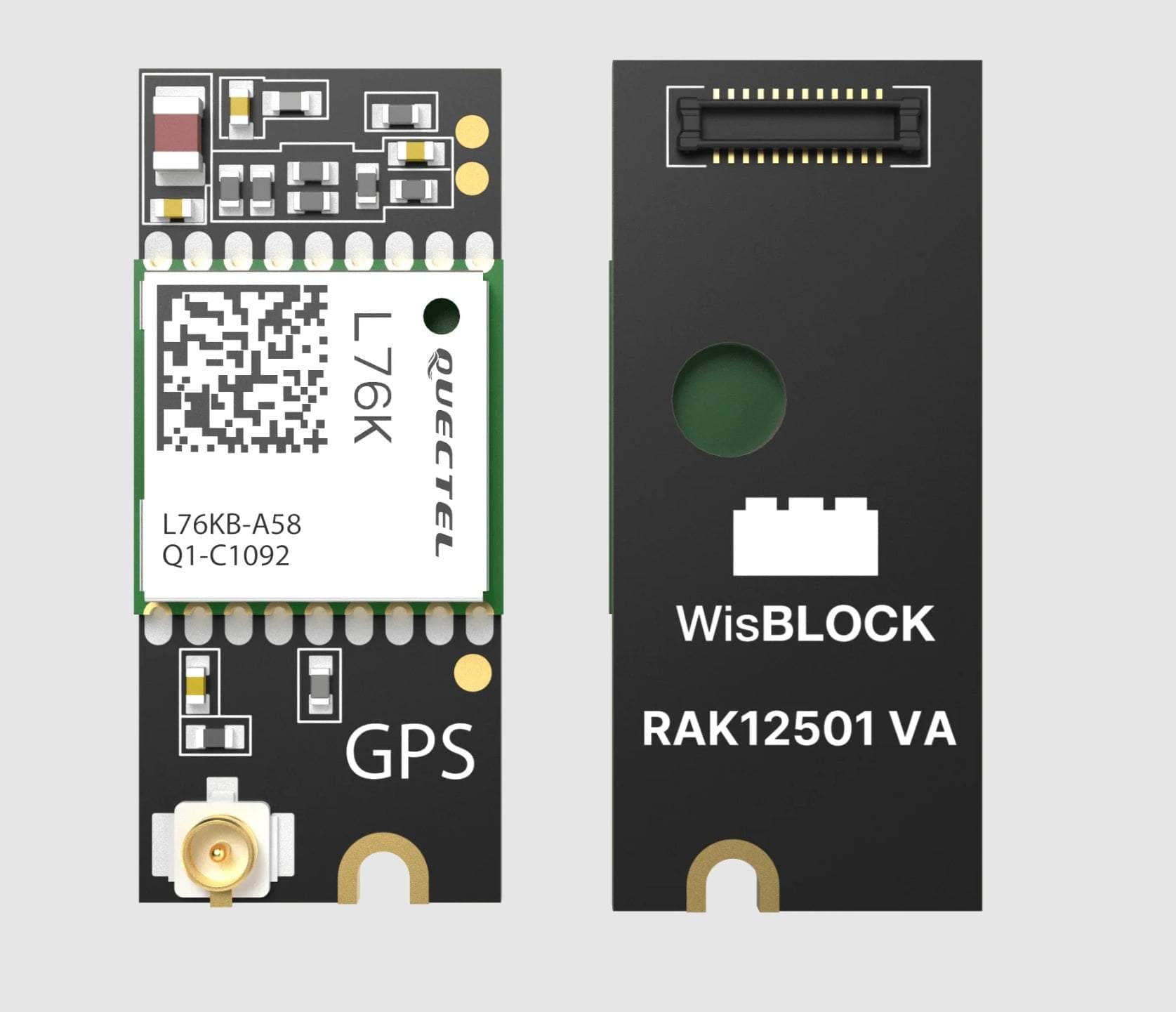

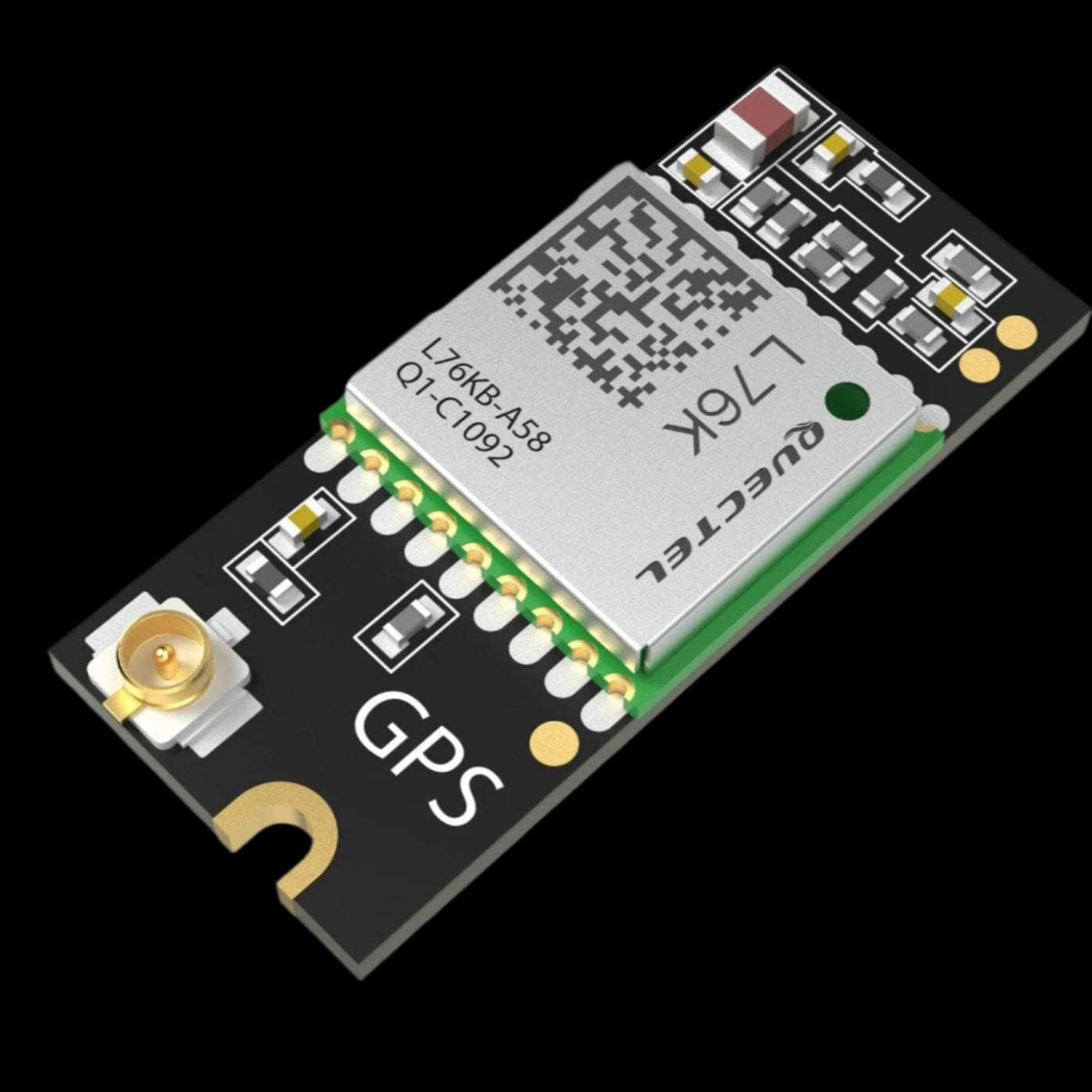

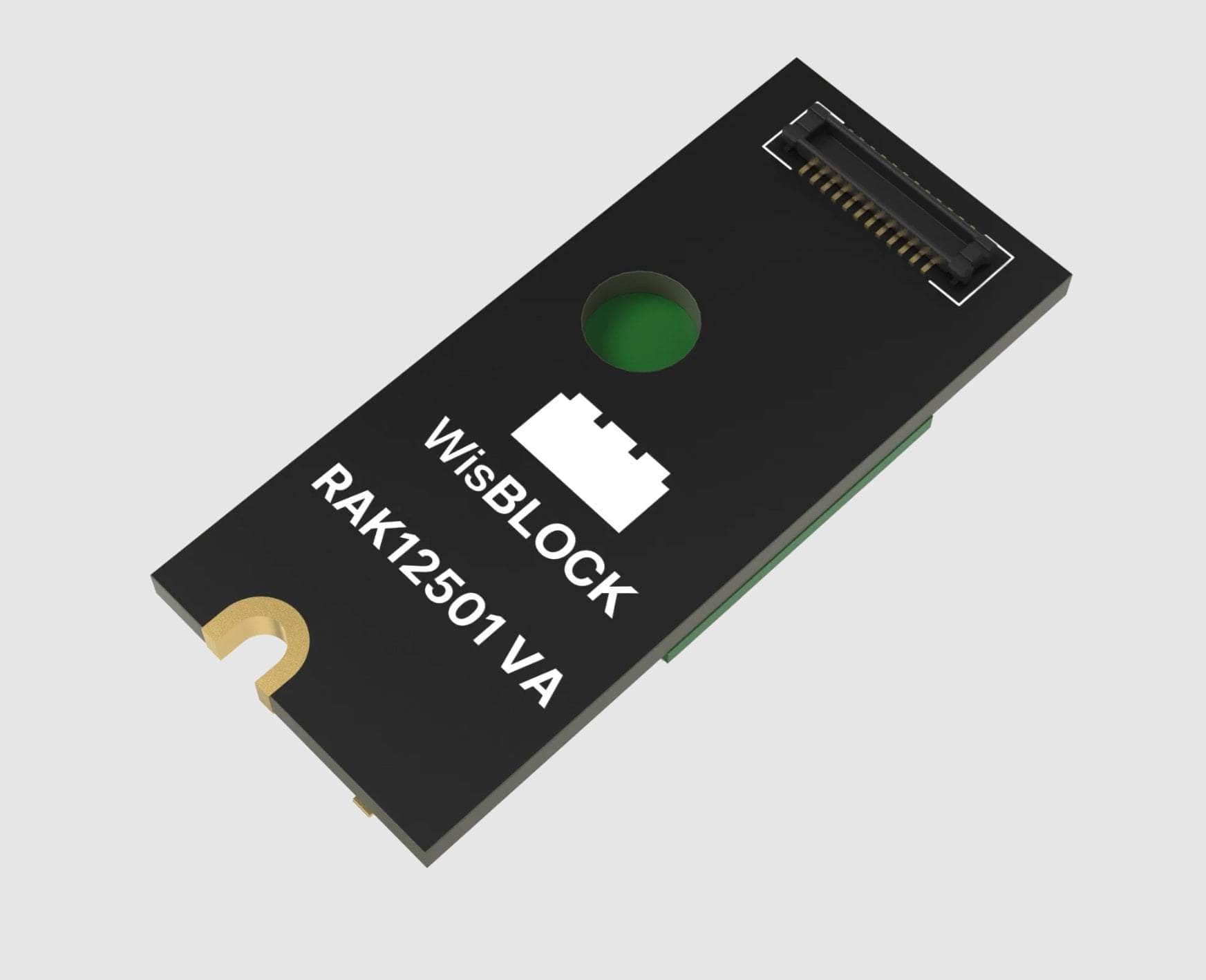

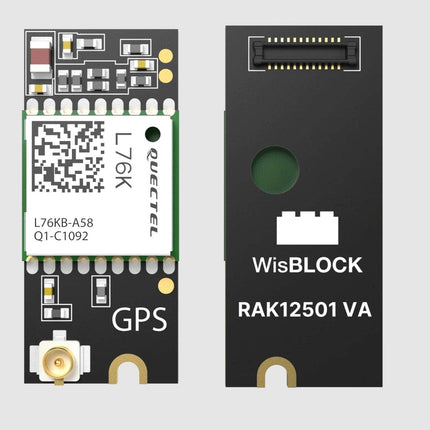

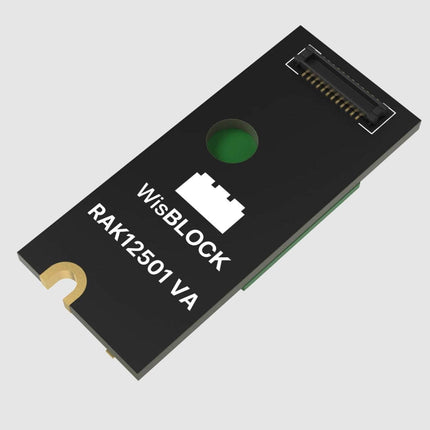

The RAK12501 WisBlock GNSS Location Tracker Module uses the Quectel L76K and is designed to be part of a production-ready IoT solution in a modular way. It must be combined with a WisBlock Core and a Base module to work as an LPWAN tracker device.

The RAK12501 supports a wide variety of satellite data protocols, such as GPS, GLONASS, QZSSand BeiDouThis ensures the retrieval of precise location data. The module features exceptional performance, high sensitivity, and minimal acquisition time.   A very suitable module for your low-power IoT solution needs. It works with standard protocols over UART connection to the MCU.

Why You Need WisBlock RAK12501 GNSS Module

Track your assets, devices, or outdoor sensors with high-precision GNSS using the cost-effective RAK12501 module. It’s built for Meshtastic GPS tracker projects and other LPWAN-based solutions, offering accurate location data without breaking the bank.

Why it’s useful:

  • Built for budget-conscious tracking – Lower cost alternative for GNSS-enabled devices
  • Fast location updates – Starts tracking in under 15 seconds
  • Global satellite support – Works with GPS, GLONASS, BeiDou, Galileo, and QZSS
  • Compact and efficient – Small size, low power draw, and UART-only simplicity
  • Reliable performance – High sensitivity ensures strong signal even in tough environments

Key Features of WisBlock RAK12501 GNSS Module

  • Uses the GNSS Module: Quectel L76K
  • Supports 33 tracking channels, 99 acquisition channels, and 210 PRN channels
  • Log position information to internal flash memory
  • Supports GPS, GLONASS, Galileo, BDS and QZSS satellite systems
  • Serial communication to WisBlock Core support with NMEA 0183 protocol
  • High sensitivity, -165 dBm @ Tracking, -148 dBm @ Acquisition
  • 1Hz update rate
  • Fast acquisition times:
    • Cold Start: < 15 s
    • Warm Start: < 5 s
    • Hot Start: < 1 s
  • Module Size: 10 mm x 23 mm

Key Benefits of WisBlock RAK12501 GNSS Module

Easily integrate GNSS tracking into your IoT projects with this compact and cost-effective WisBlock location tracking module.

  • Lower-cost GNSS solution: Ideal for budget-sensitive tracking applications
  • UART-based connectivity: Simple integration with WisBlock Core via serial protocol
  • Multi-system satellite support: GPS, GLONASS, BeiDou, QZSS, and Galileo included

Use Case #1

In asset tracking deployments, fast satellite acquisition ensures you get location data without delay. The RAK12501 delivers precise positioning even in remote or low-signal environments.

Use Case #2

For Meshtastic or LPWAN-based personal trackers, this module provides reliable GNSS data with minimal power consumptionmaking it perfect for long-term, battery-powered devices.

Comparison Table: RAK12500 vs. RAK12501

Feature

RAK12500 GNS Module

RAK12501 GNSS Module

Location chip

u-blox ZOE-M8Q

Quectel L76K

Connection

I2C and UART

UART only

Supported GNSS systems

GPS, GLONASS, Galileo, BDS, QZSS

GPS, GLONASS, Galileo, BDS, QZSS

Protocols

NMEA

NMEA

Update Rate

10Hz

1Hz

Startup times:

Cold Start

< 45s

< 15s

Warm Start

< 7s

< 5s

Hot Start

< 1s

< 1s

Sensitivity -148 dBm:

Acquisition

-148dBm

-148dBm

Tracking

-167dBm

-165dBm

Reacquisition

-160dBm

-160dBm

Power consumption

Acquisition mode

22mA

25mA

Tracking mode

21mA

18mA

Power save mode

15uA in Backup Mode

7uA in Backup Mode

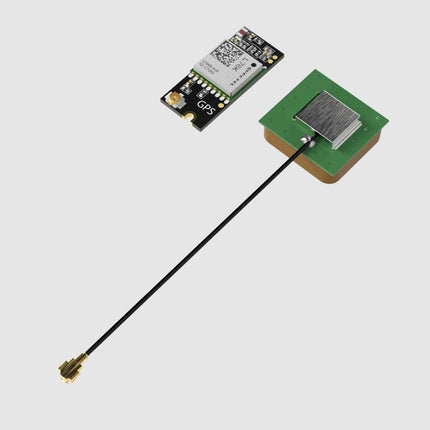

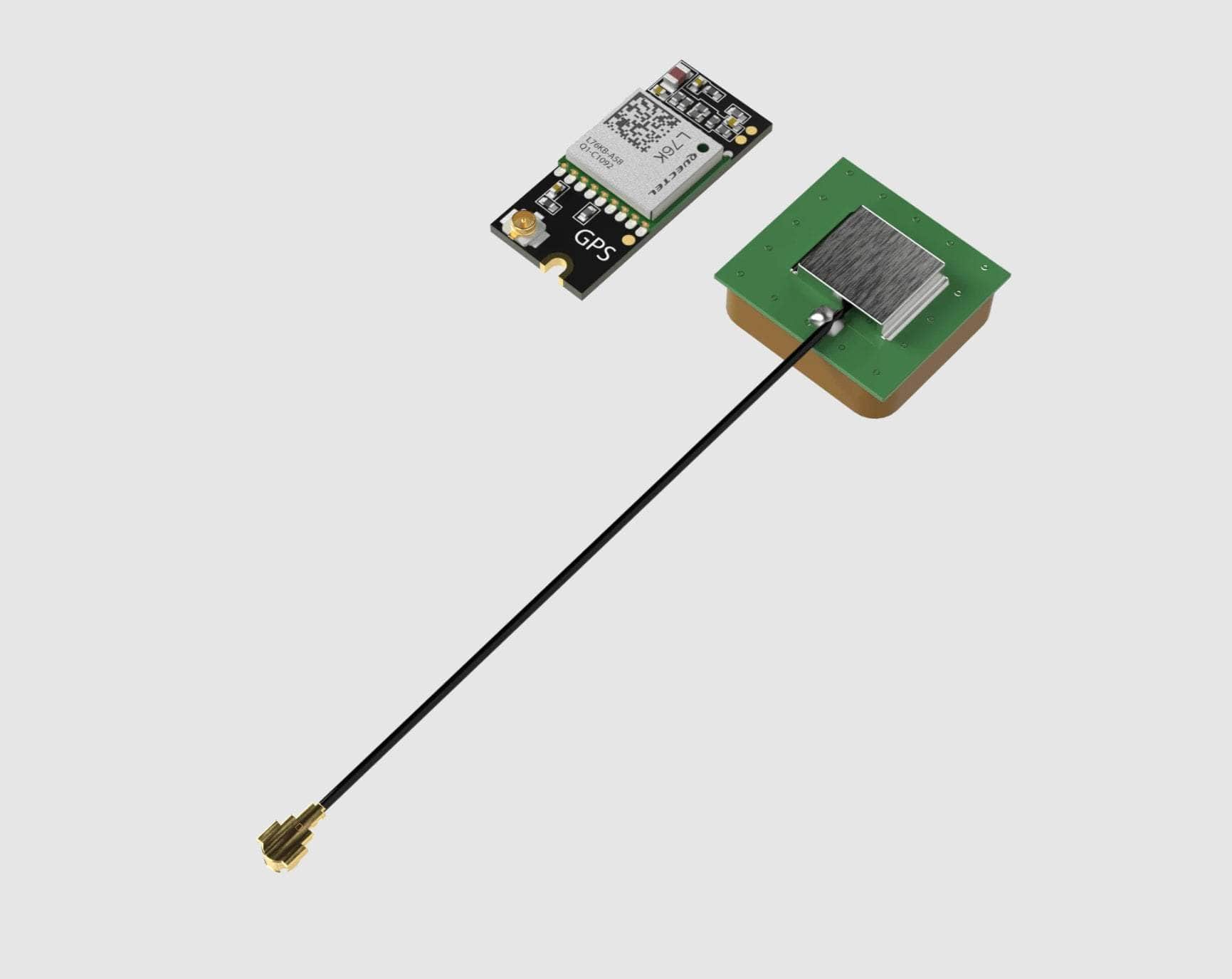

What’s in the Box

  • 1 pc. RAK12501
  • 1 pc. GNSS antenna

How to Get Started with WisBlock RAK12501 GNSS Module

WisBlock RAK12501 Meshtastic GPS Module

Product form
Free pickup in our shop(s)

SKU: 110218

$40.00 $30.00 Excl. GST

$30.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    WisBlock GNSS Module RAK12501

    Compact GNSS Module with UART, Ideal for Low-power Tracking

    What Is WisBlock RAK12501 Meshtastic GPS Module?

    The RAK12501 WisBlock GNSS Location Tracker Module uses the Quectel L76K and is designed to be part of a production-ready IoT solution in a modular way. It must be combined with a WisBlock Core and a Base module to work as an LPWAN tracker device.

    The RAK12501 supports a wide variety of satellite data protocols, such as GPS, GLONASS, QZSSand BeiDouThis ensures the retrieval of precise location data. The module features exceptional performance, high sensitivity, and minimal acquisition time.   A very suitable module for your low-power IoT solution needs. It works with standard protocols over UART connection to the MCU.

    Why You Need WisBlock RAK12501 GNSS Module

    Track your assets, devices, or outdoor sensors with high-precision GNSS using the cost-effective RAK12501 module. It’s built for Meshtastic GPS tracker projects and other LPWAN-based solutions, offering accurate location data without breaking the bank.

    Why it’s useful:

    • Built for budget-conscious tracking – Lower cost alternative for GNSS-enabled devices
    • Fast location updates – Starts tracking in under 15 seconds
    • Global satellite support – Works with GPS, GLONASS, BeiDou, Galileo, and QZSS
    • Compact and efficient – Small size, low power draw, and UART-only simplicity
    • Reliable performance – High sensitivity ensures strong signal even in tough environments

    Key Features of WisBlock RAK12501 GNSS Module

    • Uses the GNSS Module: Quectel L76K
    • Supports 33 tracking channels, 99 acquisition channels, and 210 PRN channels
    • Log position information to internal flash memory
    • Supports GPS, GLONASS, Galileo, BDS and QZSS satellite systems
    • Serial communication to WisBlock Core support with NMEA 0183 protocol
    • High sensitivity, -165 dBm @ Tracking, -148 dBm @ Acquisition
    • 1Hz update rate
    • Fast acquisition times:
      • Cold Start: < 15 s
      • Warm Start: < 5 s
      • Hot Start: < 1 s
    • Module Size: 10 mm x 23 mm

    Key Benefits of WisBlock RAK12501 GNSS Module

    Easily integrate GNSS tracking into your IoT projects with this compact and cost-effective WisBlock location tracking module.

    • Lower-cost GNSS solution: Ideal for budget-sensitive tracking applications
    • UART-based connectivity: Simple integration with WisBlock Core via serial protocol
    • Multi-system satellite support: GPS, GLONASS, BeiDou, QZSS, and Galileo included

    Use Case #1

    In asset tracking deployments, fast satellite acquisition ensures you get location data without delay. The RAK12501 delivers precise positioning even in remote or low-signal environments.

    Use Case #2

    For Meshtastic or LPWAN-based personal trackers, this module provides reliable GNSS data with minimal power consumptionmaking it perfect for long-term, battery-powered devices.

    Comparison Table: RAK12500 vs. RAK12501

    Feature

    RAK12500 GNS Module

    RAK12501 GNSS Module

    Location chip

    u-blox ZOE-M8Q

    Quectel L76K

    Connection

    I2C and UART

    UART only

    Supported GNSS systems

    GPS, GLONASS, Galileo, BDS, QZSS

    GPS, GLONASS, Galileo, BDS, QZSS

    Protocols

    NMEA

    NMEA

    Update Rate

    10Hz

    1Hz

    Startup times:

    Cold Start

    < 45s

    < 15s

    Warm Start

    < 7s

    < 5s

    Hot Start

    < 1s

    < 1s

    Sensitivity -148 dBm:

    Acquisition

    -148dBm

    -148dBm

    Tracking

    -167dBm

    -165dBm

    Reacquisition

    -160dBm

    -160dBm

    Power consumption

    Acquisition mode

    22mA

    25mA

    Tracking mode

    21mA

    18mA

    Power save mode

    15uA in Backup Mode

    7uA in Backup Mode

    What’s in the Box

    • 1 pc. RAK12501
    • 1 pc. GNSS antenna

    How to Get Started with WisBlock RAK12501 GNSS Module
