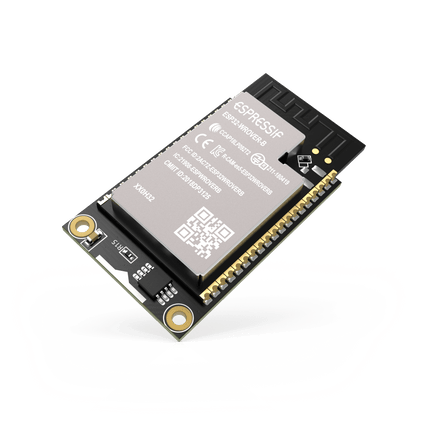

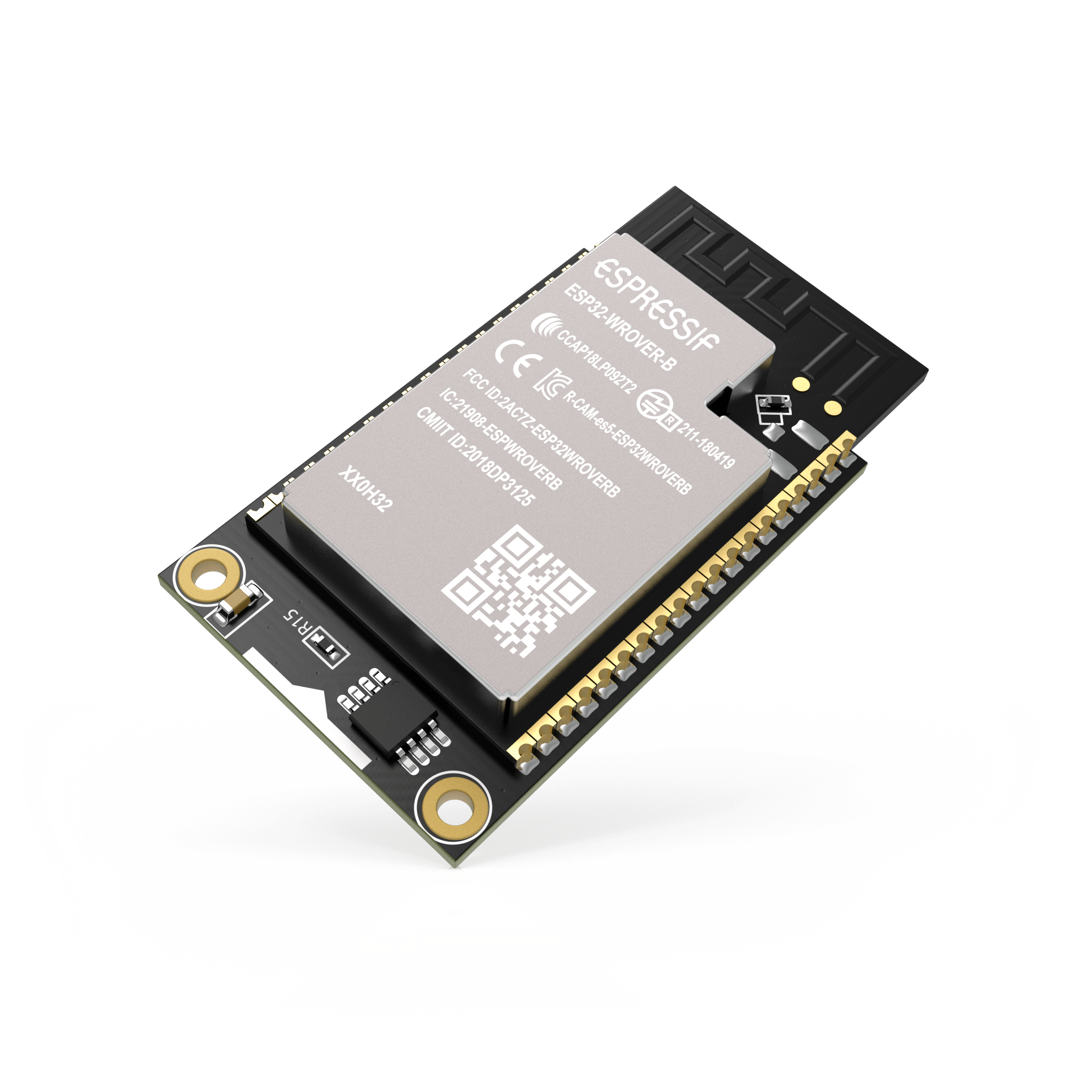

Wisblock WiFi and BLE Espressif ESP32-WROVER RAK11200
The RAK11200 is based on the Espressif ESP32-WROVER 2.4Ghz Wi-Fi & Bluetooth module and part of the WisBlock Core series. It is programmable and compatible with other WisBlock modules. It also features a built-in PCB antenna.
The Cyberon version is the same as the standard version with the addition of a license to run the Cyberon Voice Processing software. Please check our Cyberon documentation.
The Arduino and Voice Processing versions can be used with WisBlock Audio. The Voice Processing version includes a Cyberon License. Please check our Comparison Table for more information.
Product Features
- Two low-power Xtensa® 32-bit LX6 microprocessors
- Up to 240 MHz CPU clock
- Built-in PCB antenna
- 4 MB External SPI Flash, 520 KB RAM
- 8 MB SPI Pseudo static RAM (PSRAM)
- WiFi 802.11 b/g/n (802.11n up to 150 Mbps)
- Bluetooth v4.2 BR/EDR and BLE specification
- Rich set of peripherals: RTC, UART, I2C, SPI, SD card interface
- Low-power deep-sleep mode
Product Inclusion
-
1pc RAK11200
- 2pc wire jumper
- 8pc pin header
