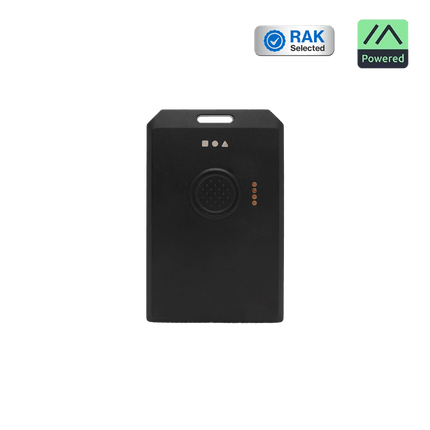

WisMesh Tag, The Pocket-Sized, Compact Meshtastic Tracker
The WisMesh Tag is your compact companion for location tracking and mesh messaging. Built for Meshtastic users who want something portable, reliable, and ready-to-go. Unlike DIY builds or limited designs like the T1000E, the WisMesh Tag delivers reliable outdoor performance with a 1000mAh battery, IP66 rating, and an easy reset button for firmware updates.
Why You Need WisMesh Tag
Stay connected and tracked off-grid with a rugged, portable, battery-efficient, and pre-configured Meshtastic device.
Why it’s useful:
-
High-Capacity Battery – 1000mAh for long uptime in field deployments.
-
Dust-proof and Waterproof GPS Tracker – IP66-rated enclosure makes it field-ready.
-
User-Friendly Hardware – Tactile buttons, status LEDs, and reset functionality built-in.
-
Developer-Ready – Magnetic charging, easy bootloader access, pre-flashed firmware for rapid prototyping.
Key Features of WisMesh Tag
- Meshtastic pre-flashed
- nRF52840 ultra-low-power core with 1MB Flash, 256KB RAM
- AT6558R GNSS module
- Integrated Antennas: LoRa, BLE, and GPS
- Reset/Bootloader Button
- User Button for alarms, alerts, or future customisation
- Magnetic Charge Port

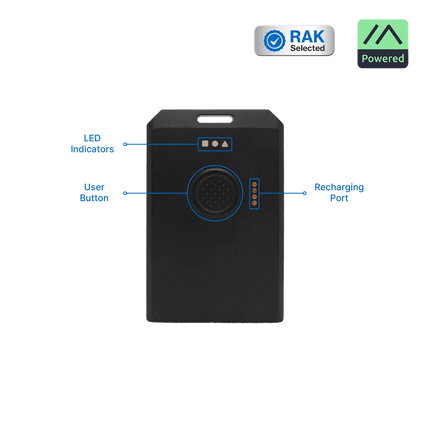

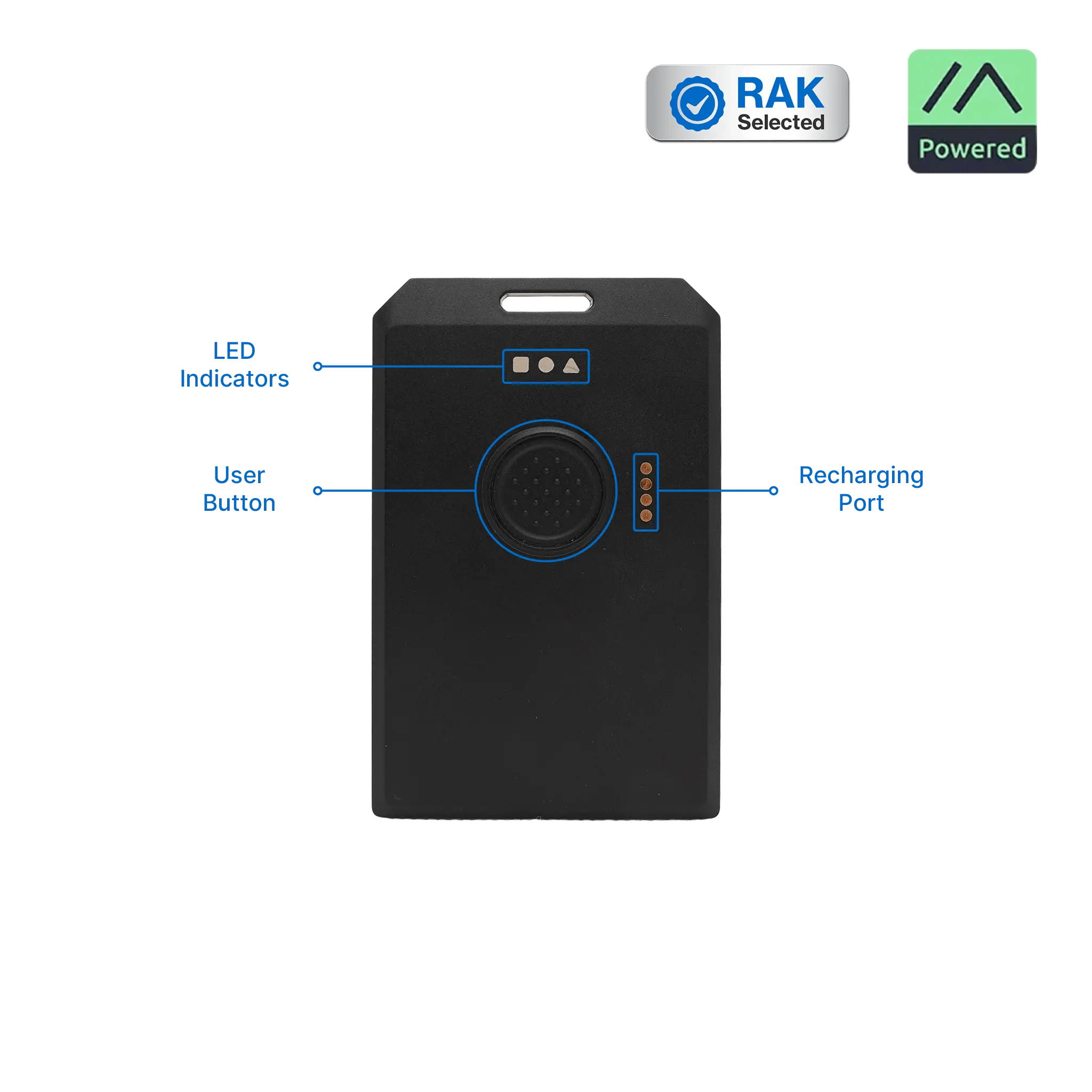

- Status LEDs: heartbeat, BLE, charging indicators
- 1000mAh internal battery
- IP66 LoRa Device Enclosure
-
Temperature range: -20℃ to +60℃
Key Benefits of WisMesh Tag
WisMesh Tag offers instant Meshtastic setup, enhanced GPS accuracy, and a durable design. It is ideal for hassle-free outdoor tracking and messaging.
-
Faster, more reliable GPS tracking: Optimised for quicker GPS fixes, so your location updates are timely and accurate.
-

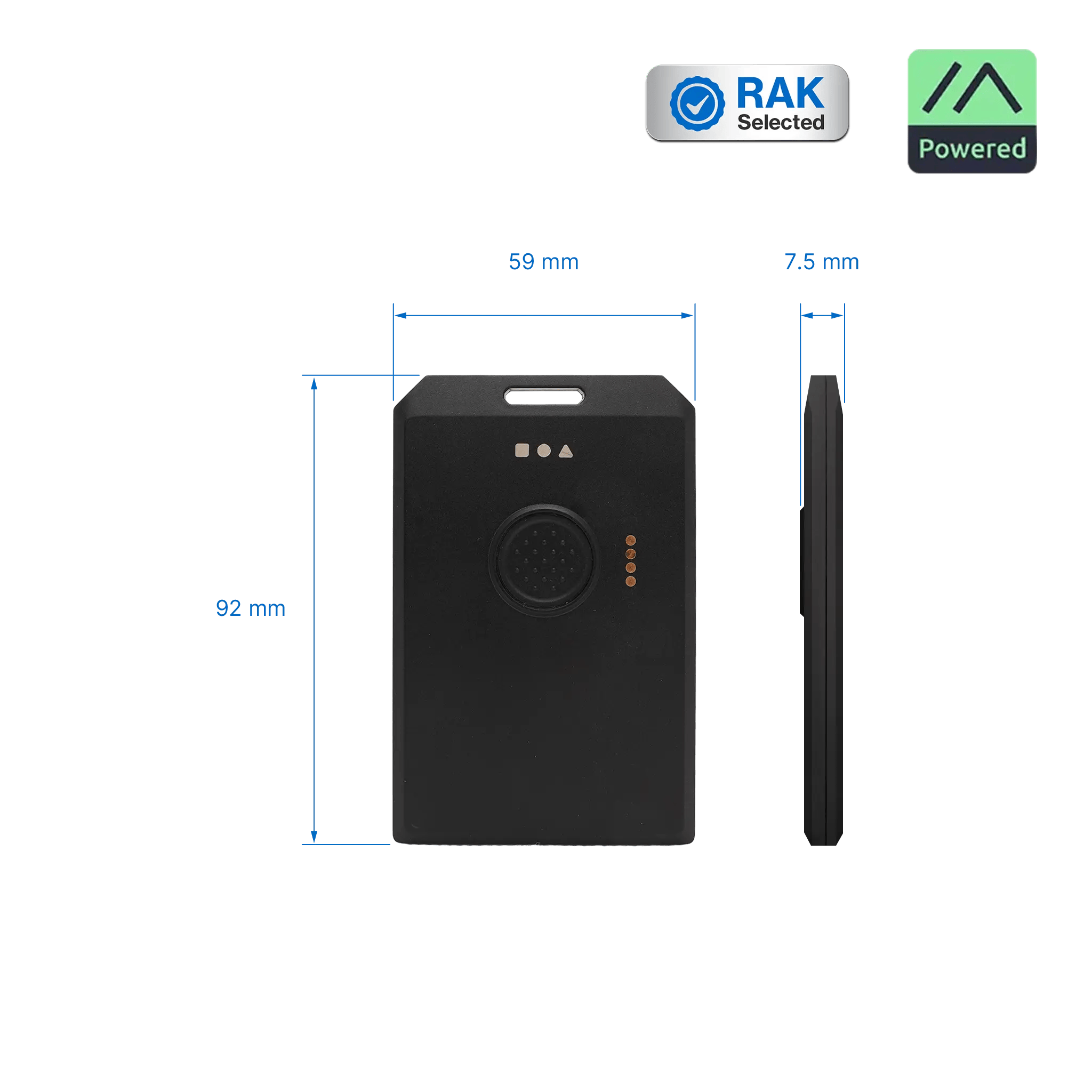

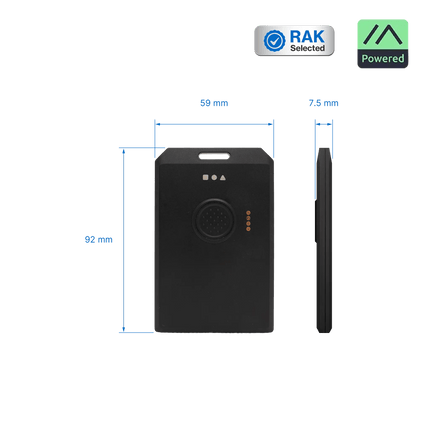

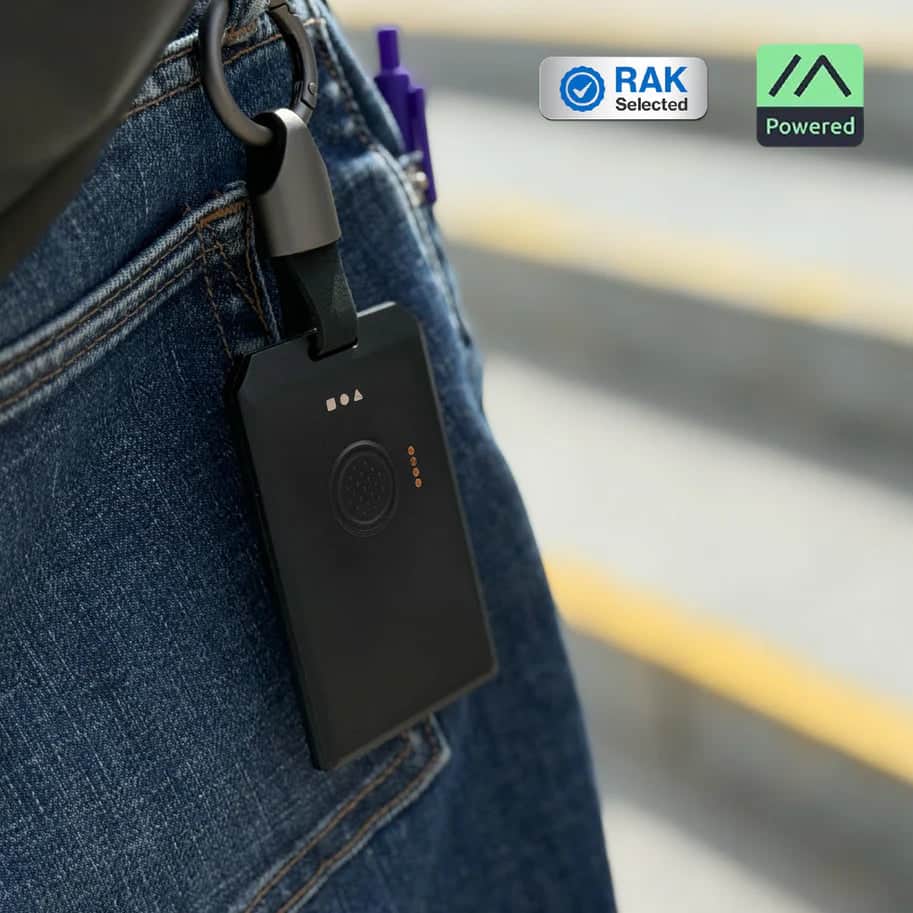

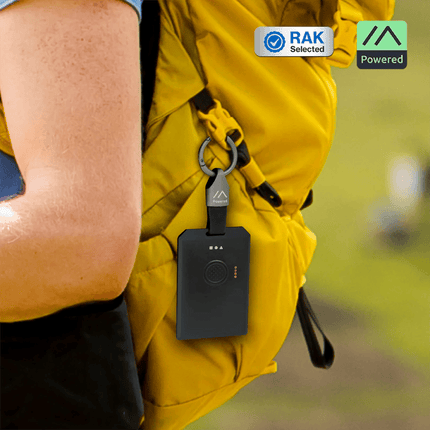

Compact form built for real use: Slim, credit card-sized design fits in any pocket or pouch, making it ideal for discreet, everyday outdoor tracking.
-
Strong and efficient mesh performance: Built with the nRF52840 and SX1262 LoRa module, ensuring consistent long-range communication across your Meshtastic mesh network.

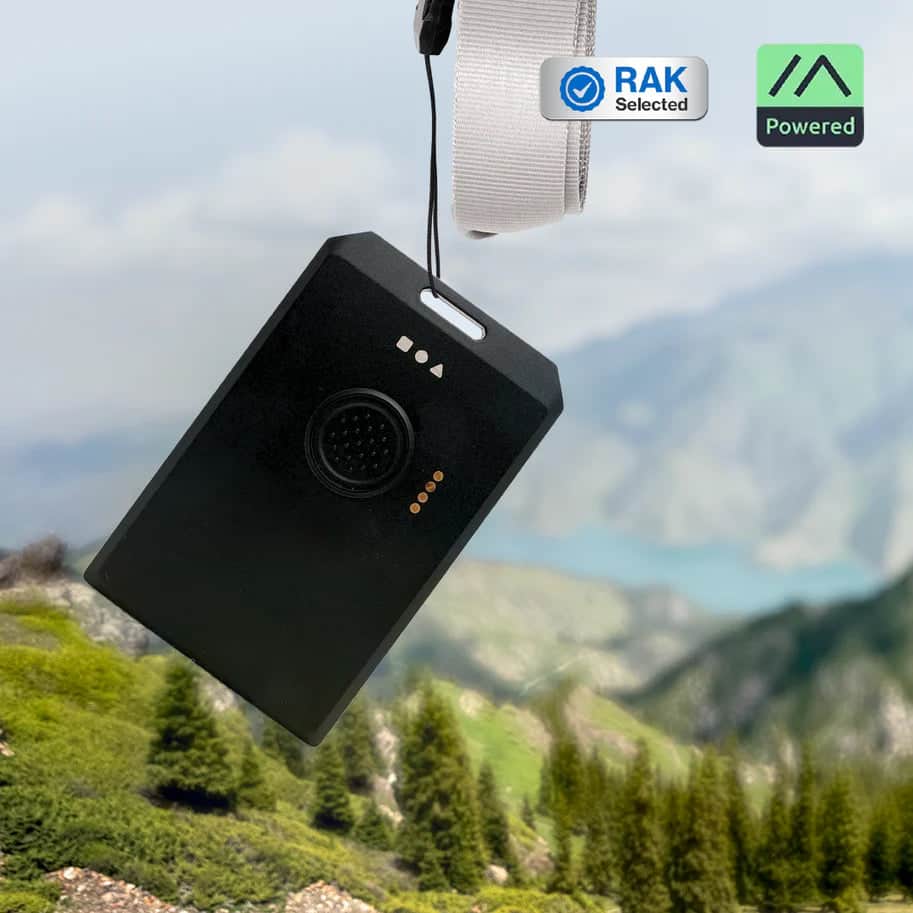

Use Case #1: Off-Grid Location Tracking
When coverage disappears, the WisMesh Tag keeps teams connected. During hikes, bikepacking trips, or remote surveys, it enables location sharing and messaging through a reliable mesh network. No cell service needed.
Use Case #2: Field Asset Coordination
Deployed across job sites, WisMesh Tags serve as real-time asset tracking LoRaWAN nodes of tools, gear, and personnel. Teams benefit from the rugged design and long battery life, reducing downtime and simplifying logistics.

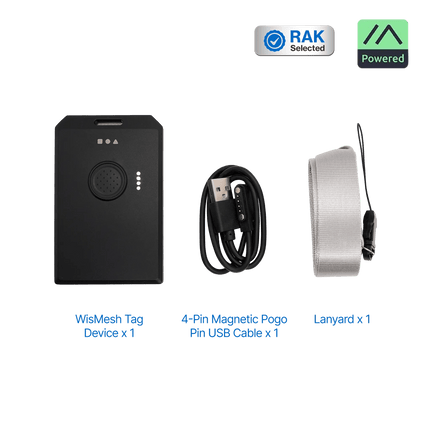

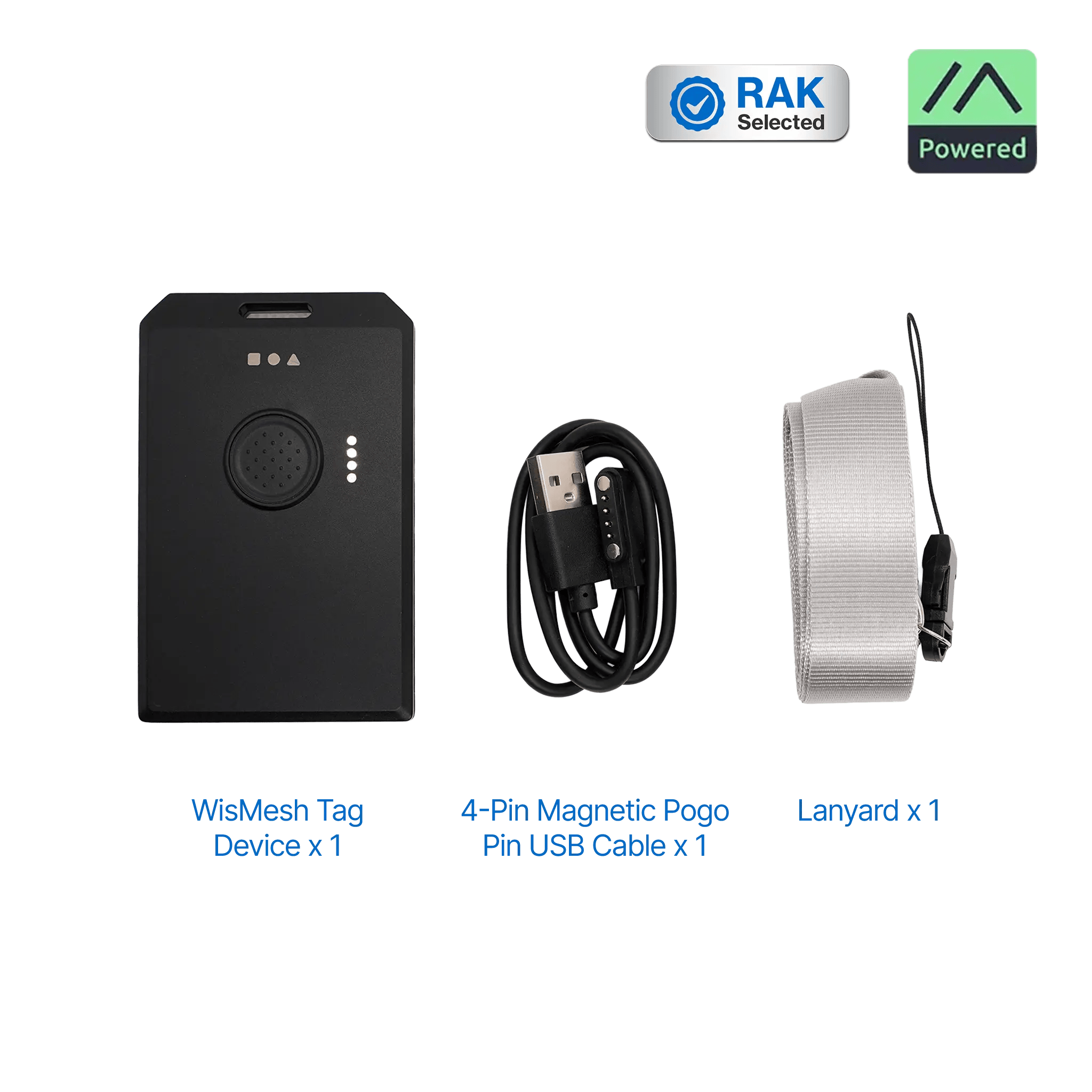

What’s in the Box
- 1 pc WisMesh Tag
- 1 pc USB Cable
- 1 pc Neck Strap
