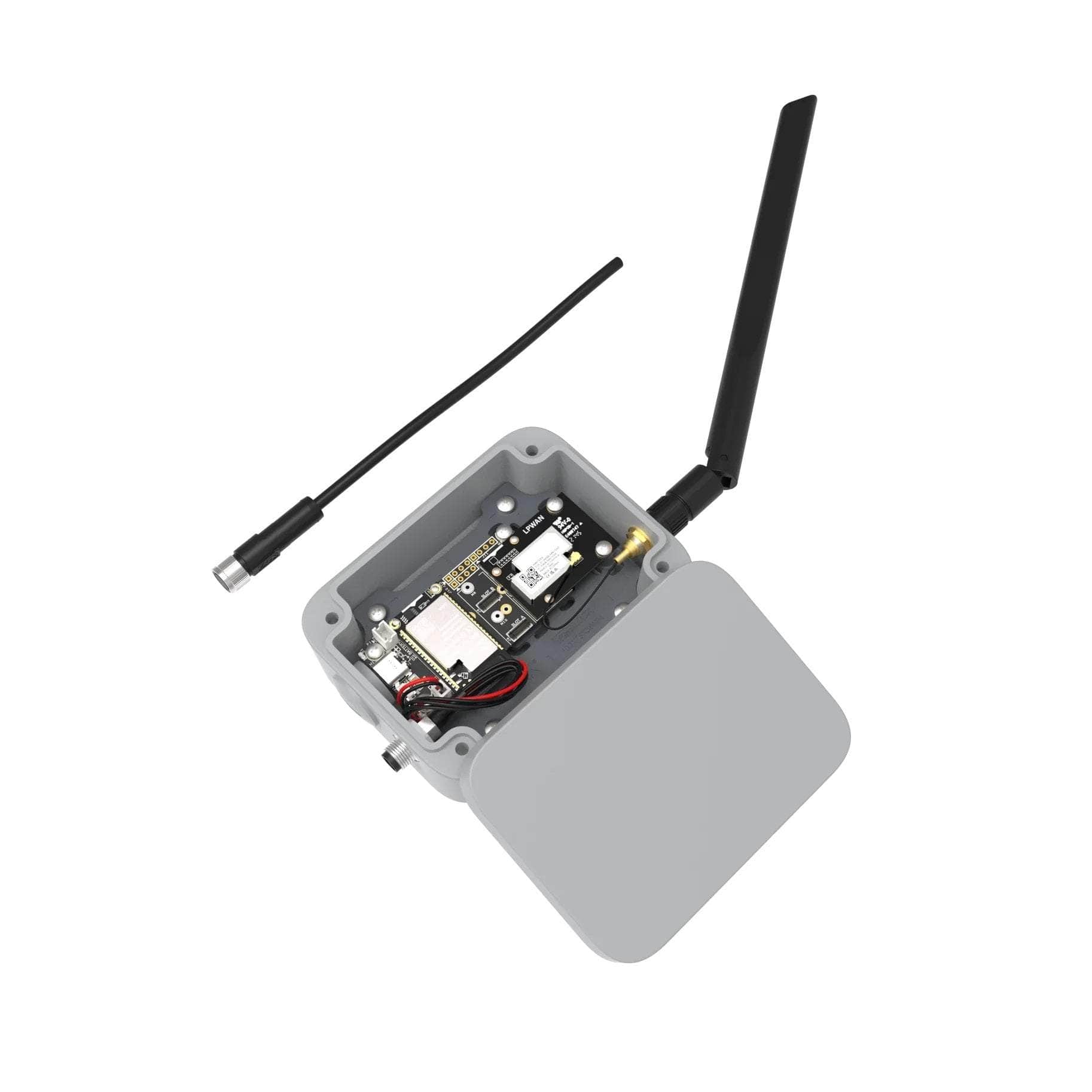

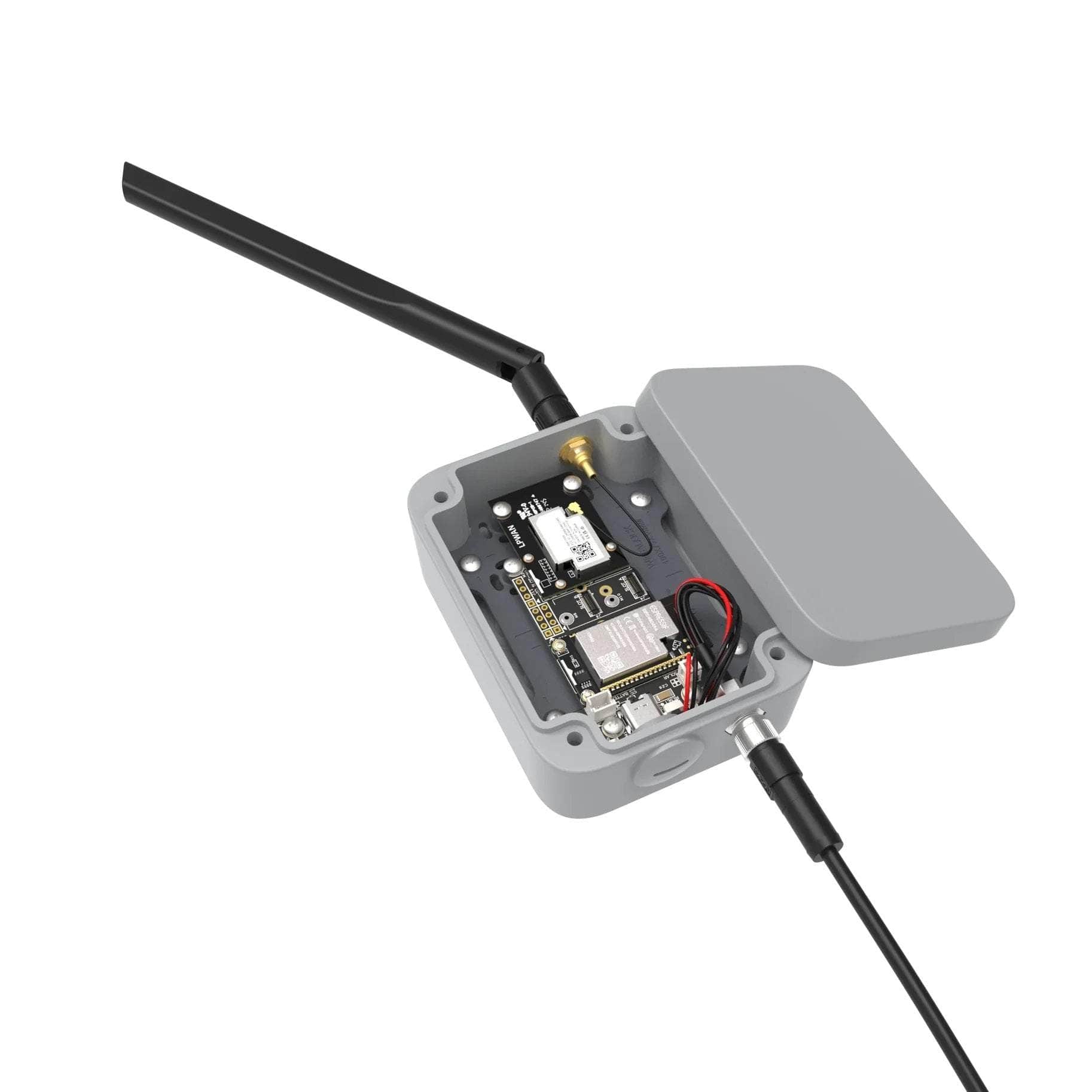

WisMesh WiFi Gateway, Wireless MQTT Gateway Built for Meshtastic with Enclosure
The WisMesh WiFi Gateway is a Meshtastic MQTT Gateway. It is the ideal solution for connecting your Meshtastic devices to the cloud. It provides an interface from your Meshtastic nodes to either the Meshtastic MQTT Broker or your own MQTT Broker. Whether you need to send sensor data, location information, or text messages to the cloud, this device meets your requirements.
At its core, the WisMesh WiFi Gateway features the RAK11200 Core Module, powered by ESP32, with pre-flashed Meshtastic firmware. This enables robust connectivity using WiFi, BLE, and LoRa, making it the ideal Meshtastic ESP32 MQTT Gateway.
Key Features
-

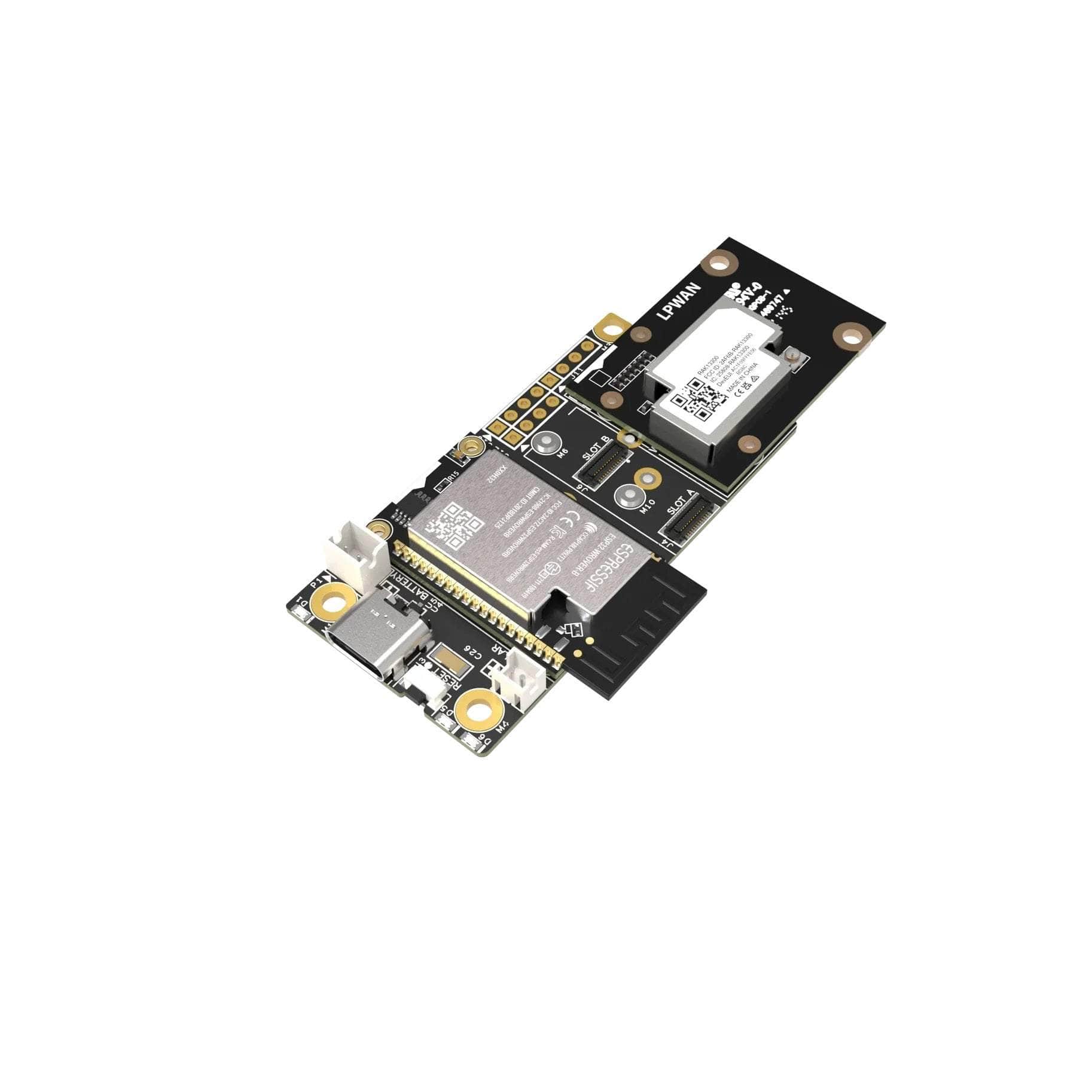

WisBlock RAK11200 Core Module
- Espressif ESP32-WROVER WisBlock Core module, pre-flashed with the Meshtastic firmware
- Bluetooth v4.2 BR/EDR and BLE
- WiFi 802.11 b/g/n (802.11n up to 150 Mbps)
- 4 MB External SPI Flash, 520 KB RAM
- 8 MB SPI Pseudo static RAM (PSRAM)
-
WisBlock RAK13300 LoRa Module
- Semtech SX1262
- LoRaWAN compliant LoRa® transceiver
-
WisBlock RAK19007 Base Board
- Compact 30mm x 60mm design with four Sensor Slots and one IO slots
-
USB Type C debug port
- One slot for WisBlock Core MCU
- Four slots for modules with 24pin WisBlock Sensor Modules
-
WisMesh Blade Antenna
- Black high-performance LoRa antenna
- High efficiency
- Omnidirectional
- Vertically polarized
- 9xx MHz variant
- Frequency Range: 902~928 MHz
- VSWR: ≤ 1.5
- 8xx MHz variant
- Frequency Range: 863~870 MHz
- VSWR: ≤ 1.3
-
Unify Enclosure 100x75x38mm
- IP67-rated, 100mmx75mmx38 mm enclosure with M8 5-pin connector, RP-SMA antenna connector
- Material: ABS UL94V-0 (flame-retardant)
- External dimensions: 100mmx75mmx38mm (including lid)
Package Inclusions
-
With Unify Enclosure 100x75x38mm
- 1 pc WisMesh WiFi Gateway
- 1 pc WisMesh Blade Antenna
- 1 pc USB Cable
- 1 pc M8 Cable
Documentation
Tutorials
FAQs
Why do I need a Meshtastic MQTT Gateway?
The WisMesh WiFi Gateway is a compact, ready-to-deploy MQTT gateway specifically designed for Meshtastic networks. It uses WiFi, BLE, and LoRa to connect your Meshtastic devices to cloud services like an MQTT broker.
How Set up a WisMesh WiFi Gateway?
Setup is straightforward using the Meshtastic app via Bluetooth Low Energy (BLE).
