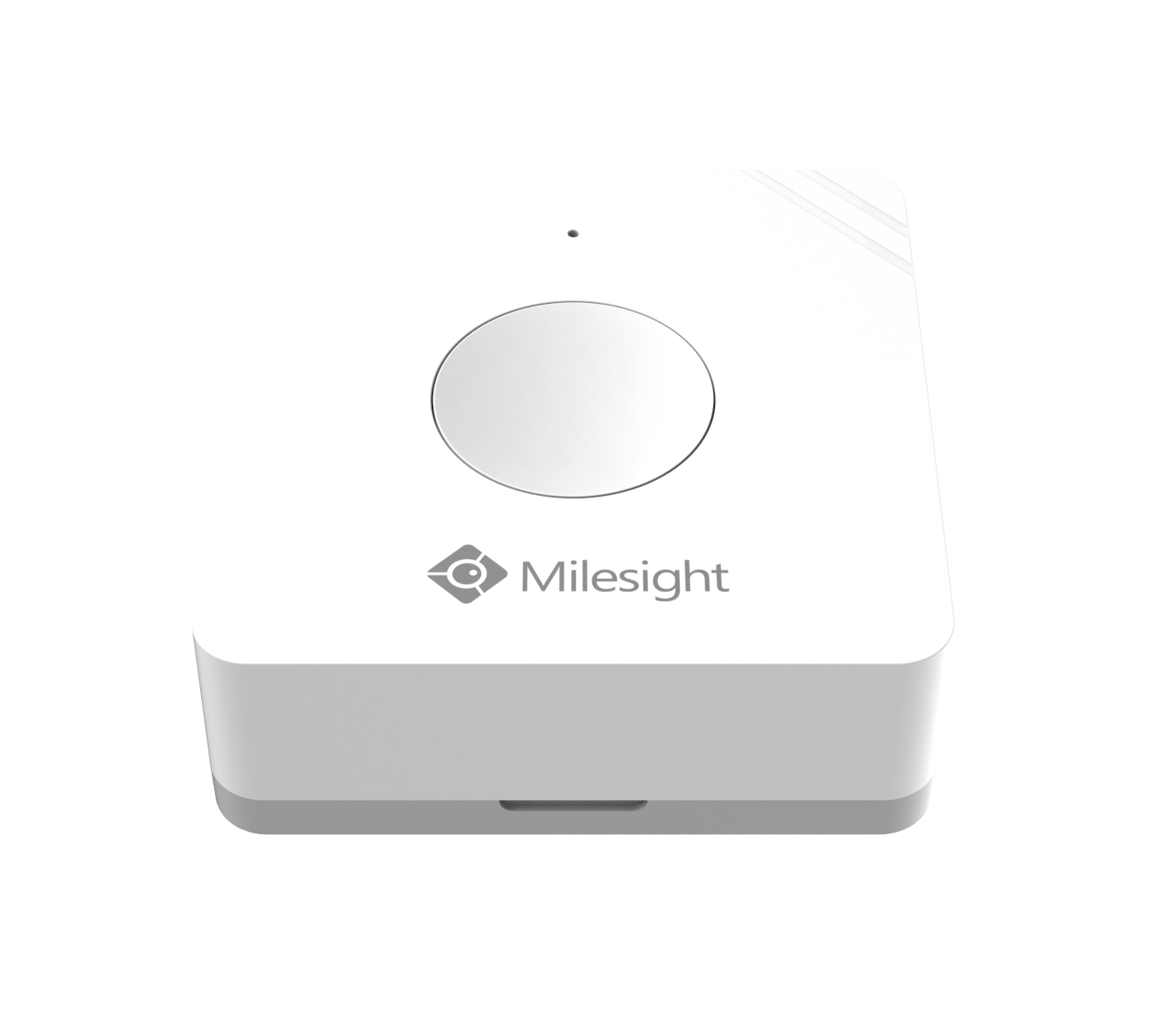

WS101 LoRaWAN Smart Button
- Multiple Press Actions
- LoRaWAN® Based
- Easy Configuration (via NFC)
- 5 Years Battery Life

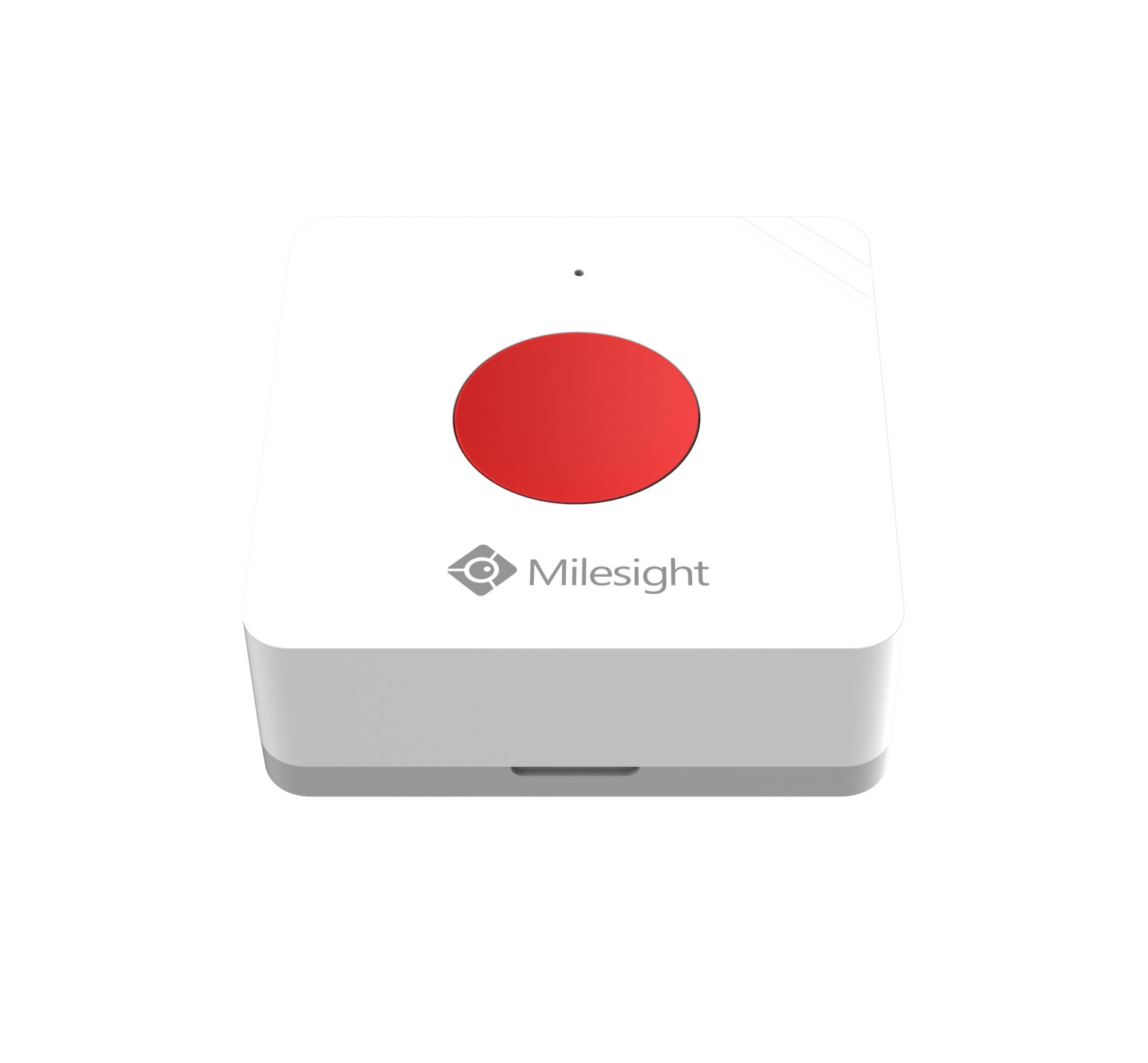

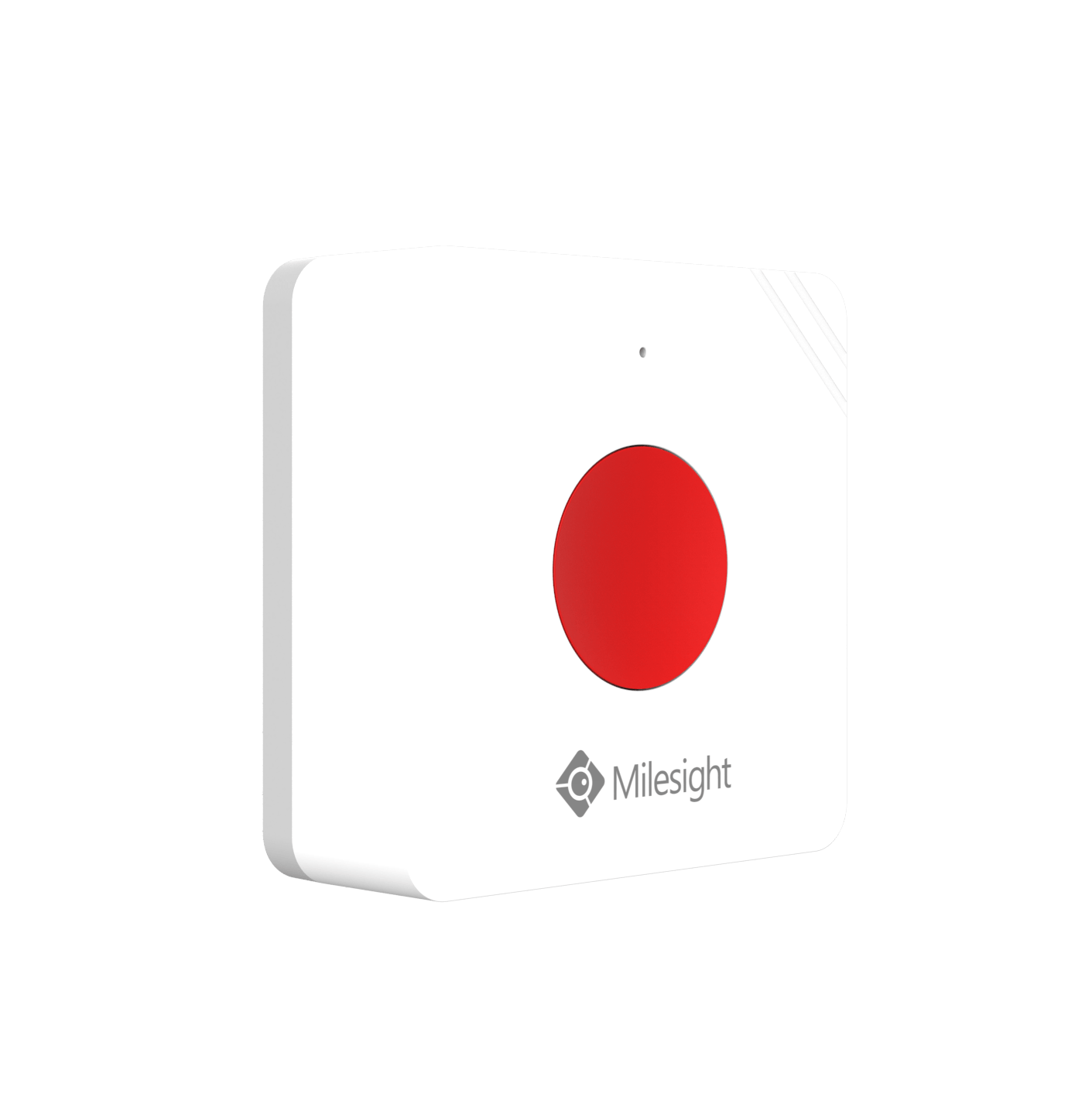

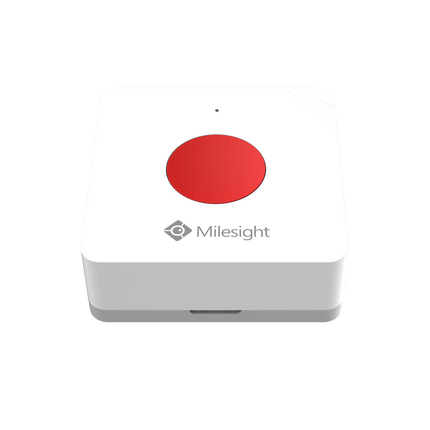

Milesight WS101 is a LoRaWAN®-based smart button for wireless controls, triggers and alarms. WS101 supports multiple press actions, all of which can be defined by the user to control devices or trigger scenes. Besides, Milesight also provides a red button that is primarily used to send SO alarms. Compact and battery-powered, WS101 is easy to instal and carry everywhere.
The Milesight WS101 Smart Button can be fixed to a spot nearby and moved when needed. With Milesight IoT Cloud, you can use it virtually whenever and wherever you need it.
The Button is a great convenience for seniors, the sick, and small children to contact the caretaker or call for help.
Ultra-Low Power Consumption
LoRaWAN Based
Milesight Smart Button is compatible with industry-standard LoRaWAN® gateways
With a range of up to 15 km in rural areas and 2 km in urban areas
Easy Configuration
Switching on/off and configuring the device via NFC technology from a mobile phone or PC.
Specifications
|
| Wireless Transmission |
Technology |
LoRaWAN®
|
| Frequency |
AU915 |
| Tx Power |
22 dBm (915 MHz) |
| Sensitivity |
-137 dBm @300bps |
| Mode |
OTAA/ABP Class A |
| Interface |
Button |
1 × External Button + 1 × PowerReset Button (Internal) |
| LED Indicator |
1 |
| Buzzer |
Support |
| Operation |
Configuration |
NFC Configuration via Mobile App |
| Physical Characteristics |
Power Supply |

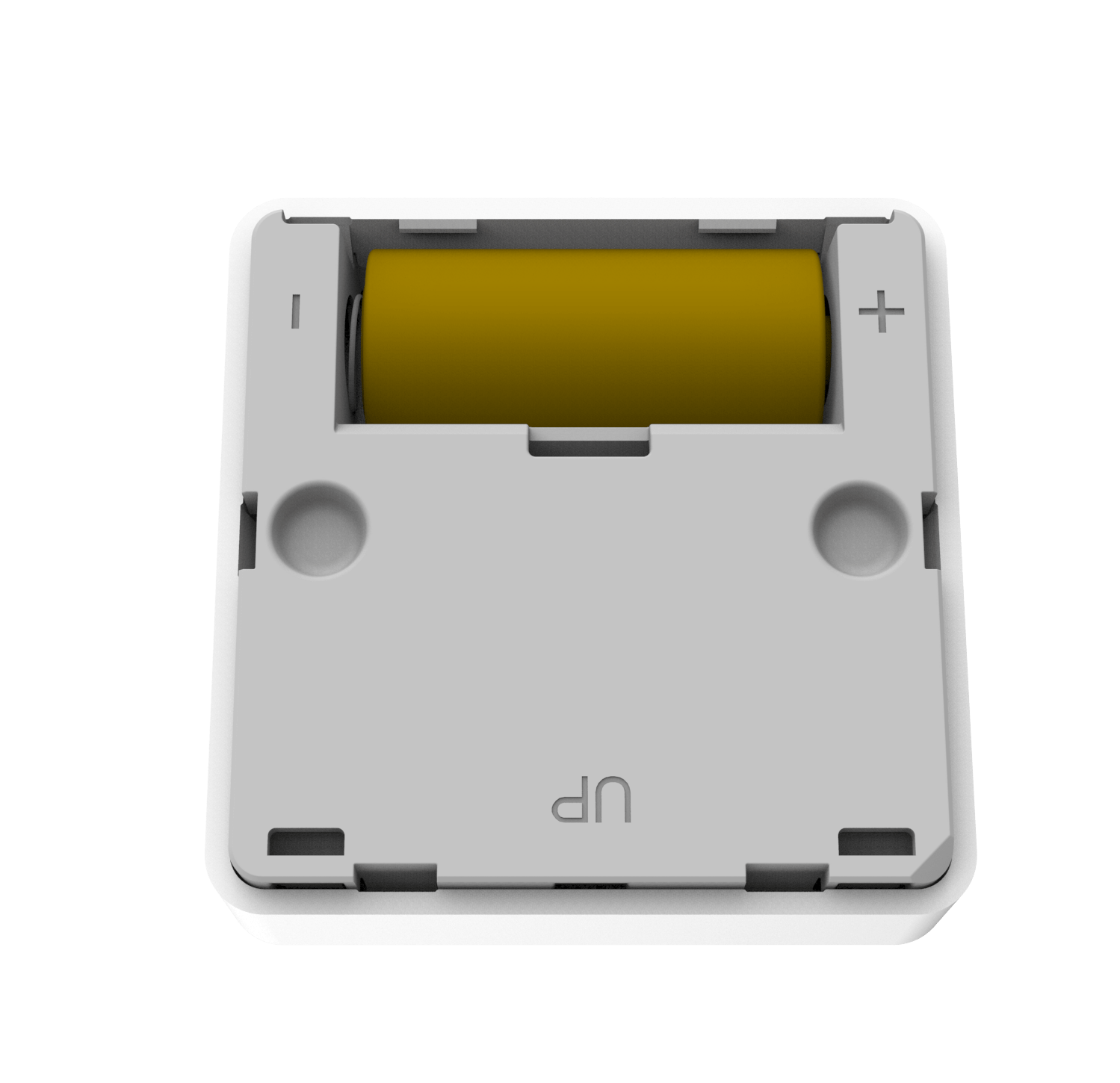

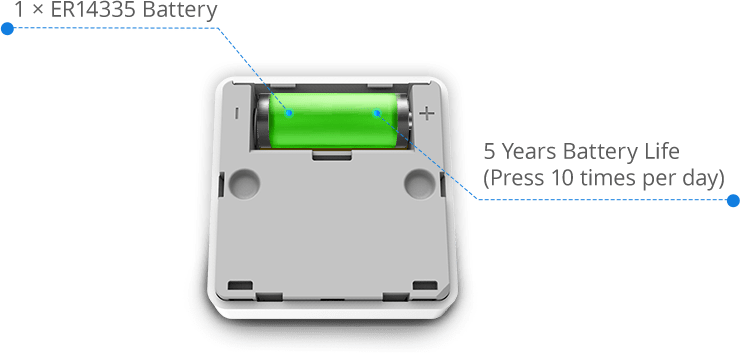

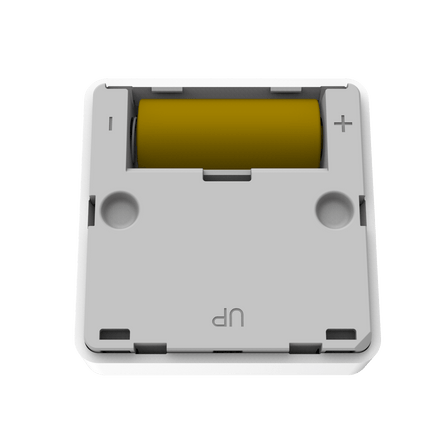

1 × 1650 mAh ER14335 Li-SOCl2 battery |
| Battery Life* |
6.5 years (10 push presses per day) |
| Operating Temperature |
-30°C to +60°C |
| Relative Humidity |
≤90% (non-condensing) |
| Ingress Protection |
IP30 |
| Dimension |
50 × 50 × 18 mm (1.97 × 1.97 × 0.71 in)
Button: Φ20 mm (Φ0.79 in) |
| Material |
Anti-flaming Polycarbonate |
| Color |
White (Button: White/Red Optional) |
| Installation |
On the flat surfaces with screws or 3M tapes, Lanyard |
