XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa

Description

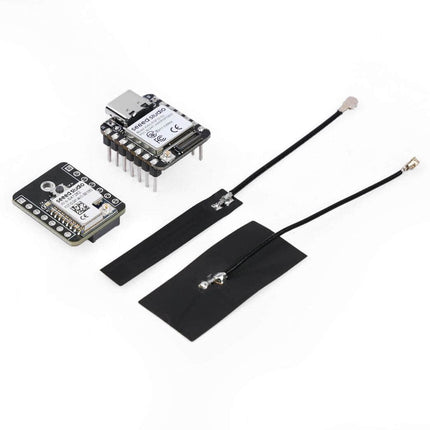

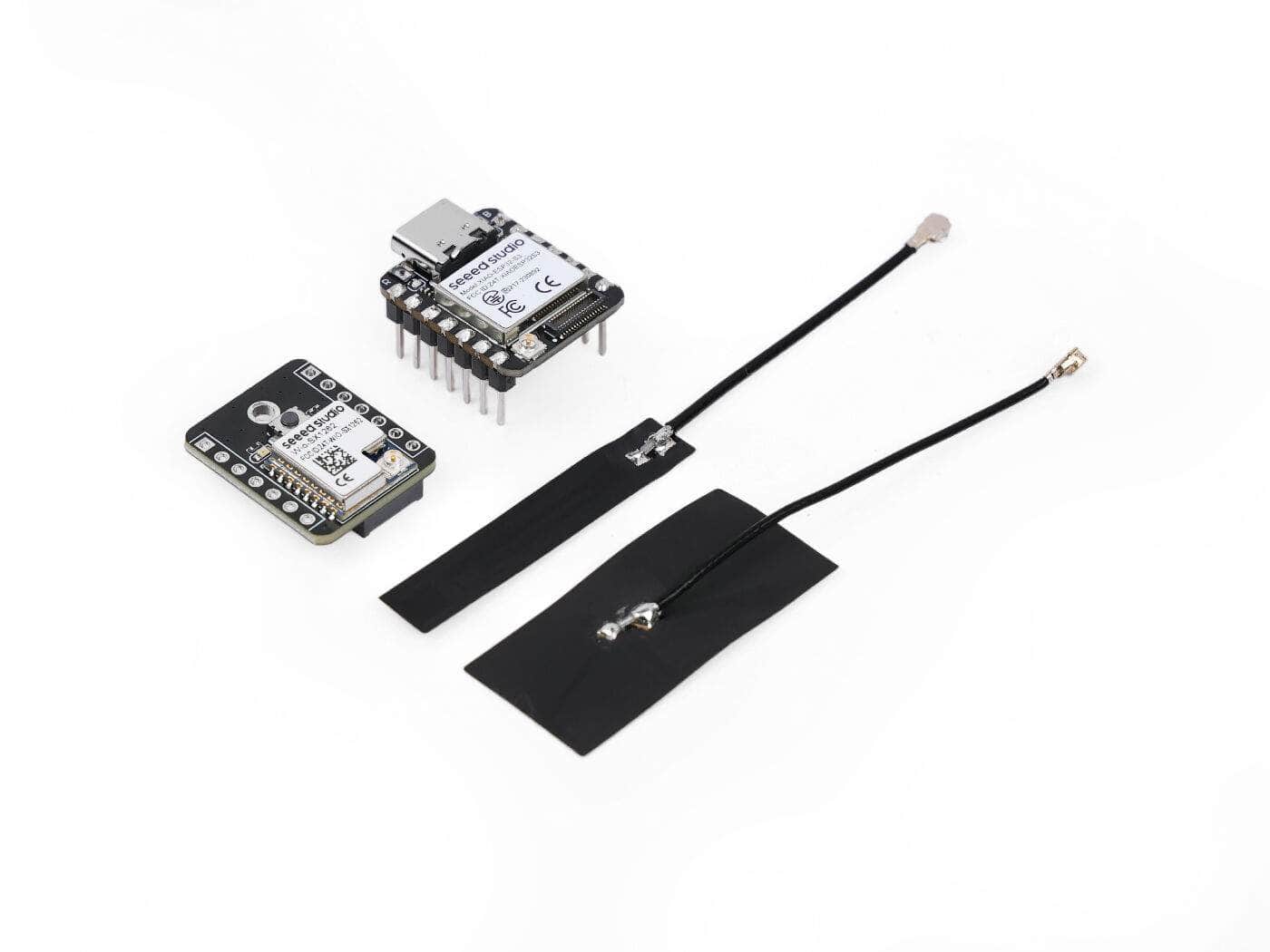

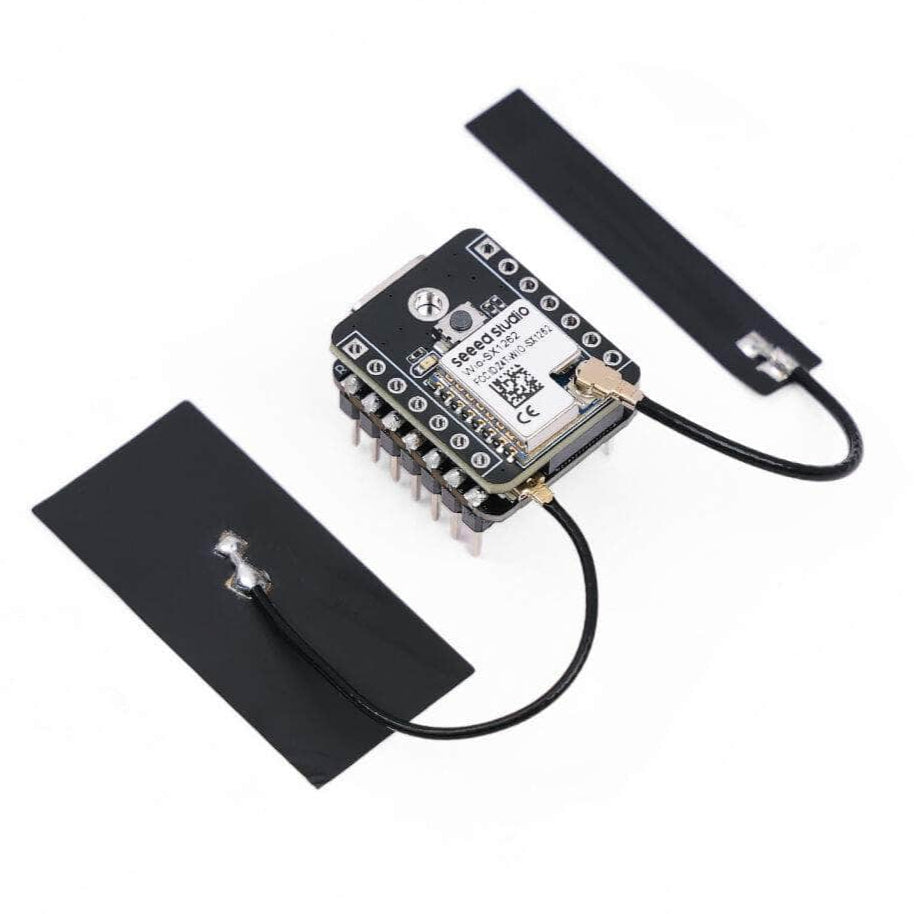

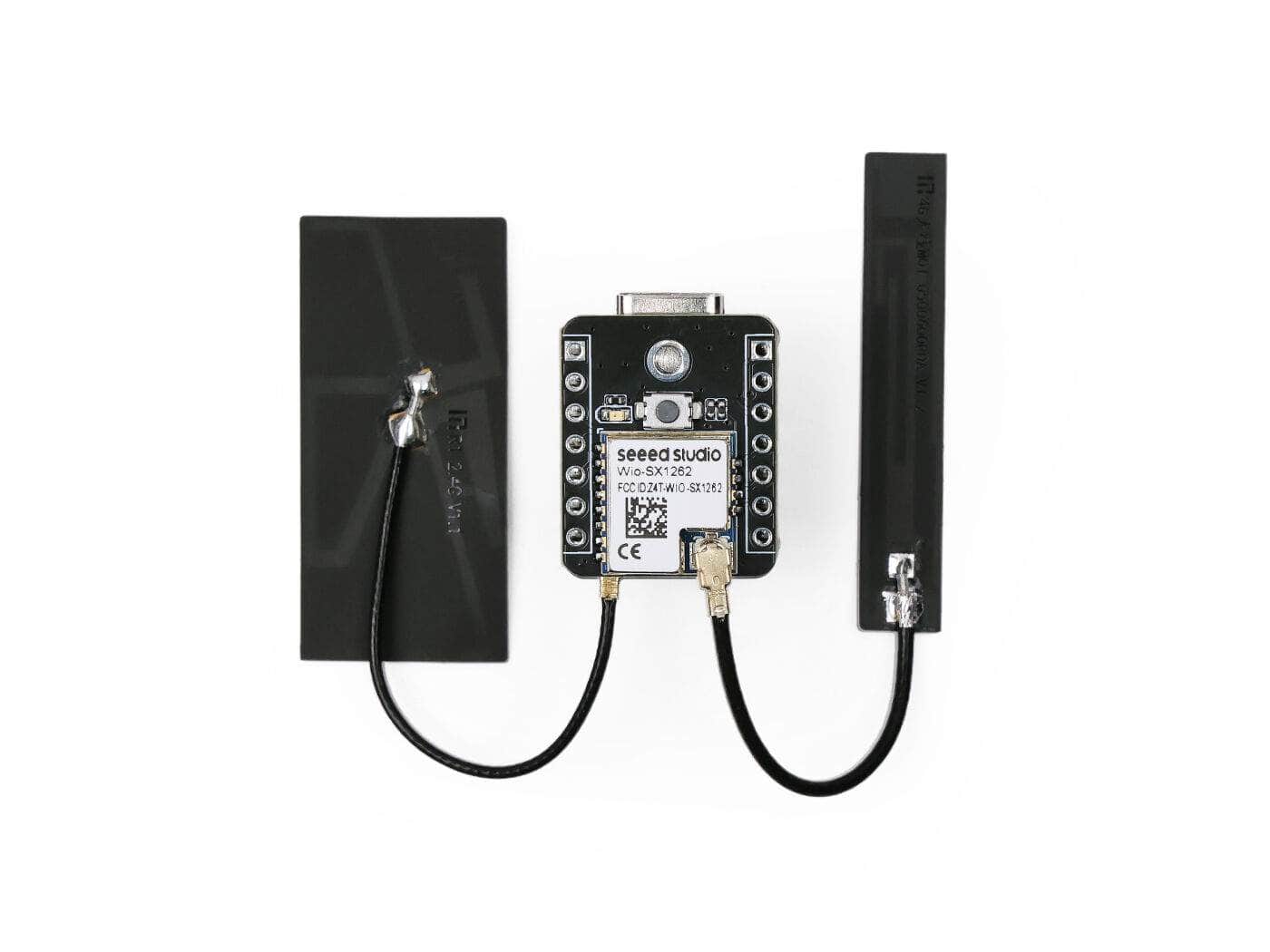

XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa

This thumb-sized LoRa dev kit, featuring the XIAO ESP32S3 and Wio-SX1262 LoRa module, is an ideal starter kit for Meshtastic and LoRa/LoRaWAN projects. Supporting WiFi, BLE, and LoRa, it includes a built-in power management chip and can be extended via IIC, UART, and other GPIO interfaces, with compatibility for Arduino development.

  • Meshtactic works out of the box: Pre-flashed with Meshtastic firmware, it is ready to work once powered on.
  • Outstanding RF performance: Supports LoRa(862-930MHz) 2.4GHz Wi-Fi and BLE 5.0 dual wireless communication, support 2~5km(LoRa) and 100m+(Wi-Fi/BLE) remote communication when connected with U.FL antenna.
  • Thumb-sized Compact Design: 21 x 18mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices.
  • Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported.
  • Elaborate Power Design: Includes a Type-C USB interface and lithium battery charge management.
  • Same Hardware for Multiple Applications: Can be developed as a Meshtastic node or router, a single-channel LoRaWAN gateway, or a LoRa & LoRaWAN sensor.

Compatible with XIAO Expansion Board for adding screens and sensors, and add Grove sensors via the Grove expansion Board.

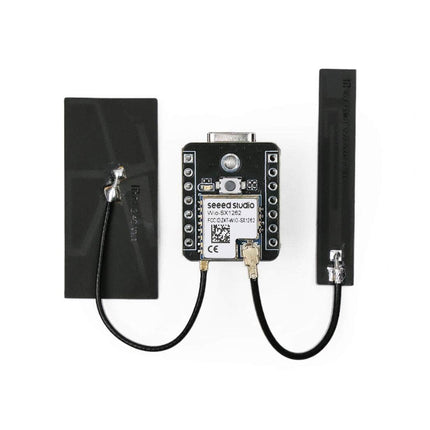

Support connecting an external high-performance LoRa antenna using an IPEX to SMA connector:

Specification

ESP32S3

ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz

LoRa

Based on Semtech SX1262, supports 862-930MHz,

BLE

Bluetooth 5.0, Bluetooth mesh

Wi-Fi

Complete 2.4GHz Wi-Fi subsystem

Interface

ESP32S3:

1x UART, 1x IIC, 1x IIS, 1x SPI(connect to SX1262),11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x Reset button, 1x Boot button

Wio-SX1262:

1xUser button, 1xSPI(connect to ESP32S3)

Power

Input voltage (Type-C): 5V

Input voltage (BAT): 4.2V

Charging battery current: 100mA

Working Temperature

-40°C ~ 65°C

Dimensions

21 x 17.8mm

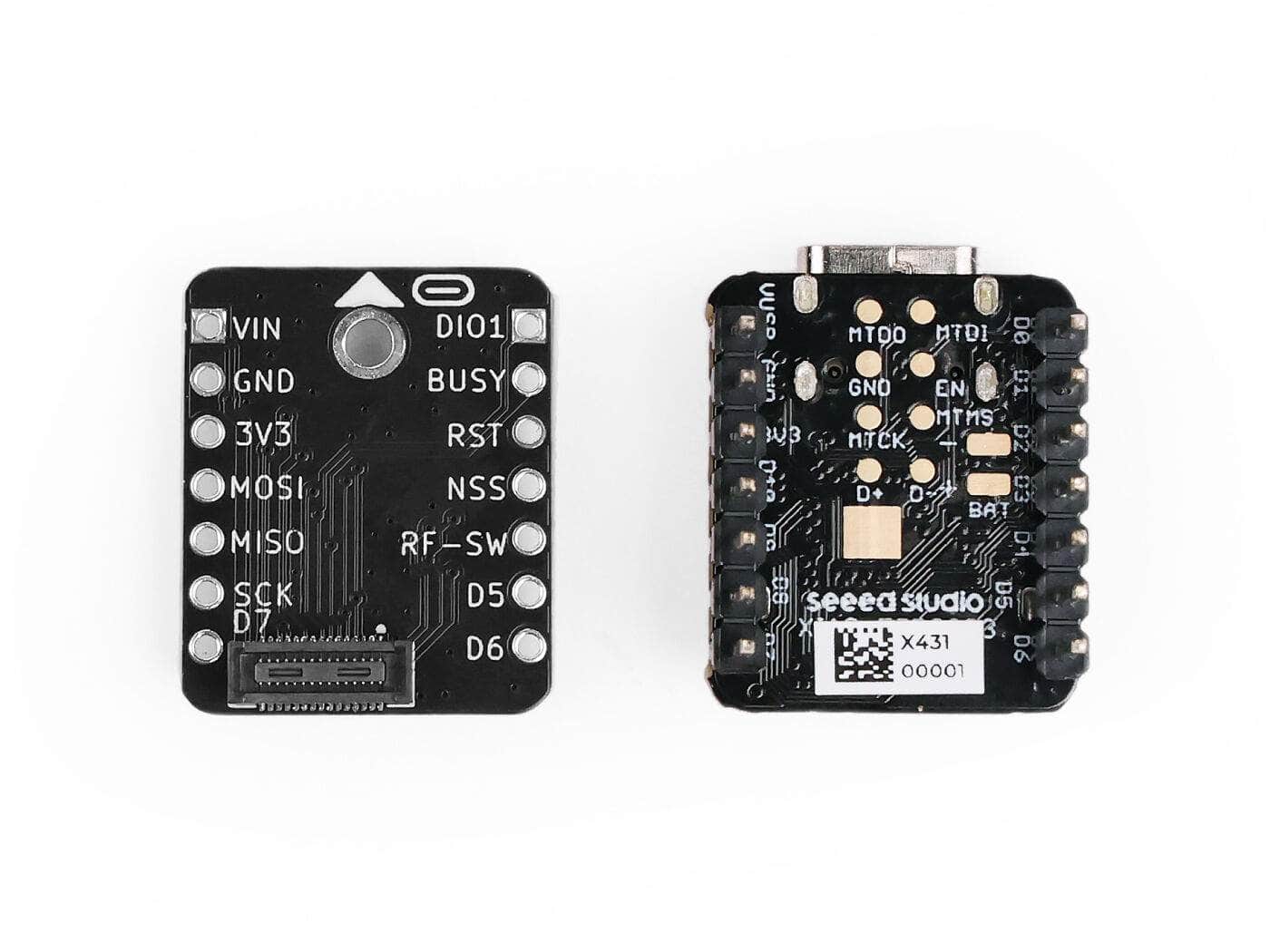

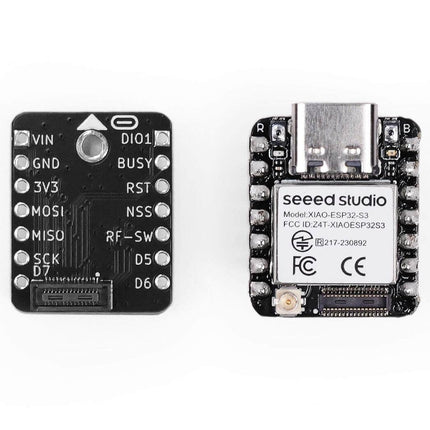

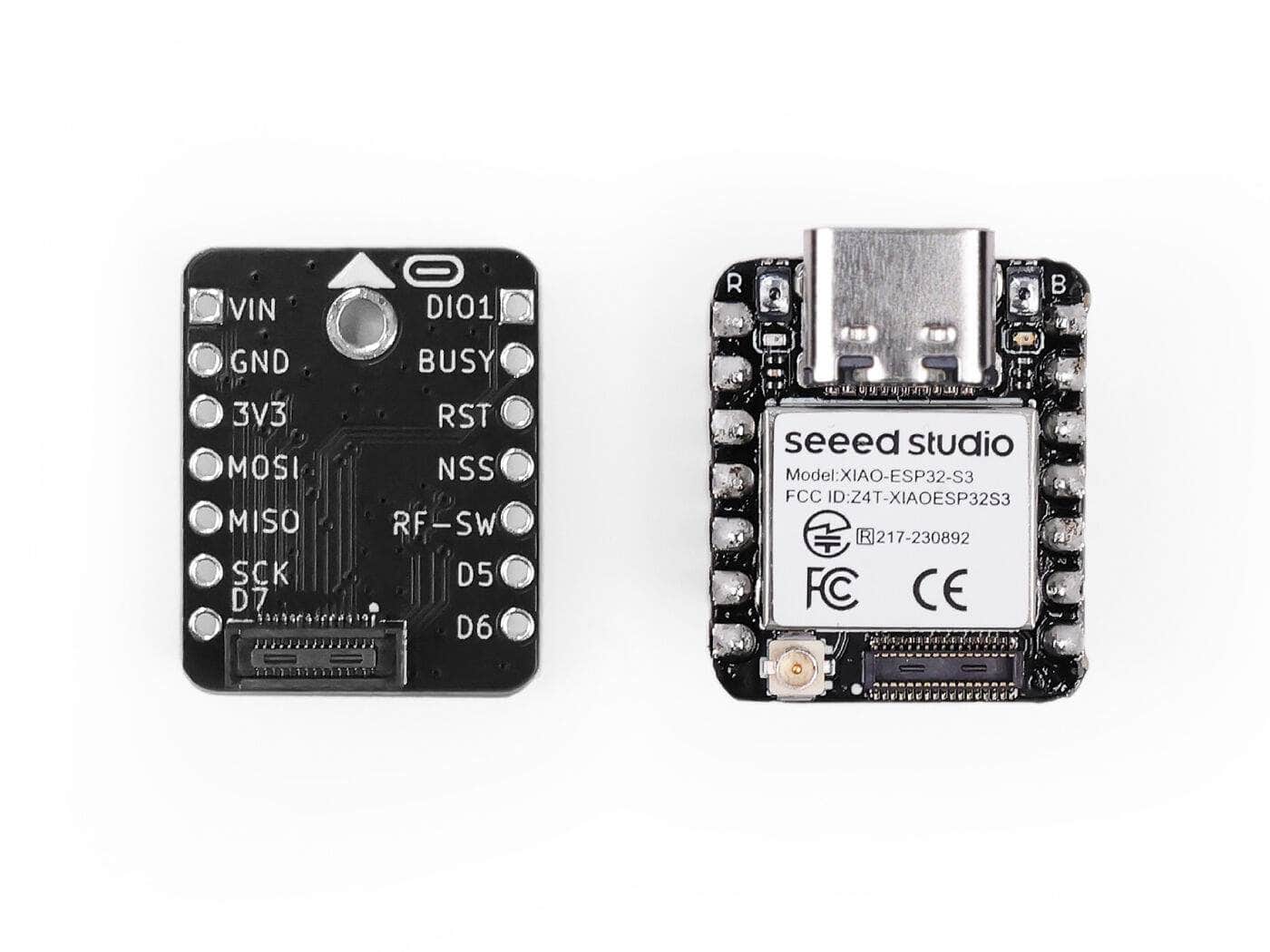

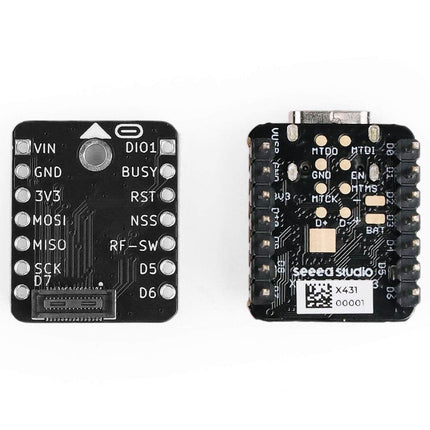

Hardware Overview

ESP32S3:

Wio-SX1262 extension board:


Application

  • Meshtastic Node & Router: An ultra-small node that can serve as a portable device or as a fixed router to expand the Meshtastic network.
  • LoRa/LoRaWAN Sensor: A mini LoRaWAN sensor, ideal for beginners exploring LoRa/LoRaWAN. It can be used with the XIAO extension board and Grove sensors for rapid prototyping.
  • LoRaWAN Single Channel Gateway: The most cost-effective single-channel LoRaWAN gateway for connecting multiple LoRaWAN sensors and transmitting data to LoRaWAN Network Servers such as The Things Network and Chirpstack.

Read more

XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa

Product form
Free pickup in our shop(s)

SKU: 102010611

$49.00 $39.00 Excl. GST

$49.00 $39.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa

    This thumb-sized LoRa dev kit, featuring the XIAO ESP32S3 and Wio-SX1262 LoRa module, is an ideal starter kit for Meshtastic and LoRa/LoRaWAN projects. Supporting WiFi, BLE, and LoRa, it includes a built-in power management chip and can be extended via IIC, UART, and other GPIO interfaces, with compatibility for Arduino development.

    • Meshtactic works out of the box: Pre-flashed with Meshtastic firmware, it is ready to work once powered on.
    • Outstanding RF performance: Supports LoRa(862-930MHz) 2.4GHz Wi-Fi and BLE 5.0 dual wireless communication, support 2~5km(LoRa) and 100m+(Wi-Fi/BLE) remote communication when connected with U.FL antenna.
    • Thumb-sized Compact Design: 21 x 18mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices.
    • Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported.
    • Elaborate Power Design: Includes a Type-C USB interface and lithium battery charge management.
    • Same Hardware for Multiple Applications: Can be developed as a Meshtastic node or router, a single-channel LoRaWAN gateway, or a LoRa & LoRaWAN sensor.

    Compatible with XIAO Expansion Board for adding screens and sensors, and add Grove sensors via the Grove expansion Board.

    Support connecting an external high-performance LoRa antenna using an IPEX to SMA connector:

    Specification

    ESP32S3

    ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz

    LoRa

    Based on Semtech SX1262, supports 862-930MHz,

    BLE

    Bluetooth 5.0, Bluetooth mesh

    Wi-Fi

    Complete 2.4GHz Wi-Fi subsystem

    Interface

    ESP32S3:

    1x UART, 1x IIC, 1x IIS, 1x SPI(connect to SX1262),11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x Reset button, 1x Boot button

    Wio-SX1262:

    1xUser button, 1xSPI(connect to ESP32S3)

    Power

    Input voltage (Type-C): 5V

    Input voltage (BAT): 4.2V

    Charging battery current: 100mA

    Working Temperature

    -40°C ~ 65°C

    Dimensions

    21 x 17.8mm

    Hardware Overview

    ESP32S3:

    Wio-SX1262 extension board:


    Application

    • Meshtastic Node & Router: An ultra-small node that can serve as a portable device or as a fixed router to expand the Meshtastic network.
    • LoRa/LoRaWAN Sensor: A mini LoRaWAN sensor, ideal for beginners exploring LoRa/LoRaWAN. It can be used with the XIAO extension board and Grove sensors for rapid prototyping.
    • LoRaWAN Single Channel Gateway: The most cost-effective single-channel LoRaWAN gateway for connecting multiple LoRaWAN sensors and transmitting data to LoRaWAN Network Servers such as The Things Network and Chirpstack.

    Read more
