B0274 Arducam High Quality IR-CUT Camera for NVIDIA Jetson 12.3MP 6mm CS Lens

Description

B0274 Arducam High Quality IR-CUT Camera for NVIDIA Jetson 12.3MP 6mm CS Lens

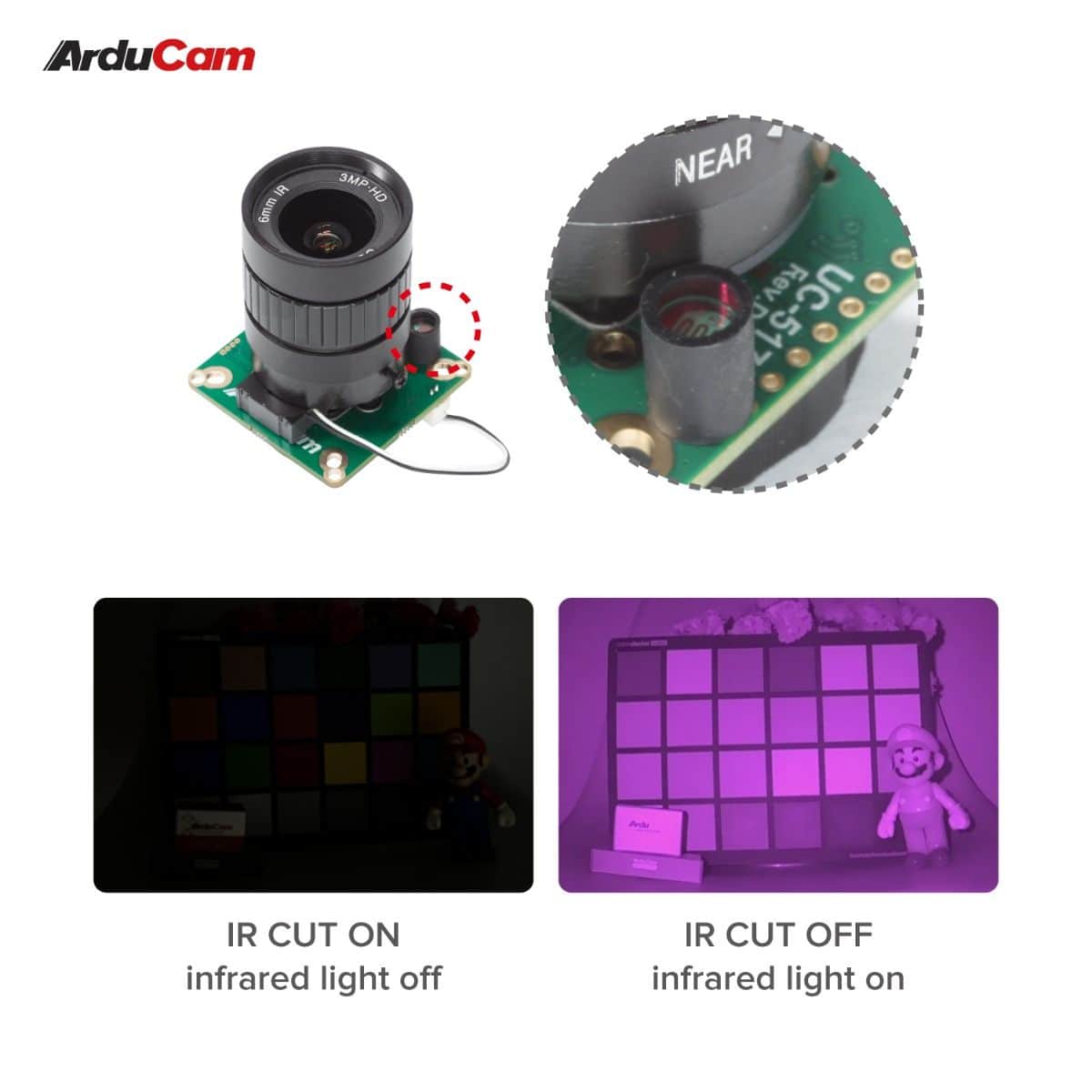

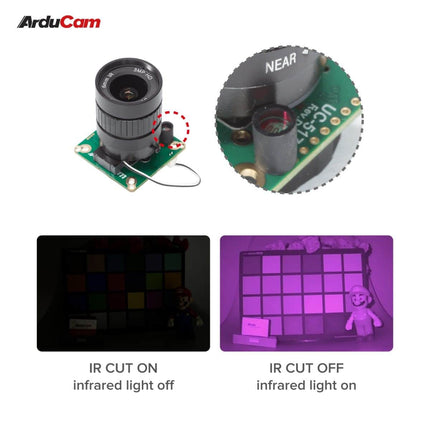

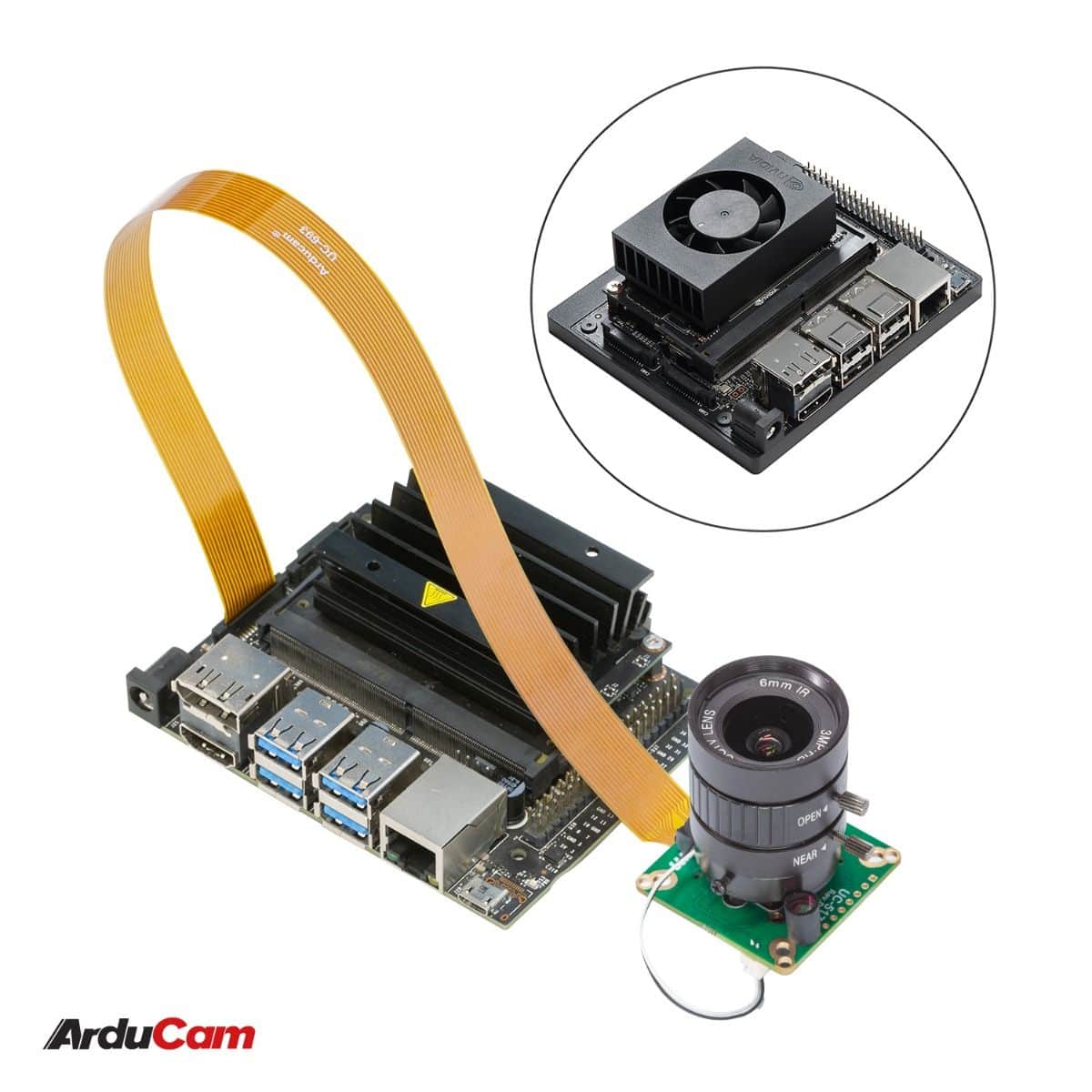

This Arducam module uses the same 12MP image sensor as the Raspberry Pi High-Quality Camera, but offers a mechanical IR cut-off filter switched automatically based on light conditions. The official RPi HQ camera is not sensitive to infrared, and there won’t be a NoIR version. On the contrary, this Arducam camera module not only offers sensitivity to infrared but also keeps the natural feeling during daylight. It’s fully compatible with Nvidia Jetson Board with a camera connector.

Currently, NVIDIA has officially released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera to the NVIDIA Jetson Orin kernel.

★KERNEL CAMERA DRIVER USED

This camera relies on kernel drivers to work – one kernel version, one camera driver. Note on supported Nvidia Jetson Boards and Jetpack versions: Please refer to Supported JetPack Version for Different NVIDIA Jetson Platforms to ensure compatibility.

★ SUPPORTED PLATFORM DISCLAIMER

This camera is specifically designed for the official NVIDIA® Jetson™ Developer Kit by default and does not support third-party carrier boards.

★ADDITIONAL ACCESSORY INSTRUCTIONS

The 22-22 pin FPC Cable is included in the package. But please note that: If you are using an AGX Orin, an additional camera adapter (B0473)  is required.

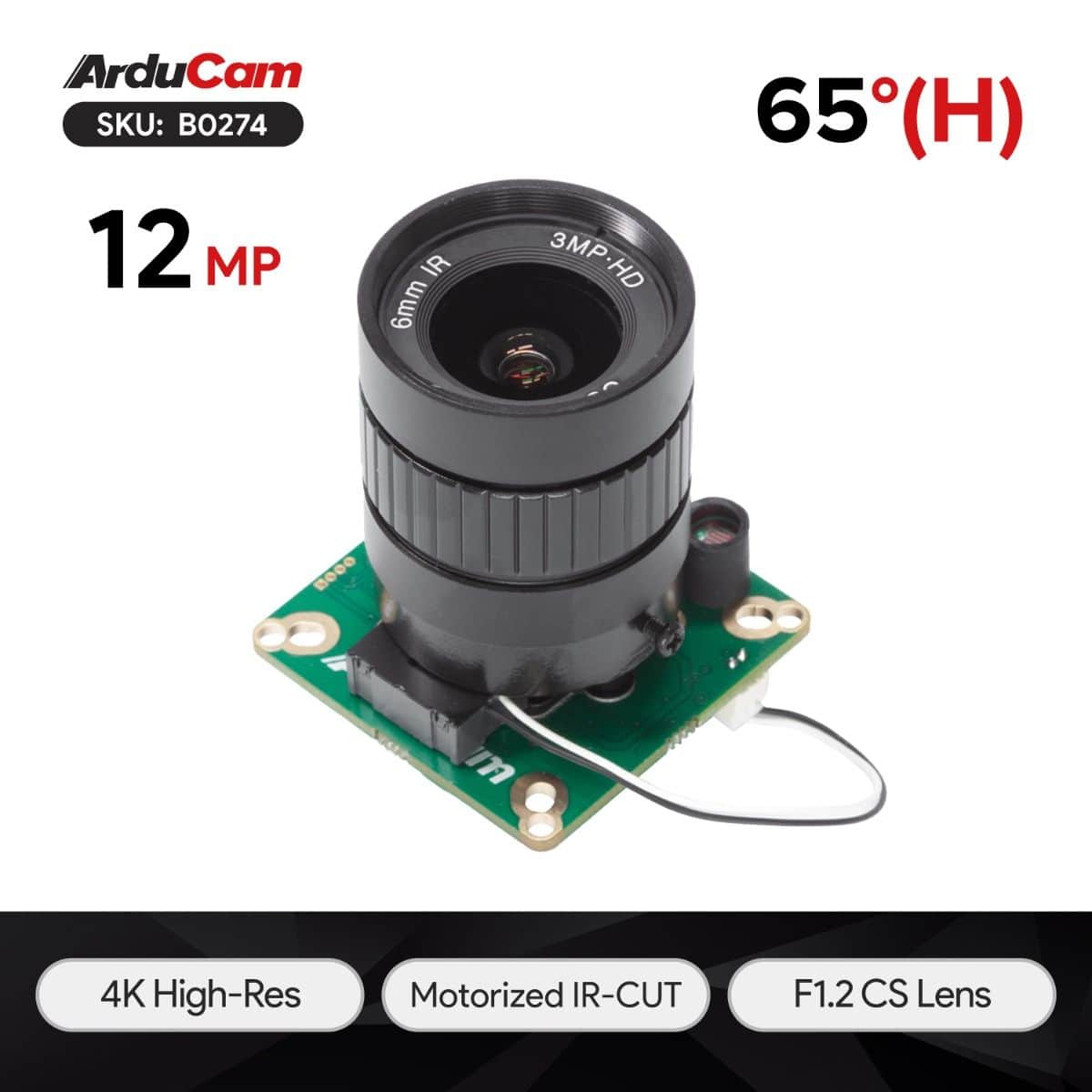

Specifications

Camera

Still Resolution 12.3 Megapixels
Video Modes

NVIDIA Jetson Orin NX/Orin Nano/AGX Orin:

L4t 32.x: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps

L4t 35.x: 4032x3040@20fps, 3840x2160@30fps, 1920x1080@60fps
Sensor Resolution 4056 x 3040 pixels
Sensor image area 6.287mm x 4.712 mm (7.9mm diagonal)
Pixel Size 1.55 µm x 1.55 µm
Optical Size 1/2.3"
IR Sensitivity Switch the IR cut filter on/off automatically

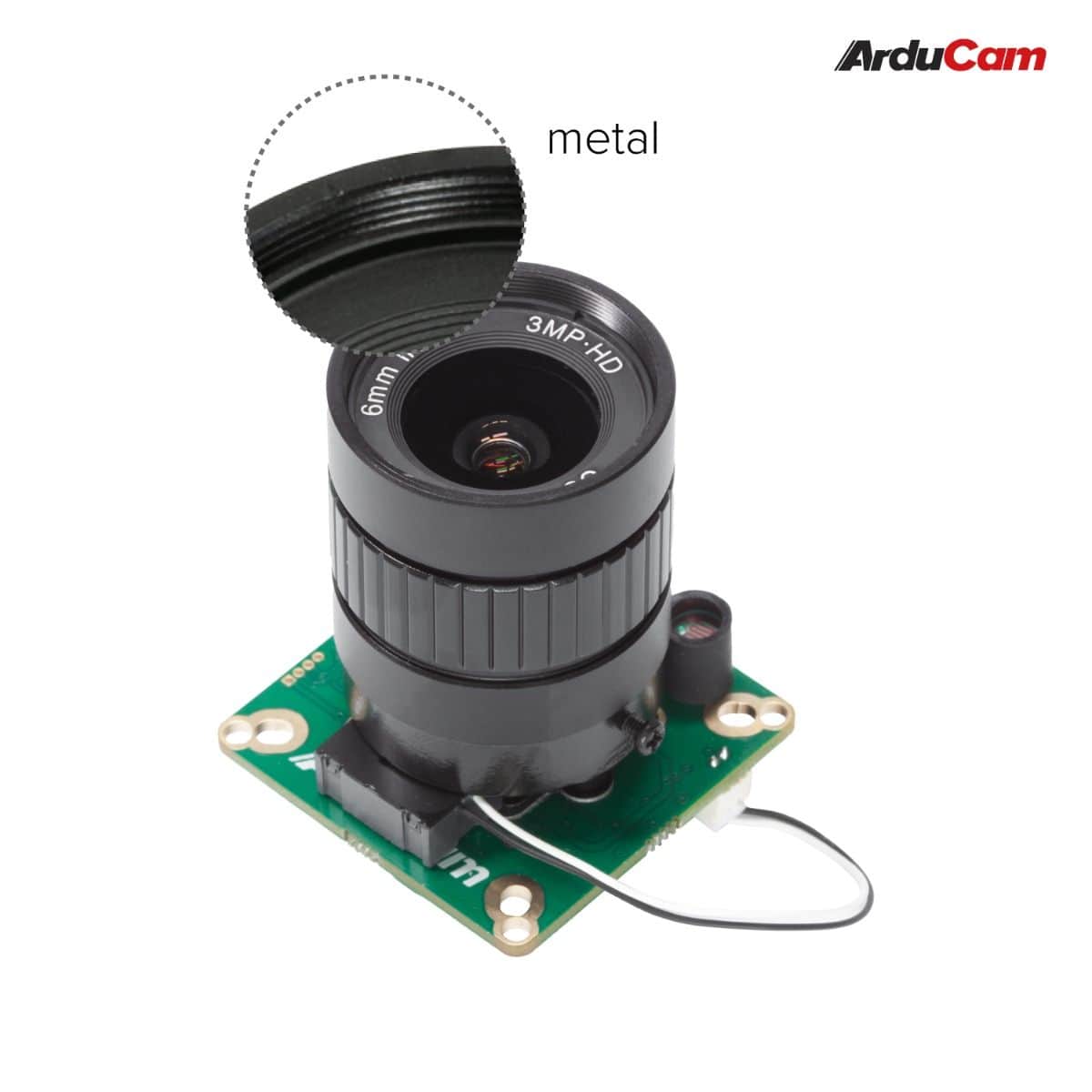

Lens

Focus Type Manual Focus
Focal Length 6mm
F.NO F1.2
Field of View(FOV) 65°(H)
Lens Mount CS-Mount
MOD 0.2m
Back Focal Length 7.53mm
Lens Dimension Φ30×31mm

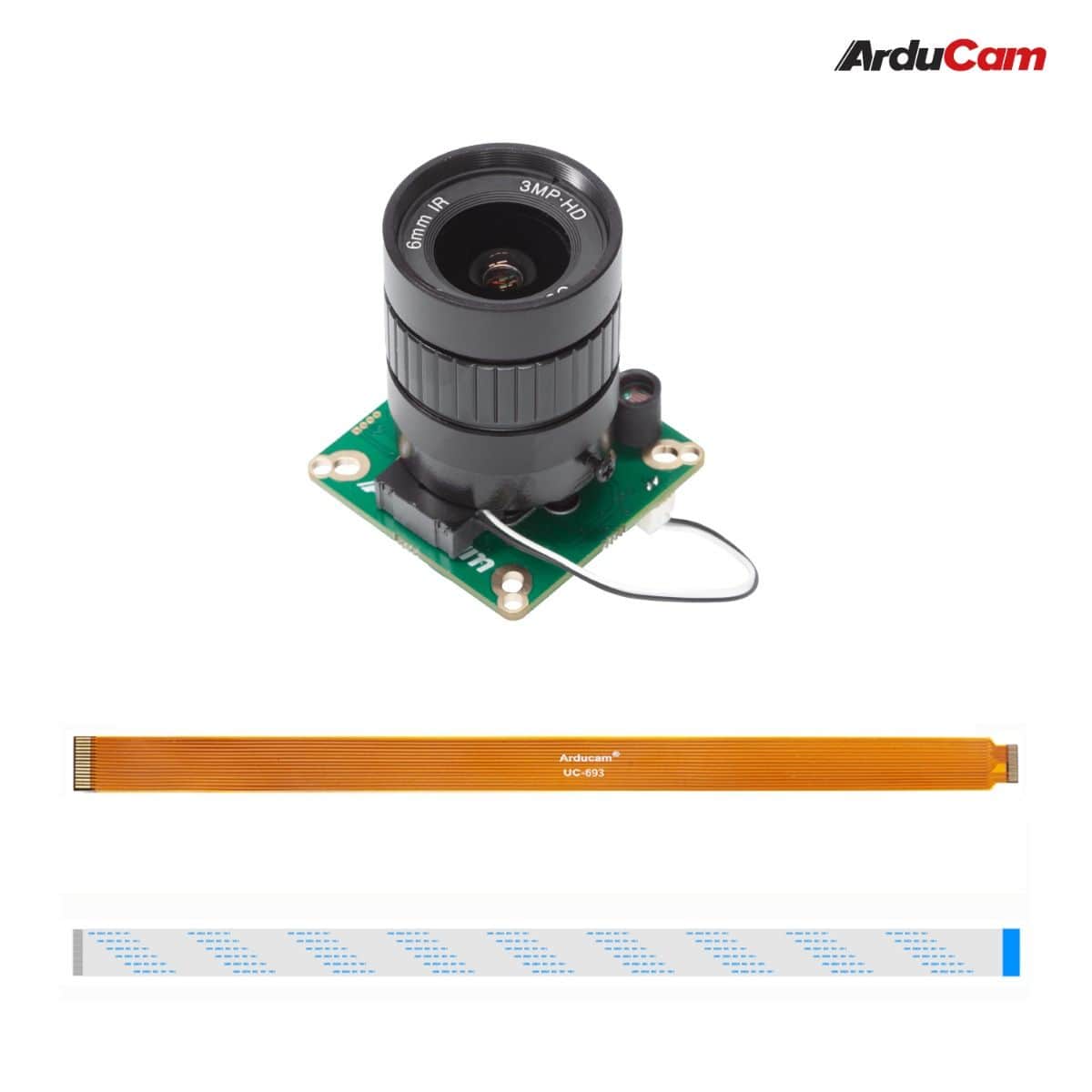

Package Includes:

  • 1 pcs 12.3MP IR-CUT camera module
  • 1 pcs 6mm focal length CS-mount camera lens
  • 1 pcs 300mm/11.8inch 15pin to 22pin camera cable for pi A&B series
  • 1 pcs 300mm/11.8inch 22pin to 22pin camera cable

Documentation

IR-CUT Camera

3D drawing_Case

How to use the camera on NVIDIA Jetson Orin NX/AGX Orin



Read more

B0274 Arducam High Quality IR-CUT Camera for NVIDIA Jetson 12.3MP 6mm CS Lens

Product form
Free pickup in our shop(s)

SKU: B0274

$149.00 $129.00 Excl. GST

$149.00 $129.00
Product available in stock, Ships same business day.

    • Local AU Stock, Fast Same-Day Dispatch or Pickup
    • Price Match & Quantity Discounts Available (Request Quote)
    • Purchase Orders & Net 30-Day Terms for Approved Accounts
    • Free Local Technical Support Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government

    Description

    B0274 Arducam High Quality IR-CUT Camera for NVIDIA Jetson 12.3MP 6mm CS Lens

    This Arducam module uses the same 12MP image sensor as the Raspberry Pi High-Quality Camera, but offers a mechanical IR cut-off filter switched automatically based on light conditions. The official RPi HQ camera is not sensitive to infrared, and there won’t be a NoIR version. On the contrary, this Arducam camera module not only offers sensitivity to infrared but also keeps the natural feeling during daylight. It’s fully compatible with Nvidia Jetson Board with a camera connector.

    Currently, NVIDIA has officially released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera to the NVIDIA Jetson Orin kernel.

    ★KERNEL CAMERA DRIVER USED

    This camera relies on kernel drivers to work – one kernel version, one camera driver. Note on supported Nvidia Jetson Boards and Jetpack versions: Please refer to Supported JetPack Version for Different NVIDIA Jetson Platforms to ensure compatibility.

    ★ SUPPORTED PLATFORM DISCLAIMER

    This camera is specifically designed for the official NVIDIA® Jetson™ Developer Kit by default and does not support third-party carrier boards.

    ★ADDITIONAL ACCESSORY INSTRUCTIONS

    The 22-22 pin FPC Cable is included in the package. But please note that: If you are using an AGX Orin, an additional camera adapter (B0473)  is required.

    Specifications

    Camera

    Still Resolution 12.3 Megapixels
    Video Modes

    NVIDIA Jetson Orin NX/Orin Nano/AGX Orin:

    L4t 32.x: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps

    L4t 35.x: 4032x3040@20fps, 3840x2160@30fps, 1920x1080@60fps
    Sensor Resolution 4056 x 3040 pixels
    Sensor image area 6.287mm x 4.712 mm (7.9mm diagonal)
    Pixel Size 1.55 µm x 1.55 µm
    Optical Size 1/2.3"
    IR Sensitivity Switch the IR cut filter on/off automatically



    Lens

    Focus Type Manual Focus
    Focal Length 6mm
    F.NO F1.2
    Field of View(FOV) 65°(H)
    Lens Mount CS-Mount
    MOD 0.2m
    Back Focal Length 7.53mm
    Lens Dimension Φ30×31mm



    Package Includes:

    • 1 pcs 12.3MP IR-CUT camera module
    • 1 pcs 6mm focal length CS-mount camera lens
    • 1 pcs 300mm/11.8inch 15pin to 22pin camera cable for pi A&B series
    • 1 pcs 300mm/11.8inch 22pin to 22pin camera cable

    Documentation

    IR-CUT Camera

    3D drawing_Case

    How to use the camera on NVIDIA Jetson Orin NX/AGX Orin



    Read more
