RAK WisMesh Meshtastic RAK3312 Starter Kit with ESP32-S3 core
The WisMesh RAK3312 Starter Kit is a complete LoRa mesh network kit for off-grid communication, giving you everything you need to build private LoRa mesh network systems. It’s designed as an easy entry point into creating reliable, self-sustaining communication networks without cellular or internet coverage.
Built for powerful, flexible LoRa mesh communication:
-
Powered by the Espressif ESP32-S3 WiFi BLE Dual Core Module for LoRaWAN® with LoRa SX1262 - a dual-core WiFi + BLE module designed for high performance and low power use when operating as an ESP32-S3 LoRa mesh node.
-
Integrated SX1262 LoRa radio - enables long-range, reliable wireless messaging across nodes.
-
Modular WisBlock design-easily expand with additional boards and sensors for custom setups.
-
Meshtastic ready to go-pre-flashed firmware lets you build and deploy your private mesh network right out of the box.
Interested in joining the Meshtastic network?
Meshtastic is an off-grid messaging system using inexpensive hardware to create your mesh. Radios forward messages to the next node to distribute them over the network. Communicate kilometers/miles between nodes. Internet-connected relay nodes enable the conversation to move online, too.
Start immediately with our Meshtastic Starter Kit in a few steps.
- We offer the RAK3312 (Espressif ESP32-S3) Core modules.

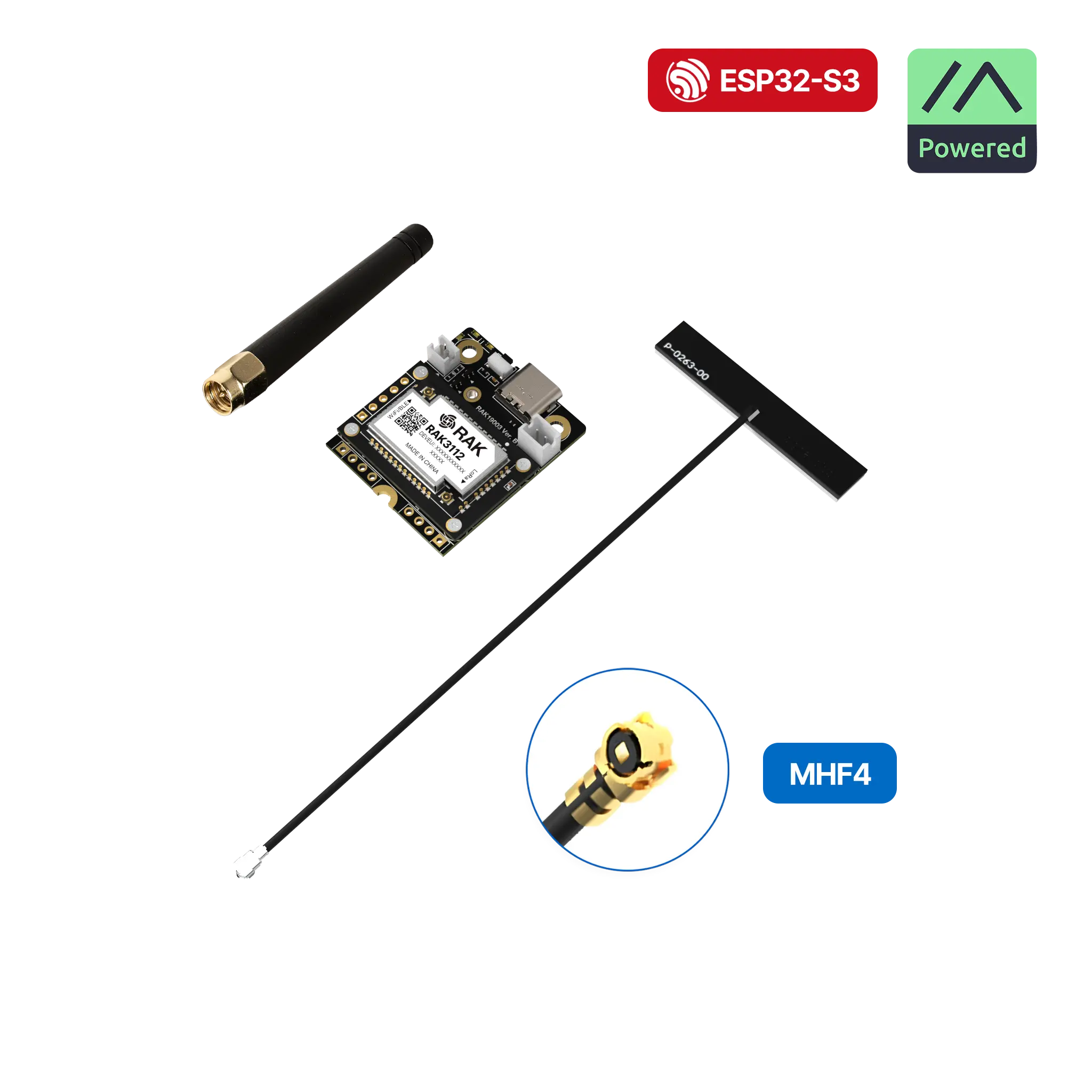

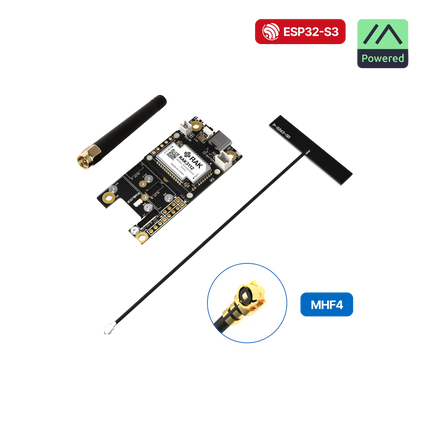

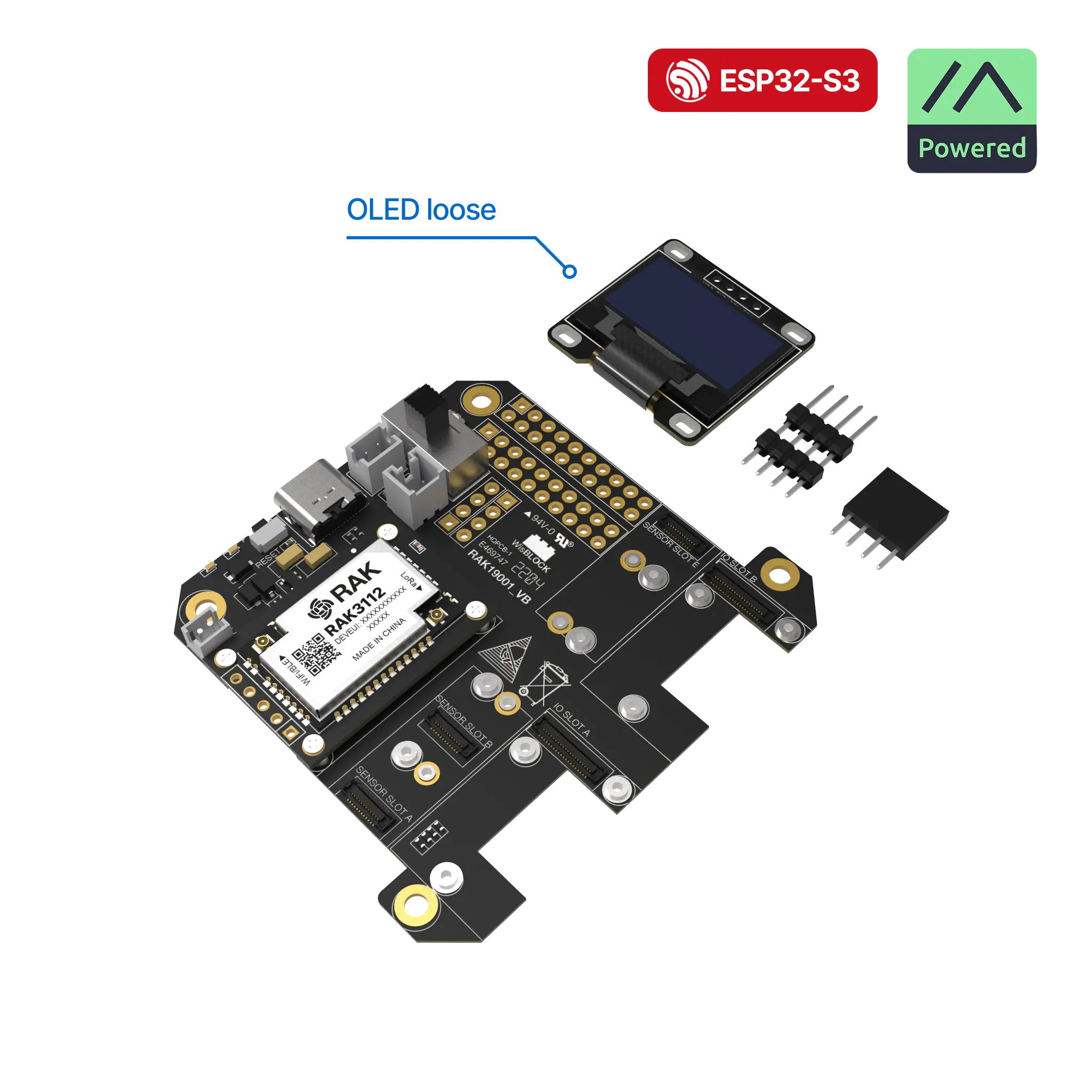

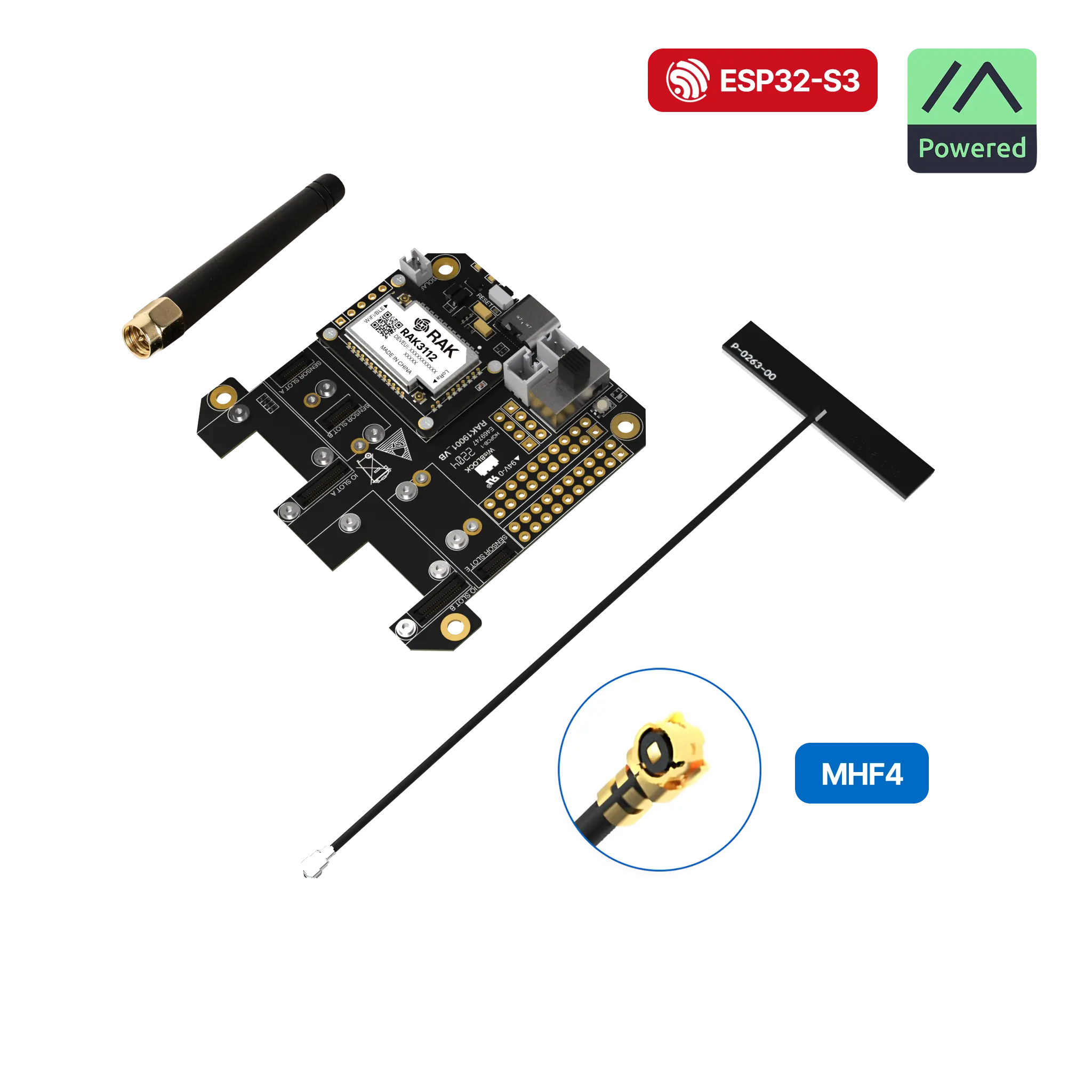

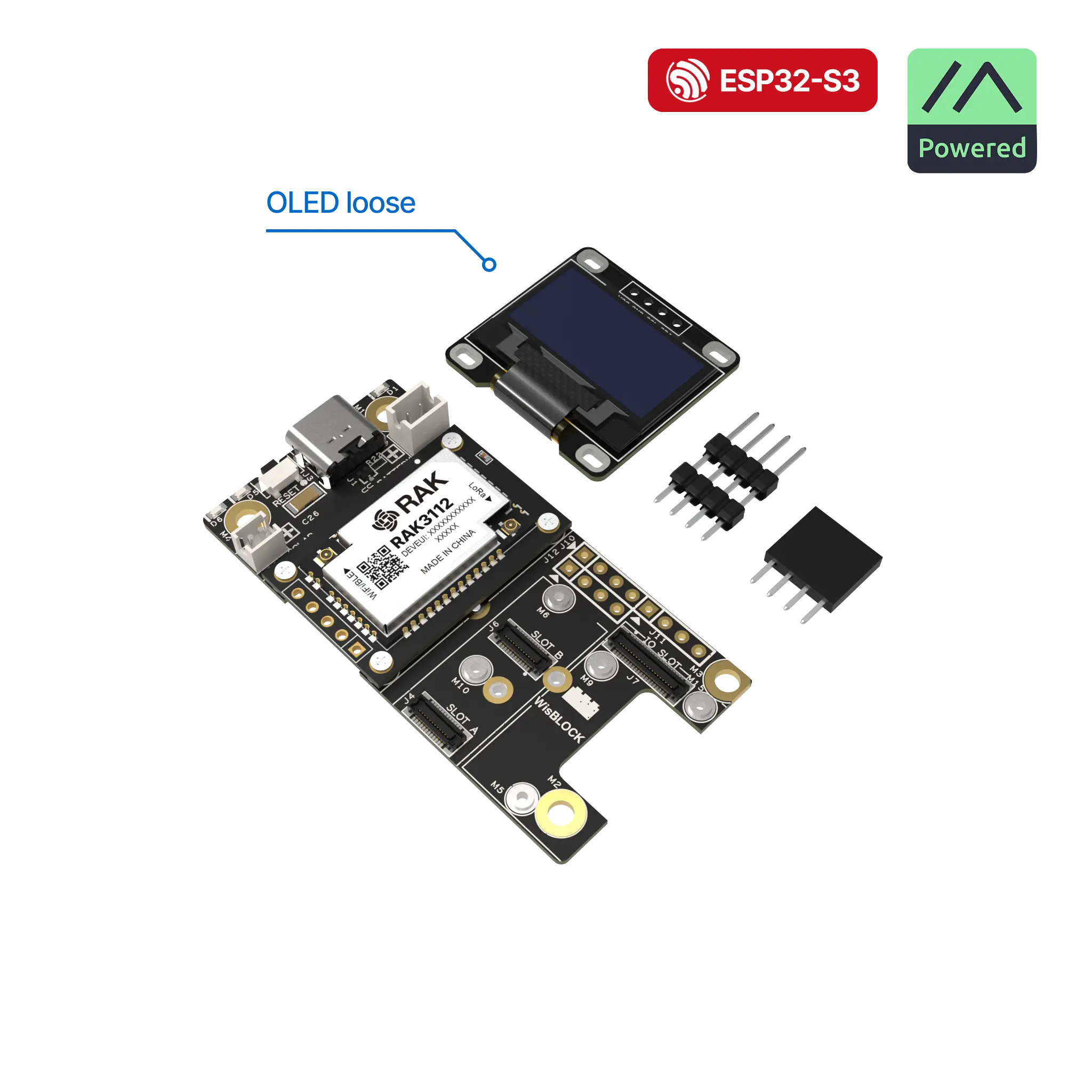

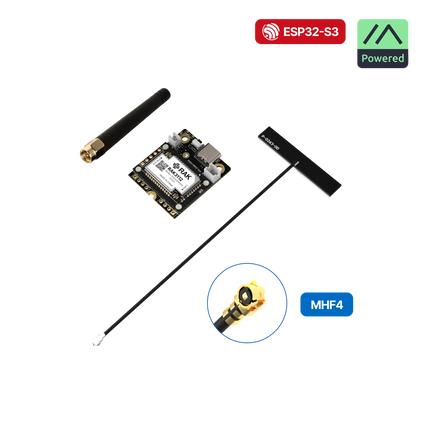

- Select the Base Board you want to start with. The smallest WisBlock Mini Base Board RAK19003 is perfect for the Meshtastic Client or Router role. The WisBlock Base Board 2nd Gen RAK19007 is a good start if you want to extend the Meshtastic device with additional modules. And if you want to go big, the WisBlock Dual IO Base Board RAK19001 is ready for many sensors and IO slot modules.
- Select additional modules to go with your Meshtastic Starter Kit. We prepared variants for the different roles within the Meshtastic network.
Of course, you can add other WisBlock modules to your selection as well. In the Meshtastic Documentation, you can find a list of WisBlock modules that are supported.
Choose one of our Unify Enclosures for perfect protection of your Meshtastic device from the Unify Enclosure Collection.
Why Choose a Meshtastic Starter Kit for Off-Grid Communication
Powered by the ESP32-S3 dual-core with WiFi, BLE, and LoRa SX1262, this kit offers superior range, plug-and-play setup, and modular WisBlock expansion. No soldering or firmware flashing required. Designed for off-grid communication and professional-grade reliability.
Key Benefits at a Glance:
- Plug-and-play Meshtastic starter kit with pre-flashed firmware
- Modular and expandable WisBlock ecosystem
- Reliable off-grid communication without cellular or internet
- Supports AU915 LoRa frequency bands
- Ideal for mesh networking, tracking, and emergency deployments
Key Features of the RAK3312 Meshtastic Starter Kit
- WisBlock Core module variants
- WisBlock Base Board variants
- Meshtastic Basic and Router-Repeater Role
- Meshtastic Tracker Role
Roles and Use Case Examples
The WisMesh RAK3312 Meshtastic Starter Kit can be configured as a Client, Router/Repeater, or Tracker using the same ESP32-S3 + SX1262 WisBlock core. Choose a kit variant based on the role you want, then expand later with WisBlock modules. No soldering required.

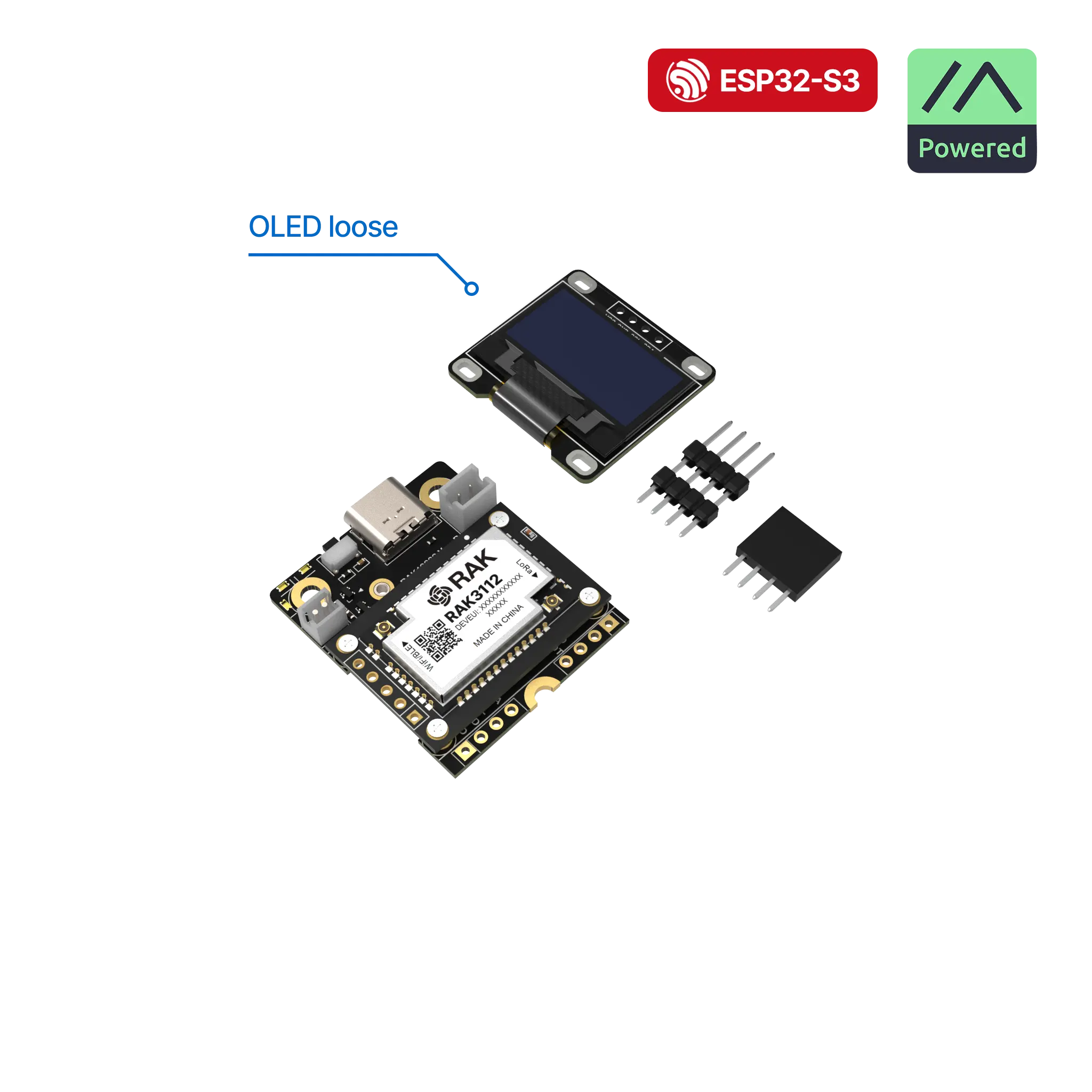

Client (Messaging Node) – Personal off-grid messaging via WiFi/BLE; optional OLED for status.
Router / Repeater (Coverage Extender) – Relays packets to expand range and improve reliability.
Tracker (Location Node) – GNSS + motion sensing for GPS updates across the mesh.
Client–Tracker (Combined) – Messaging + location in one field-ready node.
Use Case #1: Trail Communication Network
During a mountain trek, a research group deploys RAK3312 Meshtastic nodes across different elevations. Each node relays status updates and coordinates to others, maintaining communication despite zero mobile coverage.
Use Case #2: Disaster Response Coordination
A local emergency team configures RAK3312-based Tracker nodes inside Unify Enclosures, effectively deploying a Meshtastic GPS tracker kit. These devices transmit GPS locations and alerts through a LoRa mesh, ensuring stable communication across affected zones when networks fail.

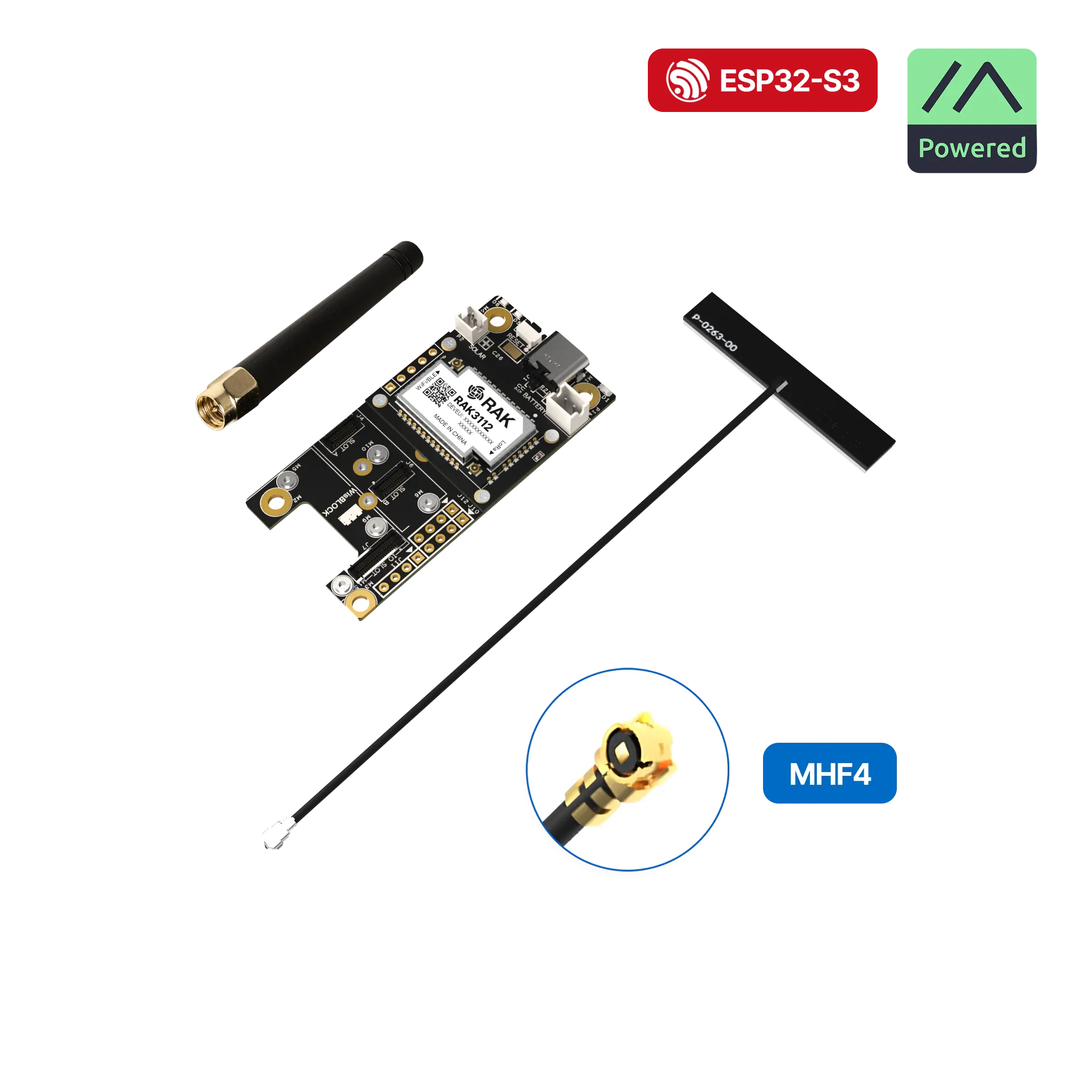

What's in the Box
- 1pc WisBlock Base
- 1pc RAK3312 WisBlock Core
- 1pc Rubber LoRa Antenna
- 1pc MHF4 to SMA cable for LoRa antenna
- 1pc BLE Antenna (MHF4 Connector)
- 1pc USB Cable
- 1pc PCB Antenna for LoRa(MHF4 Connector)
- 1 Screw set
- Select your sensor module before ordering.
