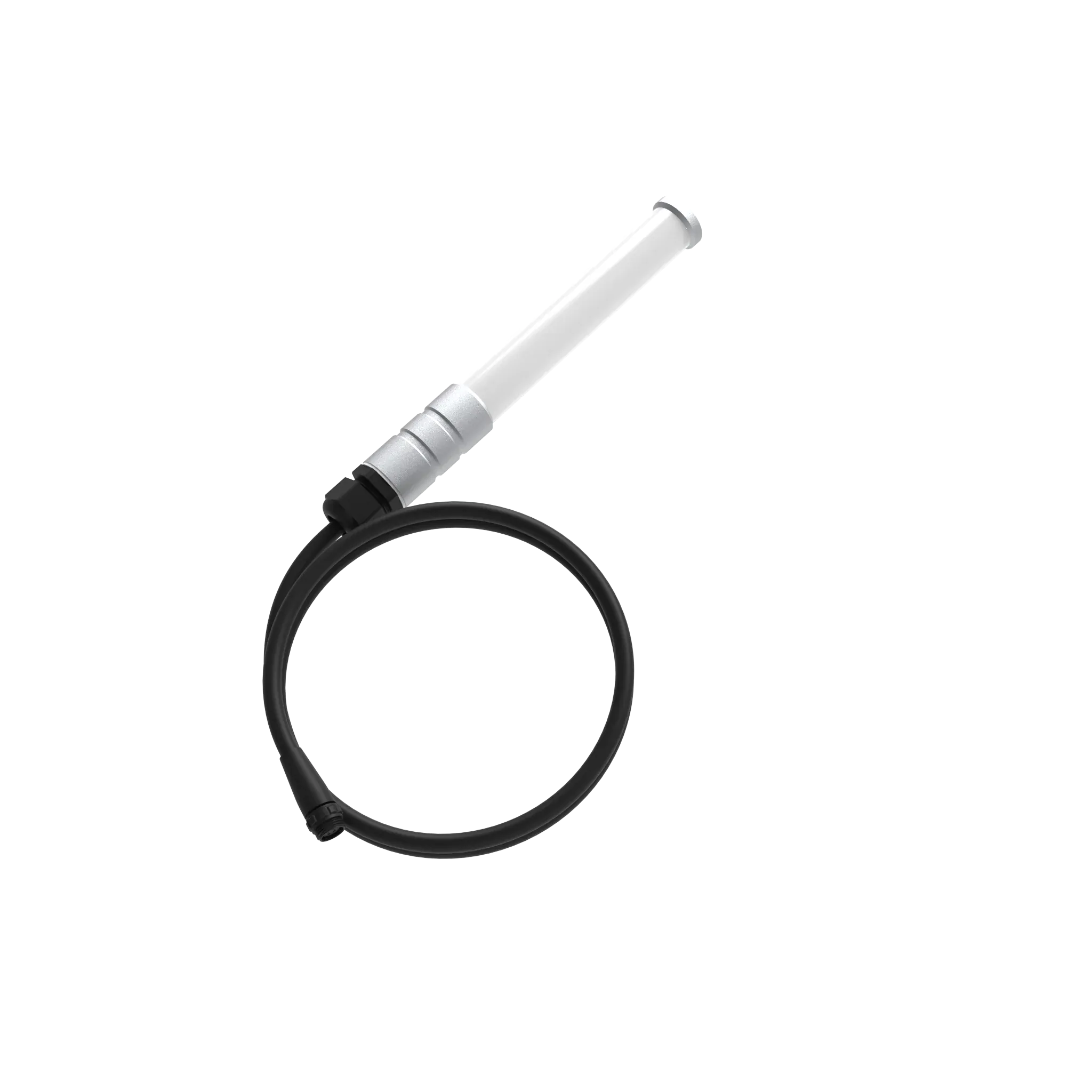

The RAK2470 WisNode Bridge Serial Prime is a rugged, outdoor RS485-to-LoRaWAN converter, designed for industrial applications. Leveraging the power of LoRaWAN technology, it enables wireless transmission of RS485 data from Modbus devices to LoRaWAN Network Servers, seamlessly modernizing legacy equipment.

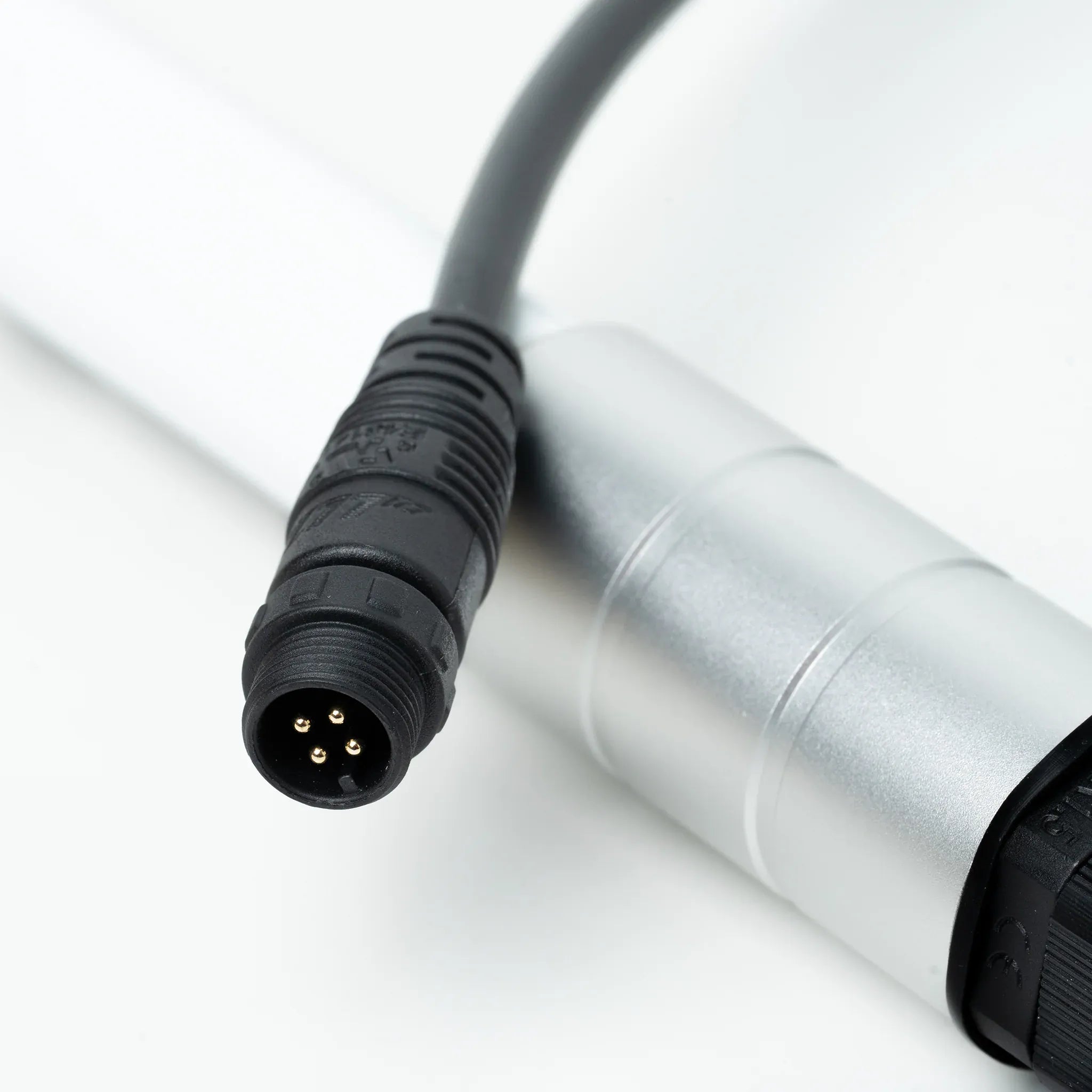

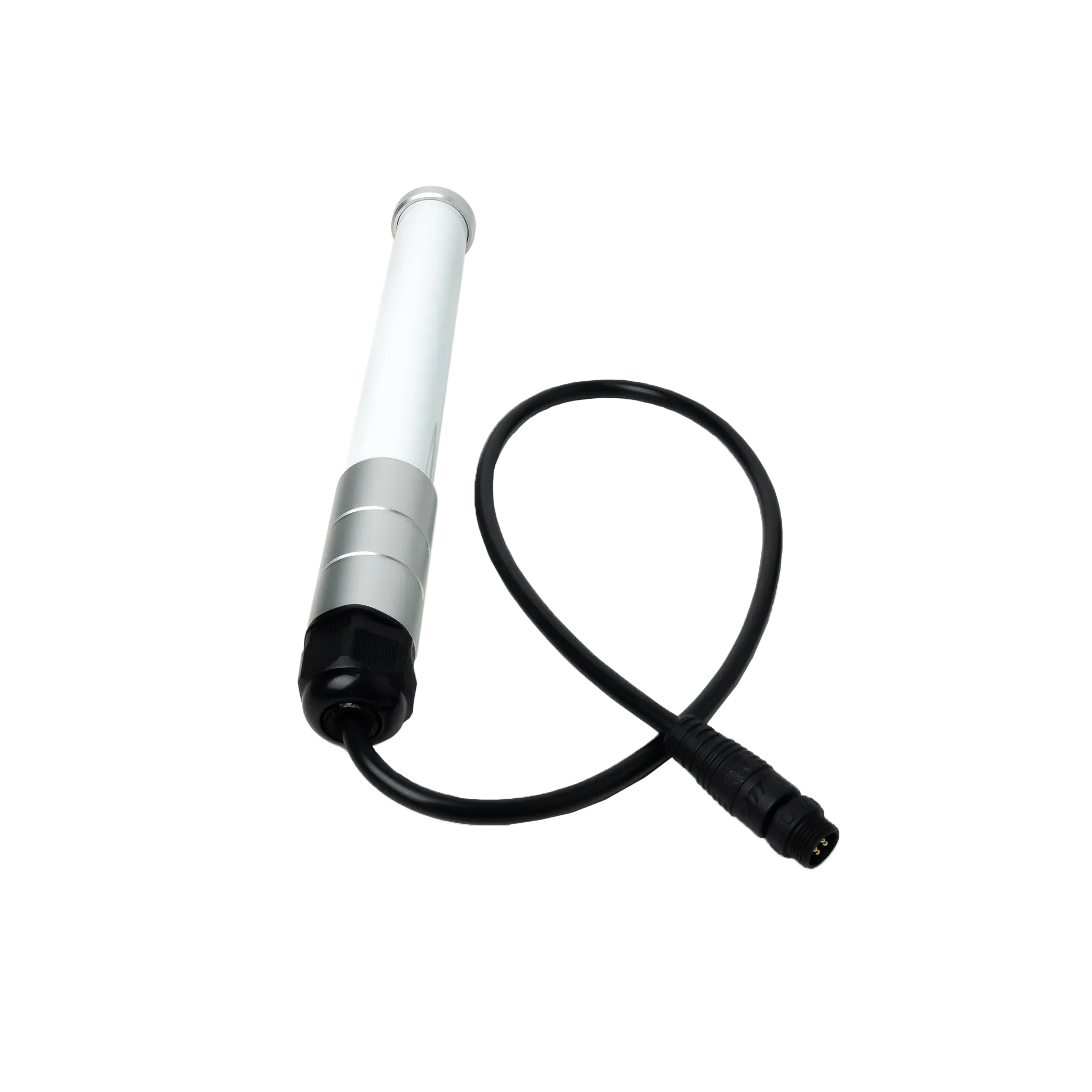

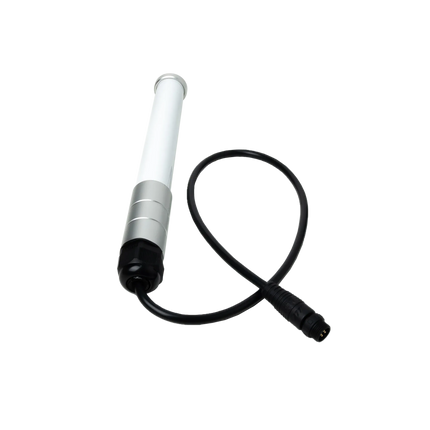

Equipped with an M12-4 circular connector, the RAK2470 integrates effortlessly with devices such as MPPT Solar Charge Controllers, Inverters, and Integrated Machines, making it a versatile solution for IoT deployments.

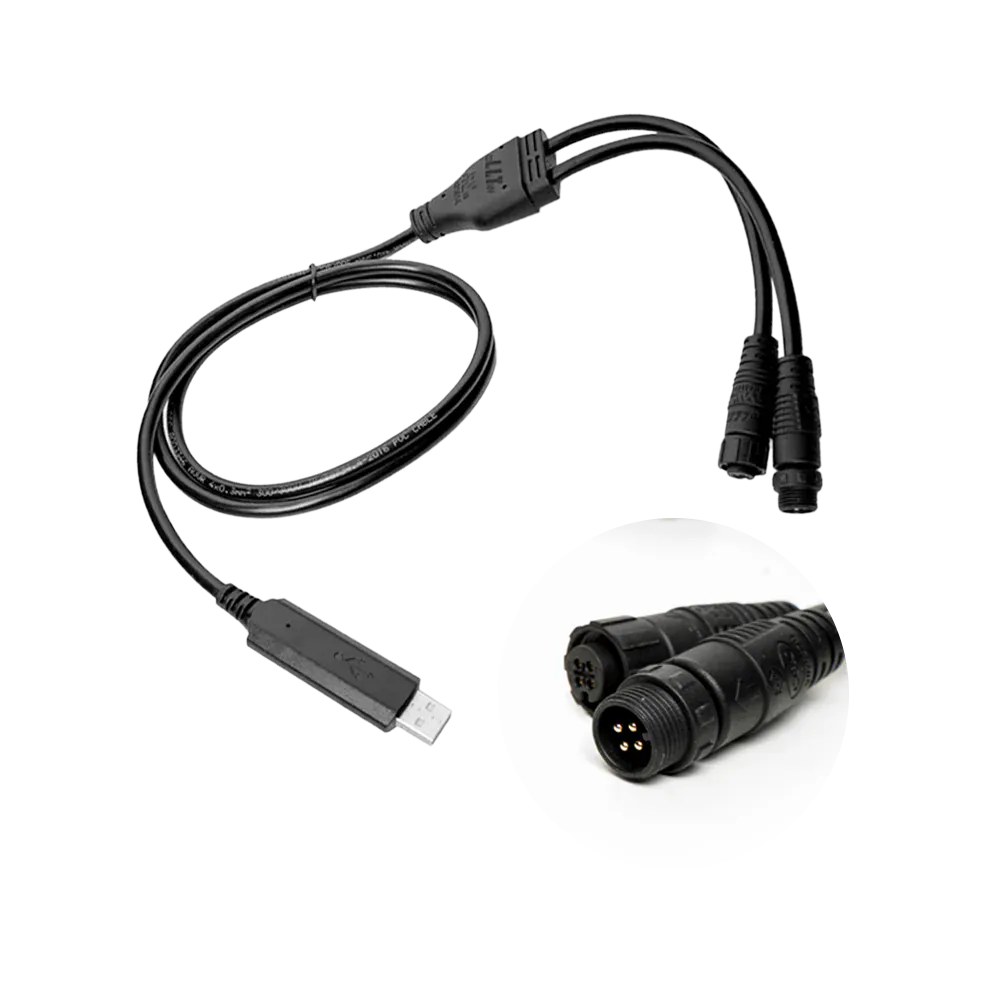

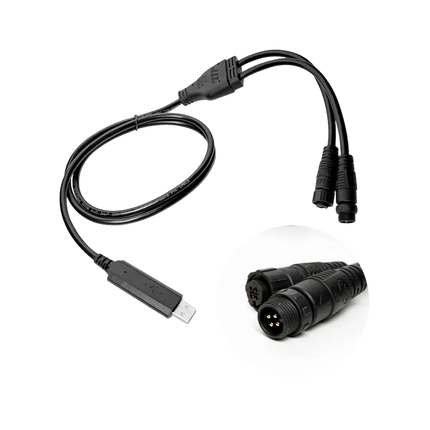

Note: To configure the RAK2470, at least one Configuration Cable is required (not included by default). This cable can be used to configure one or multiple devices. You can easily add it from the "Check to Include" section.
Key Features
-
Industrial-Grade Design: IP67-rated for harsh outdoor environments; operates in temperatures from -40°C to +85°C.
-
Precise Communication: TCXO (Temperature-Compensated Crystal Oscillator) ensures stable communication even in fluctuating temperatures.
-
Flexible Power Inputs: Supports 5-12V DC input via an M12-4 circular connector.
-
Power Options:
-
Direct Connection: When Modbus devices provide power directly to the RAK2470.
-
External Power via T-Type Cable: Enables external power supply and RS485 connectivity for seamless operation.
-
LoRaWAN 1.0.3 Protocol: Supports Class C devices, ensuring reliable and efficient data transmission.
-
Modbus Polling Support: Connects up to 200 Modbus devices per unit for scalable data collection.
- Regional parameter version: RP001-1.0.3
Applications
-

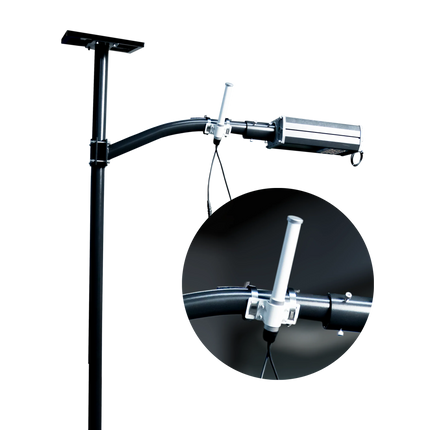

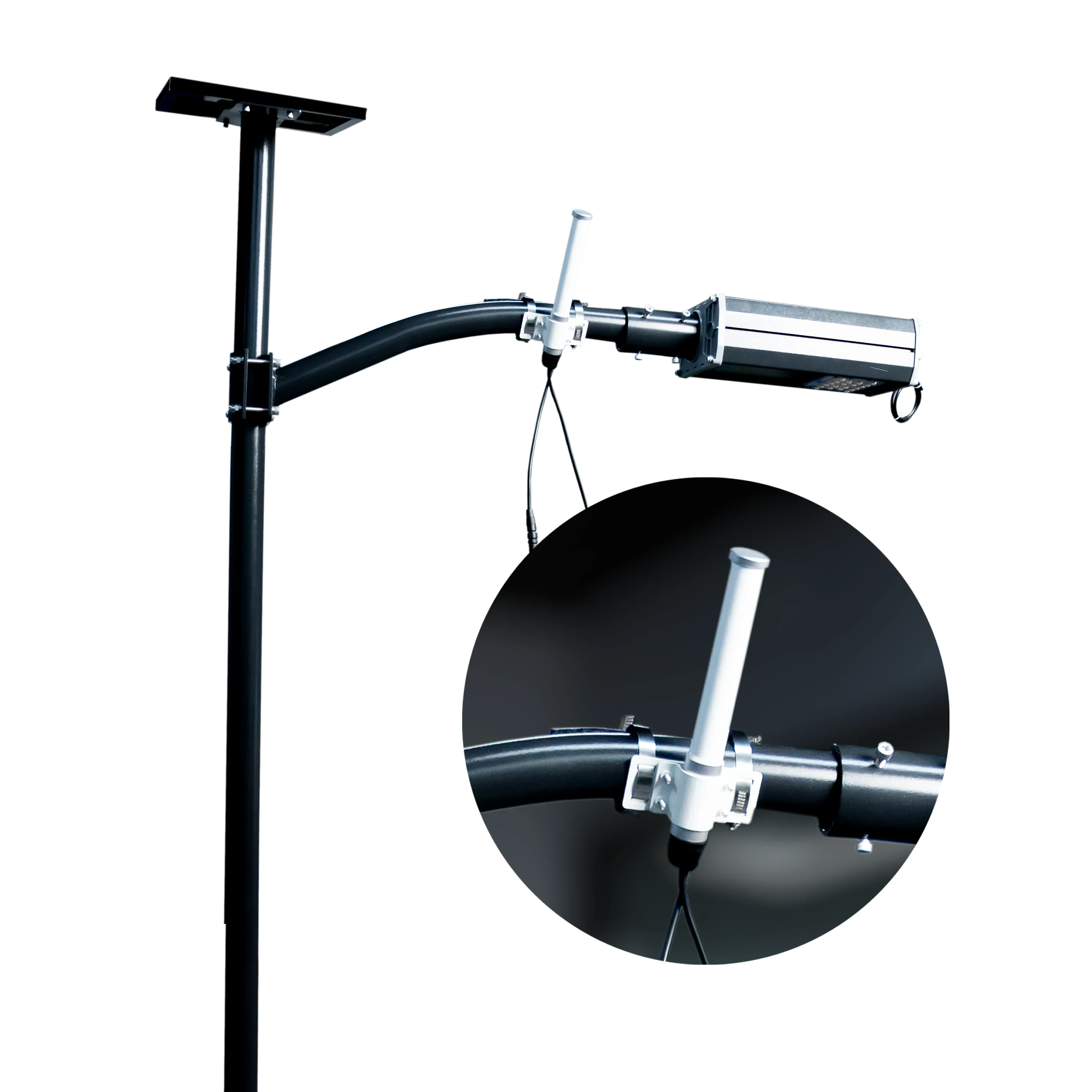

Solar Street Lighting: Connects and monitors solar equipment, including controllers and inverters.
-
Remote Equipment Monitoring: Ideal for IoT connectivity in remote or outdoor environments.
-
Environmental Monitoring: Centralized data collection for systems like water and gas metering.
The included cable simplifies connectivity and ensures your devices run seamlessly.
Simplified Configuration with IO.box
The IO.box streamlines LoRaWAN device setup, providing:
-
Step-by-Step Configuration: Intuitive interface for LoRaWAN and Modbus settings.
-
Real-Time Data Testing: Verify Modbus, DI, and DO data accuracy during setup.
-
Auto Channel and LNS Integration: Optimize frequency settings and streamline connections with LoRa Network Servers like ChirpStack.
Compatible with Windows, Mac, and Linux, the IO.box saves time, especially for large-scale deployments.
Need More Interfaces?
If your setup requires Digital Input (DI) or Digital Output (DO) capabilities, consider the RAK2461. This versatile indoor solution supports RS485, relay (DO), and photocoupler (DI).
Package Inclusions
-

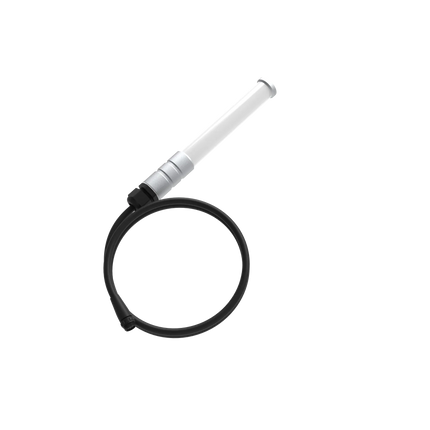

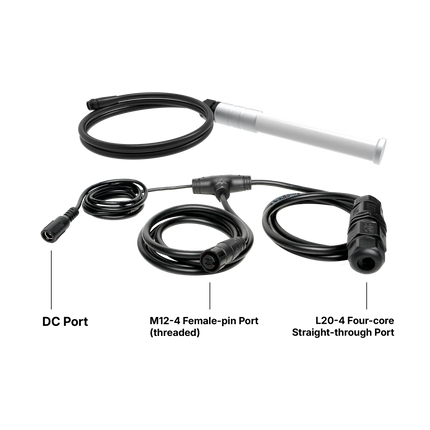

1x RAK2470 WisNode Bridge Serial Prime
-
1x Mounting Kit
-
2x Pole Mounting Brackets

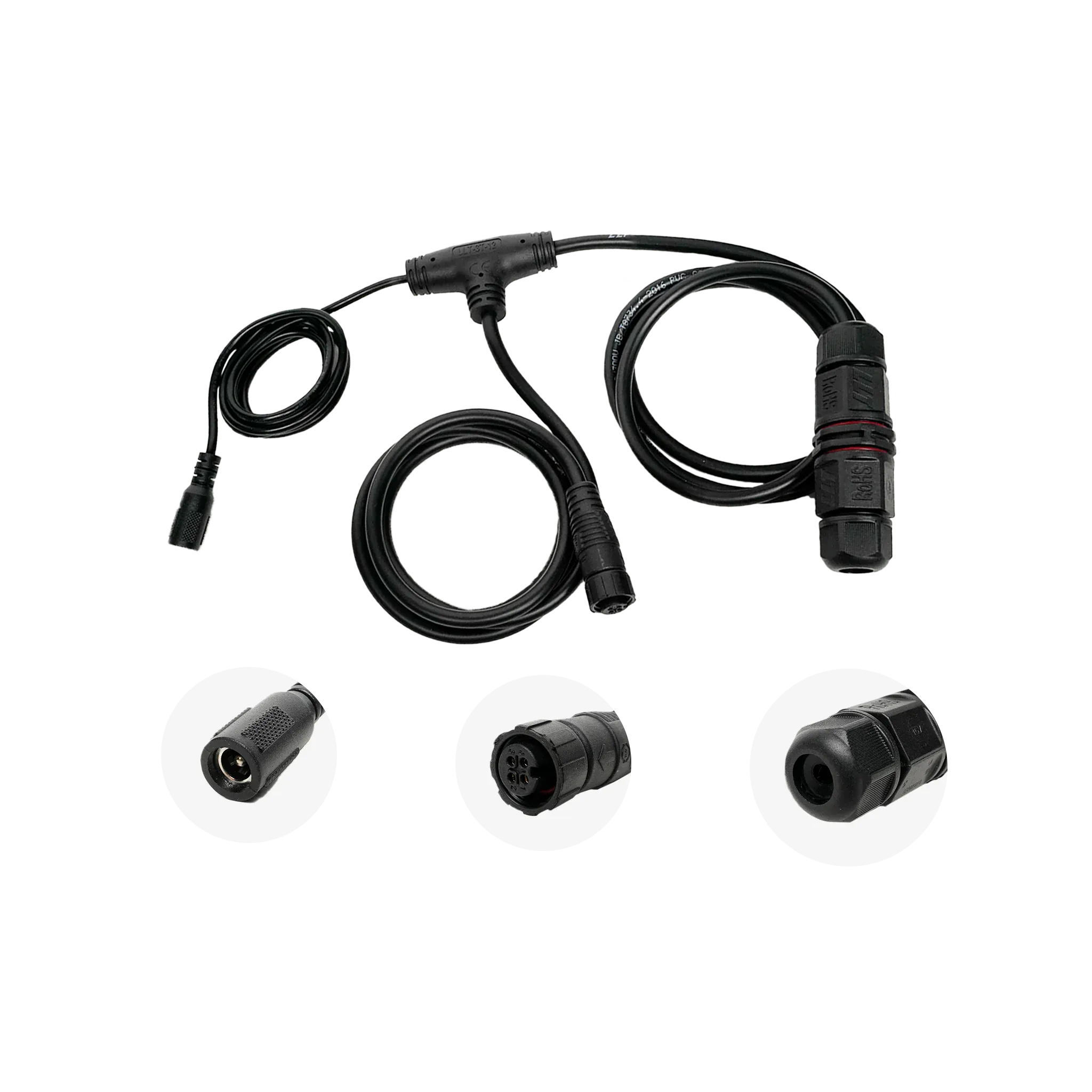

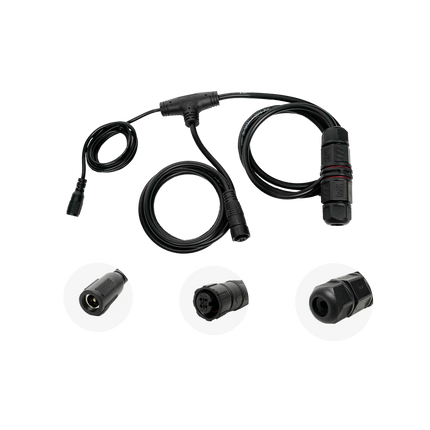

- 1x T-Type Cable
-
1x Power Adapter
FAQs
-
Q: Do I need a configuration cable for each RAK2470?
A: No, one configuration cable can be reused across multiple devices, making it cost-effective for larger deployments.
-
Q: Can I customize the T-Type cable length?
A: Yes, with MoQ we can customise the cable length
