Wio Tracker L1 Pro for Meshcore GPS Tracker
The Wio Tracker L1 Series is a low-power, rechargeable battery and durable 3D-printed enclosure. Built for field use with no assembly required. Wio Tracker L1 Pro for Meshcore comes with pre-flashed Meshcore Bluetooth Companion firmware.

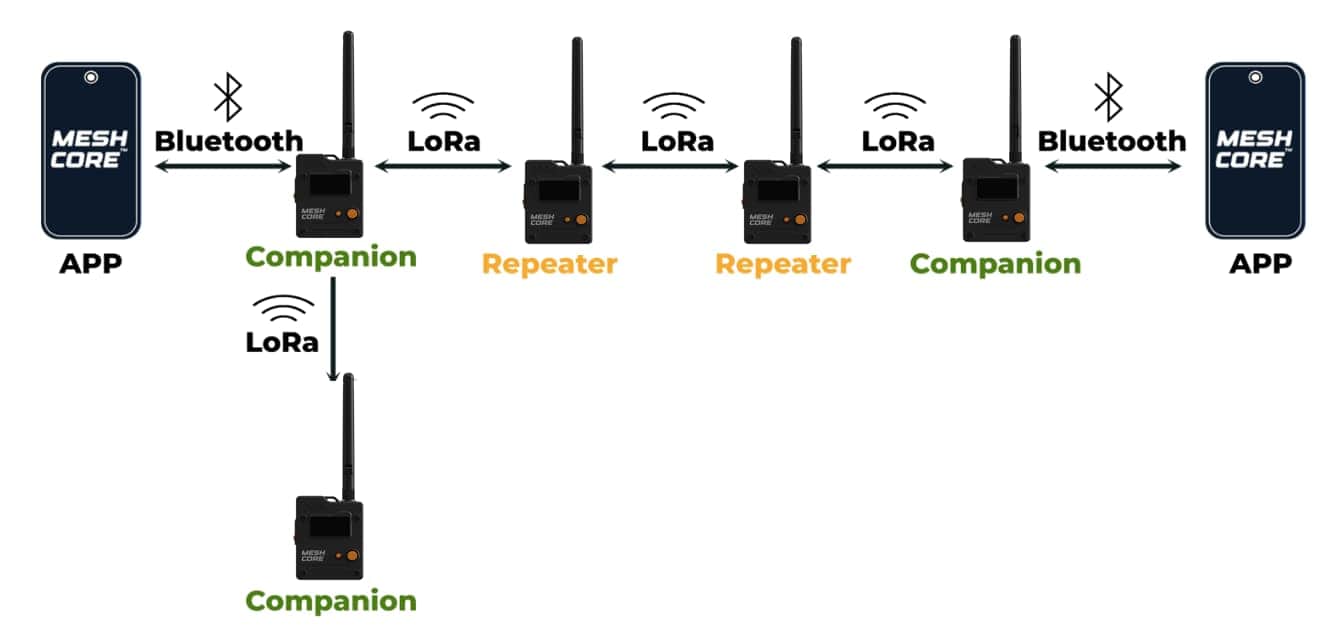

MeshCore is a multi platform system for enabling secure text based communications utilising LoRa radio hardware. It can be used for Off-Grid Communication, Emergency Response & Disaster Recovery, Outdoor Activities, Tactical Security including law enforcement, private security and also IoT sensor networks.
Wio Tracker L1 Pro for Meshcore comes with pre-flashed Meshcore Bluetooth Companion firmware. If you want to buy L1 Pro with pre-flashed Meshtastic firmware, please click here to buy.

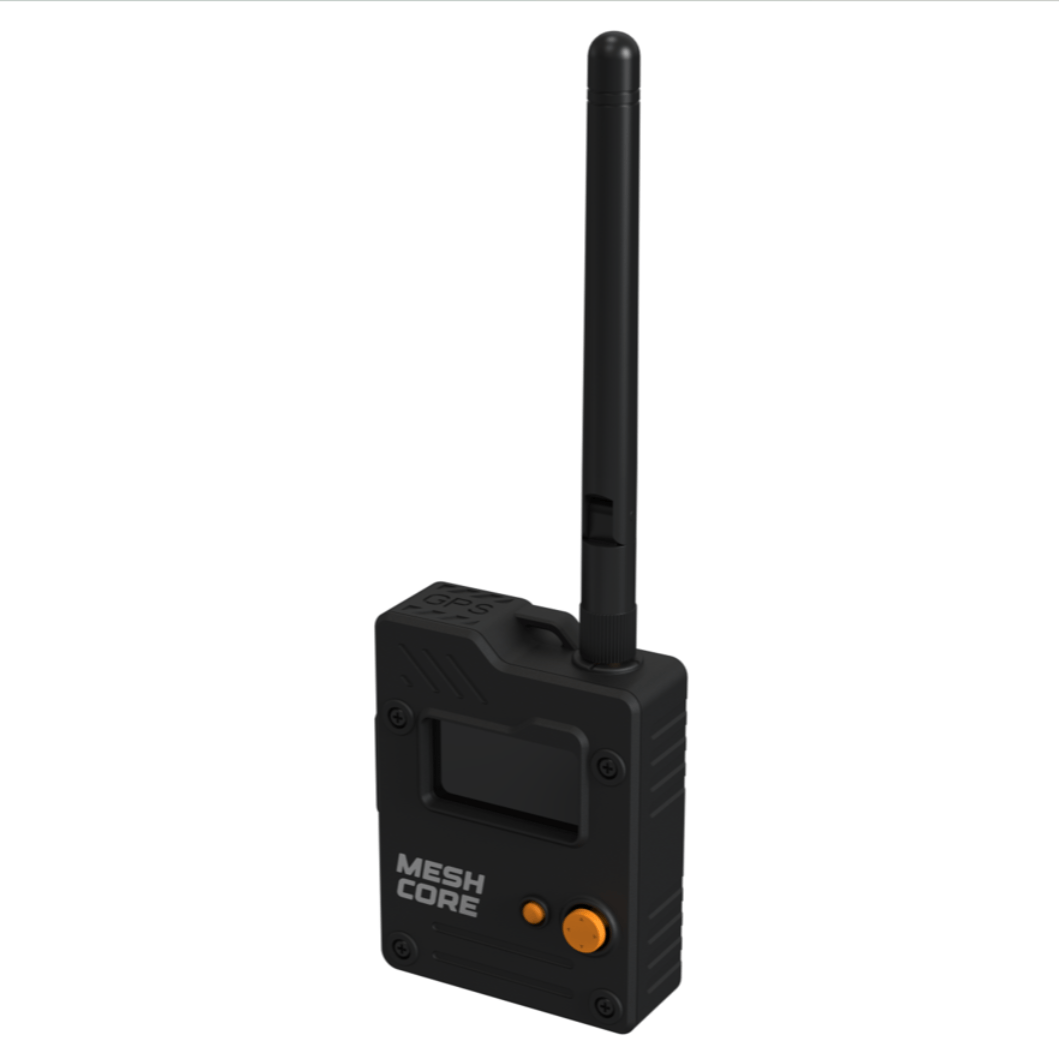

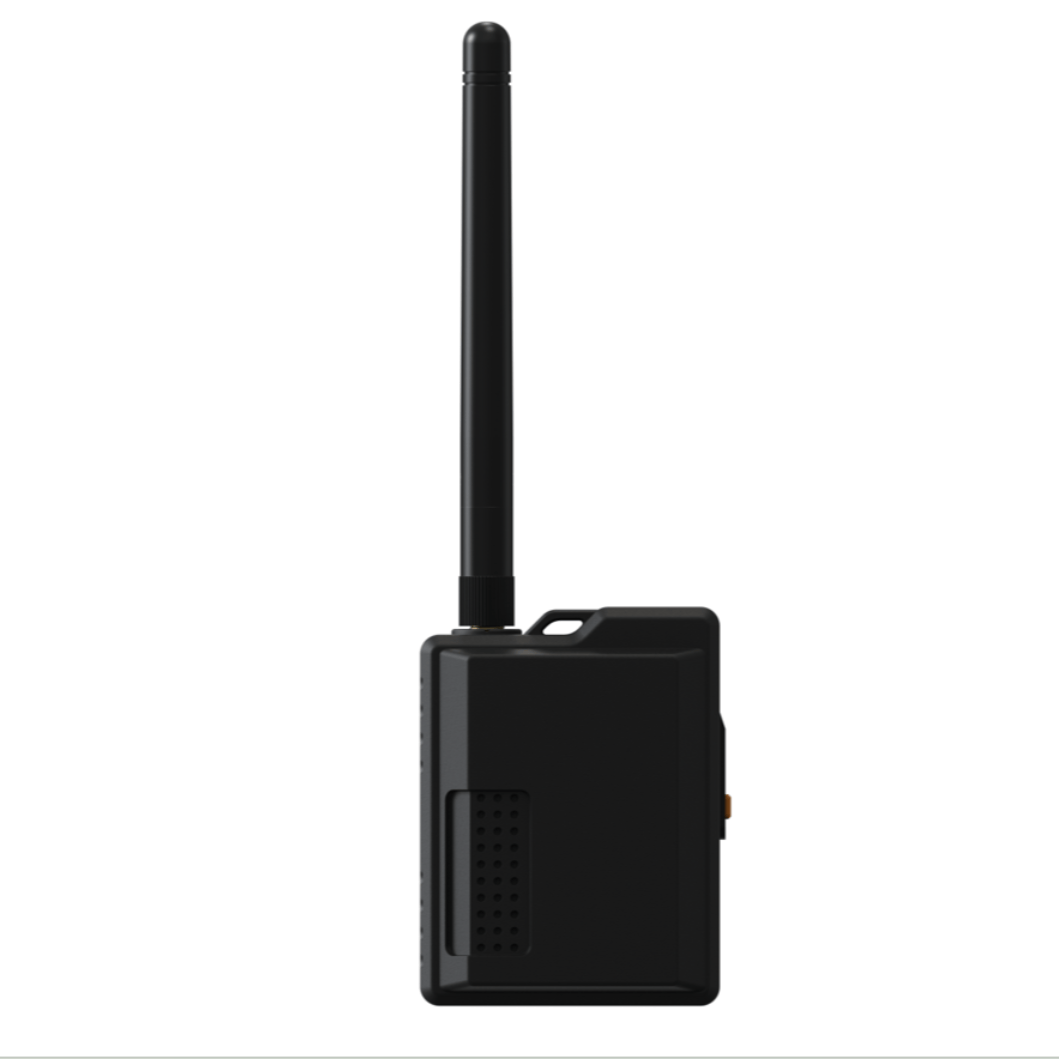

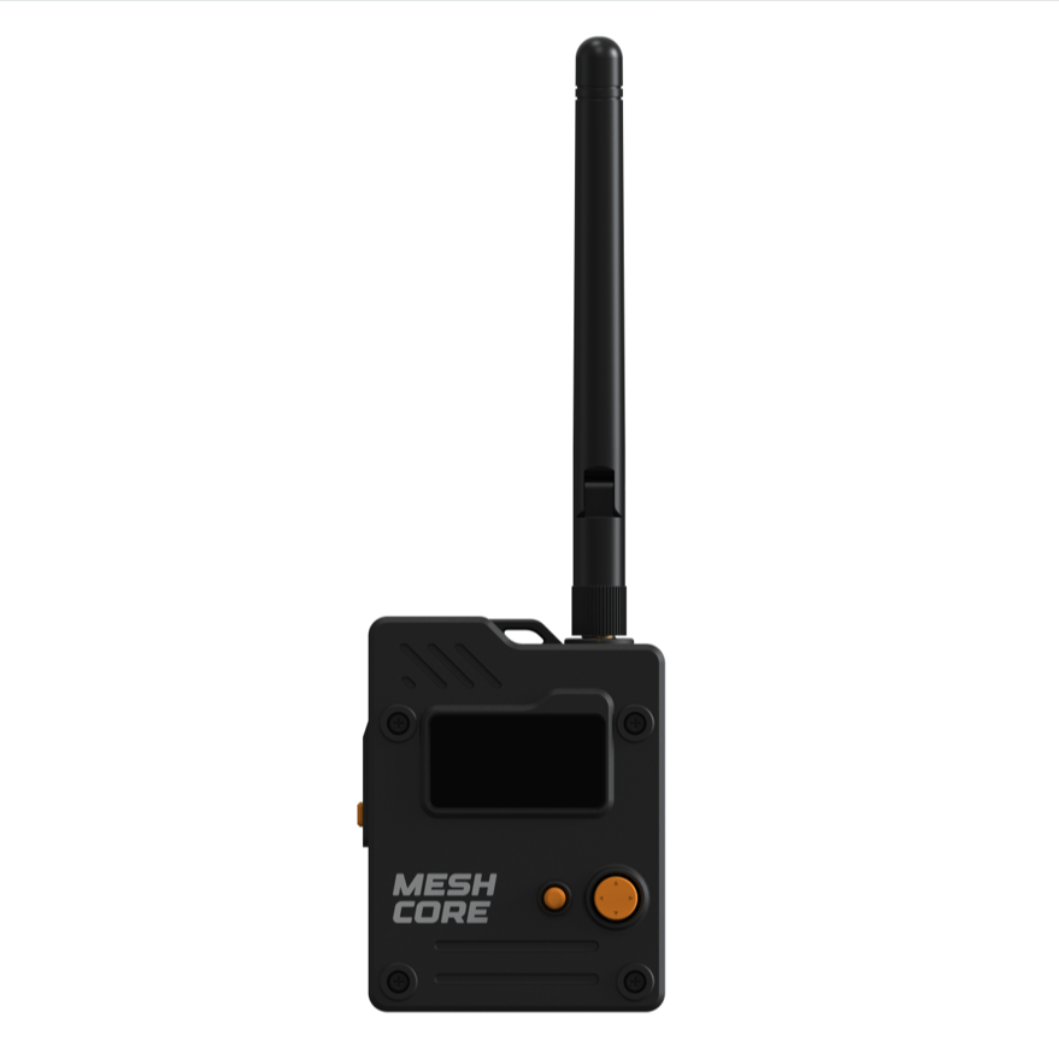

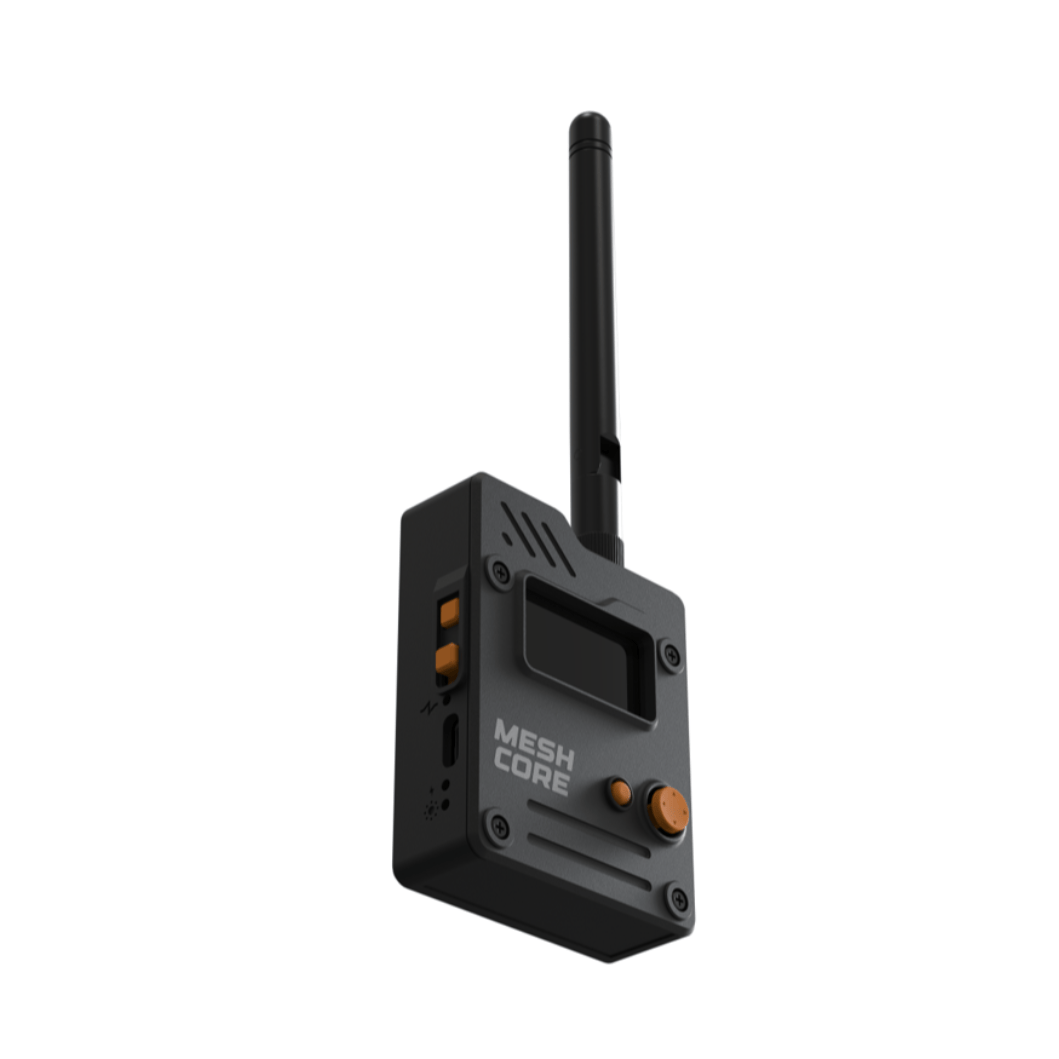

Ready-to-Use 3D-Printed Enclosure

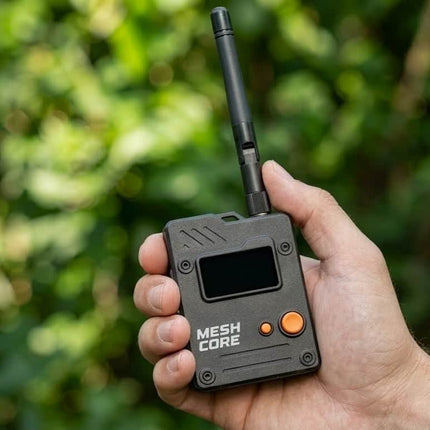

The L1 Pro comes with a rugged, lightweight 3D-printed enclosure designed for immediate use—no additional assembly needed. Whether handheld or clipped onto gear, it’s built for adventure in any environment.
Pre-flashed with Meshcore firmware
Ready to use out of the box with pre-installed Meshcore Bluetooth Companion firmware for seamless setup.
Triple Power Supply Options
Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.
|
Processor
|
Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz
|
|
On-chip Memory
|
1 MB flash and 256 kB RAM
|
|
Wireless
|
LoRa: Based on Wio-SX1262 Wireless Module, supports 862-930MHz
|
|
Bluetooth 5.0
|
|
GPS
|
L76K(GPS,BeiDou,GLONASS,QZSS)
|
|
OLED Display
|
Size: 1.3 inch
|
|
Resolution: 128*64 pixels
|
|
Active Area(mm): L34.5*W23.0*H1.47
|
|
Power
|
Type-C: 5v---1A
|
|
Solar energy interface(2.0mm 2p):5V---1A
|
|
Baterry interface(1.0mm 2p JST): 3.7v---1A
|

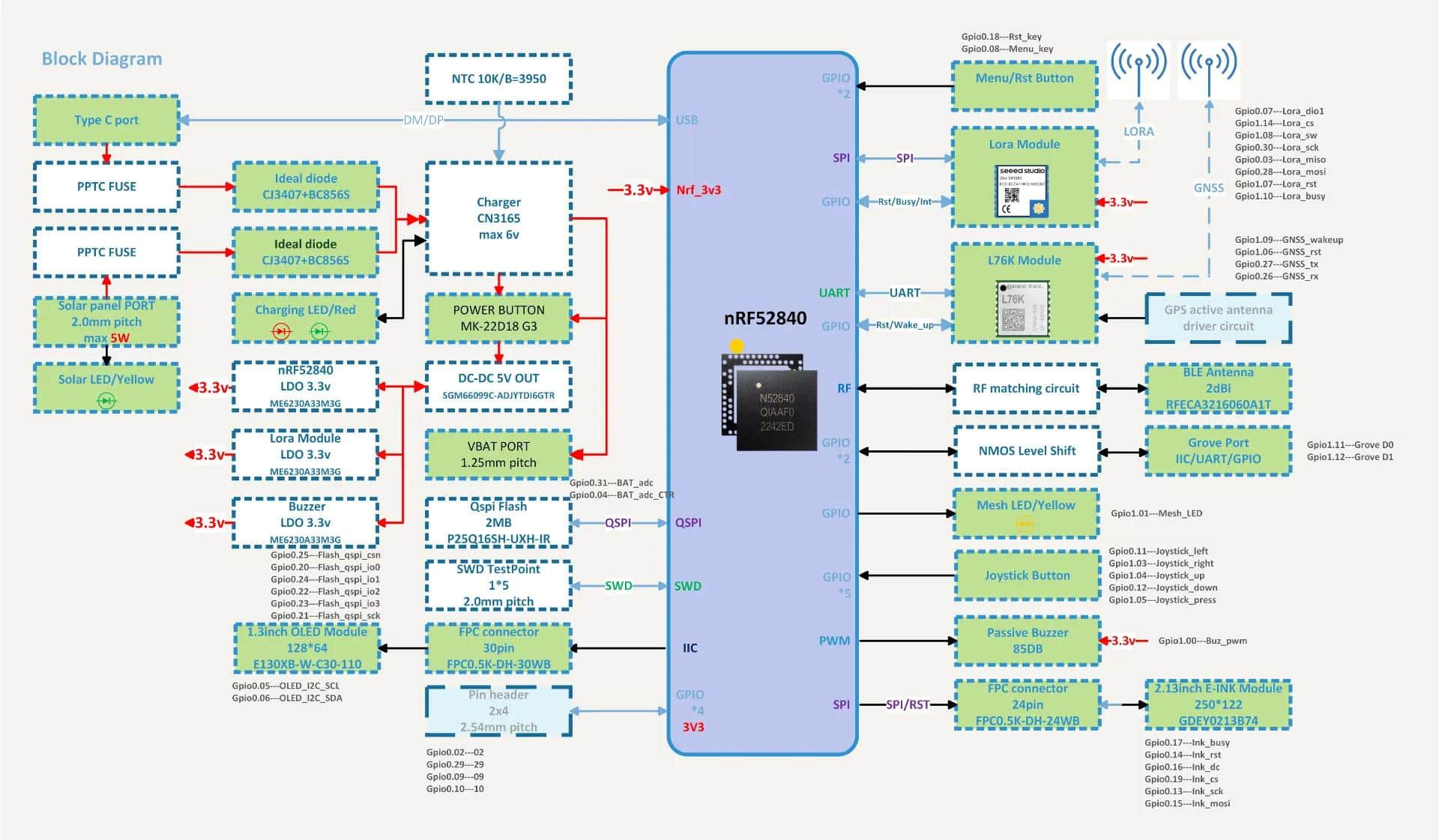

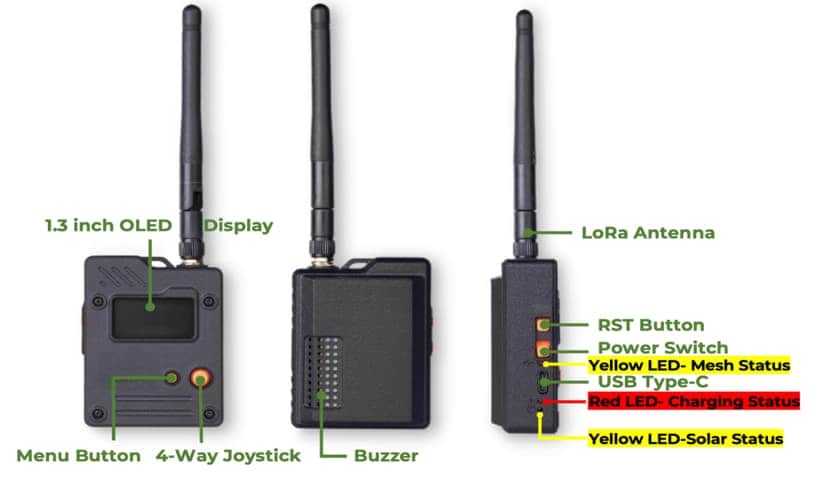

Hardware Overview:
