WisMesh Station HP Raspberry Pi Meshtastic High Power RAK13302 1W

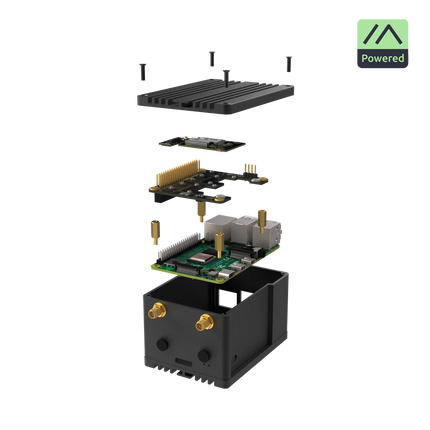

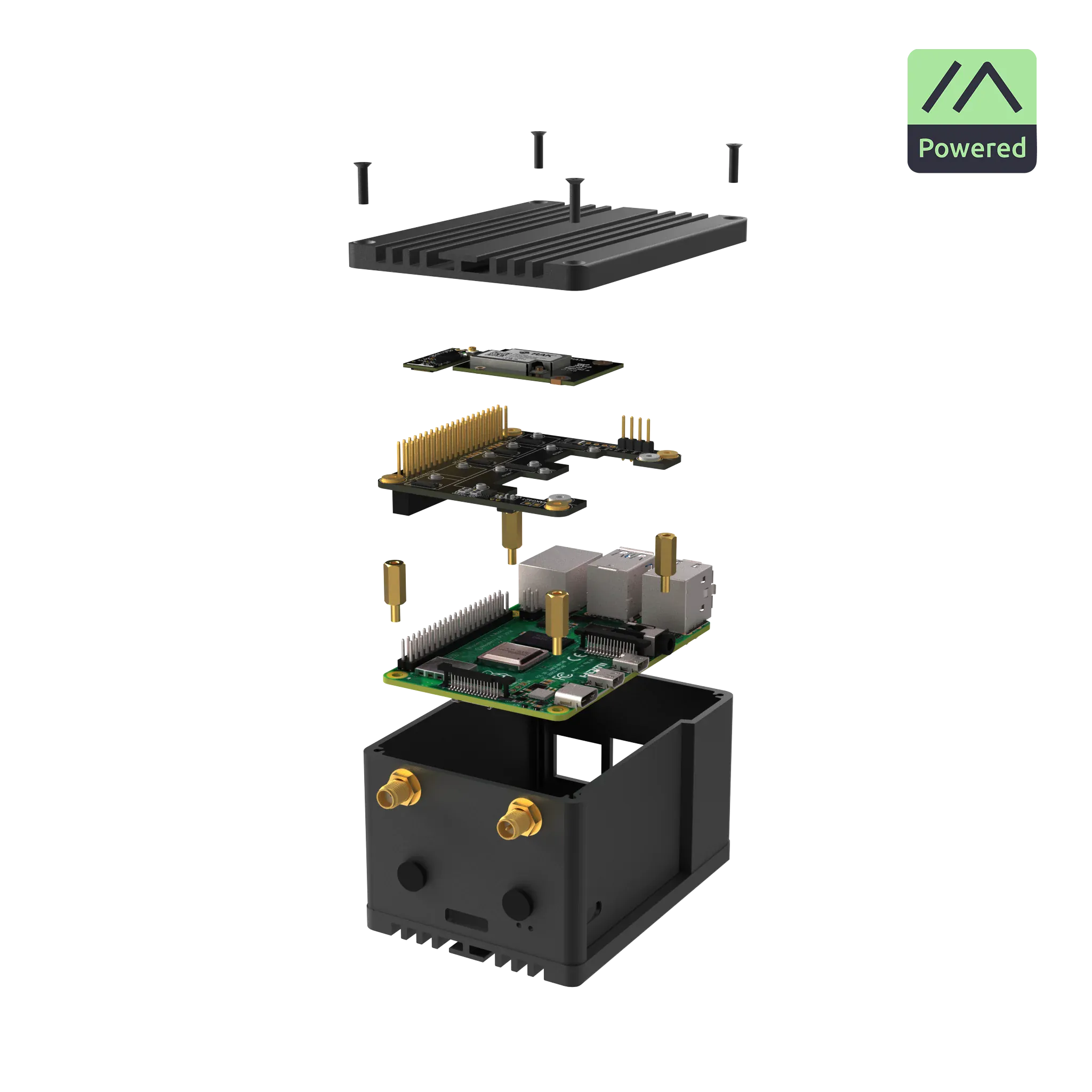

WisMesh Station HP is a ready-to-run Meshtastic gateway and base station built for fixed, always-on deployments. It combines Raspberry Pi 4 computing, LoRa mesh communication, local MQTT processing, and WisBlock expansion in one enclosed system, so users can deploy faster without assembling and configuring separate parts.
Available in standard-power and high-power variants, it gives users a clear choice based on coverage needs, whether for urban mesh networks, relay nodes, or long-range rural installations.
|
Option
|
Radio Module
|
Output Power
|
Best For
|
|
High Power
|
RAK13302
|
30 dBm (1W)
|
Long-range / mountaintop / rural
|
With pre-installed meshtasticd, Mosquitto, Node-RED, and Grafana, the system is ready for communication, monitoring, and local data handling out of the box. Support for GNSS and WisBlock sensor modules also makes it suitable for location-aware mesh infrastructure, environmental monitoring, and custom gateway deployments.
Why Use a Ready-to-Run Meshtastic Gateway Instead of DIY?
Deploying a reliable mesh network often requires assembling hardware, configuring software, and managing integration. This system reduces setup time and simplifies deployment, allowing faster rollout of communication and monitoring infrastructure.
Why it’s useful:
-
Faster deployment: Pre-configured system reduces setup time and avoids manual integration steps
-
Independent operation: Runs locally without relying on internet or cloud services
-
Flexible expansion: Supports sensors, GPS, and IO modules for evolving requirements
-
Scalable coverage: Enables both local networks and long-range backbone connections
How WisMesh Station Works in a LoRa Mesh Network

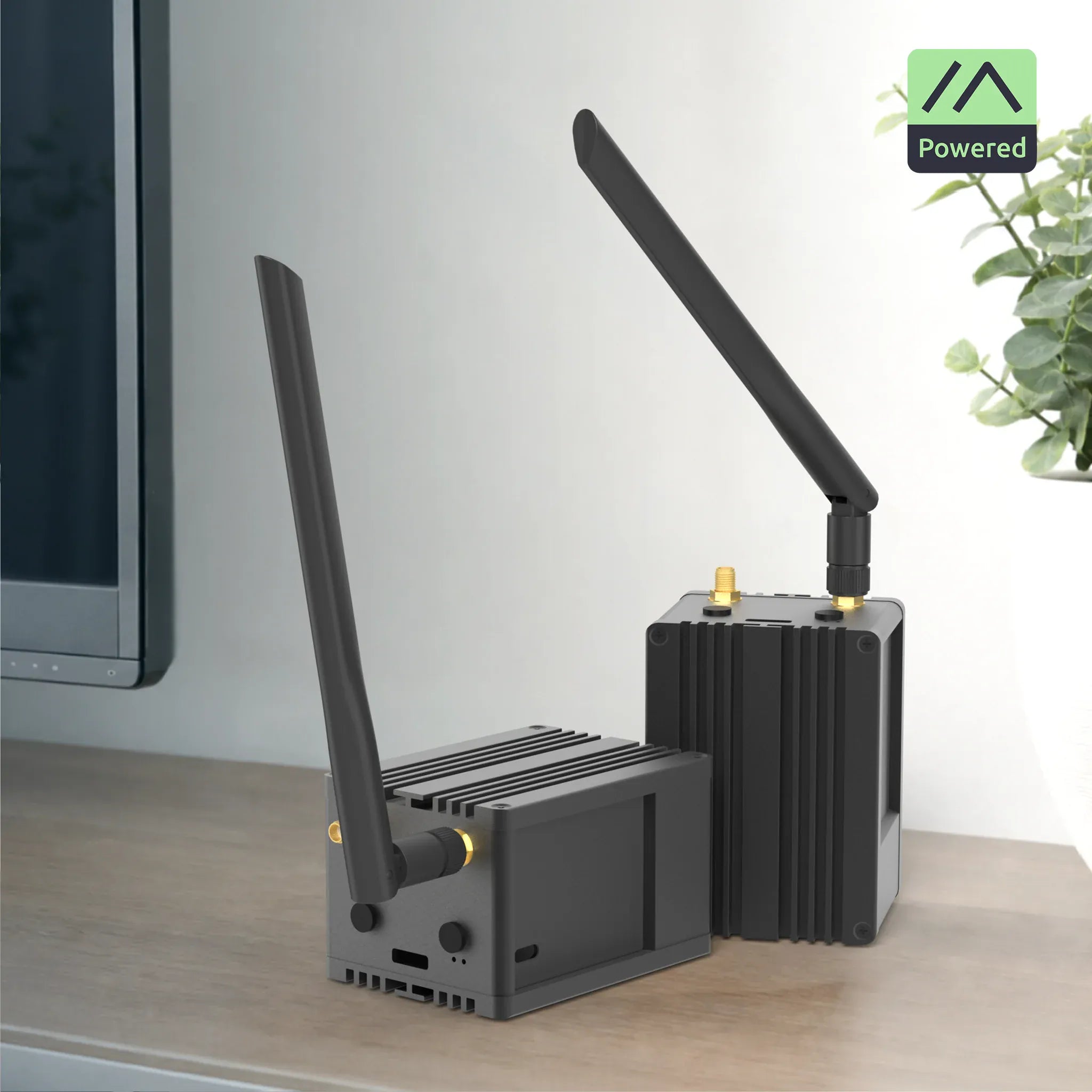

WisMesh Station HP works as a fixed, always-on Meshtastic node in a LoRa mesh network. It receives and relays packets between nearby nodes to help extend coverage and improve network stability. With Raspberry Pi 4 and pre-installed meshtasticd, it also supports local MQTT processing and connected sensor data without relying on cloud services.
Key Features of the WisMesh Station HP
|
Form Factor
|
RAK7248 Industrial Enclosure
|
|
Dimensions
|
92mm x 68.3mm x 57.5mm (L x W x H)
|
|
Weight
|
630g
|
|
Material
|
Full Metal Enclosure
|
|
Mainboard
|
Raspberry Pi 4
|
|
Expansion
|
RAK6421 with WisBlock support
|
|
Power Input
|
USB-C / DC jack (5V)
|
|
Radio Options
|
RAK13302 (1W SX1262)
|
|
Sensor Support
|
WisBlock I²C + IO sensors
|
|
Preinstalled Software
|
Meshtasticd + MQTT broker (Mosquitto)
|
|

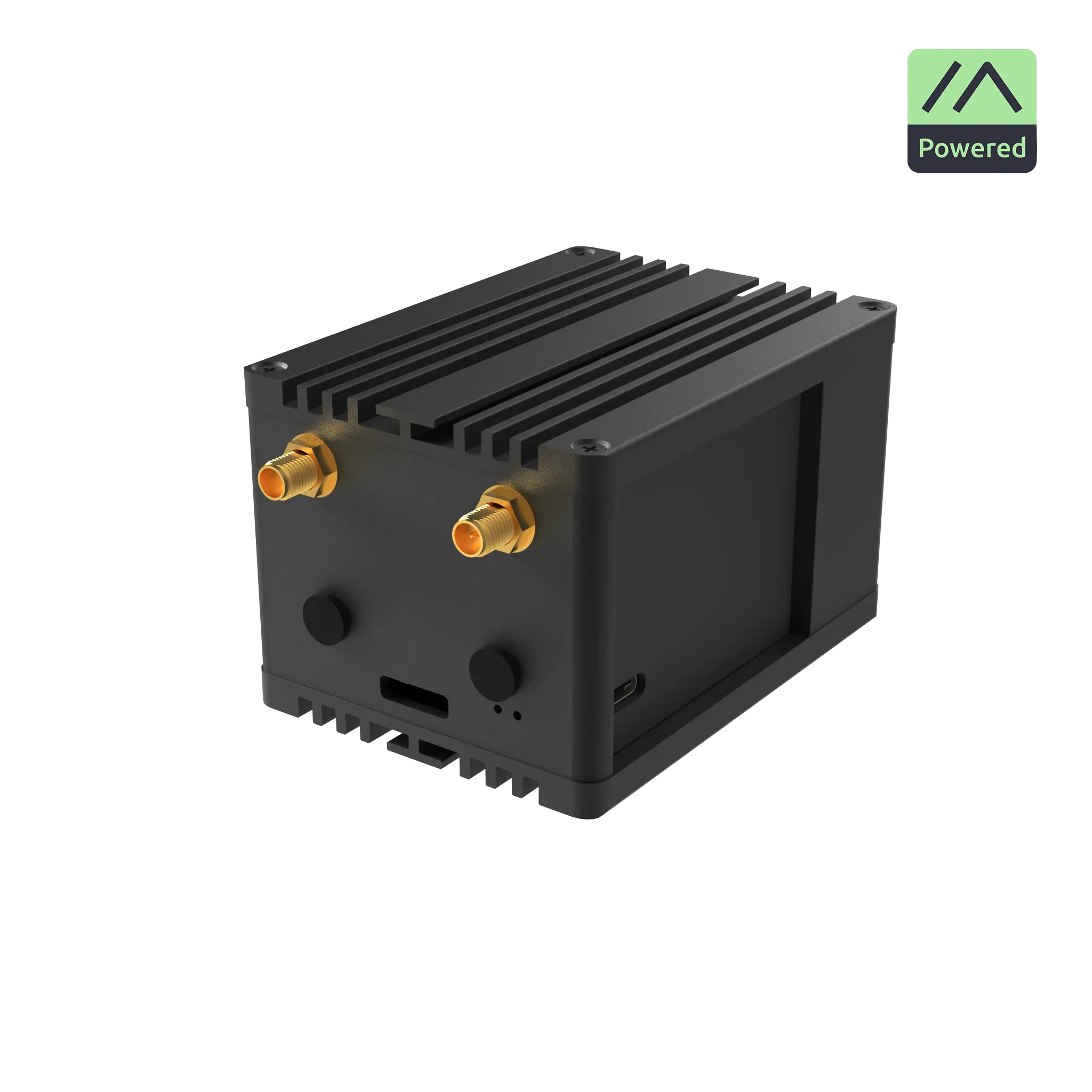

Antenna Port
|
- RP-SMA Female, supports external high-gain LoRa antenna
- SMA Female, supports external GPS antenna
|
Deployment Scenarios
WisMesh Station HP can be deployed across different environments, depending on coverage needs and network layout.
Urban
Suitable for dense mesh networks where nodes are closer together and stable local coverage is the priority.
Rural
Well suited for longer-range links, relay points, and wider-area communication with fewer obstacles.
Off-grid
Supports independent operation for remote monitoring and local data handling without relying on cloud connectivity.
Compatible Sensor Modules (WisBlock)
|
Name
|
Type
|
|
RAK12501
|
GPS
|
|
RAK1901
|
Temperature + Humidity
|
|
RAK1902
|
Barometric Pressure
|
|
RAK1906
|
Environment (TVOC, CO2eq)
|
|
RAK12002
|
RTC
|
|
RAK12037
|
Environment (CO2)
|
|
RAK12020
|
Ambient Light
|
|
RAK12019
|
UV Light
|
|
RAK12003
|
IR Temperature
|
|
RAK13300
|
Module for LoRaWAN with Semtech LoRa Chip SX1262
|
|
RAK13302
|
1W Module for LoRa with SX1262 + SKY66122 Booster
|
Sensor support depends on Meshtastic firmware and keeps evolving. Refer to Meshtastic documentation for the latest compatibility.
Use Case Examples for the WisMesh Station HP
A single system supports communication, monitoring, and data handling across different deployment environments, improving reliability and reducing setup complexity for operators.
Use Case #1: Long-Range Relay Node Deployment
A network operator faced limited coverage beyond 2 km using handheld nodes. After installing the high-power variant with GPS logging, tests showed stable 12 km links. Deployment remained repeatable across elevated sites, with users reporting consistent message delivery reliability.
Use Case #2: Environmental Monitoring Gateway
An operations team previously collected manual temperature and air quality readings with inconsistent intervals. After integrating sensors and MQTT locally, they achieved continuous data logging with 98% uptime, validated through weekly checks. Feedback noted more reliable monitoring without external dependencies.
Comparison Table: WisMesh Station HP vs. Alternative Hardware
|
Product
|
Type
|
What It Offers
|
Typical Deployment Fit
|
|
WisMesh Station HP
(This product)
|
Ready-to-run Meshtastic gateway
|
Pre-configured Raspberry Pi-based Meshtastic gateway with LoRa, MQTT, Node-RED, Grafana, enclosure, and WisBlock expansion
|
Fixed, always-on deployments that need faster setup, local processing, and optional sensor integration
|
|
LilyGO Meshtastic Devices
|
Meshtastic hardware / nodes
|
Popular Meshtastic devices for portable and early-stage node deployments
|
Portable nodes, field use, and smaller-scale Meshtastic setups
|
|
Seeed Studio LoRa / SenseCAP / Raspberry Pi Solutions
|
Commercial LoRa hardware
|
Broad LoRa and Raspberry Pi hardware ecosystem for IoT deployments
|
General LoRa and IoT projects with flexible hardware selection
|
|
Waveshare SX1262 LoRa Raspberry Pi HAT
|
LoRa add-on hardware
|
Raspberry Pi LoRa hardware for users building their own systems
|
Custom Raspberry Pi-based LoRa builds and hardware-driven integrations
|

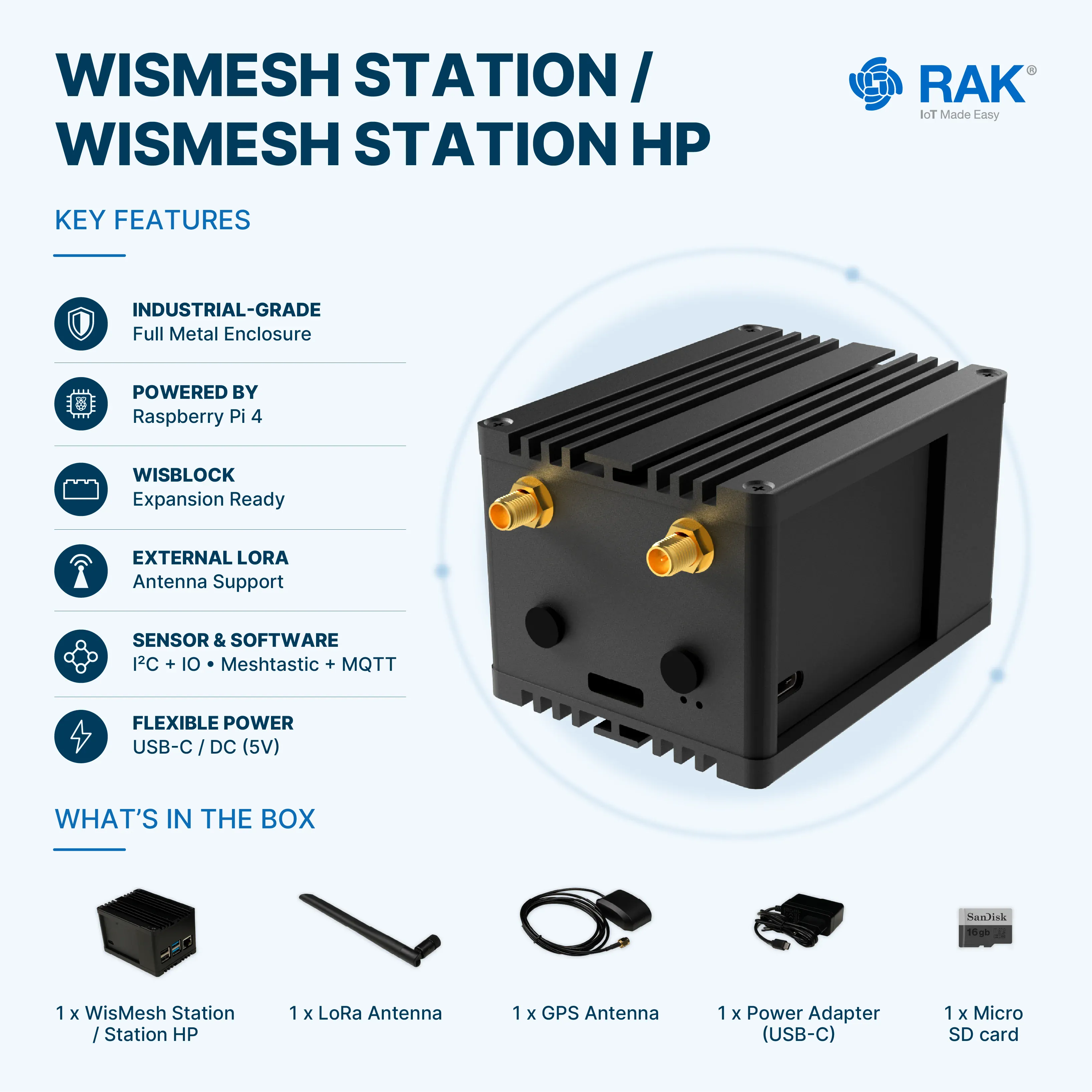

What’s in the Box
- 1 pc WisMesh Station HP
- 1 pc LoRa Antenna
- 1 pc GPS Antenna
- 1 pc Power Adapter
- 1 pc SD Card (16GB)
